Jenkins怎么自动发布SpringBoot项目 Jenkins入门基础 Jenkins怎么打包SpringBoot Jenkins自动化打包 Jenkins在Linux下自动打包运行项目

深碍√TFBOYSˉ_ 2022-11-11 14:49 266阅读 0赞

#### 0.待发布的项目须得有项目构建工具 ####

比较常见的项目构建工具有Maven、Gradle，Jenkins可以利用这些项目构建工具的命令实现自动打包。
此教程需要系统上的安装好以下工具：

*  Git
 *  Maven
 *  JDK
 *  准备好构建的项目，这里以一个SpringBoot为例，pom.xml里面记得带上Maven的构建插件

<build>
            <plugins>
                <plugin>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-maven-plugin</artifactId>
                </plugin>
            </plugins>
        </build>

#### 1.下载一些必须的Jenkins插件 ####

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70]

1.  SSH
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 1]
2.  Gitee
    因为我的项目是放在Gitee上的，如果项目在GitLab、SVN或者GitHub上，分别下载对应的Git插件就行了
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 2]
3.  Maven
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 3]

#### 2.配置Jenkins的全局变量 ####

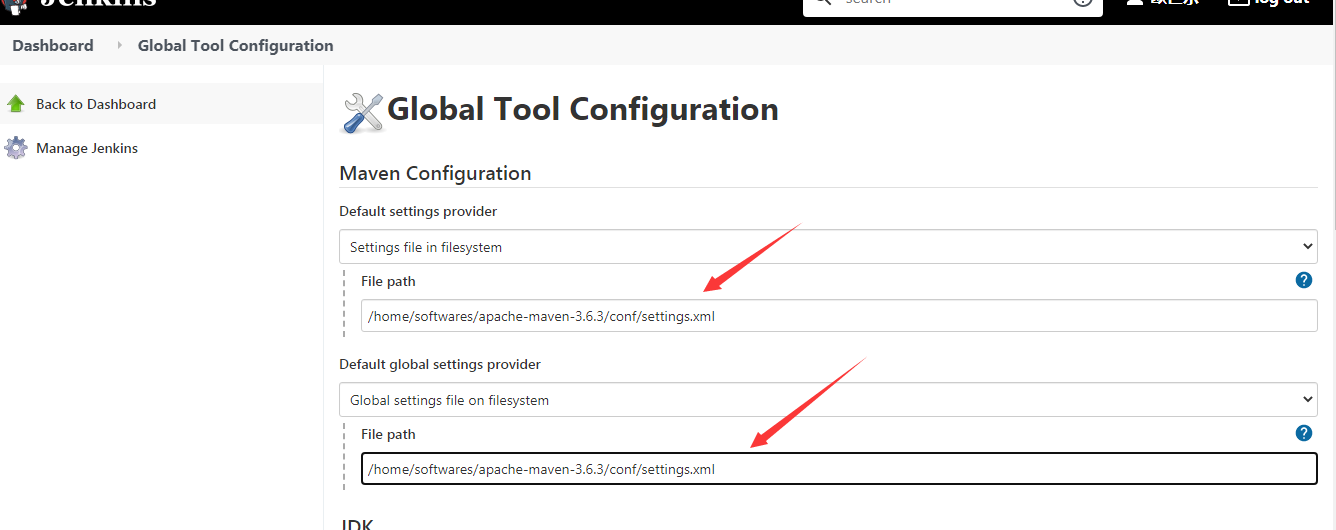

*  把Maven配置改为Linux系统上的配置
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 4]

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 5]

*  取消勾选Maven自动安装
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 6]
 *  自定义一个Maven名字，输入Maven的安装目录
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 7]
 *  同理配置JDK
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 8]

#### 3. 配置Jenkins的SSH ####

1.  添加Credential
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 9]
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 10]
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 11]
2.  输入服务器的账号和密码
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 12]
    同理配置一个Gitee账号和密码的Credential方便拉取项目
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 13]

3.保存Credentials

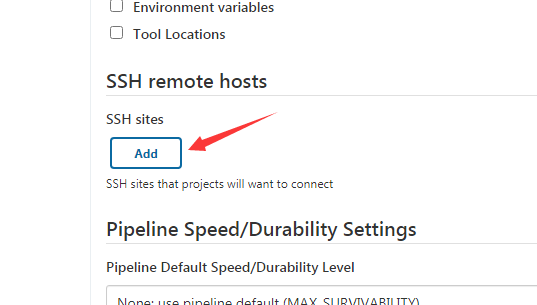

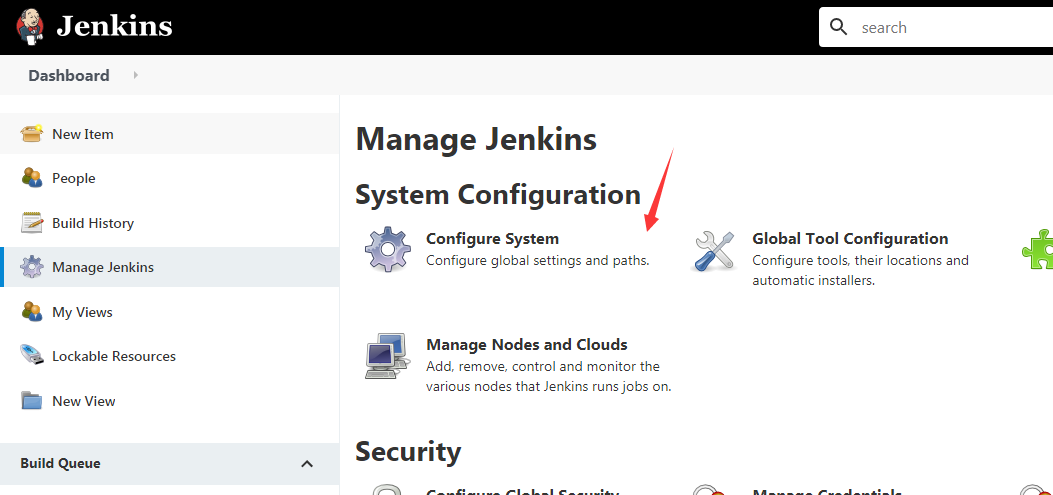

*  配置SSH
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 14]

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 15]

*  输入服务器的地址、端口，选择刚才配置的Credential
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 16]
 *  Check一下链接是否通了
    ![在这里插入图片描述][20210321101828405.png]

#### 4.配置策略 ####

*  选择简单的配置即可
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 17]

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 18]

#### 5.创建Jenkins的Maven项目 ####

*  选择构建一个Maven项目，取个名字
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 19]

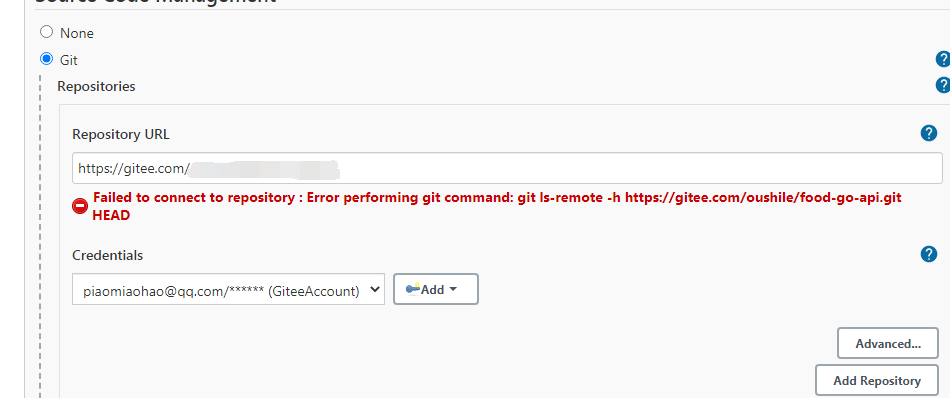

 *  输入Git地址，选择配置好Git的账号和密码
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 20]
 *  选择分支，我的项目是以默认的Master分支的![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 21]
 *  输入Maven打包命令
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 22]

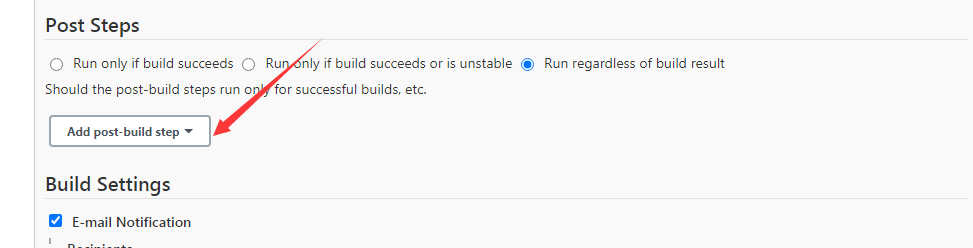

 *  输入构建操作
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 23]

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 24]

*  输入脚本命令

Jenkins利用Maven打包生成的jar包默认放在java -jar /usr/lib/jenkins/workspace/项目名称/target/下，根据自己的实际项目名进行更改

nohup java -jar /usr/lib/jenkins/workspace/FoodGoAPI/target/foodgoapi-0.0.1-SNAPSHOT.jar &

*  保存

#### 6.运行Jenkins ####

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 25]

*  运行完毕后即可访问接口

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNTc2MDI4_size_16_color_FFFFFF_t_70 26]
