SpringBoot微服务打包docker镜像

以你之姓@ 2023-10-11 14:52 14阅读 0赞

**创建一个boot工程**

<?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    	<modelVersion>4.0.0</modelVersion>
    	<parent>
    		<groupId>org.springframework.boot</groupId>
    		<artifactId>spring-boot-starter-parent</artifactId>
    		<version>2.3.4.RELEASE</version>
    		<relativePath/>
    	</parent>
    	<groupId>com.example</groupId>
    	<artifactId>demo</artifactId>
    	<version>0.0.1-SNAPSHOT</version>
    	<name>demo</name>
    	<description>Demo project for Spring Boot</description>

    	<properties>
    		<java.version>11</java.version>
    	</properties>

    	<dependencies>
    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-web</artifactId>
    		</dependency>

    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-test</artifactId>
    			<scope>test</scope>
    			<exclusions>
    				<exclusion>
    					<groupId>org.junit.vintage</groupId>
    					<artifactId>junit-vintage-engine</artifactId>
    				</exclusion>
    			</exclusions>
    		</dependency>
    	</dependencies>

    	<build>
    		<plugins>
    			<plugin>
    				<groupId>org.springframework.boot</groupId>
    				<artifactId>spring-boot-maven-plugin</artifactId>
    			</plugin>
    		</plugins>
    	</build>

    </project>

*  编写一个controller

@RestController
    public class IndexController {


        @GetMapping("/index")
        public String index(){

            return "success";
        }

    }

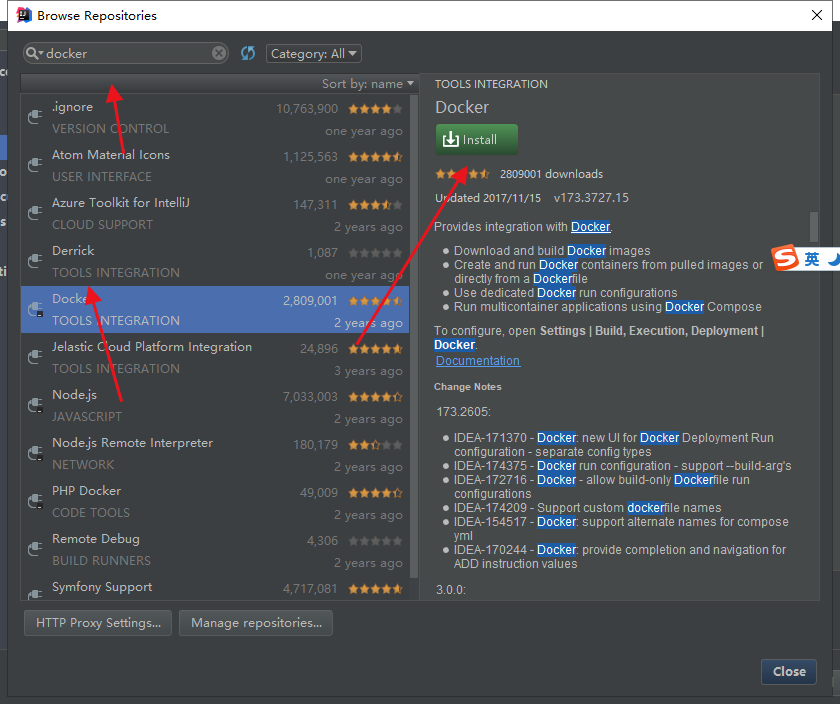

*  安装Docker插件

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNzUwNjU2_size_16_color_FFFFFF_t_70_pic_center]

*  编写dockerfile

FROM java:8

    COPY *.jar /app.jar

    CMD ["--server.port=8080"]

    EXPOSE 8080

    ENTRYPOINT ["java","-jar","/app.jar"]

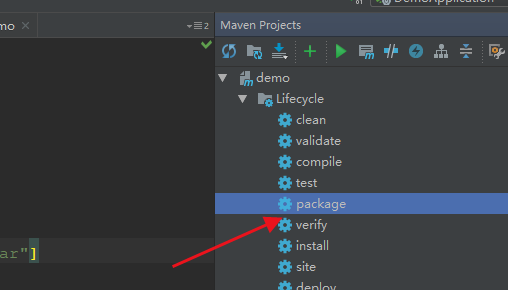

*  打包服务

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNzUwNjU2_size_16_color_FFFFFF_t_70_pic_center 1]

*  将jar包和Dockerfile拷贝到/home/myboot目录下

![在这里插入图片描述][20201015085226601.png_pic_center]

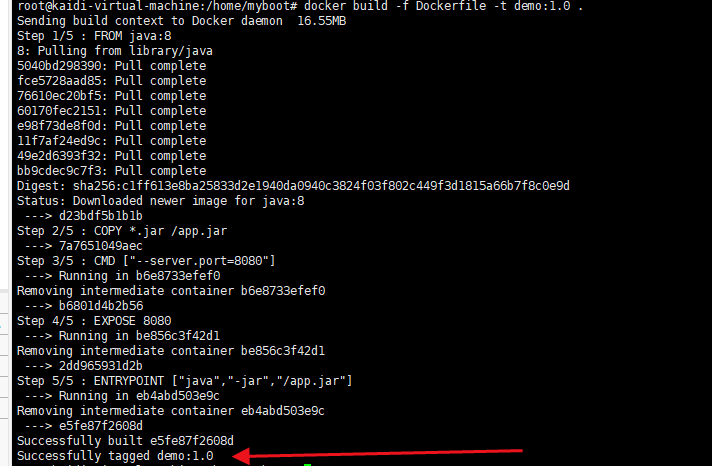

*  构建镜像

docker build -f Dockerfile -t demo:1.0 .

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQzNzUwNjU2_size_16_color_FFFFFF_t_70_pic_center 2]

*  运行这个镜像，并映射端口

docker run -d -it -p8080:8080 --name demo01 demo:1.0

![在这里插入图片描述][2020101508580797.png_pic_center]

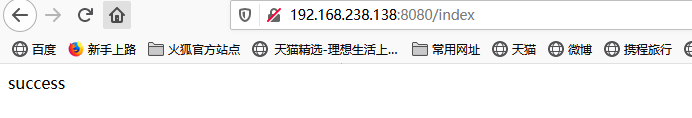

*  访问 虚拟机ip加8080/index

![在这里插入图片描述][20201015085842791.png_pic_center]
构建成功！
