Dubbo集成Nacos

灰太狼 2023-02-20 06:56 8阅读 0赞

**一、Nacos配置安装**

可查看：[SpringCloud 集成 Nacos 使用小结][SpringCloud _ Nacos]

**二、Provider工程**

*  pom.xml

<?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
        <modelVersion>4.0.0</modelVersion>
        <parent>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-parent</artifactId>
            <version>2.3.0.RELEASE</version>
            <relativePath/>
        </parent>
        <groupId>com.example</groupId>
        <artifactId>dubbo_client</artifactId>
        <version>0.0.1-SNAPSHOT</version>
        <name>dubbo_client</name>
        <description>Demo project for Spring Boot</description>

        <properties>
            <java.version>1.8</java.version>
            <dubbo.version>2.7.7</dubbo.version>
            <nacos.version>2.1.1.RELEASE</nacos.version>
        </properties>

        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter</artifactId>
            </dependency>

            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-web</artifactId>
            </dependency>


            <dependency>
                <groupId>org.apache.dubbo</groupId>
                <artifactId>dubbo-dependencies-bom</artifactId>
                <version>${dubbo.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>


            <dependency>
                <groupId>org.apache.dubbo</groupId>
                <artifactId>dubbo-spring-boot-starter</artifactId>
                <version>2.7.7</version>
            </dependency>

            <dependency>
                <groupId>org.apache.curator</groupId>
                <artifactId>curator-recipes</artifactId>
                <version>2.13.0</version>
            </dependency>


            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
                <version>${nacos.version}</version>
            </dependency>
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
                <version>${nacos.version}</version>
            </dependency>

            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-test</artifactId>
                <scope>test</scope>
                <exclusions>
                    <exclusion>
                        <groupId>org.junit.vintage</groupId>
                        <artifactId>junit-vintage-engine</artifactId>
                    </exclusion>
                </exclusions>
            </dependency>
            <dependency>
                <groupId>com.example</groupId>
                <artifactId>dubbo_facade</artifactId>
                <version>1.0.0</version>
                <scope>compile</scope>
            </dependency>
        </dependencies>

        <build>
            <plugins>
                <plugin>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-maven-plugin</artifactId>
                </plugin>
            </plugins>
        </build>

    </project>

*  bootstrap.yml

spring:
      application:
        name: dubbo_server

      cloud:
        nacos:
          server-addr: 127.0.0.1:8848
          config:
            namespace: 9c6b8156-d045-463d-8fe6-4658ce78d0cc
            file-extension: yml

    dubbo:
      protocol:
        name: dubbo
        port: 20880
      registry:
        address: nacos://127.0.0.1:8848
      application:
        name: dubbo_server
      consumer:
        timeout: 3000
      scan:
        base-packages: com.example.dubbo.service

*  DubboServerApplication

package com.example.dubbo;

    import org.apache.dubbo.config.spring.context.annotation.EnableDubbo;
    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;

    @EnableDubbo
    @SpringBootApplication
    public class DubboServerApplication {

        public static void main(String[] args) {
            SpringApplication.run(DubboServerApplication.class, args);
        }

    }

package com.example.dubbo.service.impl;

    import com.example.dubbo.facade.service.UserService;
    import org.apache.dubbo.config.annotation.DubboService;
    import org.springframework.stereotype.Component;

    /** * @author liuteng */
    @Component
    @DubboService(timeout = 500, version = "1.0.0", interfaceClass = UserService.class)
    public class UserServiceImpl implements UserService {

        @Override
        public String getUserIdByPhone(String phone) {
            return "1000000101001";
        }

    }

**三、Consumer工程**

*  pom.xml

*  bootstrap.yml

server:
      port: 9090

    spring:
      application:
        name: dubbo_client

      cloud:
        nacos:
          server-addr: 127.0.0.1:8848
          config:
            namespace: 9c6b8156-d045-463d-8fe6-4658ce78d0cc
            file-extension: yml

    dubbo:
      application:
        name: dubbo_client
      registry:
        address: nacos://127.0.0.1:8848
      scan:
        base-packages: com.example.demo.controller

*  DubboClientApplication

package com.example.demo;

    import org.apache.dubbo.config.spring.context.annotation.EnableDubbo;
    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;

    @EnableDubbo
    @SpringBootApplication
    public class DubboClientApplication {

        public static void main(String[] args) {
            SpringApplication.run(DubboClientApplication.class, args);
        }

    }

*  UserController

package com.example.demo.controller;

    import com.example.dubbo.facade.service.UserService;
    import org.apache.dubbo.config.annotation.DubboReference;
    import org.springframework.web.bind.annotation.GetMapping;
    import org.springframework.web.bind.annotation.RequestMapping;
    import org.springframework.web.bind.annotation.RestController;

    /** * @author liuteng */
    @RestController
    @RequestMapping(value = "user/")
    public class UserController {

        @DubboReference(version = "1.0.0")
        private UserService userService;

        @GetMapping(value = "/getUserIdByPhone")
        public String getUserIdByPhone(String phone){
            return userService.getUserIdByPhone(phone);
        }

    }

**四、Facade工程**

*  UserService

package com.example.dubbo.facade.service;

    /** * @author liuteng */
    public interface UserService {

        String getUserIdByPhone(String phone);

    }

**五、工程结构**

├─dubbo_client
        ├─src
        │  ├─main
        │      ├─java
        │      │  └─com
        │      │      └─example
        │      │          └─demo
        │      │              └─controller
        │      │                   └─UserController.java
        │      └─resources
        │      │     └─bootstrap.yml
    ├─dubbo_facade
        ├─src
        │  └─main
        │      ├─java
        │      │  └─com
        │      │      └─example
        │      │          └─dubbo
        │      │              └─facade
        │      │                 └─service
        │      │                     └─UserService.java
    └─dubbo_server
        ├─src
        │  └─main
        │      ├─java
        │      │  └─com
        │      │      └─example
        │      │          └─dubbo
        │      │              └─service
        │      │                  └─impl
        │      │                      └─UserServiceImpl.java
        │      └─resources
        │      │     └─bootstrap.yml

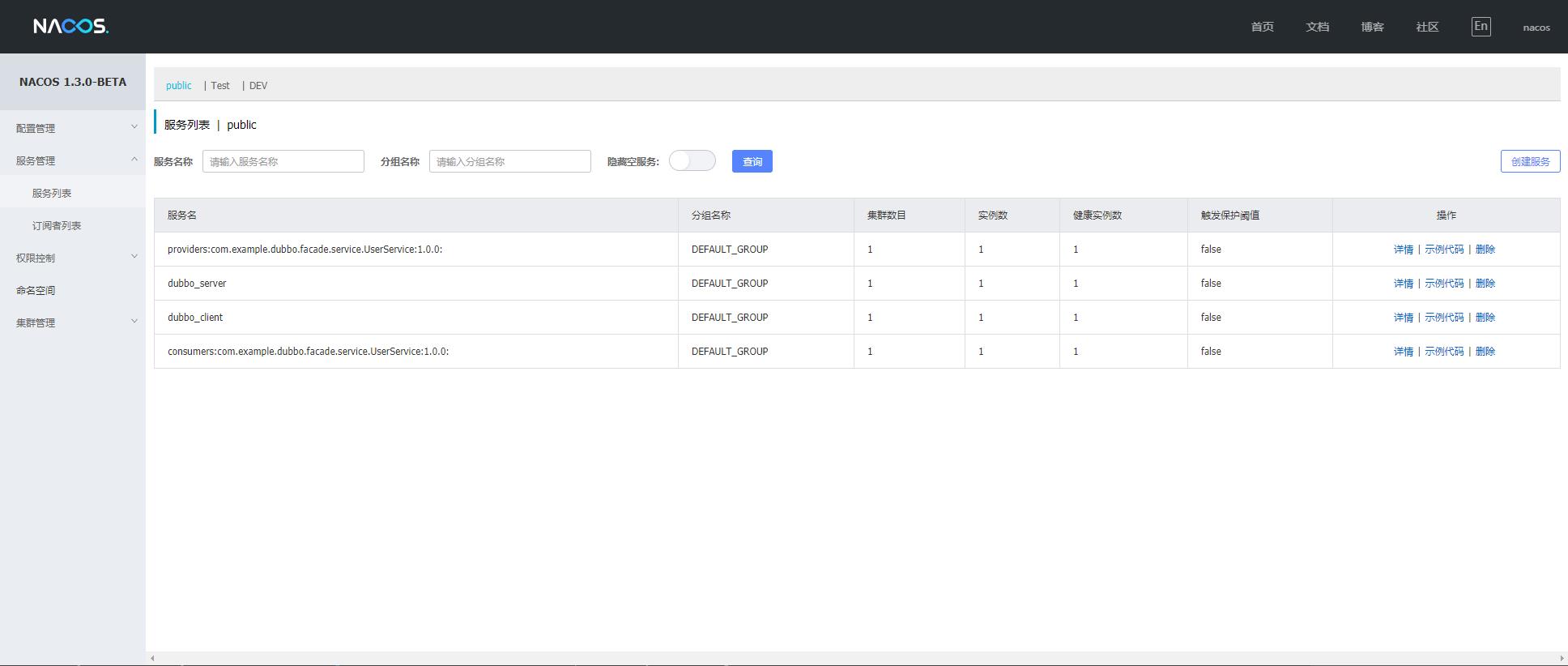

**六、Nacos平台**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODQyMjI1OA_size_16_color_FFFFFF_t_70]
