## 如何配置SVN的服务器端和客户端 ##

好些小伙伴儿在开发的时候都会遇到一个比较麻烦的事情，那就是自己开发的东西不太会整理，或者是团队一起开发，有一些东西不太好整合到一起，那这个时候你们就需要一个版本控制(管理)工具了，当然现在程序用到比较多的是GitHub和国内的码云。但是有一个团队协作也很好用的工具叫SVN，**SVN**是一个开放源代码的版本控制系统，通过采用分支管理系统的高效管理，简而言之就是用于多个人共同开发同一个项目，实现共享资源，实现最终集中式的管理。今天来和大家说一下怎样配置SVN的服务器和客户端。

**1.下载SVN服务器端和客户端安装包**
服务器端下载地址：https://www.visualsvn.com/server/changes/
客户端下载地址： https://tortoisesvn.net/downloads.zh.html

注意：两个下载地址都可以找到各种版本的安装包，可以选择版本的高低和安装包的系统。下载服务器端时需要注意的是4.0版本以后免费版用户的数量限制为15人。下载客户端时需要西在对应的汉化语言包。

**2.配置SVN服务器端**
1.点击安装包![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70_pic_center]
2.直接点击下一步![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70_pic_center 1]
3.同意前面打勾，然后下一步![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70_pic_center 2]
4.直接下一步
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70]
5.配置安装地址和数据仓库![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70 1]

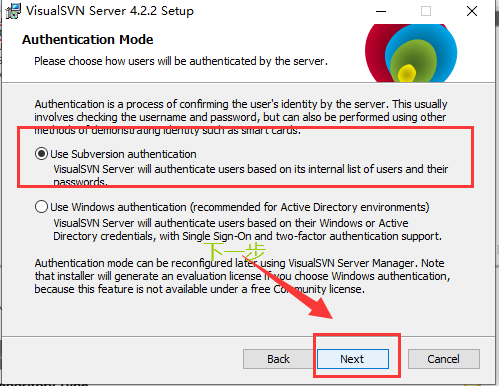

6.直接下一步![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70 2]
7.点击install，安装
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70 3]

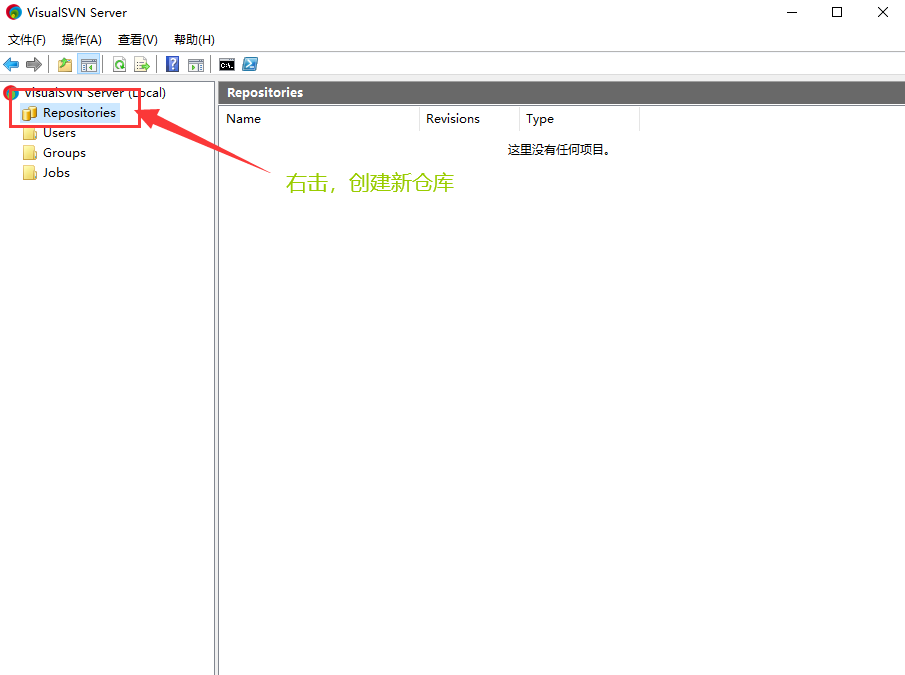

8.安装完成后打开服务器控制面板
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70_pic_center 3]
9.下一步
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70_pic_center 4]
10.创建新的仓库名称
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70_pic_center 5]
11.选择空仓库，点击下一步![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70_pic_center 6]

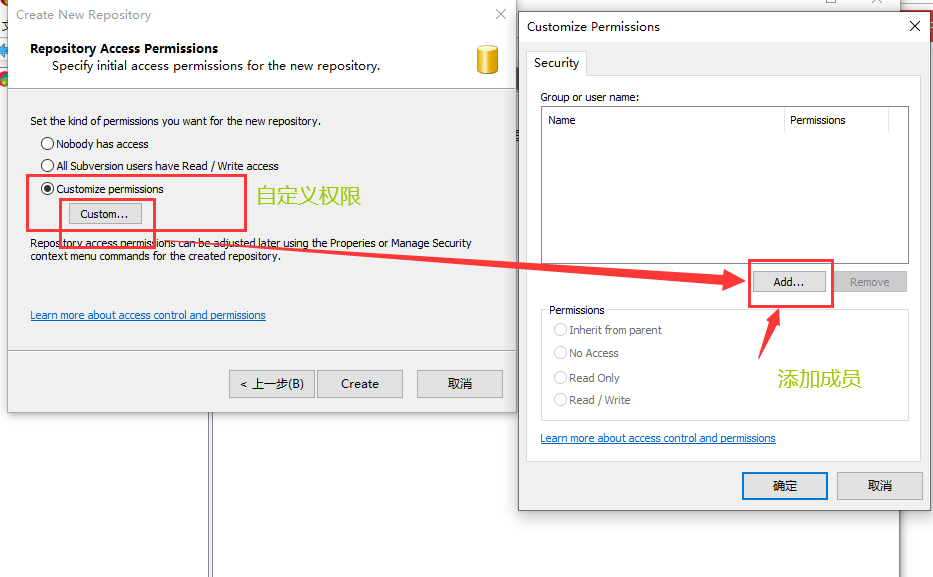

12.选择自定义权限，添加用户![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70_pic_center 7]
13.添加完成后，点击创建
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70_pic_center 8]
14.创建的仓库地址的信息，可以复制下仓库路径![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70_pic_center 9]
15.点击finish,这样就完成了SVN服务器的配置了。

#### 3.客户端(tortoisesvn)的配置 ####

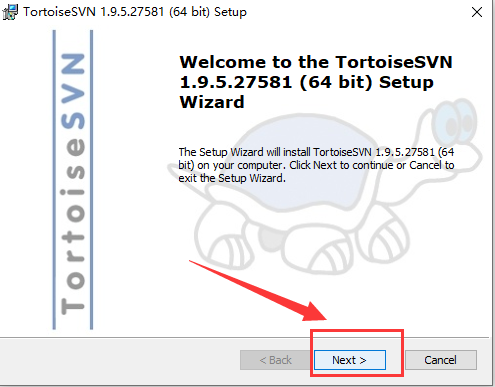

1.双击安装包，然后点击下一步
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70_pic_center 10]

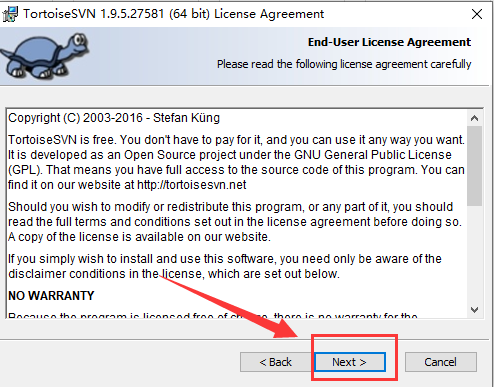

2.直接点下一步
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70 4]
3.点击install，进行安装
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70 5]
4.安装结束后，点击finish
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70_pic_center 11]
5.安装汉化语言包，双击安装包，然后点击next
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70 6]
7.安装结束后配置语言，桌面空白位置右键点击，找到tortoisesvn，选择setting，如下图，语言修改为中文
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70 7]
8.汉化完之后，在桌面空白位置右键单击选择检出，可以修检出的路径，修改路径后点击确定可能会出现下面的警告框，选择永久接受即可
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70_pic_center 12]

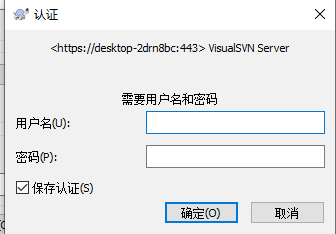

9.输入用户名和密码
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70_pic_center 13]
10.检出的日志
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70_pic_center 14]

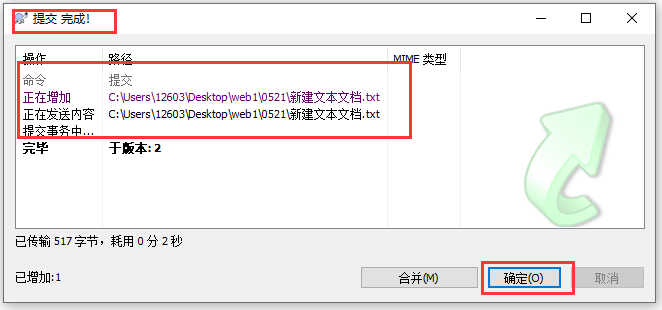

11.进入到检出的文件夹中，可以在文件夹中创建你要上传到服务器的内容，然后右键单击，选择提交，选择你要提交的内容
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70_pic_center 15]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70_pic_center 16]
12.同样你也可以更新服务器的文件，获取最新的服务器的文件，右键单击，选择更新
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM5MTU1NjEx_size_16_color_FFFFFF_t_70_pic_center 17]
**到这里SVN服务器端和客户端的配置就结束了，遇到问题可以给我留言。**

**视频讲解链接：
https://www.bilibili.com/video/BV1Bv411z78K**
