第2节 添加删除修改功能

添加功能\_分析

添加功能\_实现

add.jsp

AddUserServlet.java

其他Java代码

添加功能 实现效果

删除功能\_分析

删除功能\_代码实现

DelUserServlet.java

其他Java代码

删除功能 实现效果

修改功能\_分析

修改功能\_代码实现1\_用户信息回显

FindUserServlet.java

其他Java代码

信息回显 实现效果

修改功能\_代码实现2\_用户修改

UpdateUserServlet.java

其他Java页面

修改功能 实现效果

--------------------

# 第2节 添加删除修改功能 #

## 添加功能\_分析 ##

> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70][] 添加功能

## 添加功能\_实现 ##

> ![20210216144145268.png][]

### add.jsp ###

> ![20210216144630969.png][]

<%@ page contentType="text/html;charset=UTF-8" language="java" %>

    <!DOCTYPE html>

    <html lang="zh-CN">
    <head>

        <meta charset="utf-8">

        <meta http-equiv="X-UA-Compatible" content="IE=edge">

        <meta name="viewport" content="width=device-width, initial-scale=1">

        <title>添加用户</title>

        <link href="css/bootstrap.min.css" rel="stylesheet">

        <script src="js/jquery-2.1.0.min.js"></script>

        <script src="js/bootstrap.min.js"></script>
    </head>
    <body>
    <div class="container">
        <center><h3>添加联系人页面</h3></center>
        <form action="${pageContext.request.contextPath}/addUserServlet" method="post">
            <div class="form-group">
                <label for="name">姓名：</label>
                <input type="text" class="form-control" id="name" name="name" placeholder="请输入姓名">
            </div>
            <div class="form-group">
                <label>性别：</label>
                <input type="radio" name="gender" value="男" checked="checked"/>男
                <input type="radio" name="gender" value="女"/>女
            </div>
            <div class="form-group">
                <label for="age">年龄：</label>
                <input type="text" class="form-control" id="age" name="age" placeholder="请输入年龄">
            </div>
            <div class="form-group">
                <label for="address">籍贯：</label>
                <select name="address" class="form-control" id="address">
                    <option value="陕西">陕西</option>
                    <option value="北京">北京</option>
                    <option value="上海">上海</option>
                </select>
            </div>
            <div class="form-group">
                <label for="qq">QQ：</label>
                <input type="text" class="form-control" id="qq" name="qq" placeholder="请输入QQ号码"/>
            </div>
            <div class="form-group">
                <label for="email">Email：</label>
                <input type="text" class="form-control" id="email" name="email" placeholder="请输入邮箱地址"/>
            </div>
            <div class="form-group" style="text-align: center">
                <input class="btn btn-primary" type="submit" value="提交"/>
                <input class="btn btn-default" type="reset" value="重置"/>
                <input class="btn btn-default" type="button" value="返回"/>
            </div>
        </form>
    </div>
    </body>
    </html>

### AddUserServlet.java ###

package cn.itcast.web.servlet;

    import cn.itcast.domain.User;
    import cn.itcast.service.UserService;
    import cn.itcast.service.impl.UserServiceImpl;
    import org.apache.commons.beanutils.BeanUtils;

    import javax.servlet.ServletException;
    import javax.servlet.annotation.WebServlet;
    import javax.servlet.http.HttpServlet;
    import javax.servlet.http.HttpServletRequest;
    import javax.servlet.http.HttpServletResponse;
    import java.io.IOException;
    import java.lang.reflect.InvocationTargetException;
    import java.util.Map;

    @WebServlet("/addUserServlet")
    public class AddUserServlet extends HttpServlet {
        protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
            //1.设置编码
            request.setCharacterEncoding("utf-8");
            //2.获取参数
            Map<String, String[]> map = request.getParameterMap();
            //3.封装对象
            User user = new User();
            try {
                BeanUtils.populate(user, map);
            } catch (IllegalAccessException e) {
                e.printStackTrace();
            } catch (InvocationTargetException e) {
                e.printStackTrace();
            }
            //4.调用Service保存
            UserService service = new UserServiceImpl();
            service.addUser(user);
            //5.跳转到userListServlet
            response.sendRedirect(request.getContextPath() + "/userListServlet");
        }

        protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
            this.doPost(request, response);
        }
    }

### 其他Java代码 ###

> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 1][]
>
> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 2][]
>
> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 3][]

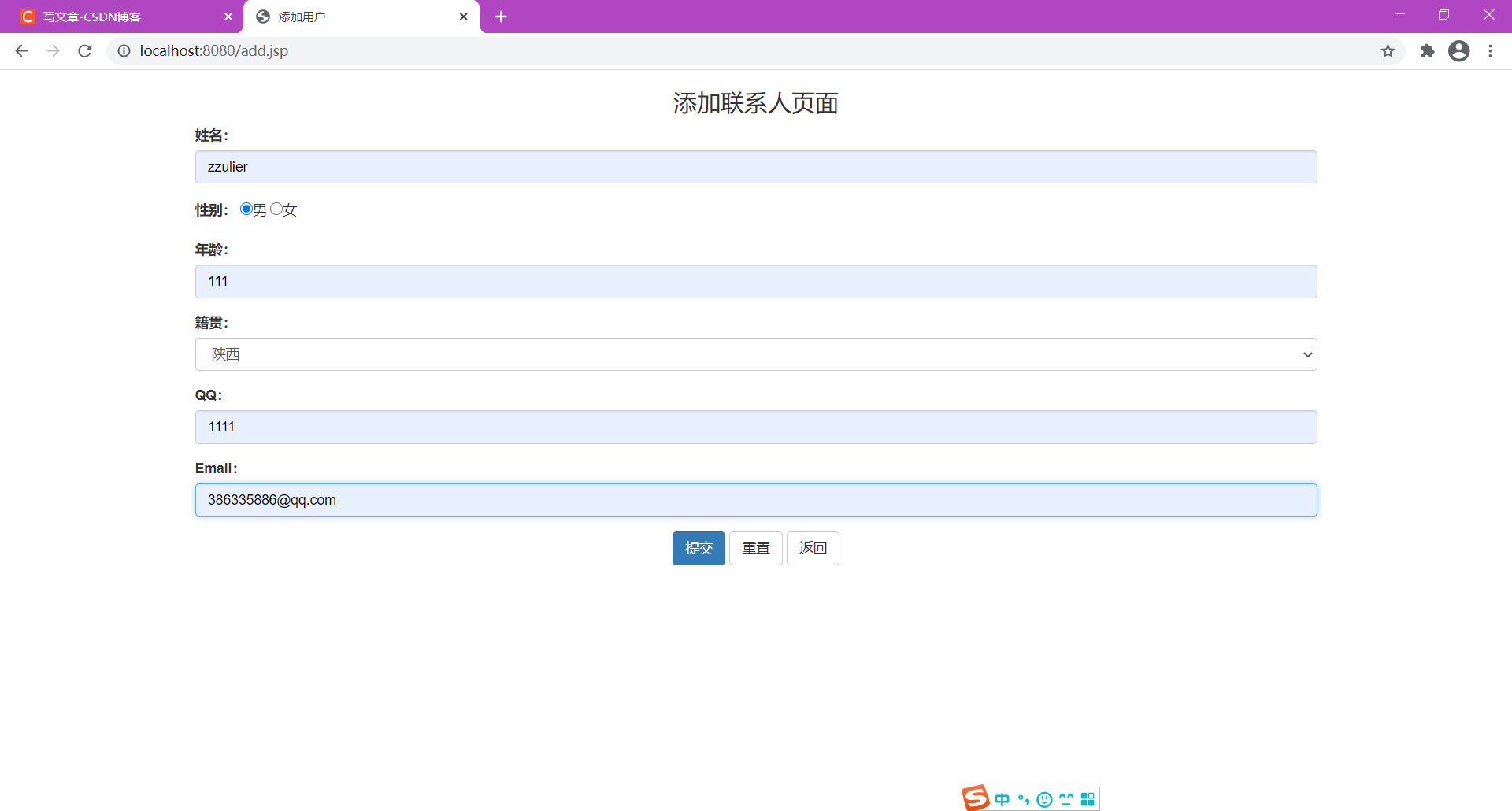

### 添加功能 实现效果 ###

> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 4][]
>
> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 5][]![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 6][]

## 删除功能\_分析 ##

> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 7][] 删除功能

## 删除功能\_代码实现 ##

> ![2021021615053039.png][]
>
> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 8][]

### DelUserServlet.java ###

package cn.itcast.web.servlet;

    import cn.itcast.service.UserService;
    import cn.itcast.service.impl.UserServiceImpl;

    import javax.servlet.ServletException;
    import javax.servlet.annotation.WebServlet;
    import javax.servlet.http.HttpServlet;
    import javax.servlet.http.HttpServletRequest;
    import javax.servlet.http.HttpServletResponse;
    import java.io.IOException;

    @WebServlet("/delUserServlet")
    public class DelUserServlet extends HttpServlet {
        protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
            //1.获取id
            String id = request.getParameter("id");
            //2.调用service删除
            UserService service = new UserServiceImpl();
            service.deleteUser(id);
            //3.跳转到查询所有Servlet
            response.sendRedirect(request.getContextPath() + "/userListServlet");
        }

        protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
            this.doPost(request, response);
        }
    }

### 其他Java代码 ###

> ![20210216150733120.png][]
>
> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 9][]
>
> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 10][]

### 删除功能 实现效果 ###

> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 11][]
>
> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 12][]

## 修改功能\_分析 ##

> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 13][] 修改功能

## 修改功能\_代码实现1\_用户信息回显 ##

> ![20210216152459480.png][]
>
> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 14][]

### FindUserServlet.java ###

package cn.itcast.web.servlet;

    import cn.itcast.domain.User;
    import cn.itcast.service.UserService;
    import cn.itcast.service.impl.UserServiceImpl;

    import javax.servlet.ServletException;
    import javax.servlet.annotation.WebServlet;
    import javax.servlet.http.HttpServlet;
    import javax.servlet.http.HttpServletRequest;
    import javax.servlet.http.HttpServletResponse;
    import java.io.IOException;

    @WebServlet("/findUserServlet")
    public class FindUserServlet extends HttpServlet {
        protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
            //1.获取id
            String id = request.getParameter("id");
            //2.调用Service查询
            UserService service = new UserServiceImpl();
            User user = service.findUserById(id);
            //3.将user存入request
            request.setAttribute("user", user);
            //4.转发到update.jsp
            request.getRequestDispatcher("/update.jsp").forward(request, response);
        }

        protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
            this.doPost(request, response);
        }
    }

### 其他Java代码 ###

> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 15][]
>
> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 16][]
>
> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 17][]
>
> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 18][]
>
> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 19][]
>
> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 20][]
>
> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 21][]

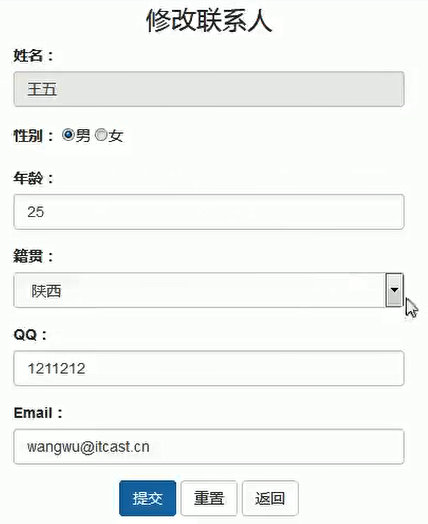

### 信息回显 实现效果 ###

> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 22][]
>
> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 23][]  ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 24][]

## 修改功能\_代码实现2\_用户修改 ##

> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 25][]

### UpdateUserServlet.java ###

package cn.itcast.web.servlet;

    import cn.itcast.domain.User;
    import cn.itcast.service.UserService;
    import cn.itcast.service.impl.UserServiceImpl;
    import org.apache.commons.beanutils.BeanUtils;

    import javax.servlet.ServletException;
    import javax.servlet.annotation.WebServlet;
    import javax.servlet.http.HttpServlet;
    import javax.servlet.http.HttpServletRequest;
    import javax.servlet.http.HttpServletResponse;
    import java.io.IOException;
    import java.lang.reflect.InvocationTargetException;
    import java.util.Map;

    @WebServlet("/updateUserServlet")
    public class UpdateUserServlet extends HttpServlet {
        protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
            //1.设置编码
            request.setCharacterEncoding("utf-8");
            //2.获取map
            Map<String, String[]> map = request.getParameterMap();
            //3.封装对象
            User user = new User();
            try {
                BeanUtils.populate(user, map);
            } catch (IllegalAccessException e) {
                e.printStackTrace();
            } catch (InvocationTargetException e) {
                e.printStackTrace();
            }
            //4.调用Service修改
            UserService service = new UserServiceImpl();
            service.updateUser(user);
            //5.跳转到查询所有Servlet
            response.sendRedirect(request.getContextPath() + "/userListServlet");
        }

        protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
            this.doPost(request, response);
        }
    }

### 其他Java页面 ###

> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 26][]
>
> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 27][]
>
> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 28][]
>
> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 29][]
>
> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 30][]

### 修改功能 实现效果 ###

> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 31][]
>
> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 32][]
>
> ![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 33][]

[Java_ _]: https://blog.csdn.net/weixin_44949135/article/details/113773297
[JavaWeb-_-_01]: https://blog.csdn.net/weixin_44949135/article/details/113823440
[JavaWeb-_-_02]: https://blog.csdn.net/weixin_44949135/article/details/113822709
[JavaWeb-_-_03]: https://blog.csdn.net/weixin_44949135/article/details/113824663
[JavaWeb-_-_04]: https://blog.csdn.net/weixin_44949135/article/details/113826067
[JavaWeb-_-_05]: https://blog.csdn.net/weixin_44949135/article/details/113826657
[JavaWeb-_-_06]: https://blog.csdn.net/weixin_44949135/article/details/113827460
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70]: /images/20221024/673e421269354e5ba59e18a85e05969b.png
[20210216144145268.png]: /images/20221024/68fdfae064e647b9a914db69e6054fed.png
[20210216144630969.png]: /images/20221024/b0c62f0a1fa54621a4d972de5d49b5dc.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 1]: /images/20221024/a6b33ad2b2db4b59a20ccf77341b074c.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 2]: /images/20221024/b6493539bd4348d0b9336bb7edc7625e.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 3]: /images/20221024/fb5afd0283414df895d6404a4349e4a6.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 4]: /images/20221024/342699f6d70c4f8daa35eed90906ec2a.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 5]: https://img-blog.csdnimg.cn/20210216145736708.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 6]: /images/20221024/d600f9d995f24fbcb917375c50560865.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 7]: /images/20221024/ec14f41a0e8b442ba6234a99a13ee53d.png
[2021021615053039.png]: /images/20221024/3f69caf50a904b008a86c1db35966116.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 8]: /images/20221024/8f20eafdab484d508c34d23b93ccd18f.png
[20210216150733120.png]: /images/20221024/7a469476258b43c9af6f7c11ba3138ac.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 9]: /images/20221024/1f9f894f85694716ad63aa36ab223970.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 10]: /images/20221024/19b8ca9e34cc43e0b1e649e82cab493d.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 11]: /images/20221024/f2d843330c044e91b6ef8419f0b0d38c.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 12]: /images/20221024/bad65ac078b5413795c549b4f5a61c94.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 13]: /images/20221024/60a91a14110147809bee9138b3b913a6.png
[20210216152459480.png]: /images/20221024/855da7240c5442d29dcad10ab2a62d8e.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 14]: /images/20221024/bb169c1be3084668b327d286878611b5.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 15]: /images/20221024/d3a43d7f338541dc96b72393d3c8af9a.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 16]: /images/20221024/ca8868423f0546cbbad315d2fd2440f5.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 17]: /images/20221024/880c060b0ffc4bbda81652755a7cf34c.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 18]: /images/20221024/01aa6cd4e8e646bc91c4fd14ad8c2924.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 19]: /images/20221024/f73e128f1c2244d380cc23cade1dae2a.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 20]: /images/20221024/6a6f78646fc141208f689ea9190e8899.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 21]: /images/20221024/3210b95512264b1bb5f5db498065176f.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 22]: /images/20221024/36baa009e803440ba49be3a9a0844037.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 23]: https://img-blog.csdnimg.cn/20210216154228926.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 24]: /images/20221024/40c3d5ec2da54383a6214b812162d389.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 25]: /images/20221024/0879ce38b767496f994ab50380e71f9b.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 26]: /images/20221024/1ab152263ef548238ec68739e19ad4aa.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 27]: /images/20221024/223e8ae1c8164392bd93cfb75d6cb3cd.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 28]: /images/20221024/3b241c571e9b49cabb728143a8ba23b6.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 29]: /images/20221024/cee70fc1f37844e1b952ebb256d39202.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 30]: /images/20221024/3387f93520774cf09bc05106247e45b0.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 31]: /images/20221024/abde35dd10704522b1b0291e07a2ad62.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 32]: /images/20221024/4e2c0f664b5a4776a4ac8bfbd2abe6b0.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NDk0OTEzNQ_size_16_color_FFFFFF_t_70 33]: /images/20221024/21446eadf8f44700a6b32c5f7c8a30b5.png
