SpringCloudAlibaba-Nacos-Gateway(五)

左手的ㄟ右手 2023-10-14 09:28 1阅读 0赞

Gateway详细内容可参考博客：

[SpringCloud-GateWay（五）\_骑着蜗牛打天下的博客-CSDN博客][SpringCloud-GateWay_-CSDN]

**注意：**

Gateway与Nginx区别：Gateway是服务网关，Nginx是流量网关；

Ribbon与Nginx区别：Ribbon是客户端负载均衡，Nginx是服务端负载均衡；

> Gateway

![13ba2abb5f5a4e5f833c4b67c10d134a.png][]

> pom文件

<?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
        <modelVersion>4.0.0</modelVersion>
        <parent>
            <groupId>com.chensir</groupId>
            <artifactId>nacos-root</artifactId>
            <version>0.0.1-SNAPSHOT</version>
            <relativePath>../pom.xml</relativePath>
        </parent>

        <artifactId>nacos-spring-cloud-gateway</artifactId>

        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-webflux</artifactId>
            </dependency>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-starter-gateway</artifactId>
            </dependency>
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>

            </dependency>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-test</artifactId>
                <scope>test</scope>
            </dependency>
        </dependencies>


        <build>
            <plugins>
                <plugin>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-maven-plugin</artifactId>
                </plugin>
            </plugins>
        </build>

    </project>

> 配置文件

server:
      port: 8083
    spring:
      application:
        name: gateway
      cloud:
        nacos:
          discovery:
            server-addr: localhost:8848
        gateway:
          routes:
            - id: rout01
              uri: lb://nacos-app-a  # lb就是loadblance
              predicates:
                - Path=/a/**
              filters:
                - StripPrefix=1
                - AddRequestParameter=red, blue
                - AddResponseHeader=name,zhangbozhi
            - id: rout02
              uri: https://blog.csdn.net/weixin_45326523.com
              predicates:
                - Path=/b/**
              filters:
                - StripPrefix=1
          default-filters:
            - AddRequestHeader=sign,123
            - AddResponseHeader=company,266
    #        - AddRequestHeader=traceid,5nifaiea8787808877

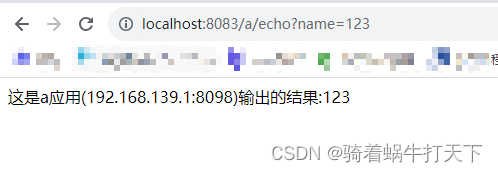

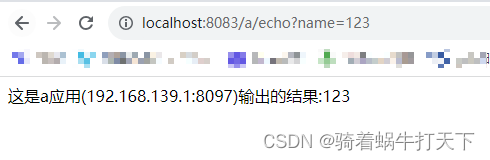

可把服务a多端口启动，使用gateway转发时默认为轮询算法

![3c730ddc31534c368edcfb1b60d0b471.png][]

![27302415e635496cbbabb45c75c5e708.png][]
