Hystrix服务监控-蒲公英云

Hystrix服务监控

可以利用hystrix来达到实时的服务监控的功能。

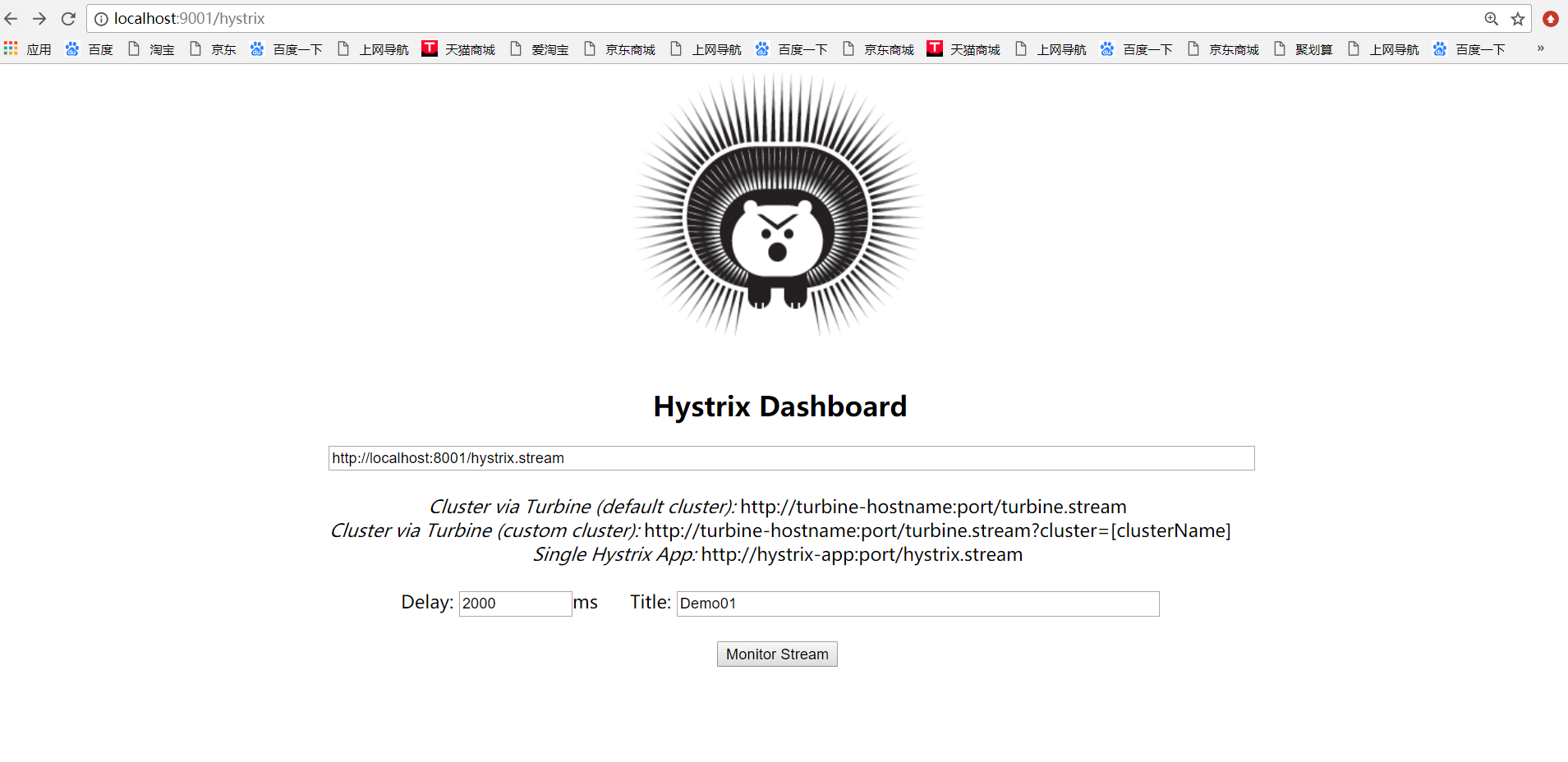

画面：

watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80MTA2MDkwNQ_size_16_color_FFFFFF_t_70

我们新建立一个hystrix-dashboard工程。

pom文件中添加：

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <parent>
   <groupId>com.atguigu.springcloud</groupId>
   <artifactId>microservicecloud</artifactId>
   <version>0.0.1-SNAPSHOT</version>
  </parent>
  <artifactId>microservicecloud-consumer-hystrix-dashboard</artifactId>
<dependencies>
   <!-- 自己定义的api -->
   <dependency>
     <groupId>com.atguigu.springcloud</groupId>
     <artifactId>microservicecloud-api</artifactId>
     <version>${project.version}</version>
   </dependency>
   <dependency>
     <groupId>org.springframework.boot</groupId>
     <artifactId>spring-boot-starter-web</artifactId>
   </dependency>
   <!-- 修改后立即生效，热部署 -->
   <dependency>
     <groupId>org.springframework</groupId>
     <artifactId>springloaded</artifactId>
   </dependency>
   <dependency>
     <groupId>org.springframework.boot</groupId>
     <artifactId>spring-boot-devtools</artifactId>
   </dependency>
   <!-- Ribbon相关 -->
   <dependency>
     <groupId>org.springframework.cloud</groupId>
     <artifactId>spring-cloud-starter-eureka</artifactId>
   </dependency>
   <dependency>
     <groupId>org.springframework.cloud</groupId>
     <artifactId>spring-cloud-starter-ribbon</artifactId>
   </dependency>
   <dependency>
     <groupId>org.springframework.cloud</groupId>
     <artifactId>spring-cloud-starter-config</artifactId>
   </dependency>
   <!-- feign相关 -->
   <dependency>
     <groupId>org.springframework.cloud</groupId>
     <artifactId>spring-cloud-starter-feign</artifactId>
   </dependency>
   <!-- hystrix和 hystrix-dashboard相关-->
   <dependency>
       <groupId>org.springframework.cloud</groupId>
       <artifactId>spring-cloud-starter-hystrix</artifactId>
   </dependency>
   <dependency>
       <groupId>org.springframework.cloud</groupId>
       <artifactId>spring-cloud-starter-hystrix-dashboard</artifactId>
   </dependency>
  </dependencies>
</project>

2.yaml配置文件就比较简单了：

server:
  port: 9001

3.主启动类上添加：

@EnableHystrixDashboard

4.所有的服务提供者都需要监控依赖配置：

<!-- actuator监控信息完善 -->
   <dependency>
     <groupId>org.springframework.boot</groupId>
     <artifactId>spring-boot-starter-actuator</artifactId>
   </dependency>
