SpringBoot 集成FluentMybatis 实现简单增删改查功能

本文基于上一篇：SpringBoot 集成FluentMybatis 框架

完整pom.xml 文件

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.digipower</groupId>
    <artifactId>Single</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.9.RELEASE</version>
        <relativePath /> <!-- lookup parent from repository -->
    </parent>
    <properties>
        <java.version>1.8</java.version>
        <maven-jar-plugin.version>3.1.1</maven-jar-plugin.version>
        <fluent-mybatis.version>1.8.7</fluent-mybatis.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <!-- 集成fluent-mybatis -->
        <!-- 引入fluent-mybatis 运行依赖包, scope为compile -->
        <dependency>
            <groupId>com.github.atool</groupId>
            <artifactId>fluent-mybatis</artifactId>
            <version>${fluent-mybatis.version}</version>
        </dependency>
        <!-- 引入fluent-mybatis-processor, scope设置为provider 编译需要，运行时不需要 -->
        <dependency>
            <groupId>com.github.atool</groupId>
            <artifactId>fluent-mybatis-processor</artifactId>
            <scope>provided</scope>
            <version>${fluent-mybatis.version}</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.2.0</version>
        </dependency>
        <!-- 集成MySQL 驱动包 -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.11</version>
        </dependency>
        <!--集成lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <!-- 集成guava 工具包 -->
        <dependency>
            <groupId>com.google.guava</groupId>
            <artifactId>guava</artifactId>
            <version>30.1.1-jre</version>
        </dependency>
        <!-- 集成hutool-all 工具包 -->
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>5.5.2</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

application.properties 配置

# 指定服务端口
server.port=9092
# 指定日志文件配置
logging.config=classpath:logback.xml
# MyBatis mysql8 配置
spring.datasource.url=jdbc:mysql://127.0.0.1:3306/banan_test?serverTimezone=Asia/Shanghai&useSSL=false&allowPublicKeyRetrieval=true&allowMultiQueries=true
spring.datasource.username=root
spring.datasource.password=123456
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver

logback.xml 错误日志配置

<?xml version="1.0" encoding="UTF-8"?>
<!-- 从高到地低 OFF 、 FATAL 、 ERROR 、 WARN 、 INFO 、 DEBUG 、 TRACE 、 ALL -->
<!-- 日志输出规则  根据当前ROOT 级别，日志输出时，级别高于root默认的级别时  会输出 -->
<!-- 以下  每个配置的 filter 是过滤掉输出文件里面，会出现高级别文件，依然出现低级别的日志信息，通过filter 过滤只记录本级别的日志-->
<!-- 属性描述 scan：性设置为true时，配置文件如果发生改变，将会被重新加载，默认值为true scanPeriod:设置监测配置文件是否有修改的时间间隔，如果没有给出时间单位，
默认单位是毫秒。当scan为true时，此属性生效。默认的时间间隔为1分钟。
    debug:当此属性设置为true时，将打印出logback内部日志信息，实时查看logback运行状态。默认值为false。 -->
<configuration scan="true" scanPeriod="60 seconds" debug="false">
    <!-- 定义日志文件 输入位置 -->
    <property name="log_dir" value="/logs/single" />
    <!-- 日志最大的历史 30天 -->
    <property name="maxHistory" value="30"/>
    <!-- ConsoleAppender 控制台输出日志 -->
    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <!-- 对日志进行格式化 -->
        <encoder>
            <pattern>%d{yyyy-MM-dd HH:mm:ss} [%thread] %-5level %logger -%msg%n</pattern>
        </encoder>
    </appender>
    <!-- ERROR级别日志 -->
    <!-- 滚动记录文件，先将日志记录到指定文件，当符合某个条件时，将日志记录到其他文件 RollingFileAppender-->
    <appender name="ERROR" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <!-- 过滤器，只记录WARN级别的日志 -->
        <filter class="ch.qos.logback.classic.filter.LevelFilter">
            <level>ERROR</level>
            <onMatch>ACCEPT</onMatch>
            <onMismatch>DENY</onMismatch>
        </filter>
        <!-- 最常用的滚动策略，它根据时间来制定滚动策略.既负责滚动也负责出发滚动 -->
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <!--日志输出位置  可相对、和绝对路径 -->
            <fileNamePattern>${log_dir}/%d{yyyy-MM-dd}/error.log</fileNamePattern>
            <!-- 可选节点，控制保留的归档文件的最大数量，超出数量就删除旧文件假设设置每个月滚动，且<maxHistory>是6，
            则只保存最近6个月的文件，删除之前的旧文件。注意，删除旧文件是，那些为了归档而创建的目录也会被删除-->
            <maxHistory>${maxHistory}</maxHistory>
        </rollingPolicy>
        <encoder>
            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger - %msg%n</pattern>
        </encoder>
    </appender>
    <!-- WARN级别日志 appender -->
    <appender name="WARN" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <!-- 过滤器，只记录WARN级别的日志 -->
        <filter class="ch.qos.logback.classic.filter.LevelFilter">
            <level>WARN</level>
            <onMatch>ACCEPT</onMatch>
            <onMismatch>DENY</onMismatch>
        </filter>
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <fileNamePattern>${log_dir}/%d{yyyy-MM-dd}/warn.log
            </fileNamePattern>
            <maxHistory>${maxHistory}</maxHistory>
        </rollingPolicy>
        <encoder>
            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger - %msg%n</pattern>
        </encoder>
    </appender>
    <!-- INFO级别日志 appender -->
    <appender name="INFO" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <!-- 过滤器，只记录INFO级别的日志 -->
        <filter class="ch.qos.logback.classic.filter.LevelFilter">
            <level>INFO</level>
            <onMatch>ACCEPT</onMatch>
            <onMismatch>DENY</onMismatch>
        </filter>
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <fileNamePattern>${log_dir}/%d{yyyy-MM-dd}/info.log
            </fileNamePattern>
            <maxHistory>${maxHistory}</maxHistory>
        </rollingPolicy>
        <encoder>
            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger - %msg%n</pattern>
        </encoder>
    </appender>
    <!-- DEBUG级别日志 appender -->
    <appender name="DEBUG" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <filter class="ch.qos.logback.classic.filter.LevelFilter">
            <level>DEBUG</level>
            <onMatch>ACCEPT</onMatch>
            <onMismatch>DENY</onMismatch>
        </filter>
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <fileNamePattern>${log_dir}/%d{yyyy-MM-dd}/debug.log
            </fileNamePattern>
            <maxHistory>${maxHistory}</maxHistory>
        </rollingPolicy>
        <encoder>
            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger - %msg%n</pattern>
        </encoder>
    </appender>
    <logger name="org.springframework.web"/>
    <logger name="com.single" />
    <!-- root级别   DEBUG -->
    <root level="ERROR">
        <!-- 控制台输出 -->
        <appender-ref ref="STDOUT" />
        <!-- 文件输出 -->
        <appender-ref ref="ERROR" />
        <appender-ref ref="INFO" />
        <appender-ref ref="WARN" />
        <appender-ref ref="DEBUG" />
    </root>
</configuration>

程序启动入口：

package com.single;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
@MapperScan({"com.single.entity.mapper"})
public class SingleApplication {
    public static void main(String[] args) {
        // TODO Auto-generated method stub
        SpringApplication.run(SingleApplication.class, args);
    }
}

主要功能实现:

• 标记程序入口
• 扫描Mapper

程序配置化对象

package com.single.config;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import cn.org.atool.fluent.mybatis.spring.MapperFactory;
@Configuration
public class SingleConfig {
    // 定义fluent mybatis的MapperFactory
    @Bean
    public MapperFactory mapperFactory() {
        return new MapperFactory();
    }
}

主要功能:

• 实列化FluentMybatis 之MapperFactory工厂类对象。

程序拦截器

package com.single.filter;
import java.io.IOException;
import javax.servlet.Filter;
import javax.servlet.FilterChain;
import javax.servlet.FilterConfig;
import javax.servlet.ServletException;
import javax.servlet.ServletRequest;
import javax.servlet.ServletResponse;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Component;
/**
 *
 * @ClassName:  CorsFilter
 * @Description: SpringBoot 跨域处理拦截器
 */
@Component
public class CROSFilter implements Filter {
    public static final Logger logger = LoggerFactory.getLogger(CROSFilter.class);
    @Override
    public void init(FilterConfig filterConfig) throws ServletException {
        // TODO Auto-generated method stub
    }
    @Override
    public void doFilter(ServletRequest req, ServletResponse res, FilterChain chain)
            throws IOException, ServletException {
        HttpServletResponse response = (HttpServletResponse) res;
        HttpServletRequest reqs = (HttpServletRequest) req;
        /*
         * 跨域设置允所有请求跨域
         * 如果允许指定的客户端跨域设置: http://127.0.0.1:8020
         */
        response.setHeader("Access-Control-Allow-Origin","*");
        response.setHeader("Access-Control-Allow-Credentials", "true");
        response.setHeader("Access-Control-Allow-Methods", "POST, GET, OPTIONS, DELETE");
        response.setHeader("Access-Control-Max-Age", "3600");
        response.setHeader("Access-Control-Allow-Headers", "Content-Type");
        if (((HttpServletRequest) req).getMethod().equals("OPTIONS")) {
            response.getWriter().println("ok");
            return;
        }
        chain.doFilter(req, res);
    }
    @Override
    public void destroy() {
        // TODO Auto-generated method stub
    }
}

主要功能:

• 实现CROS跨域请求

程序控制层

package com.single.controller;
import javax.annotation.Resource;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;
import com.single.entity.UcasAuthUserEntity;
import com.single.entity.mapper.UcasAuthUserMapper;
/**
 *
 * @ClassName: UserController
 * @Description: 用户管理
 */
@Controller
@RequestMapping("/api/user")
public class UserController {
    @Resource
    UcasAuthUserMapper userMapper;
    /**
     * 根据ID查询数据1
     *
     * @param id
     * @return
     */
    @RequestMapping(value = "/getByIdOne", method = RequestMethod.GET)
    @ResponseBody
    public UcasAuthUserEntity getByIdOne(HttpServletRequest req, HttpServletResponse res) {
        String id = req.getParameter("sid");
        return userMapper.findById(id);
    }
    /**
     * 根据ID删除
     *
     * @param id
     */

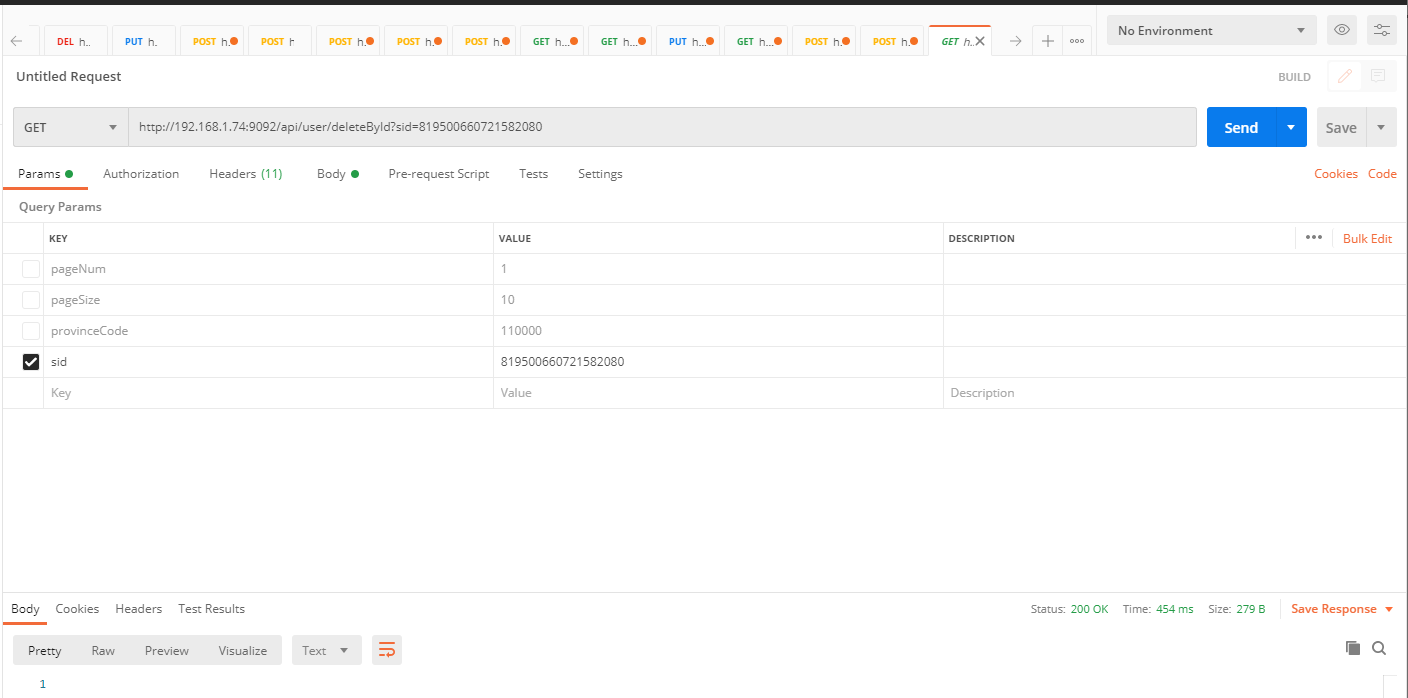

    @RequestMapping(value = "/deleteById", method = RequestMethod.GET)
    public void deleteById(HttpServletRequest req, HttpServletResponse res) {
        String sid = req.getParameter("sid");
        userMapper.deleteById(sid);
    }
    /**
     * 根据ID进行更新
     *
     * @param userEntity
     * @return
     */
    @RequestMapping(value = "/updateById", method = RequestMethod.POST)
    @ResponseBody
    public UcasAuthUserEntity updateById(@RequestBody UcasAuthUserEntity userEntity) {
        int b = userMapper.updateById(userEntity);
        if (b > 0) {
            return userMapper.findById(userEntity.getSid());
        }
        return null;
    }
    /**
     * 新增
     *
     * @param userEntity
     * @return
     */
    @RequestMapping(value = "/insert", method = RequestMethod.POST)
    @ResponseBody
    public String insert(@RequestBody UcasAuthUserEntity userEntity) {
        boolean target = userMapper.saveOrUpdate(userEntity);
        if(target){
            return "success";
        }
        return "error";
    }
}

主要功能

• 实现用户表简单增删改查功能。

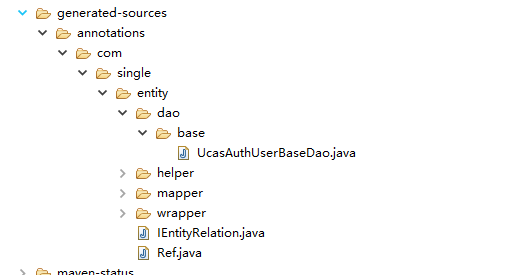

FluentMyBatis 生成工具生成类文件请自行拷贝至src/main/java 文件目录下，主要包含dao、helper、mapper、wrapper、Ref.java 和IEntityRelation.java

PostMan 接口模拟测试

insert 接口测试

updateById 接口测试

deleteById 接口测试

getByIdOne 接口测试
