flink搭建集群（一主三从）

痛定思痛。 2023-10-06 12:21 12阅读 0赞

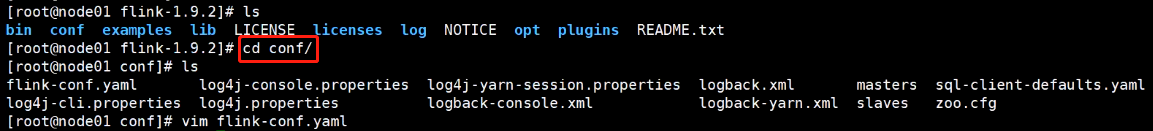

## 配置 ##

![在这里插入图片描述][20200704104756582.png]

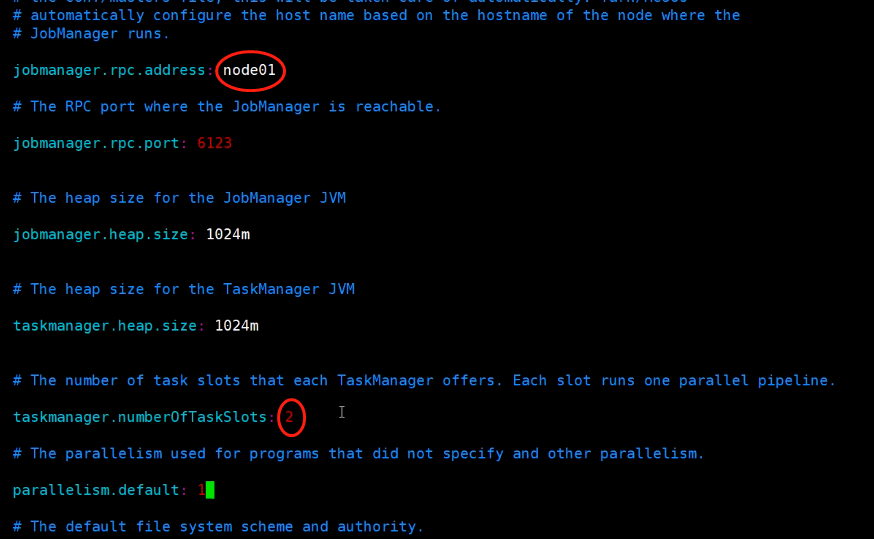

*  配置flink-conf.yaml

vim flink-conf.yaml

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70]

*  配置从节点

vim slaves

![在这里插入图片描述][20200704104848525.png]
配置高可用时还需配置`masters`配置文件。

*  分发到其他节点：

scp -r flink-1.9.2 node02:`pwd`
    scp -r flink-1.9.2 node03:`pwd`
    scp -r flink-1.9.2 node04:`pwd`

![在这里插入图片描述][20200704105036608.png]

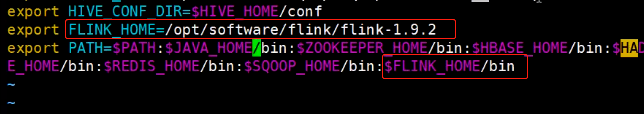

*  配置环境变量：

vim ~/.bashrc
    source ~/.bashrc

![在这里插入图片描述][20200704105332305.png]

## 启动flink ##

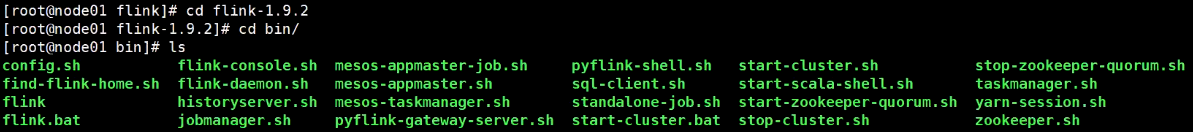

cd bin

![在这里插入图片描述][20200704105611919.png]

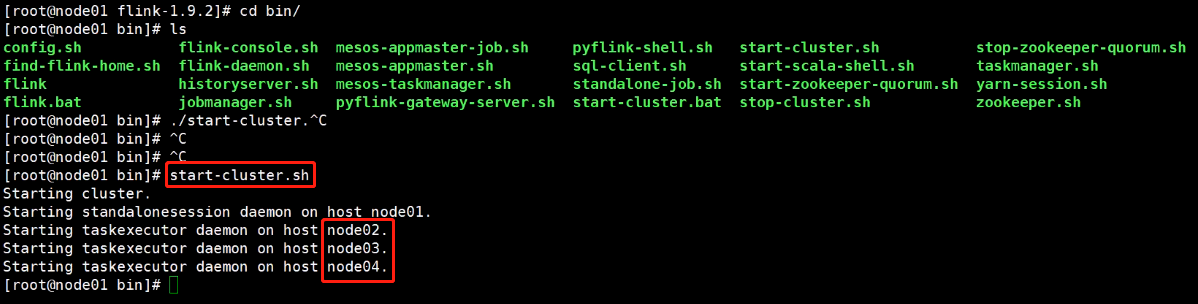

./start-cluster.sh

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 1]

*  主节点jps
    `StandcloneSessionClusterEntrypoint`就是`JobManager`
    ![在这里插入图片描述][20200704105937606.png]
 *  从节点jps
    `TaskManagerRunner`就是`TaskManager`
    ![在这里插入图片描述][20200704105908145.png]

## web ui ##

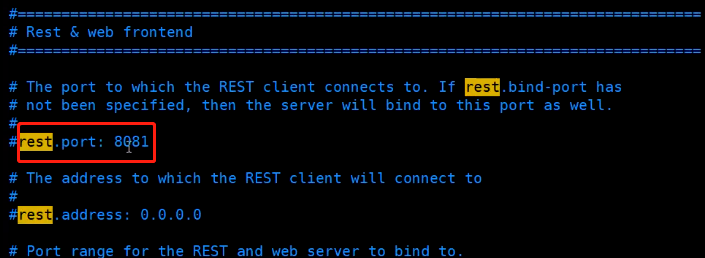

*  默认的`web ui`的端口是`8081`，在`flink-conf.yaml`中配置
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 2]

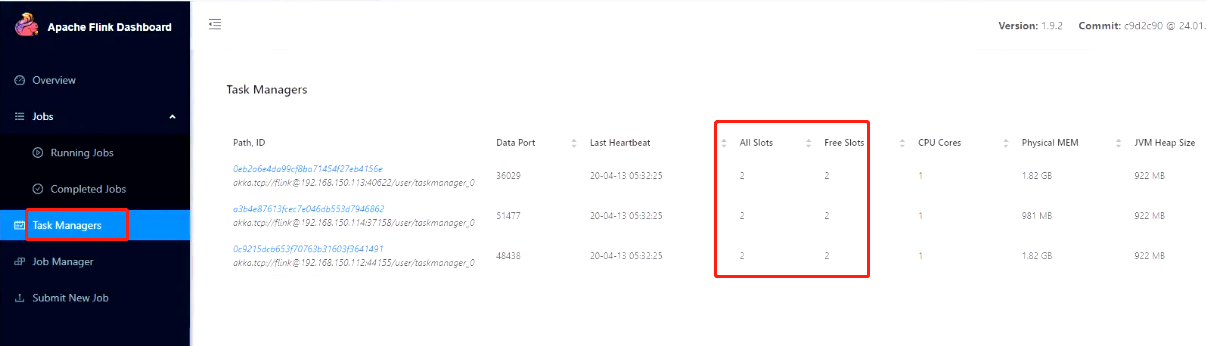

 *  `Task Managers`
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2E3NzIzMDQ0MTk_size_16_color_FFFFFF_t_70 3]

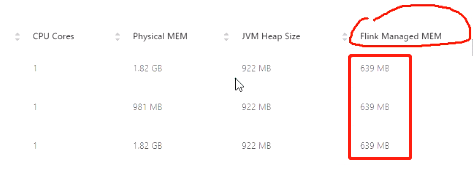

    可管理的内存：
    `Task Manager`本身需要占用一部分内存，所以实际可用内存肯定比设置的要低
    ![在这里插入图片描述][20200704110827901.png]
    一般建议`slot:cores=1:1`
