Leaflet中使用leaflet-cion-pulse插件实现波动的图标效果

场景

Leaflet快速入门与加载OSM显示地图：

Leaflet快速入门与加载OSM显示地图_BADAO_LIUMANG_QIZHI的博客-CSDN博客

在上面的基础上，怎样使用插件实现波动的图标效果如下

注：

博客：
BADAO_LIUMANG_QIZHI的博客_霸道流氓气质_CSDN博客-C#,SpringBoot,架构之路领域博主
关注公众号
霸道的程序猿
获取编程相关电子书、教程推送与免费下载。

实现

1、插件地址

https://github.com/mapshakers/leaflet-icon-pulse

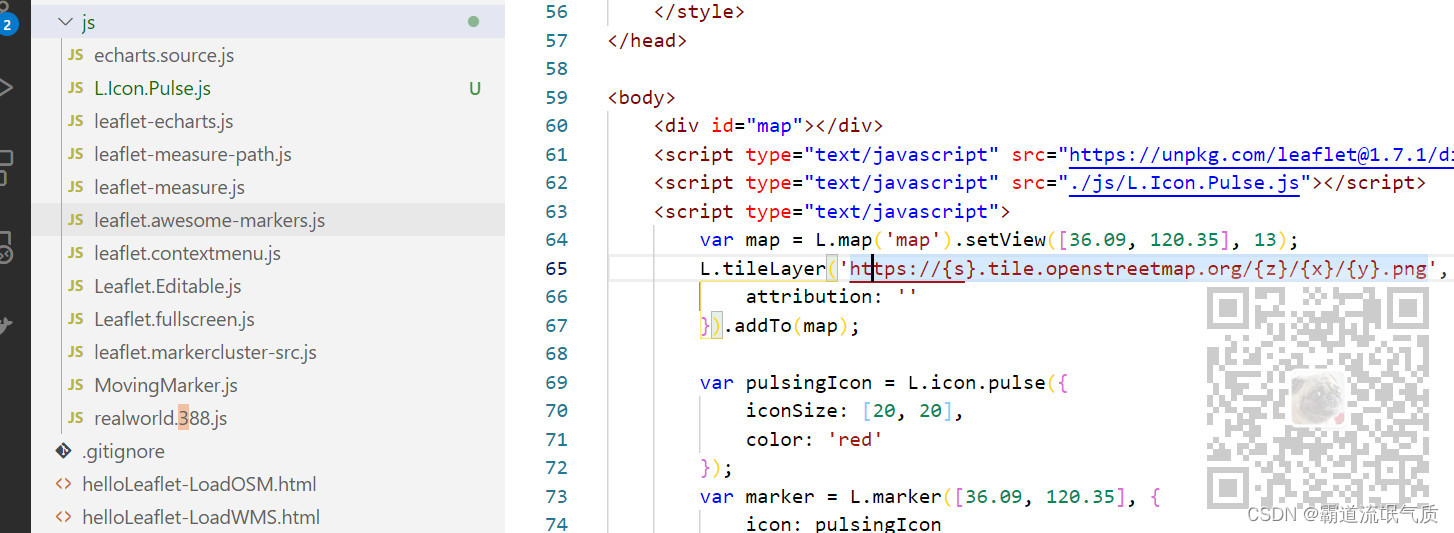

2、下载插件代码，引入需要的js文件L.Icon.Pulse.js

watermark_type_d3F5LXplbmhlaQ_shadow_50_text_Q1NETiBA6Zy46YGT5rWB5rCT5rCU6LSo_size_20_color_FFFFFF_t_70_g_se_x_16

3、这里直接把css文件放在html中，不再单独引入

        .leaflet-pulsing-icon {
            border-radius: 100%;
            box-shadow: 1px 1px 8px 0 rgba(0, 0, 0, 0.75);
        }
        .leaflet-pulsing-icon:after {
            content: "";
            border-radius: 100%;
            height: 300%;
            width: 300%;
            position: absolute;
            margin: -100% 0 0 -100%;
        }
        @keyframes pulsate {
            0% {
                transform: scale(0.1, 0.1);
                opacity: 0;
                -ms-filter: "progid:DXImageTransform.Microsoft.Alpha(Opacity=0)";
                filter: alpha(opacity=0);
            }
            50% {
                opacity: 1;
                -ms-filter: none;
                filter: none;
            }
            100% {
                transform: scale(1.2, 1.2);
                opacity: 0;
                -ms-filter: "progid:DXImageTransform.Microsoft.Alpha(Opacity=0)";
                filter: alpha(opacity=0);
            }
        }

4、声明波动图标并添加到地图

        //波动图标声明并设置样式
        var pulsingIcon = L.icon.pulse({
            iconSize: [20, 20],
            color: 'red'
        });
        //图标添加到地图上
        var marker = L.marker([36.09, 120.35], {
            icon: pulsingIcon
        }).addTo(map);

5、完整示例代码


<!doctype html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>leaflet加载osm</title>
    <link rel="stylesheet" href="https://unpkg.com/leaflet@1.7.1/dist/leaflet.css" />
    <style>
        html,
        body,
        #map {
            padding: 0;
            margin: 0;
            width: 100%;
            height: 100%;
            overflow: hidden;
        }
        .leaflet-pulsing-icon {
            border-radius: 100%;
            box-shadow: 1px 1px 8px 0 rgba(0, 0, 0, 0.75);
        }
        .leaflet-pulsing-icon:after {
            content: "";
            border-radius: 100%;
            height: 300%;
            width: 300%;
            position: absolute;
            margin: -100% 0 0 -100%;
        }
        @keyframes pulsate {
            0% {
                transform: scale(0.1, 0.1);
                opacity: 0;
                -ms-filter: "progid:DXImageTransform.Microsoft.Alpha(Opacity=0)";
                filter: alpha(opacity=0);
            }
            50% {
                opacity: 1;
                -ms-filter: none;
                filter: none;
            }
            100% {
                transform: scale(1.2, 1.2);
                opacity: 0;
                -ms-filter: "progid:DXImageTransform.Microsoft.Alpha(Opacity=0)";
                filter: alpha(opacity=0);
            }
        }
    </style>
</head>
<body>
    <div id="map"></div>
    <script type="text/javascript" src="https://unpkg.com/leaflet@1.7.1/dist/leaflet.js"></script>
    <script type="text/javascript" src="./js/L.Icon.Pulse.js"></script>
    <script type="text/javascript">
        var map = L.map('map').setView([36.09, 120.35], 13);
        L.tileLayer('https://{s}.tile.openstreetmap.org/{z}/{x}/{y}.png', {
            attribution: ''
        }).addTo(map);
        //波动图标声明并设置样式
        var pulsingIcon = L.icon.pulse({
            iconSize: [20, 20],
            color: 'red'
        });
        //图标添加到地图上
        var marker = L.marker([36.09, 120.35], {
            icon: pulsingIcon
        }).addTo(map);
    </script>
</body>
</html>
