安装Zookeeper和Kafka集群

本文介绍如何安装Zookeeper和Kafka集群。为了方便，介绍的是在一台服务器上的安装，实际应该安装在多台服务器上，但步骤是一样的。

安装Zookeeper集群

下载安装包

从官网上下载安装包：

curl https://dlcdn.apache.org/zookeeper/zookeeper-3.7.1/apache-zookeeper-3.7.1-bin.tar.gz -o apache-zookeeper-3.7.1-bin.tar.gz

解压：

tar xvf apache-zookeeper-3.7.1-bin.tar.gz

配置

创建目录 zk1，然后添加如下配置：

zk1/myid:

zk1/zk.config:

tickTime=2000
initLimit=10
syncLimit=5
dataDir=/Users/larry/IdeaProjects/pkslow-samples/other/install-kafka-cluster/src/main/zookeeper/zk1
clientPort=2181
server.1=127.0.0.1:2888:3888
server.2=127.0.0.1:2889:3889
server.3=127.0.0.1:2890:3890

对于zk2和zk3也重复同样的步骤，并修改相应的配置：

zk2/myid:

zk2/zk.config:

tickTime=2000
initLimit=10
syncLimit=5
dataDir=/Users/larry/IdeaProjects/pkslow-samples/other/install-kafka-cluster/src/main/zookeeper/zk2
clientPort=2182
server.1=127.0.0.1:2888:3888
server.2=127.0.0.1:2889:3889
server.3=127.0.0.1:2890:3890

zk3/myid:

zk3/zk.config:

tickTime=2000
initLimit=10
syncLimit=5
dataDir=/Users/larry/IdeaProjects/pkslow-samples/other/install-kafka-cluster/src/main/zookeeper/zk3
clientPort=2183
server.1=127.0.0.1:2888:3888
server.2=127.0.0.1:2889:3889
server.3=127.0.0.1:2890:3890

启动集群

启动三个服务如下：

$ ./apache-zookeeper-3.7.1-bin/bin/zkServer.sh start ./zk1/zk.config
ZooKeeper JMX enabled by default
Using config: ./zk1/zk.config
Starting zookeeper ... STARTED
$ ./apache-zookeeper-3.7.1-bin/bin/zkServer.sh start ./zk2/zk.config
ZooKeeper JMX enabled by default
Using config: ./zk2/zk.config
Starting zookeeper ... STARTED
$ ./apache-zookeeper-3.7.1-bin/bin/zkServer.sh start ./zk3/zk.config
ZooKeeper JMX enabled by default
Using config: ./zk3/zk.config
Starting zookeeper ... STARTED

查看状态

通过status命令查看：

$ ./apache-zookeeper-3.7.1-bin/bin/zkServer.sh status ./zk1/zk.config
ZooKeeper JMX enabled by default
Using config: ./zk1/zk.config
Client port found: 2181. Client address: localhost. Client SSL: false.
Mode: follower
$ ./apache-zookeeper-3.7.1-bin/bin/zkServer.sh status ./zk2/zk.config
ZooKeeper JMX enabled by default
Using config: ./zk2/zk.config
Client port found: 2182. Client address: localhost. Client SSL: false.
Mode: leader
$ ./apache-zookeeper-3.7.1-bin/bin/zkServer.sh status ./zk3/zk.config
ZooKeeper JMX enabled by default
Using config: ./zk3/zk.config
Client port found: 2183. Client address: localhost. Client SSL: false.
Mode: follower

连接其中一个服务并添加数据：

$ ./apache-zookeeper-3.7.1-bin/bin/zkCli.sh -server localhost:2181
[zk: localhost:2181(CONNECTED) 0] create /pkslow
Created /pkslow
[zk: localhost:2181(CONNECTED) 1] create /pkslow/website www.pkslow.com
Created /pkslow/website

连接另外一个服务，并查看数据，发现与之前创建的是一样的：

$ ./apache-zookeeper-3.7.1-bin/bin/zkCli.sh -server localhost:2182
[zk: localhost:2182(CONNECTED) 1] get /pkslow/website
www.pkslow.com

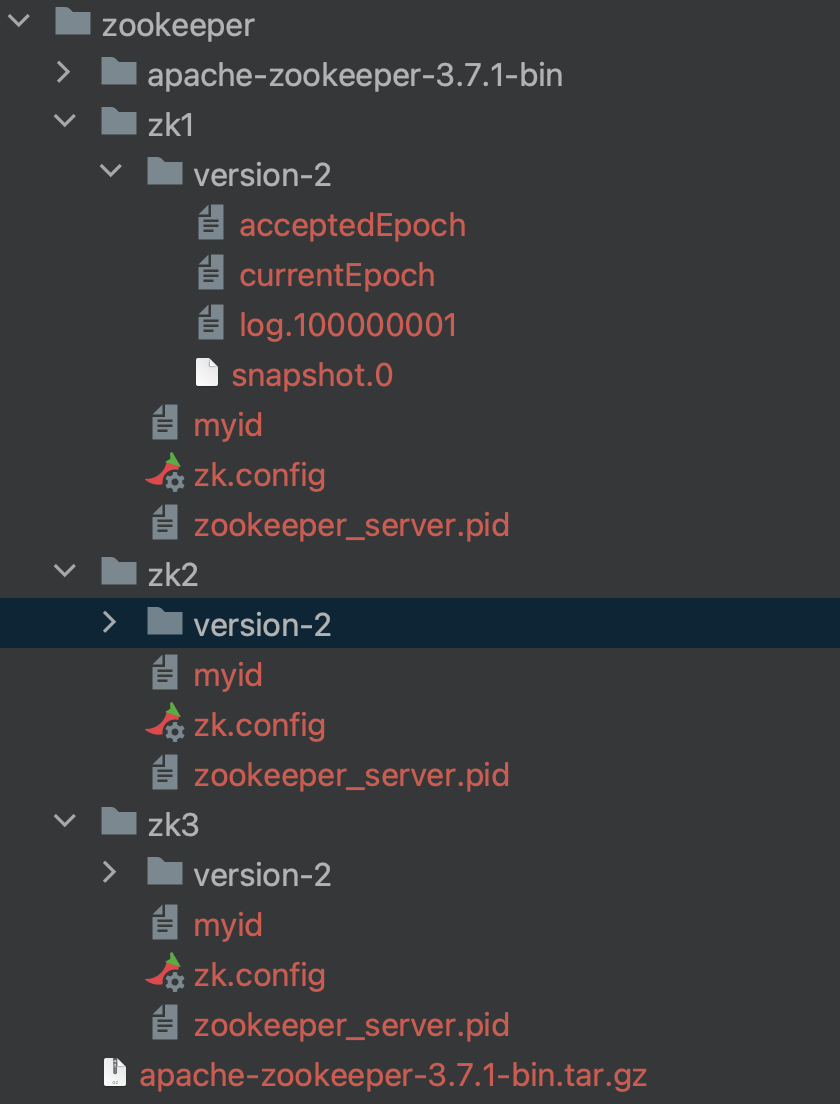

目录结构如下：

安装Kafka集群

下载安装包

通过官网下载如下：

curl https://downloads.apache.org/kafka/3.4.0/kafka_2.13-3.4.0.tgz -o kafka_2.13-3.4.0.tgz

解压安装包：

tar -xzf kafka_2.13-3.4.0.tgz

配置

Broker 1的配置如下：

broker.id=1
port=9091
listeners=PLAINTEXT://:9091
zookeeper.connect=127.0.0.1:2181,127.0.0.1:2182,127.0.0.1:2183
log.dirs=/Users/larry/IdeaProjects/pkslow-samples/other/install-kafka-cluster/src/main/kafka/kafka1/kafka-logs

Broker 2的配置如下：

broker.id=2
port=9092
listeners=PLAINTEXT://:9092
zookeeper.connect=127.0.0.1:2181,127.0.0.1:2182,127.0.0.1:2183
log.dirs=/Users/larry/IdeaProjects/pkslow-samples/other/install-kafka-cluster/src/main/kafka/kafka2/kafka-logs

Broker 3的配置如下：

broker.id=3
port=9093
listeners=PLAINTEXT://:9093
zookeeper.connect=127.0.0.1:2181,127.0.0.1:2182,127.0.0.1:2183
log.dirs=/Users/larry/IdeaProjects/pkslow-samples/other/install-kafka-cluster/src/main/kafka/kafka3/kafka-logs

目录结构如下：

启动集群

启动kafka服务如下：

./kafka_2.13-3.4.0/bin/kafka-server-start.sh ./kafka1/server.properties
./kafka_2.13-3.4.0/bin/kafka-server-start.sh ./kafka2/server.properties
./kafka_2.13-3.4.0/bin/kafka-server-start.sh ./kafka3/server.properties

检查如测试

创建topic：

$ kafka_2.13-3.4.0/bin/kafka-topics.sh --create --topic pkslow-topic --bootstrap-server localhost:9091,localhost:9092,localhost:9093 --partitions 3 --replication-factor 3
Created topic pkslow-topic.

列出topic：

$ kafka_2.13-3.4.0/bin/kafka-topics.sh --list --bootstrap-server localhost:9091,localhost:9092,localhost:9093
pkslow-topic

查看topic：

$ kafka_2.13-3.4.0/bin/kafka-topics.sh --describe --topic pkslow-topic --bootstrap-server localhost:9091,localhost:9092,localhost:9093
Topic: pkslow-topic     TopicId: 7CLy7iZeRvm8rCrn8Dw_mA PartitionCount: 3       ReplicationFactor: 3    Configs:
        Topic: pkslow-topic     Partition: 0    Leader: 3       Replicas: 3,1,2 Isr: 3,1,2
        Topic: pkslow-topic     Partition: 1    Leader: 1       Replicas: 1,2,3 Isr: 1,2,3
        Topic: pkslow-topic     Partition: 2    Leader: 2       Replicas: 2,3,1 Isr: 2,3,1

生产者发消息到brokers：

$ kafka_2.13-3.4.0/bin/kafka-console-producer.sh --broker-list localhost:9091,localhost:9092,localhost:9093 --topic pkslow-topic
>My name is Larry Deng.
>My website is www.pkslow.com.
>

消费者从brokers收消息：

$ kafka_2.13-3.4.0/bin/kafka-console-consumer.sh --bootstrap-server localhost:9091,localhost:9092,localhost:9093 --topic pkslow-topic --from-beginning
My name is Larry Deng.
My website is www.pkslow.com.
