引言

什么是tomcat？
The Apache Tomcat® software is an open source implementation of the Java Servlet, JavaServer Pages, Java Expression Language and Java WebSocket technologies. The Java Servlet, JavaServer Pages, Java Expression Language and Java WebSocket specifications are developed under the Java Community Process.
以上是官网对tomcat的一个简要介绍，tomcat是apache公司的一款开源服务器，是目前最为流行的web服务器之一，下文开始简要阐述tomcat的下载及安装

tomcat的下载

上tomcat官网
在这里插入图片描述

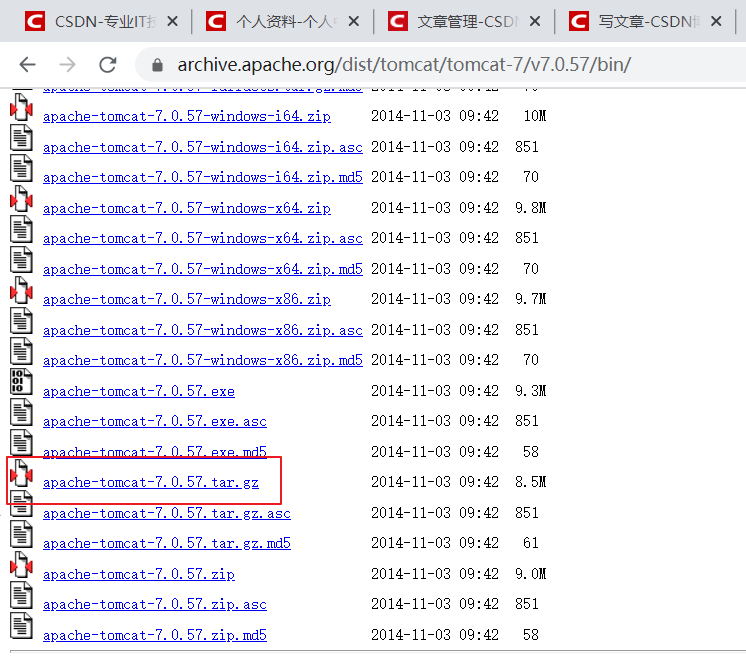

点击已经完成的版本achieves

进入后下载对应的版本，为了保守起见，我选择的是tomcat7的linux安装包，直接点解下载即可。

tomcat离线安装

解压tomcat

准备tomcatliunux安装包，解压

tar -zxvf apache-tomcat-7.0.57.tar.gz  -C  ./apache-tomcat-7.0.57_4

在这里插入图片描述
tomcat运行需要依赖jdk，所以需要查看jdk运行环境，没有安装jdk的童鞋请查看jdk离线安装，安装好jdk后开始配置tomcat的环境变量。进入tomcat解压文件下

cd /home/sy/websitedeployment/apache-tomcat-7.0.57_4/apache-tomcat-7.0.57/bin

tomcat环境变量的配置

修改环境变量执行

vim ./startup.sh

输入以下命令并保存

export JDK8=/usr/develop/java/jdk1.8.0_191
export JAVA_HOME=${JDK8}
export JRE_HOME=${JAVA_HOME}/jre
export CLASSPATH=.:${JAVA_HOME}/lib:${JRE_HOME}/lib
export PATH=${JAVA_HOME}/bin:$PATH
export TOMCAT_HOME_4=/home/sy/websitedeployment/apache-tomcat-7.0.57_4

在这里插入图片描述

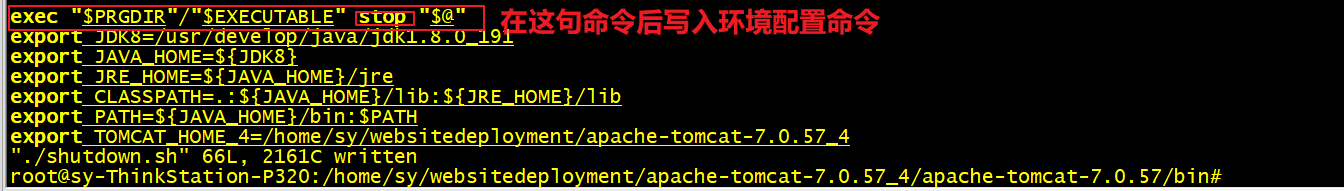

对shutdown.sh同样需要执行这个命令,执行

vim ./shutdown.sh

输入以下命令并保存

export JDK8=/usr/develop/java/jdk1.8.0_191
export JAVA_HOME=${JDK8}
export JRE_HOME=${JAVA_HOME}/jre
export CLASSPATH=.:${JAVA_HOME}/lib:${JRE_HOME}/lib
export PATH=${JAVA_HOME}/bin:$PATH
export TOMCAT_HOME_4=/home/sy/websitedeployment/apache-tomcat-7.0.57_4

在这里插入图片描述

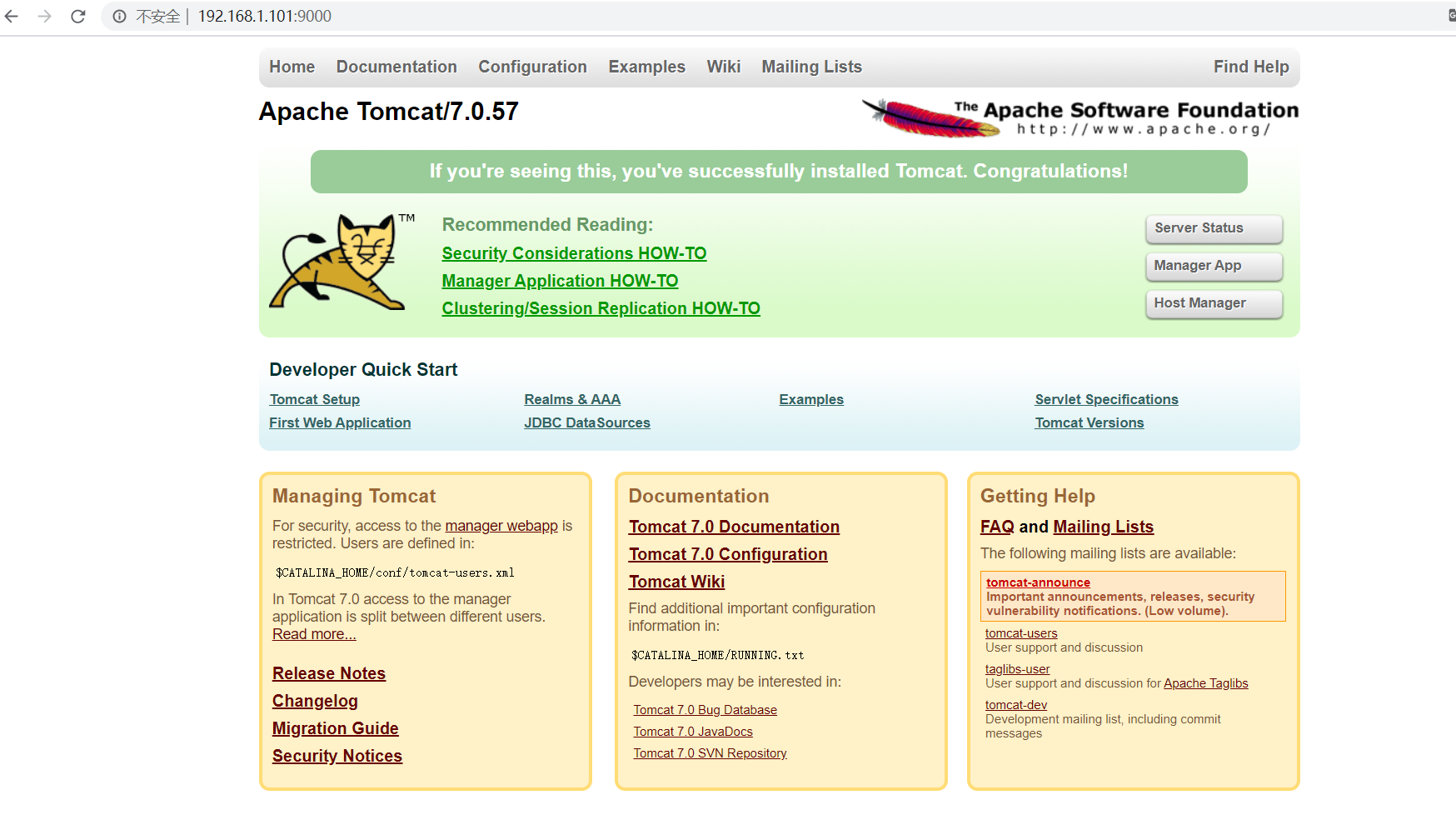

先检查tomcat是否成功运行(小猿已经修改了http connecter 为9000)

到目前位置tomcat已在计算机上成功安装

tomcat的启动和停止

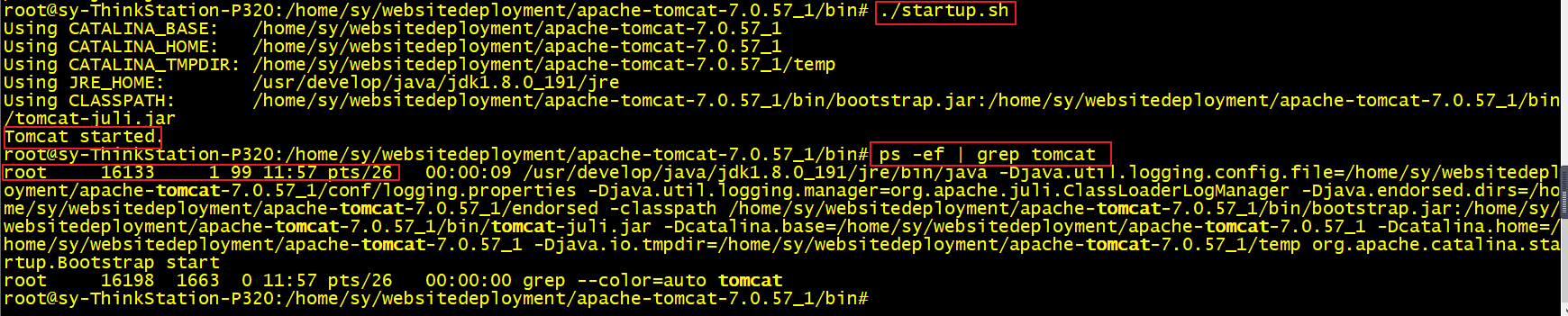

启动tomcat

进入bin目录下执行以下命令即可启动tomcat。

#tomcat的启动
./startup.sh
#查看tomcat
ps -ef | grep tomcat

在这里插入图片描述
说明tomcat已经启动

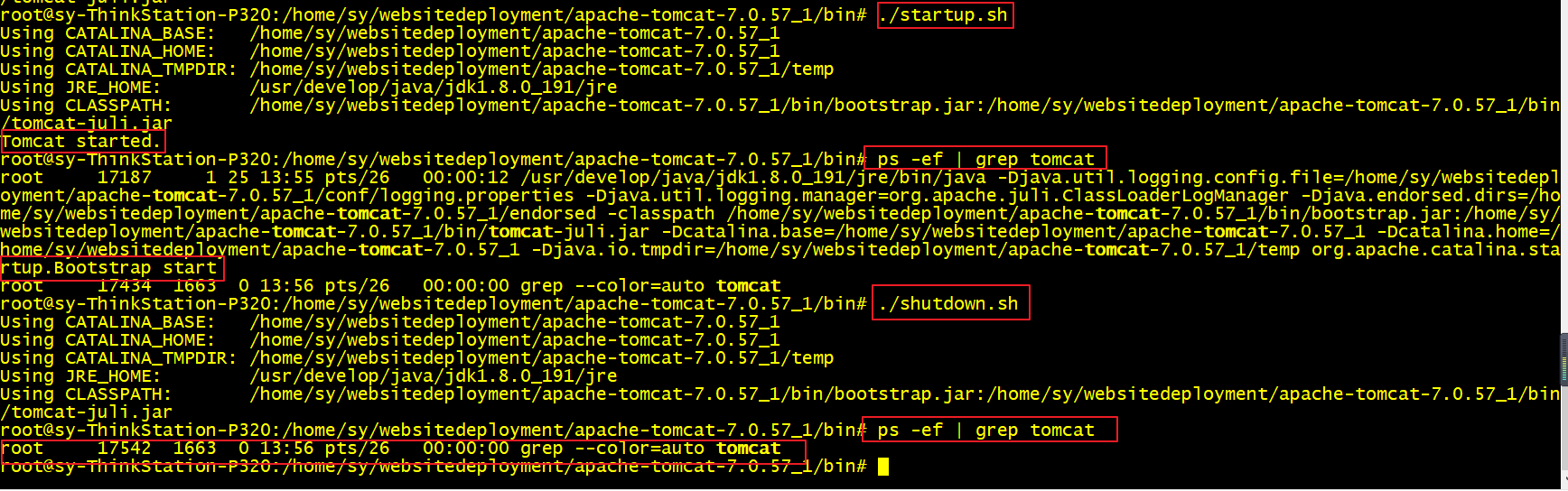

停止tomcat

#tomcat的启动
./shutdown.sh
#查看tomcat
ps -ef | grep tomcat

在这里插入图片描述

tomcat 配置文件的修改

将自己的war包扔到tomcat的webapps下

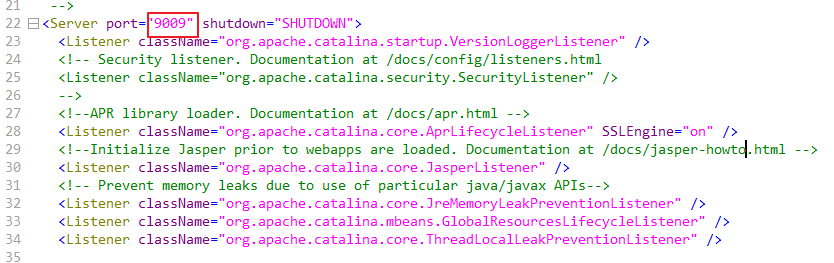

配置tomcat的server.xml文件

在这里插入图片描述

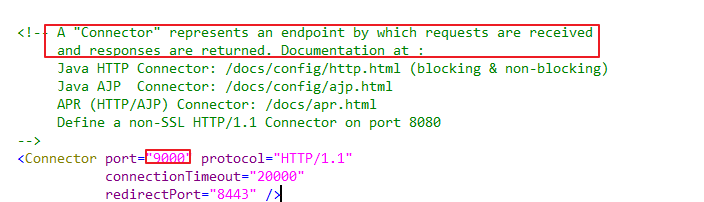

配置http访问端口

<!-- A "Connector" represents an endpoint by which requests are received
         and responses are returned. Documentation at :
         Java HTTP Connector: /docs/config/http.html (blocking & non-blocking)
         Java AJP  Connector: /docs/config/ajp.html
         APR (HTTP/AJP) Connector: /docs/apr.html
         Define a non-SSL HTTP/1.1 Connector on port 8080
    -->
    <Connector port="9000" protocol="HTTP/1.1"
               connectionTimeout="20000"
               redirectPort="8443" />

在这里插入图片描述
配置apj内部端口

<!-- Define an AJP 1.3 Connector on port 8009 -->
    <Connector port="8015" protocol="AJP/1.3" redirectPort="8443" />

在这里插入图片描述
不清楚ajp connecter与http connecter的童鞋请看这里。

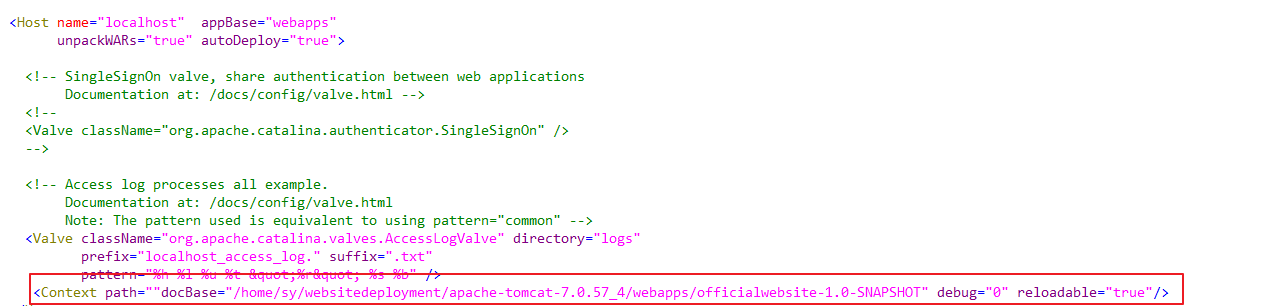

最后配置默认加载路径

在这里插入图片描述
压缩包已准备就绪，server.xml配置已经完毕，现启动tomcat

进入bin，启动tomcat,

./startup.sh

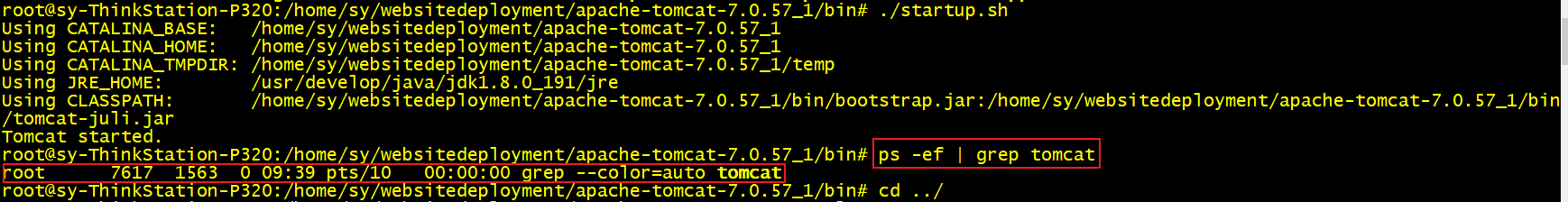

在这里插入图片描述
发现tomcat并没有真正的启动起来，反复重启几次依然得到这种结果,果断去查看日志发现：

SEVERE: Parse Fatal Error at line 140 column 19: Element type "Context" must be followed by either attribute specifications, ">" or "/>".
org.xml.sax.SAXParseException; systemId: file:/home/sy/websitedeployment/apache-tomcat-7.0.57_1/conf/server.xml; lineNumber: 140; columnNumber: 19; Element type "Context" must be followed by either attribute specifications, ">" or "/>".
        at com.sun.org.apache.xerces.internal.util.ErrorHandlerWrapper.createSAXParseException(ErrorHandlerWrapper.java:203)
        at com.sun.org.apache.xerces.internal.util.ErrorHandlerWrapper.fatalError(ErrorHandlerWrapper.java:177)
        at com.sun.org.apache.xerces.internal.impl.XMLErrorReporter.reportError(XMLErrorReporter.java:400)
        at com.sun.org.apache.xerces.internal.impl.XMLErrorReporter.reportError(XMLErrorReporter.java:327)
        at com.sun.org.apache.xerces.internal.impl.XMLScanner.reportFatalError(XMLScanner.java:1472)
        at com.sun.org.apache.xerces.internal.impl.XMLDocumentFragmentScannerImpl.seekCloseOfStartTag(XMLDocumentFragmentScannerImpl.java:1394)
        at com.sun.org.apache.xerces.internal.impl.XMLDocumentFragmentScannerImpl.scanStartElement(XMLDocumentFragmentScannerImpl.java:1324)
        at com.sun.org.apache.xerces.internal.impl.XMLDocumentFragmentScannerImpl$FragmentContentDriver.next(XMLDocumentFragmentScannerImpl.java:2784)
        at com.sun.org.apache.xerces.internal.impl.XMLDocumentScannerImpl.next(XMLDocumentScannerImpl.java:602)
        at com.sun.org.apache.xerces.internal.impl.XMLDocumentFragmentScannerImpl.scanDocument(XMLDocumentFragmentScannerImpl.java:505)
        at com.sun.org.apache.xerces.internal.parsers.XML11Configuration.parse(XML11Configuration.java:842)
        at com.sun.org.apache.xerces.internal.parsers.XML11Configuration.parse(XML11Configuration.java:771)
        at com.sun.org.apache.xerces.internal.parsers.XMLParser.parse(XMLParser.java:141)
        at com.sun.org.apache.xerces.internal.parsers.AbstractSAXParser.parse(AbstractSAXParser.java:1213)
        at com.sun.org.apache.xerces.internal.jaxp.SAXParserImpl$JAXPSAXParser.parse(SAXParserImpl.java:643)
        at org.apache.tomcat.util.digester.Digester.parse(Digester.java:1561)
        at org.apache.catalina.startup.Catalina.load(Catalina.java:615)
        at org.apache.catalina.startup.Catalina.load(Catalina.java:663)
        at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
        at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
        at java.lang.reflect.Method.invoke(Method.java:498)
        at org.apache.catalina.startup.Bootstrap.load(Bootstrap.java:280)
