## redis安装 ##

上传安装包，安装

tar -zxvf redis-5.0.5.tar.gz     ##解压

yum install -y gcc     安装依赖包

**编译安装**

cd redis-5.0.5    ##进入到redis下

Make     #编译
     cd src/
    make install PREFIX=/usr/local/redis

**移动配置文件**

cd ..    ##回到上一个目录下
    [root@1 redis-5.0.5]# mkdir /usr/local/redis/etc
    [root@1 redis-5.0.5]# cp redis.conf /usr/local/redis/etc/

**启动redis服务**

/usr/local/redis/bin/redis-server /usr/local/redis/etc/redis.conf

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70]

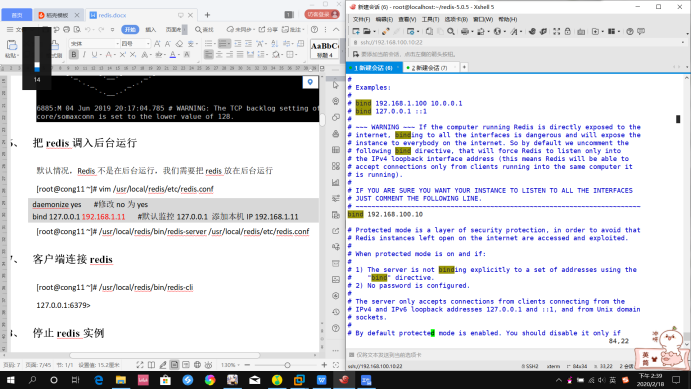

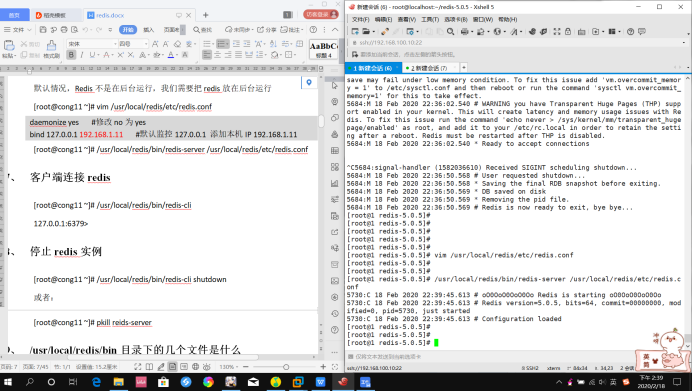

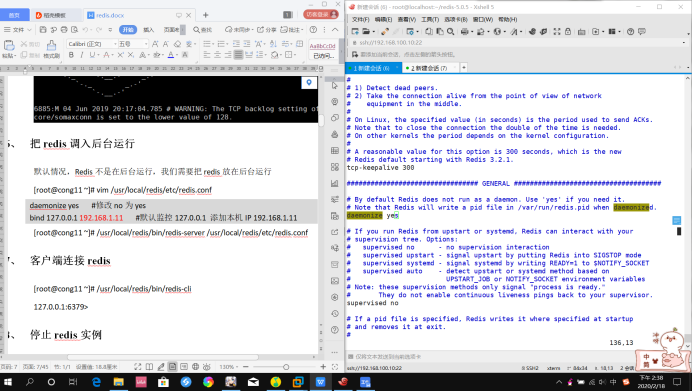

Redis不是在后台运行，我们需要把redis放在后台运行

vim /usr/local/redis/etc/redis.conf

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 1]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 2]

/usr/local/redis/bin/redis-server /usr/local/redis/etc/redis.conf             ##重启一下

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 3]
\*\*

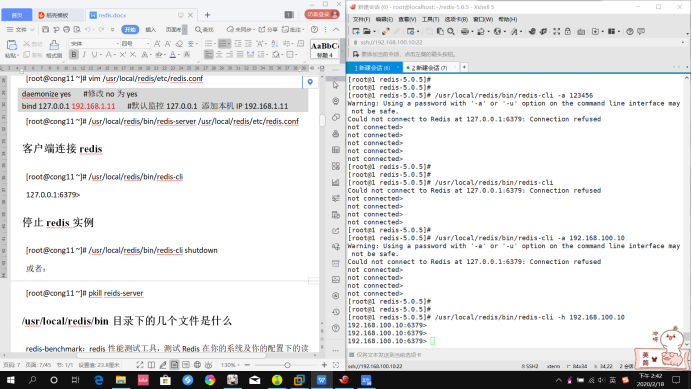

## 客户端连接redis ##

\*\*

/usr/local/redis/bin/redis-cli -h 192.168.100.10

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 4]
**停止redis**

/usr/local/redis/bin/redis-cli shutdown

或者

pkill reids-server

ln -s /usr/local/redis/bin/* /usr/local/bin/     ##添加软链接

**添加开机自启**

chmod +x /etc/rc.d/rc.local
    echo " /usr/local/redis/bin/redis-server /usr/local/redis/etc/redis.conf" >> /etc/rc.d/rc.local

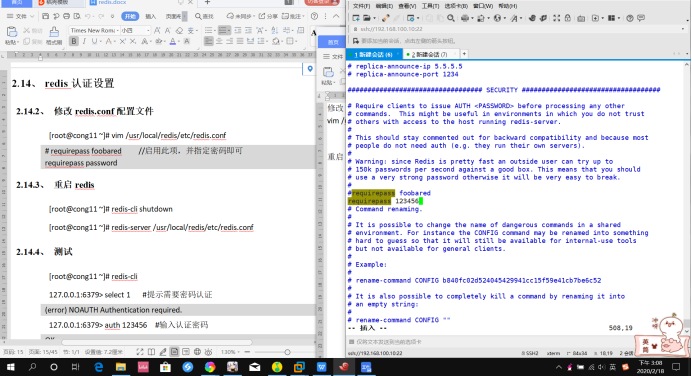

修改redis配置文件

vim /usr/local/redis/etc/redis.conf

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 5]

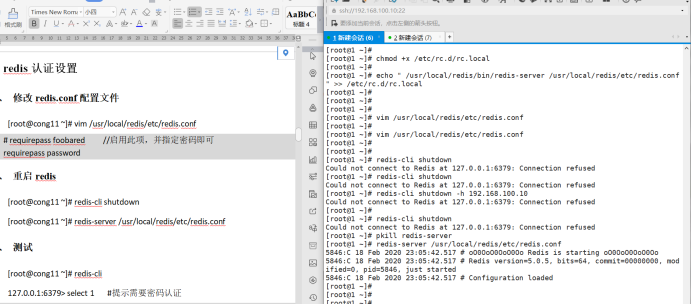

**重启redis**

Pkill redis-server
    redis-server /usr/local/redis/etc/redis.conf

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 6]

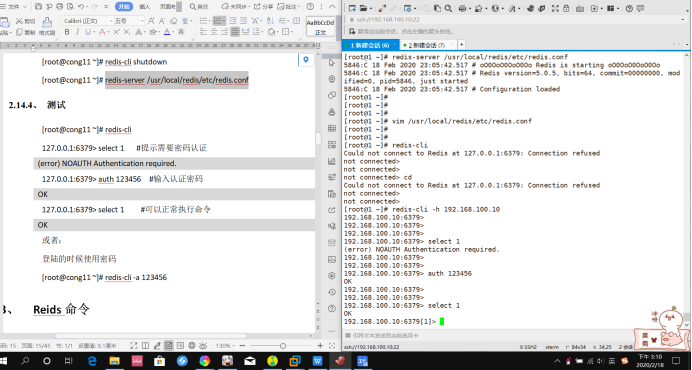

**测试**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 7]
**登录时候用密码**

Redis-cli -a 123456

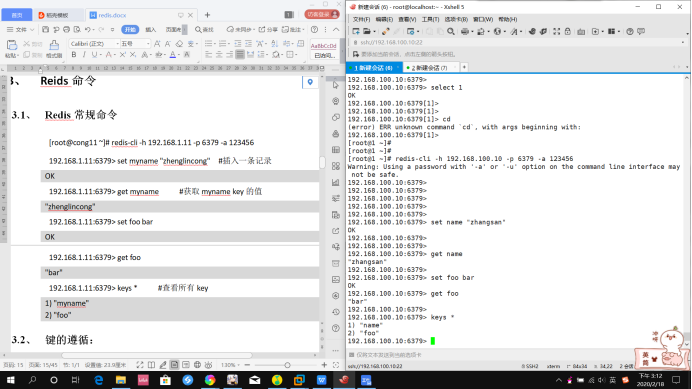

**redis常规命令**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 8]

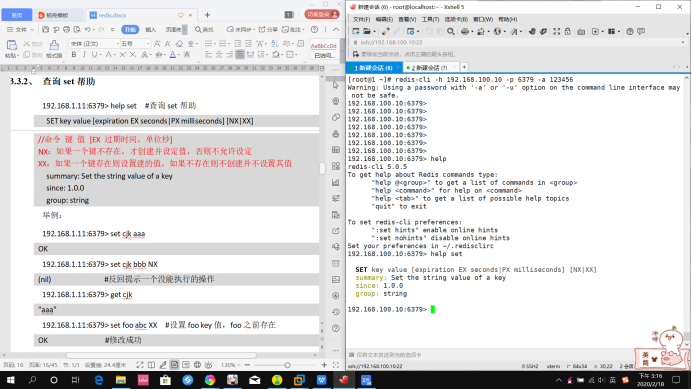

**帮助命令**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 9]

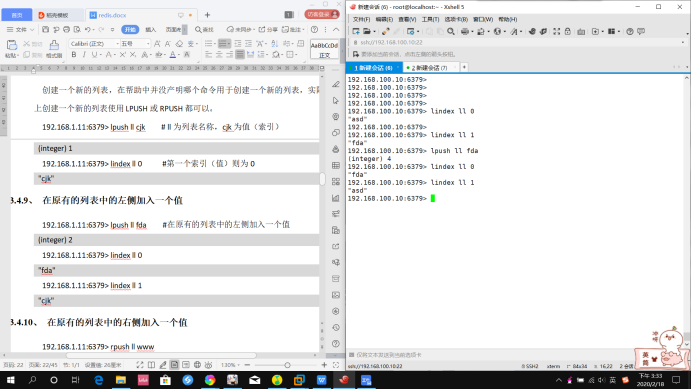

**创建一个表，在列表的左侧加入一个值**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 10]
**在右侧加入值**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 11]
等。。。。。。

**Redis持久化**

**配置文件中与RDB相关的参数**

mkdir -p /redis/data
    vim /usr/local/redis/etc/redis.conf

## **Redis主从架构** ##

**配置slave1,**
安装redis，配置如上

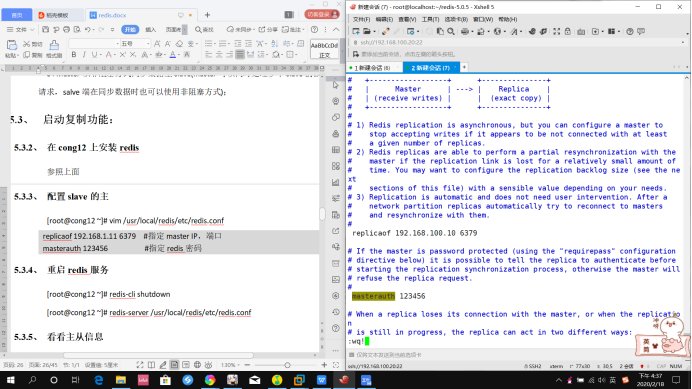

**配置slave1上的主**

vim /usr/local/redis/etc/redis.conf

replicaof 192.168.1.11 6379  #指定master IP，端口
    masterauth 123456         #指定redis密码

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 12]

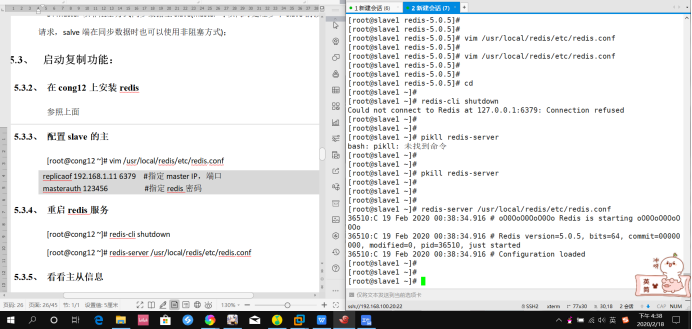

**重启redis服务**

Pkill redis-server
    redis-server /usr/local/redis/etc/redis.conf

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 13]

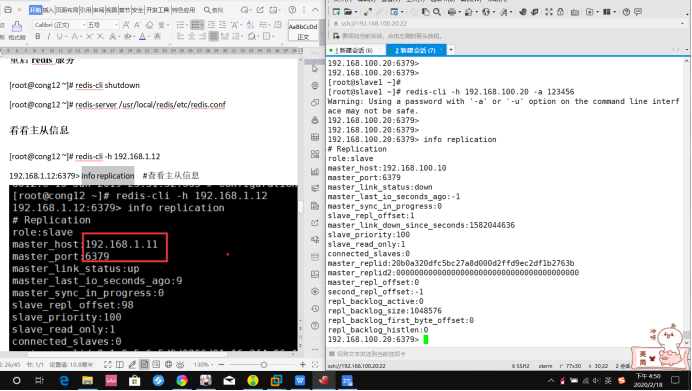

Redis-cli -h 192.168.100.20 -a 123456
    Info replication

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 14]

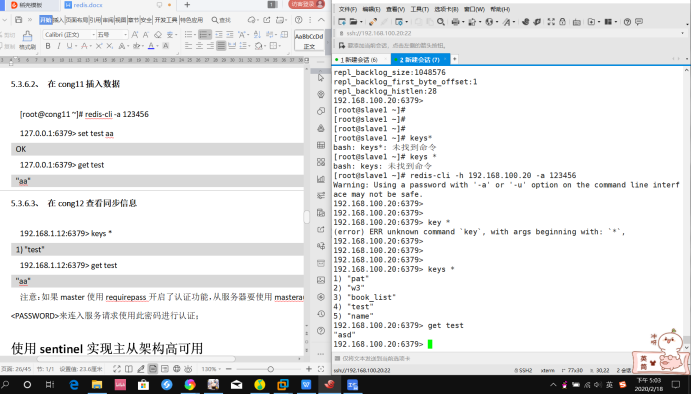

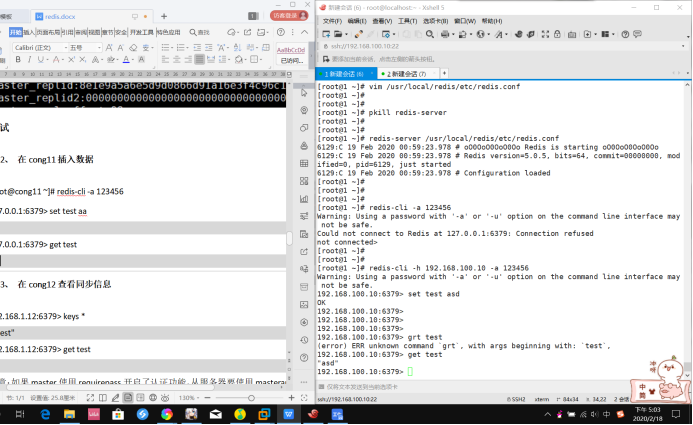

**测试**

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 15]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 16]
同步成功了

## **使用sentinel 实现主从架构高可用** ##

cd /usr/local/redis/etc/
    mkdir /var/log/redis
    mkdir -p /redis/data

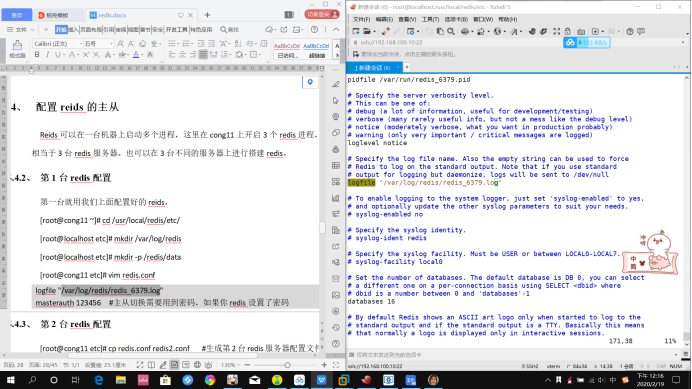

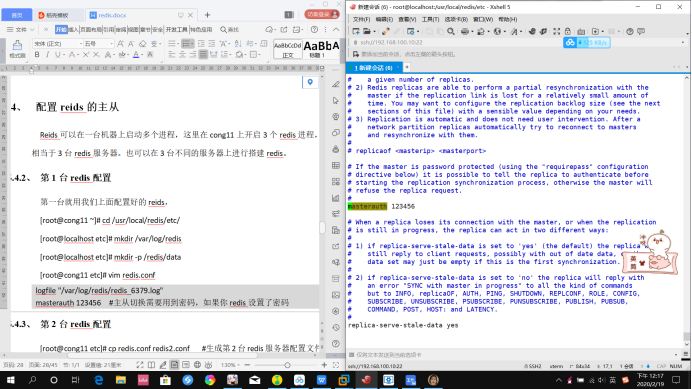

Vim redis.conf

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 17]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 18]
**配置第二个redis**

cp redis.conf redis2.conf              #生成第2台redis服务器配置文件

vim redis2.conf

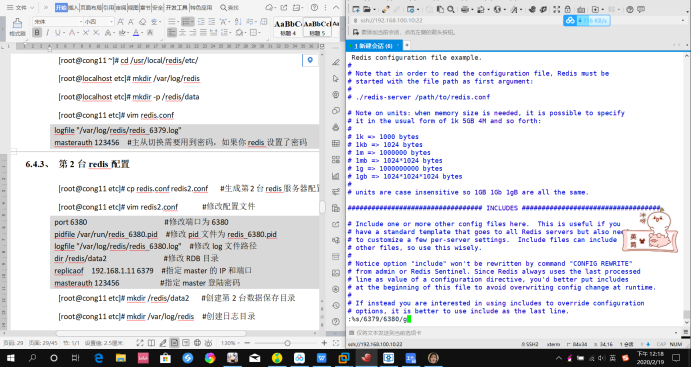

**把6379端口替换成6380**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 19]

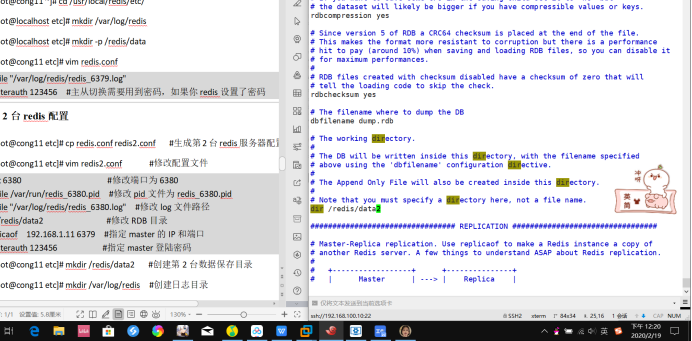

**修改RDB目录**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 20]

**指定master的ip和端口**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 21]

mkdir /redis/data2                 #创建第2台数据保存目录
    mkdir /var/log/redis            #创建日志目录

**在配置第三个redis**

cp redis2.conf redis3.conf                   #生成第3台redis服务器配置文件

vim redis3.conf

**替换端口**

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 22]
**修改RDB目录**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 23]

mkdir /redis/data3            #创建第3台数据保存目录

**启动3个redis服务器**

redis-server /usr/local/redis/etc/redis.conf
     redis-server /usr/local/redis/etc/redis2.conf
     redis-server /usr/local/redis/etc/redis3.conf

**添加开机自启**

echo "redis-server /usr/local/redis/etc/redis2.conf" >> /etc/rc.local
    echo "redis-server /usr/local/redis/etc/redis3.conf" >> /etc/rc.local

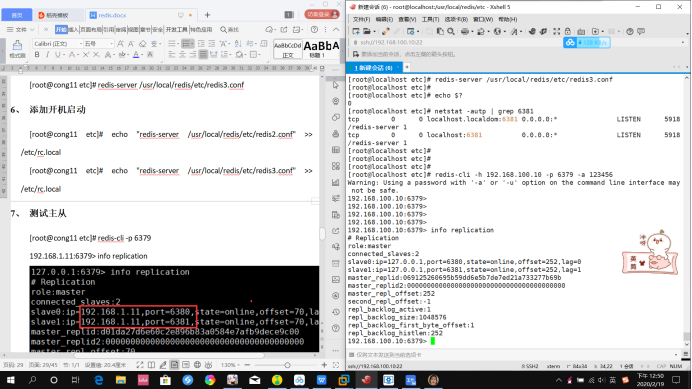

**测试**

redis-cli -h 192.168.100.10 -p 6379 -a 123456

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 24]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 25]

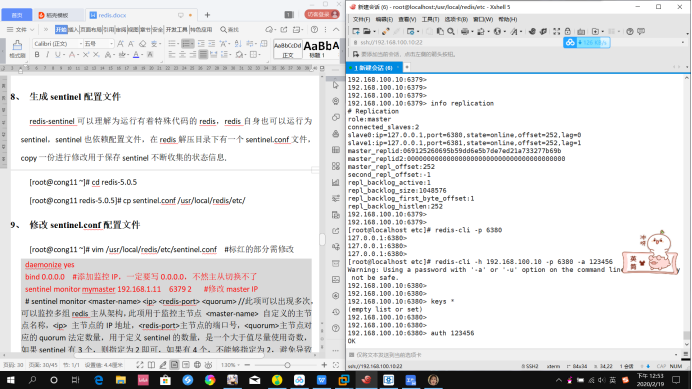

**生成sentinel配置文件**

cd redis-5.0.5
    cp sentinel.conf /usr/local/redis/etc/

vim /usr/local/redis/etc/sentinel.conf

**修改以下**

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 26]

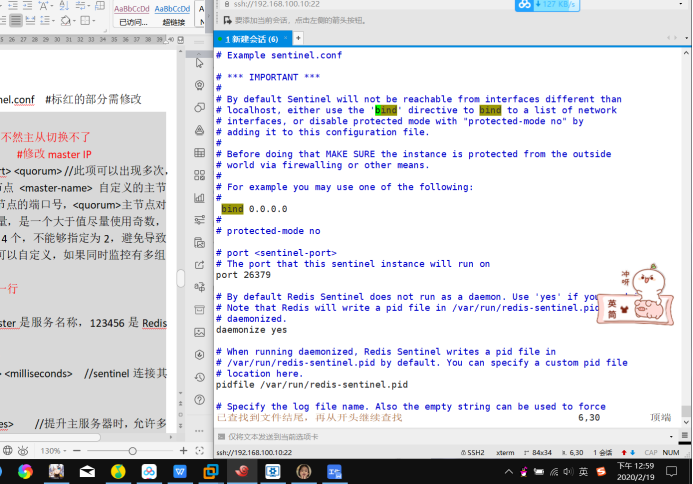

**监控ip必须是0.0.0.0**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 27]

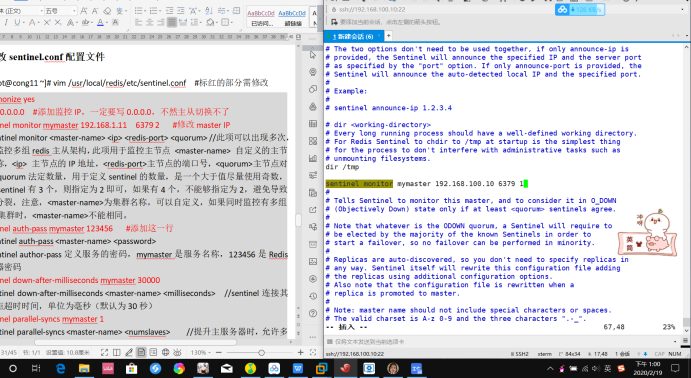

**修改master的ip**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 28]

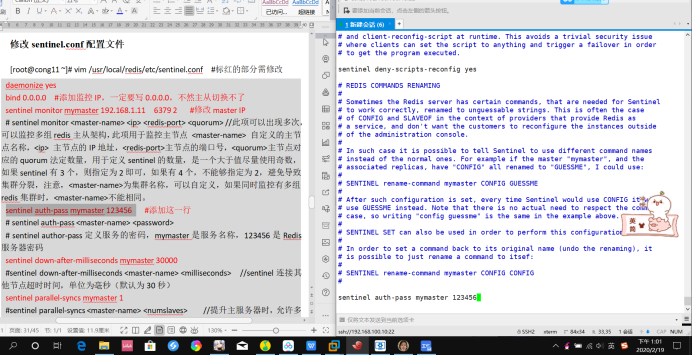

**在最后添加这一行**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 29]

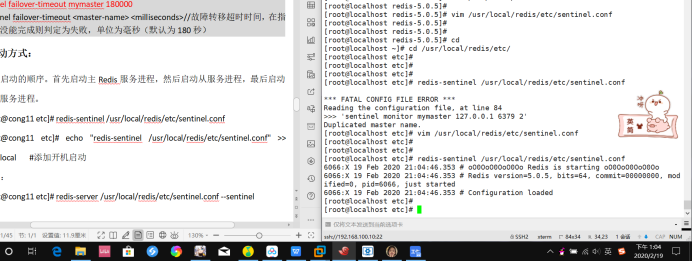

**启动**

cd /usr/local/redis/etc/
     redis-sentinel /usr/local/redis/etc/sentinel.conf
     echo "redis-sentinel /usr/local/redis/etc/sentinel.conf" >> /etc/rc.local   #添加开机启动

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 30]

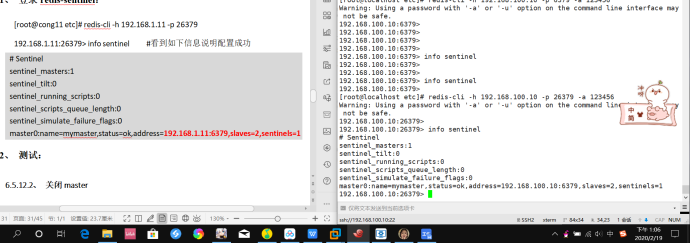

**登录redis-sentinel**

redis-cli -h 192.168.100.10 -p 26379 -a 123456

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 31]

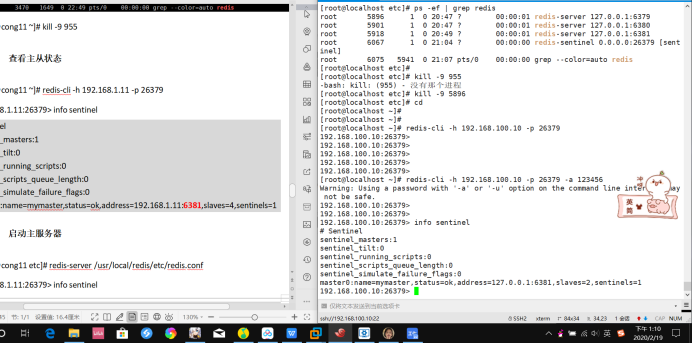

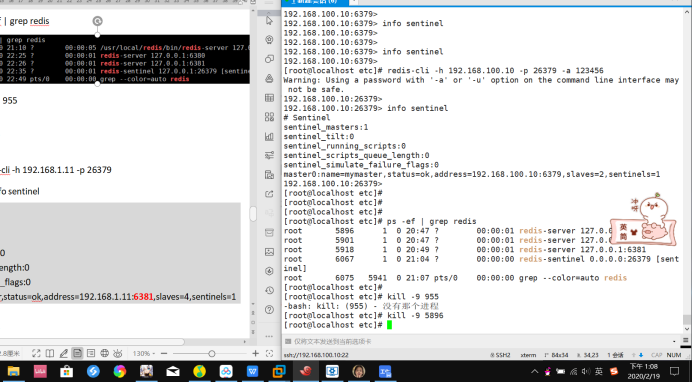

**测试关闭master**

ps -ef | grep redis

    Kill -9 进程号

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 32]

**查看主从状态**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 33]

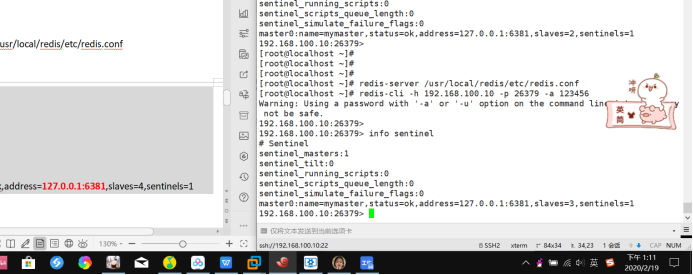

**启动主服务器**

redis-server /usr/local/redis/etc/redis.conf

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 34]

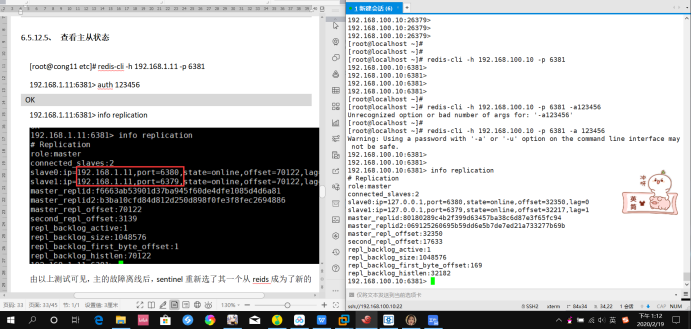

**查看主从状态**

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 35]

## **Redis-cluster集群** ##

（这里我是恢复虚拟机快照做的，在实际当中是六台虚拟机的，因为虚拟机不够，就用三台了，请谅解）

**安装redis 配置如上**
在第一台主机上配置
修改hosts文件

Vim /etc/hosts

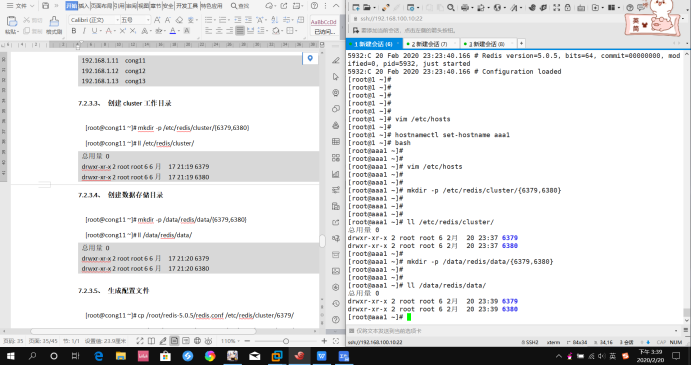

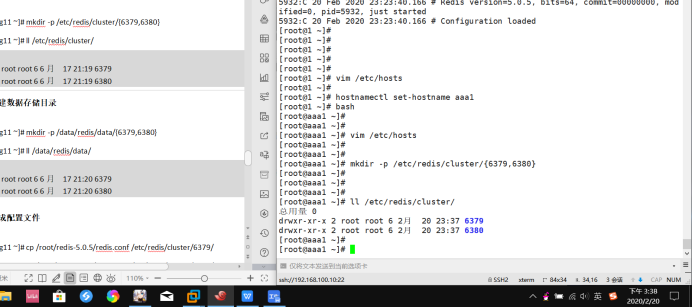

**创建cluster工作目录**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 36]
**创建数据存储目录**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 37]
**生成配置文件**

cp /root/redis-5.0.5/redis.conf /etc/redis/cluster/6379/
    cp /root/redis-5.0.5/redis.conf /etc/redis/cluster/6380/

**修改配置文件**

vim /etc/redis/cluster/6379/redis.conf       ##去掉注释，添加路径，修改

daemonize   yes                   //redis后台运行
    bind 192.168.1.11                   //监听地址
    pidfile  /var/run/redis_6379.pid       //pidfile文件对应端口
    port  6379                        //端口
    dir "/data/redis/data/6379"           //配置redis rdb数据保存位置
    logfile "/var/log/redis/redis_6379.log"	//修改log日志路径
    cluster-enabled  yes                //开启集群  把注释#去掉
    cluster-config-file  nodes_6379.conf   //集群的配置，配置文件首次启动自动生成
    cluster-node-timeout  15000      //请求超时15s
    appendonly  yes              //aof日志开启，有需要就开启，它会每次写操作都记录一条日志

vim /etc/redis/cluster/6380/redis.conf

daemonize   yes                   //redis后台运行
    bind 192.168.1.11
    pidfile "/var/run/redis_6380.pid"
    port  6380
    dir "/data/redis/data/6380"
    logfile "/var/log/redis/redis_6380.log"  //修改log日志路径
    cluster-enabled  yes                //开启集群  把注释#去掉
    cluster-config-file  nodes_6380.conf  //集群的配置，配置文件首次启动自动生成
    cluster-node-timeout  15000      //请求超时15s
    appendonly  yes              //aof日志开启，有需要就开启，它会每次写操作都记录一条日志

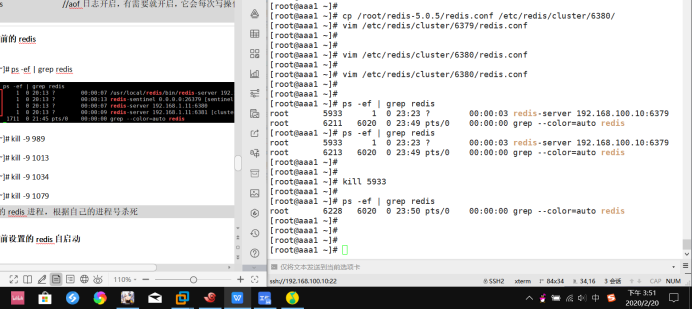

**关闭之前的redis**

Ps -ef | grep redis

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 38]

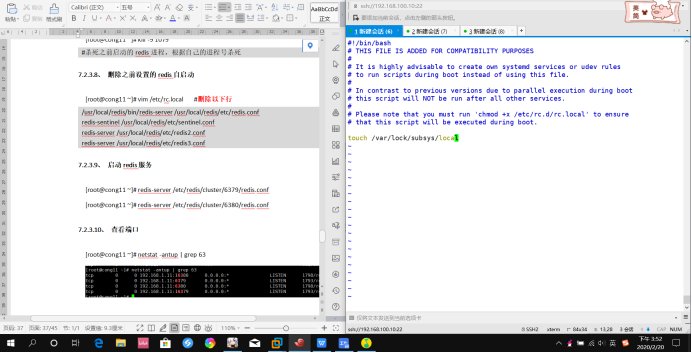

**删除之前设置的redis自启 \#\#删除以下**

/usr/local/redis/bin/redis-server /usr/local/redis/etc/redis.conf

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 39]

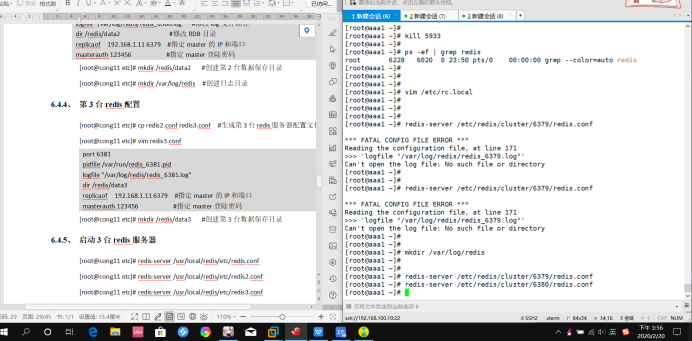

**启动redis服务**

mkdir /var/log/redis            ##创建日志目录
    redis-server /etc/redis/cluster/6379/redis.conf
    redis-server /etc/redis/cluster/6380/redis.conf

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 40]

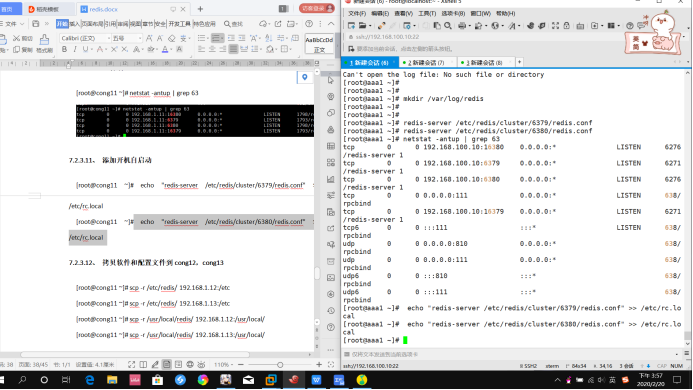

**查看端口 添加开机自启**

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 41]

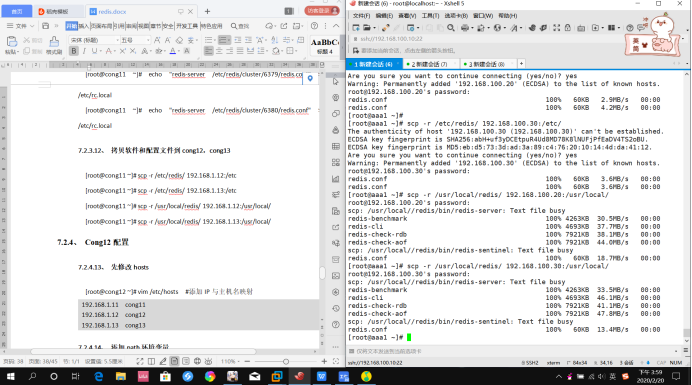

**复制软件和配置文件到另外两个服务器**

scp -r /etc/redis/ 192.168.100.20:/etc
     scp -r /etc/redis/ 192.168.100.30:/etc
     scp -r /usr/local/redis/ 192.168.100.20:/usr/local/
     scp -r /usr/local/redis/ 192.168.100.30:/usr/local/

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 42]

**在配置第二台主机**
修改hosts

vim /etc/hosts

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 43]

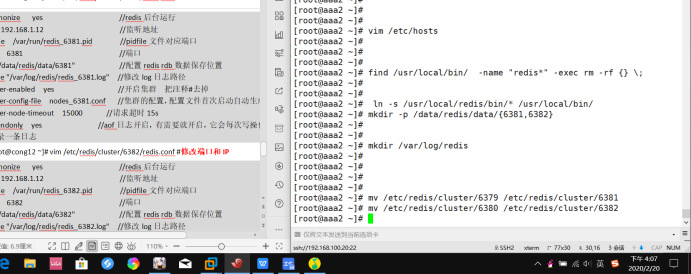

**添加path环境变量**

find /usr/local/bin/  -name "redis*" -exec rm -rf { } \;         ##把前面是redis的文件删除
    ln -s /usr/local/redis/bin/* /usr/local/bin/            ##添加软链接

**创建工作目录**

mkdir -p /data/redis/data/{ 6381,6382}
    mkdir /var/log/redis

修改配置文件

mv /etc/redis/cluster/6379 /etc/redis/cluster/6381
    mv /etc/redis/cluster/6380 /etc/redis/cluster/6382

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 44]

vim /etc/redis/cluster/6381/redis.conf         `因为是从第一台主机上复制过来的，所以就只修改端口和ip`

daemonize   yes                   //redis后台运行
    bind 192.168.1.12                   //监听地址
    pidfile  /var/run/redis_6381.pid       //pidfile文件对应端口
    port  6381                        //端口
    dir "/data/redis/data/6381"           //配置redis rdb数据保存位置
    logfile "/var/log/redis/redis_6381.log"  //修改log日志路径
    cluster-enabled  yes                //开启集群  把注释#去掉
    cluster-config-file  nodes_6381.conf   //集群的配置，配置文件首次启动自动生成
    cluster-node-timeout  15000      //请求超时15s
    appendonly  yes              //aof日志开启，有需要就开启，它会每次写操作都记录一条日志

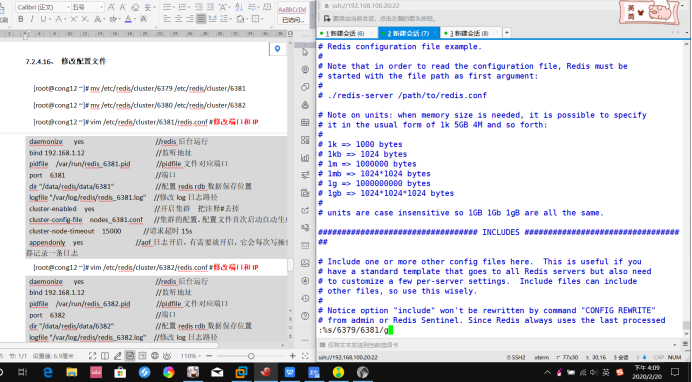

**替换端口**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 45]

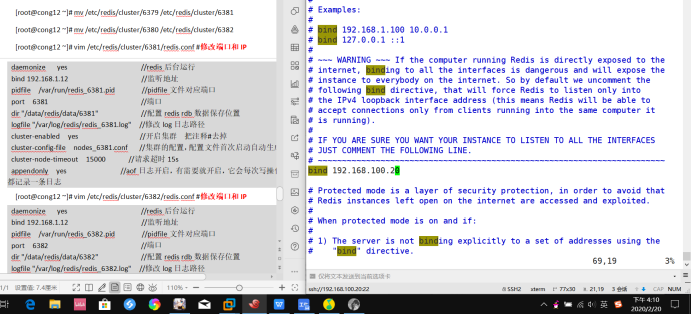

**修改成自己本机的监听地址**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 46]

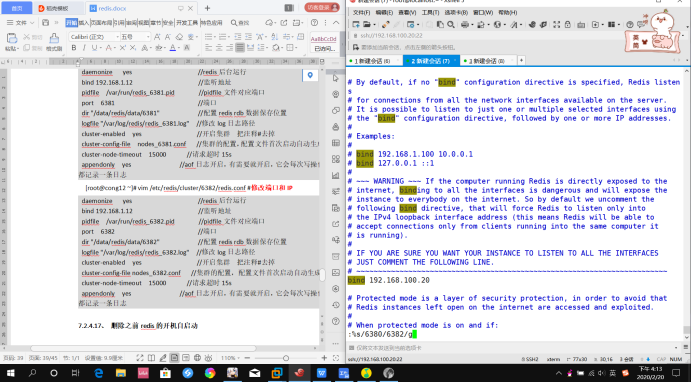

vim /etc/redis/cluster/6382/redis.conf     ##修改端口和ip

daemonize   yes                   //redis后台运行
    bind 192.168.1.12                   //监听地址
    pidfile  /var/run/redis_6382.pid       //pidfile文件对应端口
    port  6382                        //端口
    dir "/data/redis/data/6382"           //配置redis rdb数据保存位置
    logfile "/var/log/redis/redis_6382.log"  //修改log日志路径
    cluster-enabled  yes                //开启集群  把注释#去掉
    cluster-config-file nodes_6382.conf   //集群的配置，配置文件首次启动自动生成
    cluster-node-timeout  15000      //请求超时15s
    appendonly  yes              //aof日志开启，有需要就开启，它会每次写操作都记录一条日志

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 47]

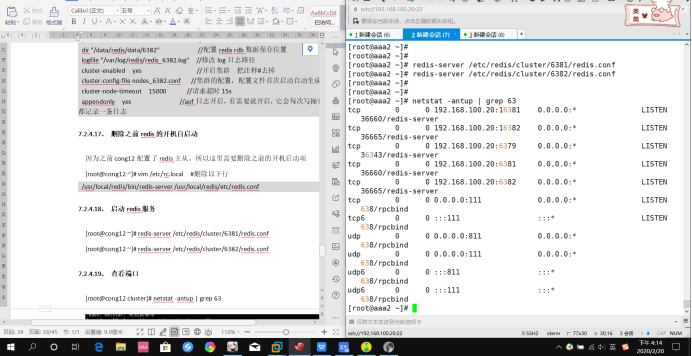

**重启redis服务，查看端口**

redis-server /etc/redis/cluster/6381/redis.conf
     redis-server /etc/redis/cluster/6382/redis.conf

netstat -antup | grep 63

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 48]
**添加开机自启**

echo "redis-server /etc/redis/cluster/6381/redis.conf" >> /etc/rc.local
    echo "redis-server /etc/redis/cluster/6382/redis.conf" >> /etc/rc.local

**在第三台主机上配置**

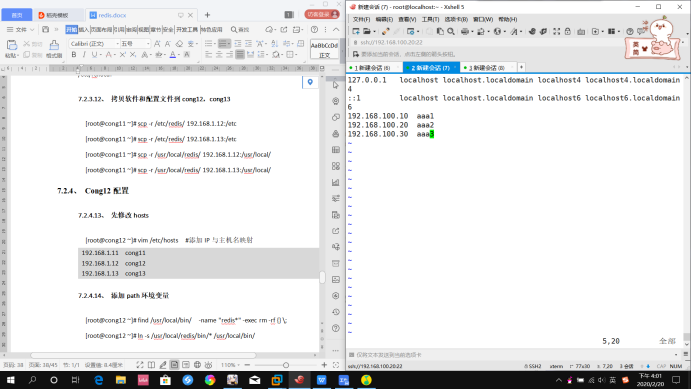

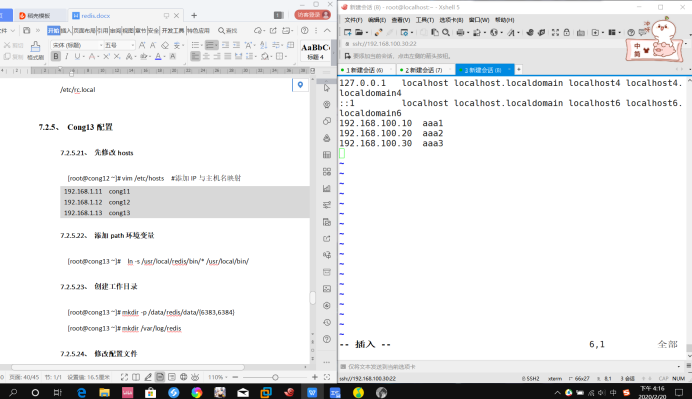

修改hosts

vim /etc/hosts

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 49]
**添加环境变量**

ln -s /usr/local/redis/bin/* /usr/local/bin/

**创建工作目录**

mkdir -p /data/redis/data/{ 6383,6384}
    mkdir /var/log/redis          ##创建日志目录

**修改配置文件**

mv /etc/redis/cluster/6379 /etc/redis/cluster/6383
     mv /etc/redis/cluster/6380 /etc/redis/cluster/6384

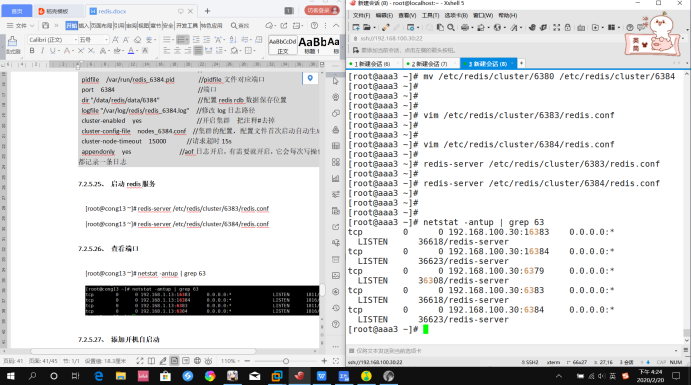

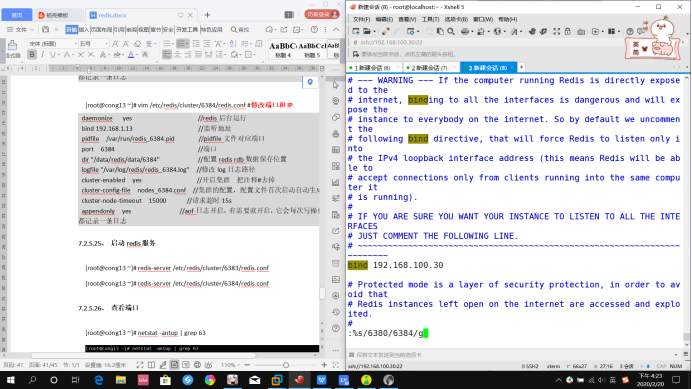

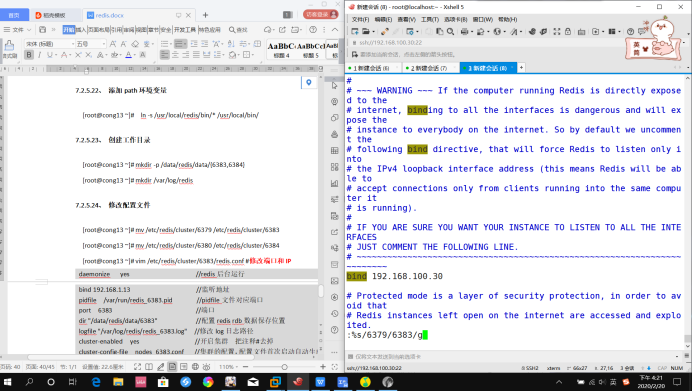

vim /etc/redis/cluster/6383/redis.conf      ##也是只修改ip和端口

daemonize   yes                   //redis后台运行
    bind 192.168.1.13                   //监听地址
    pidfile  /var/run/redis_6383.pid       //pidfile文件对应端口
    port  6383                        //端口
    dir "/data/redis/data/6383"           //配置redis rdb数据保存位置
    logfile "/var/log/redis/redis_6383.log"  //修改log日志路径
    cluster-enabled  yes                //开启集群  把注释#去掉
    cluster-config-file  nodes_6383.conf   //集群的配置，配置文件首次启动自动生成
    cluster-node-timeout  15000      //请求超时15s
    appendonly  yes              //aof日志开启，有需要就开启，它会每次写操作都记录一条日志

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 50]

vim /etc/redis/cluster/6384/redis.conf

daemonize   yes                   //redis后台运行
    bind 192.168.1.13                   //监听地址
    pidfile  /var/run/redis_6384.pid       //pidfile文件对应端口
    port  6384                        //端口
    dir "/data/redis/data/6384"           //配置redis rdb数据保存位置
    logfile "/var/log/redis/redis_6384.log"  //修改log日志路径
    cluster-enabled  yes                //开启集群  把注释#去掉
    cluster-config-file  nodes_6384.conf  //集群的配置，配置文件首次启动自动生成
    cluster-node-timeout  15000      //请求超时15s
    appendonly  yes              //aof日志开启，有需要就开启，它会每次写操作都记录一条日志

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 51]
**启动redis服务，查看端口**

redis-server /etc/redis/cluster/6383/redis.conf
    redis-server /etc/redis/cluster/6384/redis.conf

netstat -antup | grep 63

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 52]
**添加开机自启**

echo "redis-server /etc/redis/cluster/6383/redis.conf" >> /etc/rc.local
    echo "redis-server /etc/redis/cluster/6384/redis.conf" >> /etc/rc.local

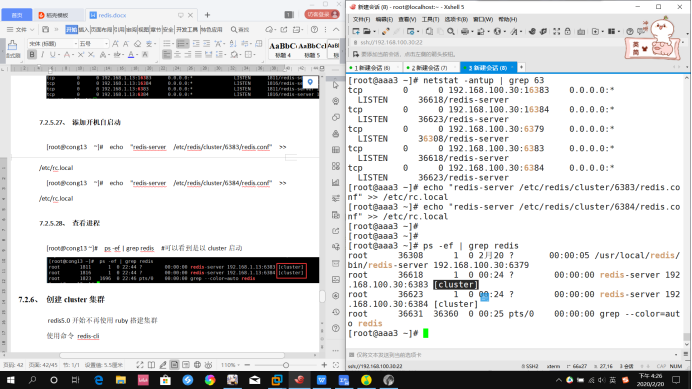

**查看进程**

ps -ef | grep redis

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 53]

## 创建cluster集群 ##

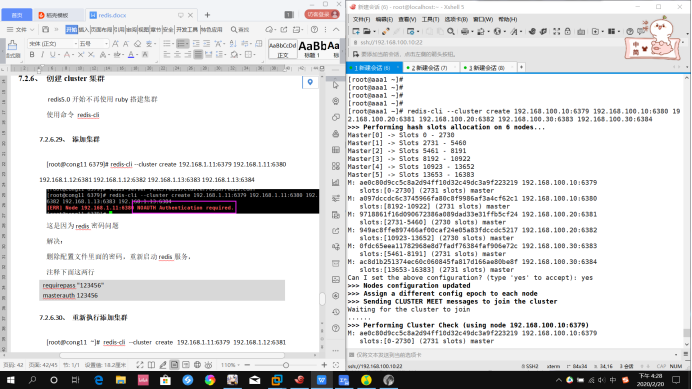

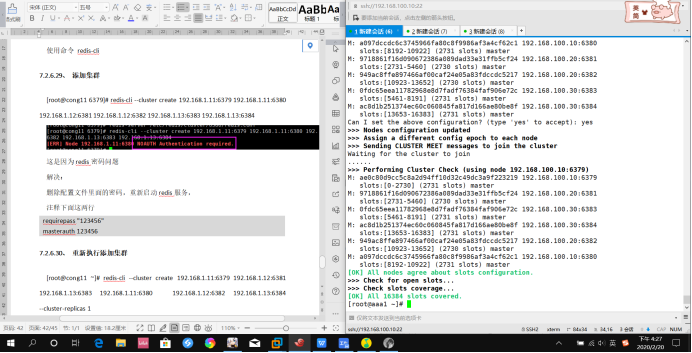

**创建集群**

redis-cli --cluster create 192.168.100.10:6379 192.168.100.10:6380 192.168.100.20:6381 192.168.100.20:6382 192.168.100.30:6383 192.168.100.30:6384

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 54]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 55]
**关闭集群**

vim /root/redis-5.0.5/utils/create-cluster/create-cluster

PORT=6379    #修改端口为6379
    NODES=6      #修改node节点为6，工具会自动累加节点6379-6384节点操作

/root/redis-5.0.5/utils/create-cluster/create-cluster stop            ##关闭

**启动集群**

/root/redis-5.0.5/utils/create-cluster/create-cluster start          ##启动

**到这里就结束了，做的不好请谅解，如果有错的地方请小伙伴们留言**

[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70]: https://img-blog.csdnimg.cn/20200222125221901.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 1]: https://img-blog.csdnimg.cn/20200222125303538.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 2]: https://img-blog.csdnimg.cn/20200222125337778.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 3]: https://img-blog.csdnimg.cn/20200222125405425.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 4]: https://img-blog.csdnimg.cn/20200222125422251.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 5]: https://img-blog.csdnimg.cn/20200222125436478.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 6]: https://img-blog.csdnimg.cn/20200222125448174.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 7]: https://img-blog.csdnimg.cn/20200222125455633.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 8]: https://img-blog.csdnimg.cn/20200222125504788.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 9]: https://img-blog.csdnimg.cn/20200222125513433.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 10]: https://img-blog.csdnimg.cn/20200222125531113.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 11]: https://img-blog.csdnimg.cn/20200222125539955.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 12]: https://img-blog.csdnimg.cn/20200222125613287.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 13]: https://img-blog.csdnimg.cn/20200222125622271.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 14]: https://img-blog.csdnimg.cn/20200222125631933.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 15]: https://img-blog.csdnimg.cn/20200222125645259.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 16]: https://img-blog.csdnimg.cn/2020022212570988.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 17]: https://img-blog.csdnimg.cn/2020022212572463.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 18]: https://img-blog.csdnimg.cn/20200222125738782.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 19]: https://img-blog.csdnimg.cn/20200222125801430.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 20]: https://img-blog.csdnimg.cn/20200222125809819.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 21]: https://img-blog.csdnimg.cn/2020022212582136.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 22]: https://img-blog.csdnimg.cn/20200222125835390.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 23]: https://img-blog.csdnimg.cn/20200222125846784.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 24]: https://img-blog.csdnimg.cn/20200222125903921.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 25]: https://img-blog.csdnimg.cn/20200222125911464.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 26]: https://img-blog.csdnimg.cn/20200222125925594.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 27]: https://img-blog.csdnimg.cn/20200222125933455.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 28]: https://img-blog.csdnimg.cn/20200222125941299.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 29]: https://img-blog.csdnimg.cn/20200222125948359.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 30]: https://img-blog.csdnimg.cn/20200222125955535.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 31]: https://img-blog.csdnimg.cn/20200222130007237.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 32]: https://img-blog.csdnimg.cn/20200222130021626.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 33]: https://img-blog.csdnimg.cn/20200222130028546.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 34]: https://img-blog.csdnimg.cn/2020022213003785.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 35]: https://img-blog.csdnimg.cn/20200222130045740.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 36]: https://img-blog.csdnimg.cn/20200222130055393.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 37]: https://img-blog.csdnimg.cn/20200222130105103.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 38]: https://img-blog.csdnimg.cn/20200222130202799.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 39]: https://img-blog.csdnimg.cn/20200222130214104.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 40]: https://img-blog.csdnimg.cn/20200222130222760.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 41]: https://img-blog.csdnimg.cn/20200222130229210.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 42]: https://img-blog.csdnimg.cn/20200222130236545.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 43]: https://img-blog.csdnimg.cn/20200222130244546.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 44]: https://img-blog.csdnimg.cn/20200222130253977.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 45]: https://img-blog.csdnimg.cn/2020022213030953.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 46]: https://img-blog.csdnimg.cn/20200222130319791.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 47]: https://img-blog.csdnimg.cn/2020022213044911.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 48]: https://img-blog.csdnimg.cn/20200222130458607.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 49]: https://img-blog.csdnimg.cn/20200222130506177.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 50]: https://img-blog.csdnimg.cn/2020022213052261.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 51]: https://img-blog.csdnimg.cn/2020022213053388.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 52]: https://img-blog.csdnimg.cn/2020022213054176.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 53]: https://img-blog.csdnimg.cn/20200222130547196.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 54]: https://img-blog.csdnimg.cn/2020022213055772.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA_size_16_color_FFFFFF_t_70 55]: https://img-blog.csdnimg.cn/20200222130605896.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80NjM4MTY2OA==,size_16,color_FFFFFF,t_70
