Java实现校园商城后台管理系统

朴灿烈づ我的快乐病毒、 2023-07-03 06:22 8阅读 0赞

## 1.校园商城后台管理系统背景 ##

本系统模拟商城系统开发的校园商城后台管理系统。

## 2.校园商城后台管理系统技术架构 ##

主要技术
Spring、SpringMVC、Mybatis
JSP、JSTL、jQuery、HTML、CSS、JS
Mysql
bootstrap
开发工具和环境
Eclipse
Maven
Tomcat 7
JDK 1.8
Mysql 5.6
Win10 操作系统

## 3.校园商城后台管理系统数据库设计 ##

CREATE TABLE `admins` (
      `adminId` int(11) NOT NULL AUTO_INCREMENT,
      `password` varchar(255) CHARACTER SET gbk DEFAULT NULL,
      `username` varchar(255) CHARACTER SET gbk DEFAULT NULL,
      PRIMARY KEY (`adminId`)
    ) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8

    CREATE TABLE `users` (
      `userId` int(11) NOT NULL AUTO_INCREMENT,
      `username` varchar(255) DEFAULT NULL,
      `password` varchar(255) DEFAULT NULL,
      `email` varchar(255) DEFAULT NULL,
      `address` varchar(255) DEFAULT NULL,
      `sex` varchar(20) DEFAULT NULL,
      `name` varchar(255) DEFAULT NULL,
      `phone` varchar(255) DEFAULT NULL,
      `post` varchar(255) DEFAULT NULL,
      `money` double DEFAULT NULL,
      PRIMARY KEY (`userId`)
    ) ENGINE=InnoDB AUTO_INCREMENT=15 DEFAULT CHARSET=utf8

    CREATE TABLE `commodityclasses` (
      `commodityClassId` int(11) NOT NULL AUTO_INCREMENT,
      `commodityClassName` varchar(255) DEFAULT NULL,
      PRIMARY KEY (`commodityClassId`)
    ) ENGINE=InnoDB AUTO_INCREMENT=17 DEFAULT CHARSET=utf8

    CREATE TABLE `commoditys` (
      `commodityId` int(11) NOT NULL AUTO_INCREMENT,
      `commodityAmount` int(11) DEFAULT NULL,
      `commodityDepict` varchar(255) DEFAULT NULL,
      `commodityLeaveNum` int(11) DEFAULT NULL,
      `commodityName` varchar(255) DEFAULT NULL,
      `commodityPrice` double(10,0) DEFAULT NULL,
      `image` varchar(255) DEFAULT NULL,
      `manufacturer` varchar(255) DEFAULT NULL,
      `webPrice` double(10,0) DEFAULT NULL,
      `commodityClass_commodityClassId` int(11) DEFAULT NULL,
      PRIMARY KEY (`commodityId`),
      KEY `FK4616CEE64542CEEB` (`commodityClass_commodityClassId`),
      CONSTRAINT `FK4616CEE64542CEEB` FOREIGN KEY (`commodityClass_commodityClassId`) REFERENCES `commodityclasses` (`commodityClassId`),
      CONSTRAINT `FKj4tautjpjuo1vbr4b3gpa758i` FOREIGN KEY (`commodityClass_commodityClassId`) REFERENCES `commodityclasses` (`commodityClassId`)
    ) ENGINE=InnoDB AUTO_INCREMENT=41 DEFAULT CHARSET=utf8

    CREATE TABLE `orderform` (
      `orderFormID` int(25) NOT NULL AUTO_INCREMENT,
      `submitTime` varchar(50) DEFAULT NULL,
      `consignmentTime` varchar(50) DEFAULT NULL,
      `totalPrice` int(25) DEFAULT NULL,
      `remark` varchar(255) DEFAULT NULL,
      `isPayoff` varchar(255) DEFAULT NULL,
      `isConsignment` varchar(255) DEFAULT NULL,
      `username` varchar(255) DEFAULT NULL,
      `orderFormNum` bigint(50) DEFAULT NULL,
      PRIMARY KEY (`orderFormID`)
    ) ENGINE=InnoDB AUTO_INCREMENT=49 DEFAULT CHARSET=utf8

## 4…校园商城后台管理系统功能介绍 ##

**4.1商城后台登录功能**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM0NDE3NzQ5_size_16_color_FFFFFF_t_70]

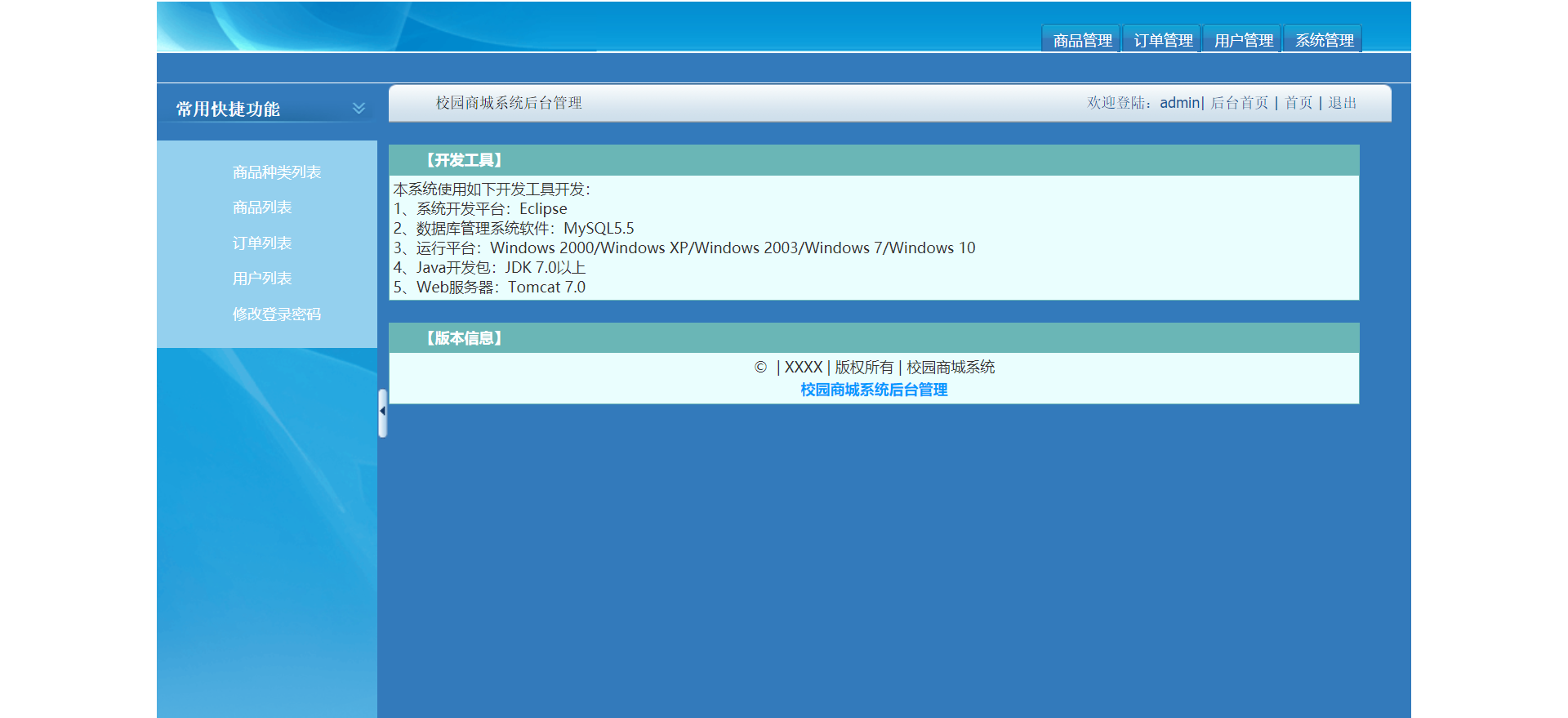

**4.2商城后台登录首页**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM0NDE3NzQ5_size_16_color_FFFFFF_t_70 1]

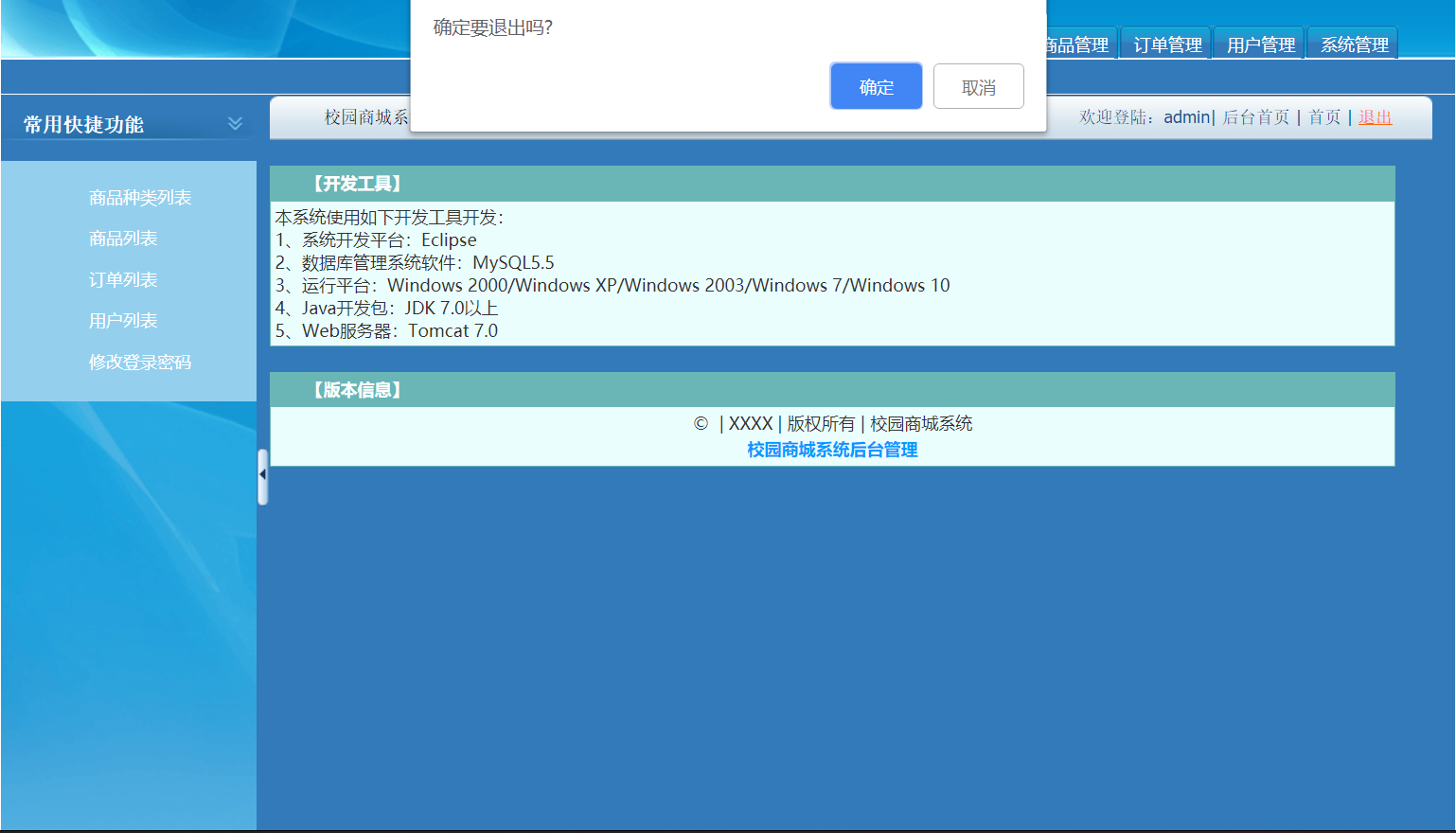

**4.3商城后台退出登录功能**![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM0NDE3NzQ5_size_16_color_FFFFFF_t_70 2]

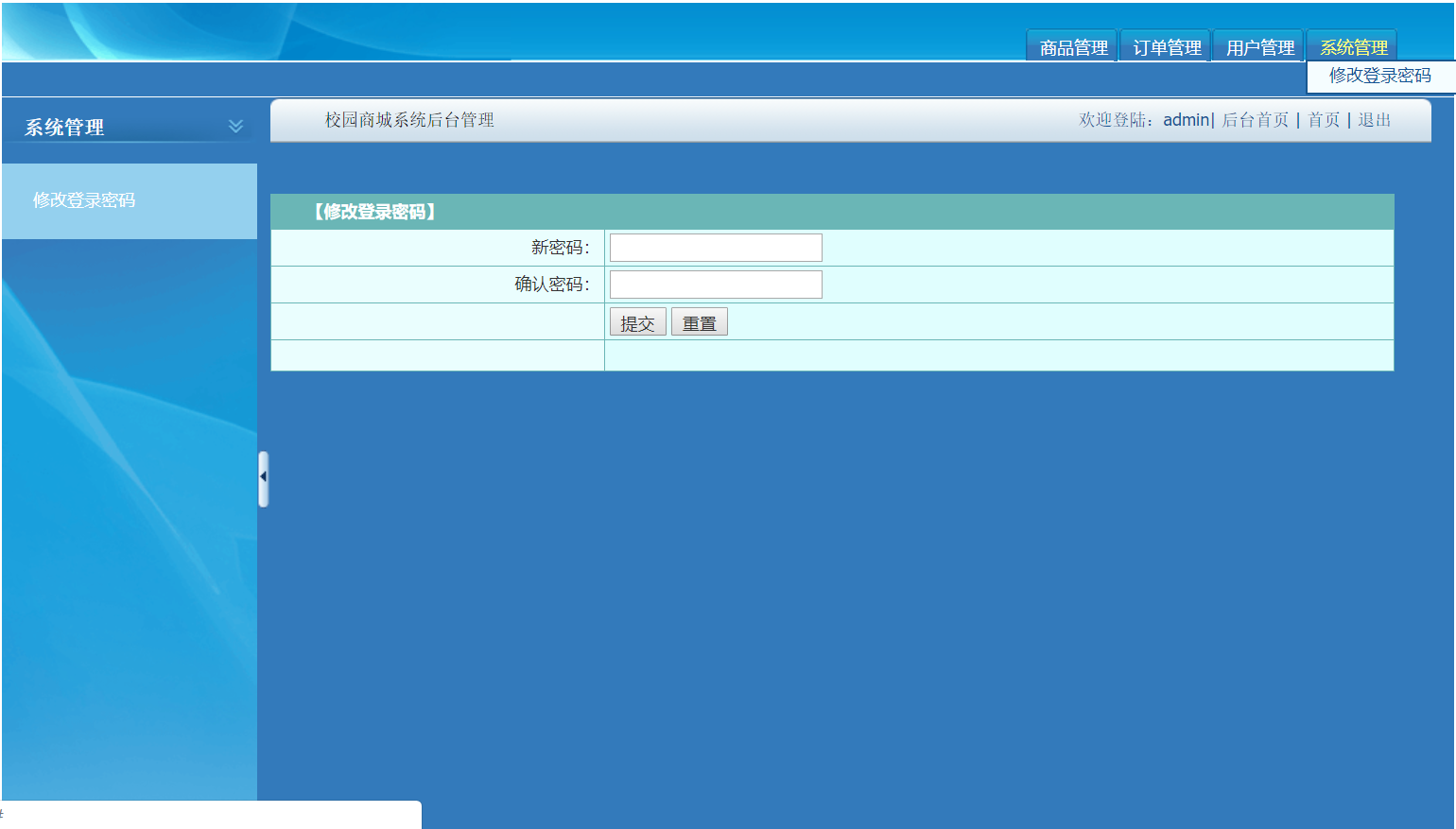

**4.4商城后台修改密码功能**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM0NDE3NzQ5_size_16_color_FFFFFF_t_70 3]

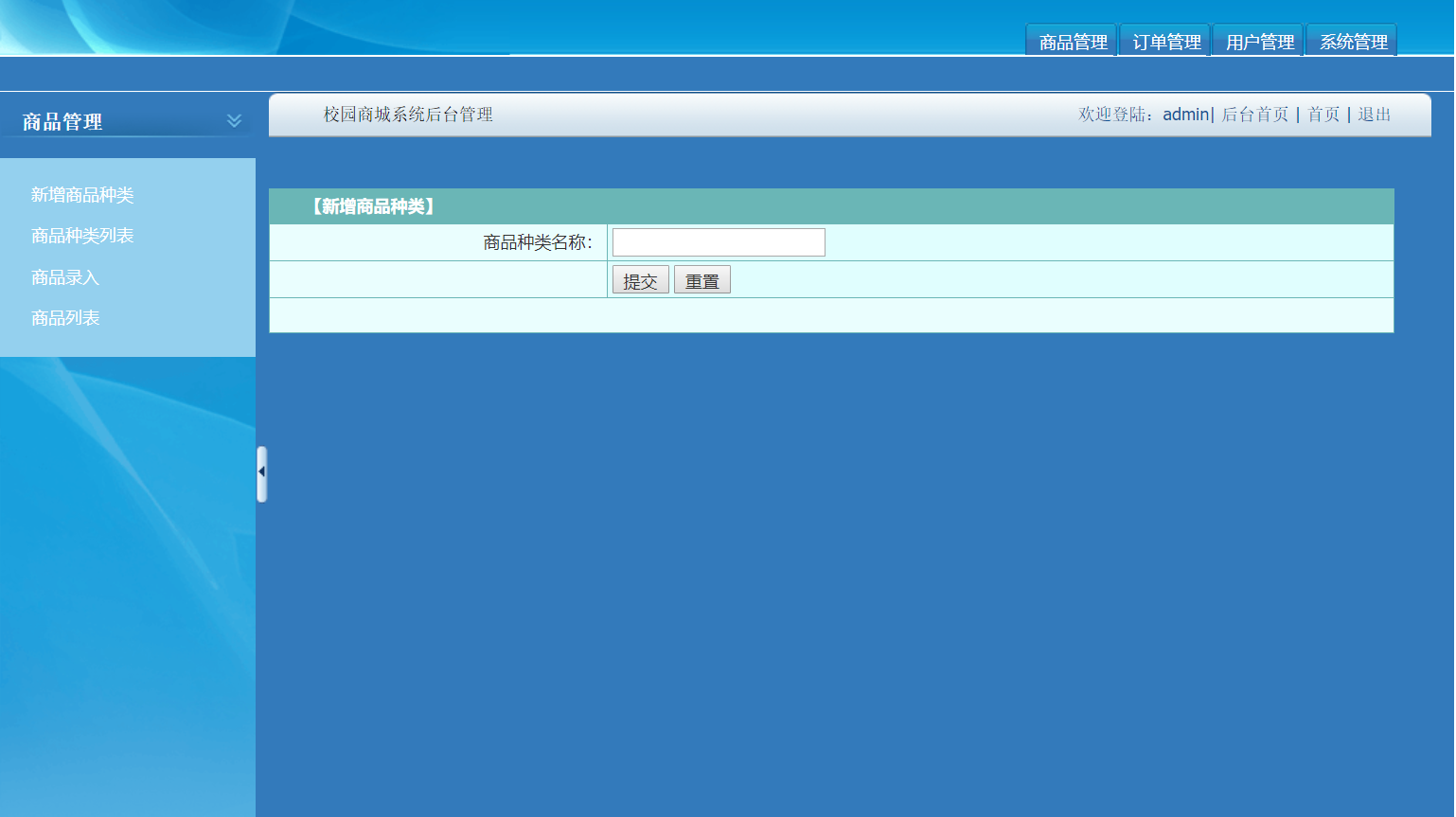

**4.5商城后台新增商品种类功能**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM0NDE3NzQ5_size_16_color_FFFFFF_t_70 4]

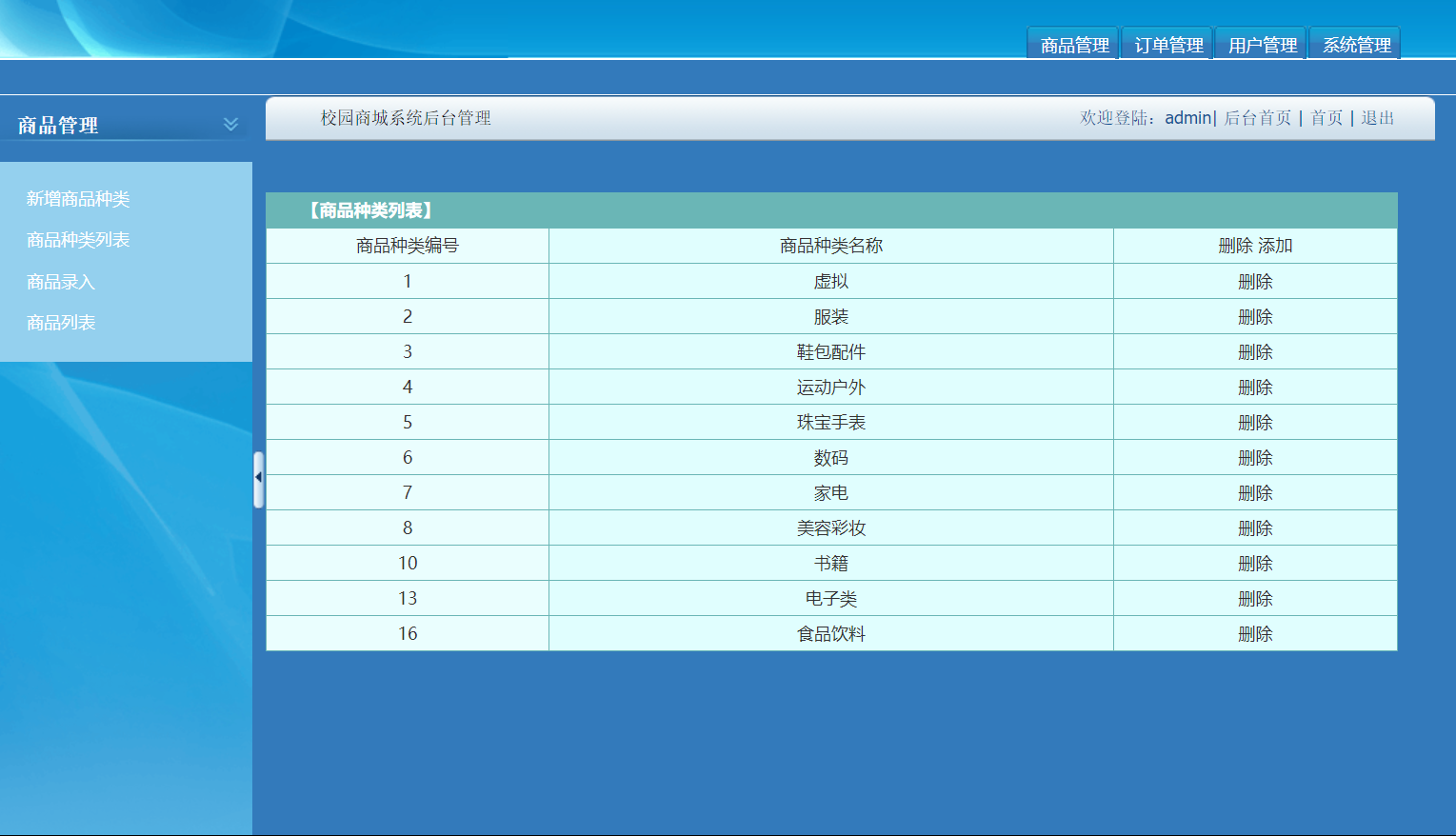

**4.6商城后台查看删除商品种类功能**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM0NDE3NzQ5_size_16_color_FFFFFF_t_70 5]
**4.7商城后台添加商品功能**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM0NDE3NzQ5_size_16_color_FFFFFF_t_70 6]

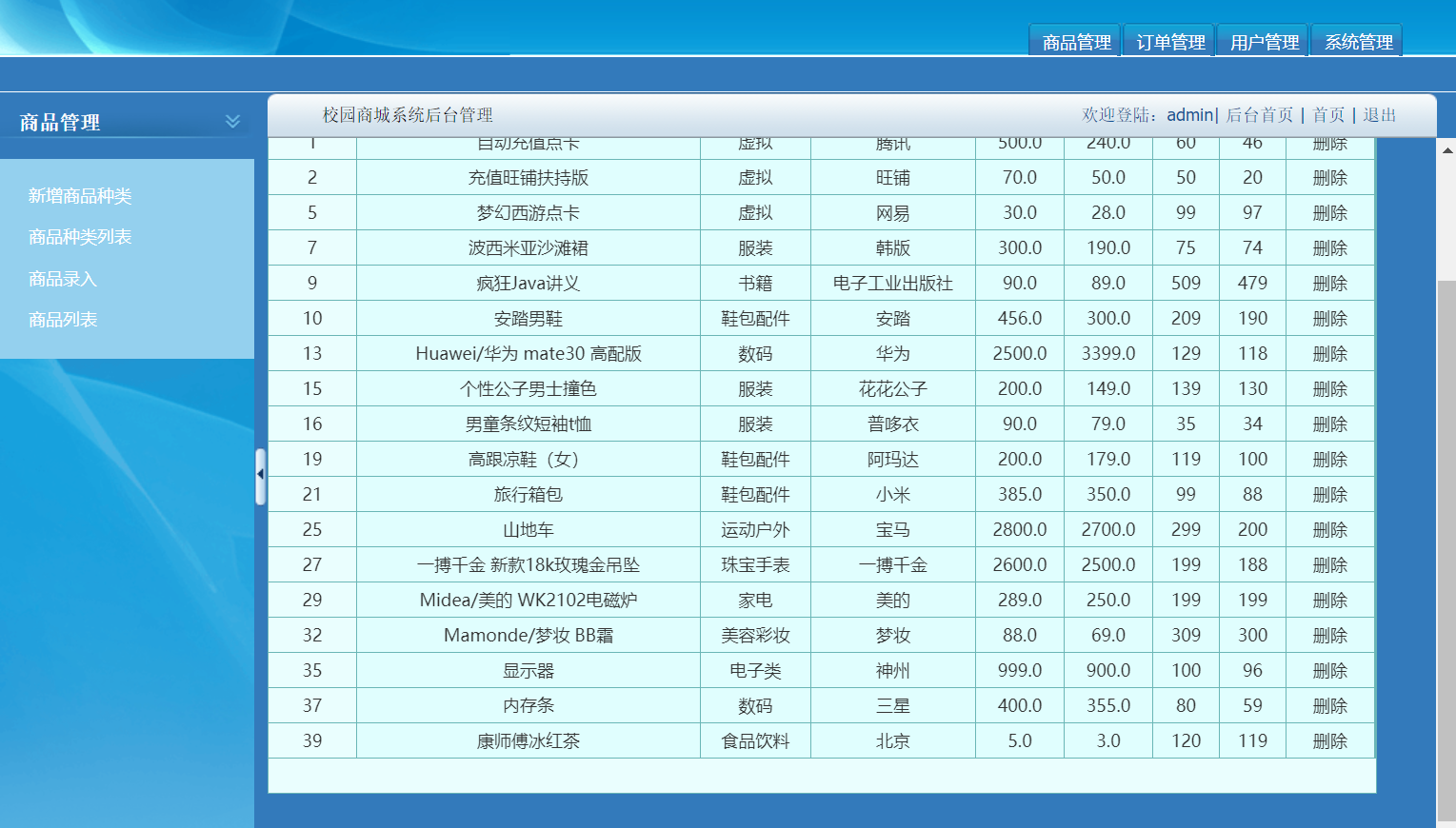

**4.8商城后台查看删除商品功能**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM0NDE3NzQ5_size_16_color_FFFFFF_t_70 7]

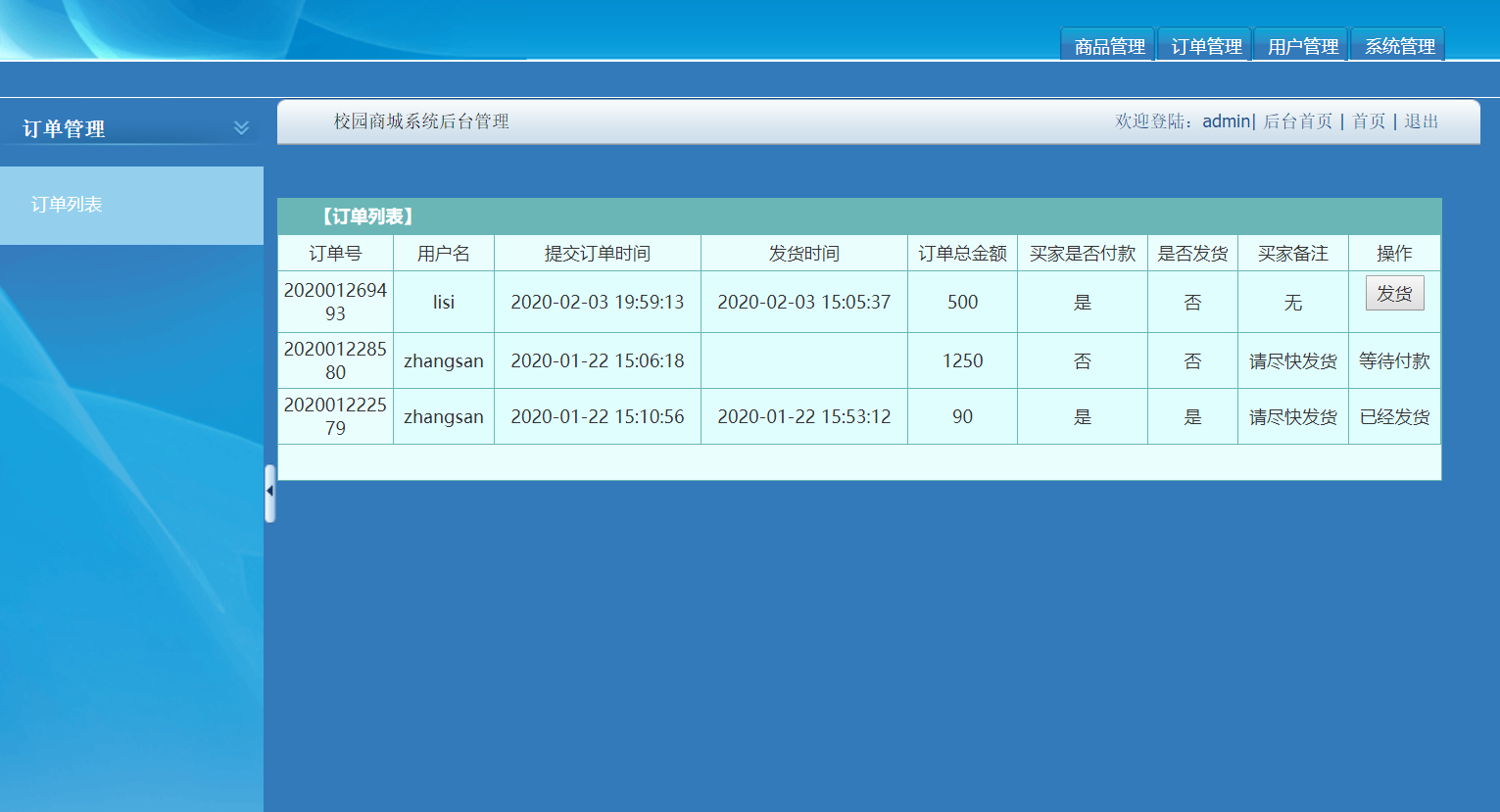

**4.9商城后台订单查看和订单发货功能**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM0NDE3NzQ5_size_16_color_FFFFFF_t_70 8]

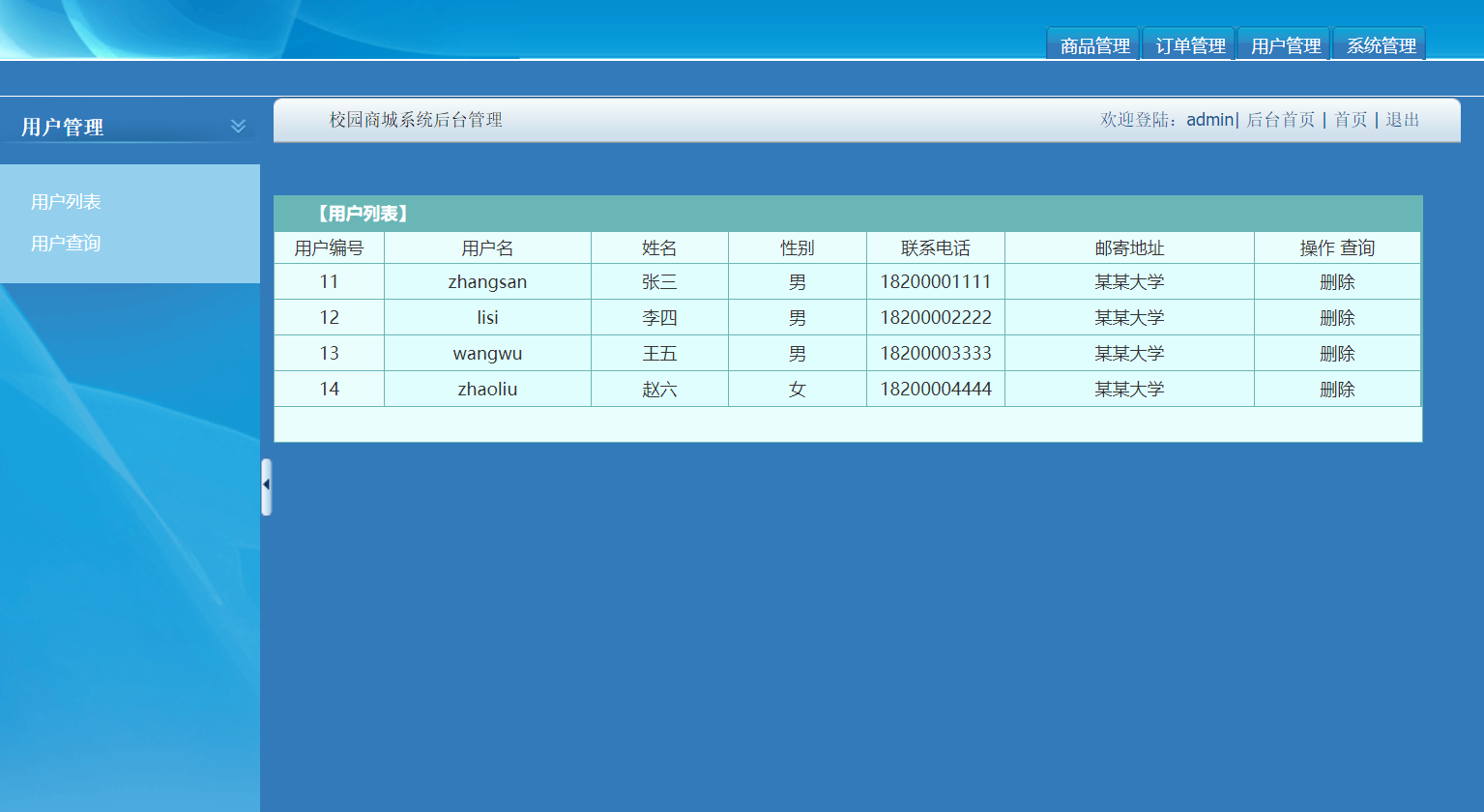

**4.10商城后台用户查看和删除功能**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzM0NDE3NzQ5_size_16_color_FFFFFF_t_70 9]
