3.3、参数传值

1）**页面传值到控制器**

获取页面参数@RequestParam(“username”)String username，如果URL后面不跟参数则会报错404，因为这种方式spring会默认参数作为路劲的一部分，也可以去掉@RequestParam，直接写String username也会获取页面参数。

2）从控制器将值传递到页面（可以直接通过一个model对象或者ModelAndView视图对象进行传值）其中model对象只能一个个传值，当需要传递很多参数值得时候就要使用ModelAndView对象来传值

public String welcome(String username,Model model) {
System.out.println(username);
//当使用一个参数的时候默认方式为：

• //key参数类型、value值==model.addAttribute(“String”,username)或者(“user”,new User())*
• model.addAttribute(“message”,username);
  model.addAttribute(new User());
  return *”hello”;
  }

3.4、RESUT风格路劲参数传递

JSP页面：user/xx/edit，列如：修改

控制器：方法中路劲映射通过加参数来实现/{id}/edit，参数值通过注解@PathVariable String id来实现

@RequestMapping(value=“/{id}/edit”,method = RequestMethod.POST)
public String edit(@PathVariable String id,User user) {
usernamp.put(id,user);
return “redirect:/user/users”;
}

补充：服务器端验证（通过bean-validated实现校验）

1.加入bean-validated.jar包

2、在实体bean中通过注解添加验证信息

3、在控制器中注解(@Validated User user,BindingResult br) 添加验证对象

4、前台页面获取校验信息

4、异常处理：

4.1、局部异常处理

1）新建一个类继承RuntimeException接口实现父类中的几个默认方法

2）控制器中通过判断对于错误信息跑出异常，并将异常结果放到request对象中跳转到错误页面throw new UserExcption(“用户名不存在！”);

//局部异常处理——仅仅只能处理这个控制器中的异常

@ExceptionHandler(value={UserExcption.class})

public String haddleExcption(UserExcption e,HttpServletRequest req){

req.setAttribute(“e”, e);

return “error”;

}

3）在error页面直接通过${e.message} 取出异常结果

4.2、全局异常

注意使用全局异常时，针对局部异常要做相应调整，在spring配置文件中添加异常配置代码

<bean id**=”exceptionResolver” class**=”org.springframework.web.servlet.handler.SimpleMappingExceptionResolver”>

• <property name**=”defaultErrorView” value**=”error”></property> *
• <property name**=”exceptionAttribute” value**=”ex”></property> *
• <property name**=”exceptionMappings”>
  <props*>

     <**prop** **key****="com.chj.test.UserExcption"**>error</**prop**>
     <**prop** **key****="IOException"**>error/ioexp</**prop**>
     <**prop** **key****="java.sql.SQLException"**>error/sqlexp</**prop**>

  </props>
  </property>
  </bean>

5、文件上传处理

1）首先加入所需架包（commons-fileupload.jar、commons-io-2.4.jar）然后在spring配置文件中增加文件上传配置代码：

<bean id**=”multipartResolver” class**=”org.springframework.web.multipart.commons.CommonsMultipartResolver”>
<property name**=”maxUploadSize” value**=”5000000”></property>
</bean>

2）在控制器中通过MultipartFile attachs对象来获取页面上传的文件

注意：页面使用上传标签是form表单的提交类型也要做修改，增加enctype=”multipart/form-data”

String realPath = req.getSession().getServletContext().getRealPath(“upload”);
File f = new File(realPath+“/“+attachs.getOriginalFilename());
if(attachs.isEmpty()){
}else{
FileUtils.copyInputStreamToFile(attachs.getInputStream(), f);
}

6、整合hibernate4.2+spring3.1+springMVC

6.1、Hibernate整合

jar包:核心包，必须包：hibernate-distribution-3.6.0.Final\lib\required\

Jpa，c3p0(数据库连接池、提高效率)，jdbc（驱动）

配置文件：hibernate-distribution-3.6.0.Final\project\etc\

Hibernate.cfg.xml，*.hbm.xml

6.2、spring2.5整合

jar包：核心包，aop相关包：

• 动态代理aspectj两个
• 子类代理cglib三个，日志

applicationContext.xml

二、取代web.xml配置

在servlet中有一个规范，就是当servlet容器启动的时候会根据spi规范加META-INF/services文件夹下面的javax.servlet.ServletContainerInitializer文件，该文件下面的类会实现javax.servlet.ServletContainerInitializer接口。代码如下：

1、ServletContainerInitializer代码入口

META-INF\services\javax.servlet.ServletContainerInitializer

com.chj.tomcat.MyServletContainerInitializer

@HandlesTypes(LoadServlet.class)
public class MyServletContainerInitializer implements ServletContainerInitializer {
@Override
public void onStartup(Set> set, ServletContext servletContext) throws ServletException {
Iterator var4;
if (set != null) {
var4 = set.iterator();
while (var4.hasNext()) {
Class<?> clazz = (Class<?>) var4.next();
if (!clazz.isInterface() && !Modifier.isAbstract(clazz.getModifiers()) && LoadServlet.class.isAssignableFrom(clazz)) {
try {
((LoadServlet) clazz.newInstance()).loadOnstarp(servletContext);
} catch (Exception e) {
e.printStackTrace();
}
}
}
}
}
}

该类在启动的时候会被servlet容器实例化，然后调用onStartup方法，并且**servlet容器会收集实现了@HandlesTypes注解里面的接口的类，并且做为入参传入到onStartup**方法中，我们拿到set容器中的类就可以反射调用接口里面的方法了，这是servlet规范，该规范就能保证servlet容器在启动的时候就会完成这些操作。Springmvc就借助这一点完成了取代web.xml 的工作。

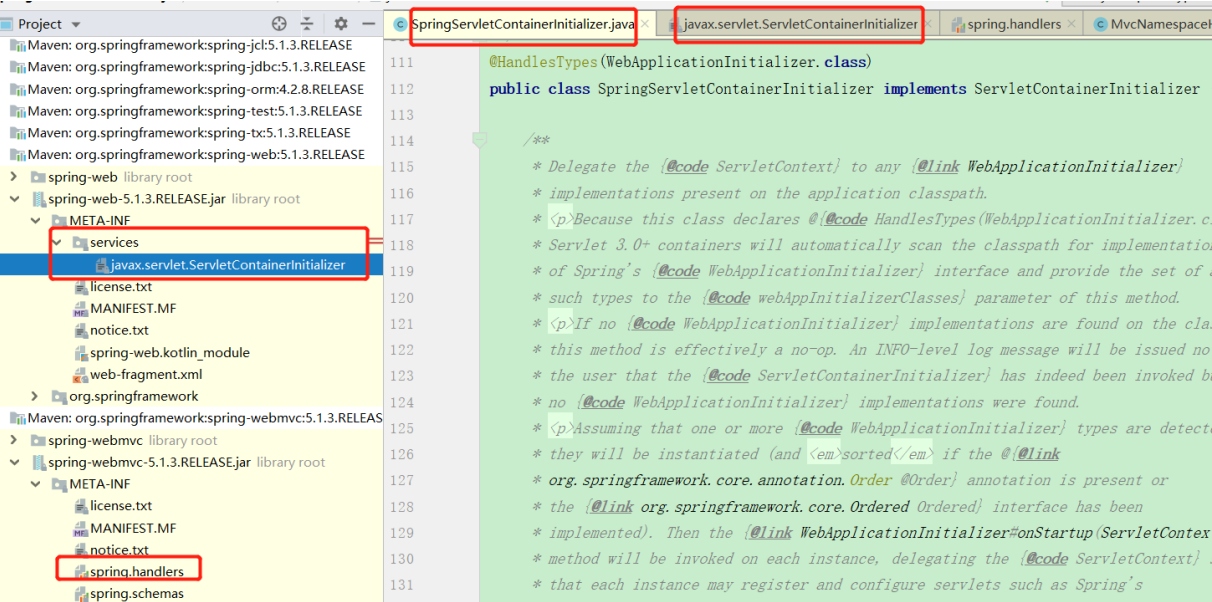

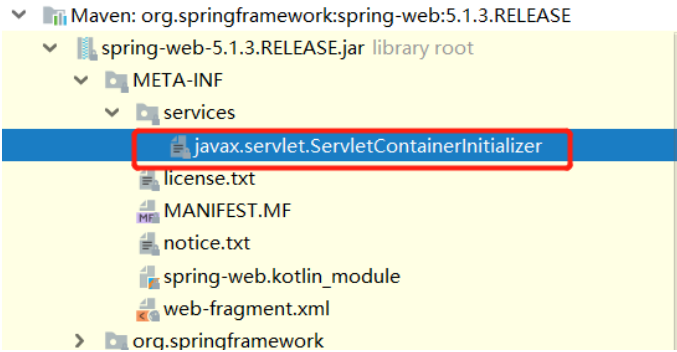

在springmvc中，spring-web jar包下面也会有一个javax.servlet.ServletContainerInitializer文件，如图：

org.springframework.web.SpringServletContainerInitializer

Tomcat就会加载这个类，调用其onStartup方法。

@HandlesTypes({WebApplicationInitializer.class})
public class SpringServletContainerInitializer implements ServletContainerInitializer {
public SpringServletContainerInitializer() { }
public void onStartup(@Nullable Set> webAppInitializerClasses, ServletContext servletContext) throws ServletException {
List initializers = new LinkedList();
Iterator var4;
if (webAppInitializerClasses != null) {
var4 = webAppInitializerClasses.iterator();
while(var4.hasNext()) {
Class<?> waiClass = (Class)var4.next();
if (!waiClass.isInterface() && !Modifier.isAbstract(waiClass.getModifiers()) && WebApplicationInitializer.class.isAssignableFrom(waiClass)) {
try {
initializers.add((WebApplicationInitializer)ReflectionUtils.accessibleConstructor(waiClass, new Class[0]).newInstance());
} catch (Throwable var7) {
throw new ServletException(“Failed to instantiate WebApplicationInitializer class”, var7);
}
}
}
}

收集的是实现了WebApplicationInitializer接口的类，在springmvc工程中我们自己写了这么一个类：

com.chj.mvc.WebAppInitializer

public class WebAppInitializer extends AbstractAnnotationConfigDispatcherServletInitializer {
//父容器

• @Override
  protected Class<?>[] getRootConfigClasses() {
  return new Class<?>[]{SpringContainer.class};
  } //SpringMVC配置子容器*
• @Override
  protected Class<?>[] getServletConfigClasses() {
  return new Class<?>[]{MvcContainer.class};
  } //获取DispatcherServlet的映射信息*
• @Override
  protected String[] getServletMappings() {
  return new String[]{ “/“};
  }
  @Override
  protected Filter[] getServletFilters() {
  MyFilter myFilter = new MyFilter();
  *return new Filter[]{myFilter};
  }
  }

该类的父类最终会实现WebApplicationInitializer接口，所以该类的父类必定会有一个onStartup方法。其父类如下：

org.springframework.web.servlet.support.AbstractDispatcherServletInitializer

public abstract class AbstractDispatcherServletInitializer extends AbstractContextLoaderInitializer {
public static final String DEFAULT_SERVLET_NAME = “dispatcher”;
public AbstractDispatcherServletInitializer() {
}
public void onStartup(ServletContext servletContext) throws ServletException {

//1、注册**ContextLoaderListener super.onStartup(servletContext);**

//2、注册**DispatcherServlet this.registerDispatcherServlet(servletContext);**
}

2、super.onStartup完成了实例化listener的工作

org.springframework.web.context.AbstractContextLoaderInitializer#registerContextLoaderListener

public void onStartup(ServletContext servletContext) throws ServletException {
this.registerContextLoaderListener(servletContext);
}

protected void registerContextLoaderListener(ServletContext servletContext) {
WebApplicationContext rootAppContext = this.createRootApplicationContext();
if (rootAppContext != null) {
ContextLoaderListener listener = new ContextLoaderListener(rootAppContext);
listener.setContextInitializers(this.getRootApplicationContextInitializers());
servletContext.addListener(listener);
} else {
this.logger.debug(“No ContextLoaderListener registered, as createRootApplicationContext() did not return an application context”);
}
}

这些代码功能就类似于在web.xml配置了ContextLoaderListener，做了几个事情，1 创建了上下文对象，如下：

org.springframework.web.servlet.support.AbstractAnnotationConfigDispatcherServletInitializer#createRootApplicationContext

public abstract class AbstractAnnotationConfigDispatcherServletInitializer extends AbstractDispatcherServletInitializer {
public AbstractAnnotationConfigDispatcherServletInitializer() {
}
@Nullable
protected WebApplicationContext createRootApplicationContext() {
Class<?>[] configClasses = this.getRootConfigClasses();
if (!ObjectUtils.isEmpty(configClasses)) {
AnnotationConfigWebApplicationContext context = new AnnotationConfigWebApplicationContext();
context.register(configClasses);
return context;
} else {
return null;
}
}

这个上下文对象就是基于注解扫描的上下文对象，所以用这个上下文是需要注册一个类进去，这个类就是用钩子方法调用到了自己写的方法。

com.chj.mvc.WebAppInitializer#getRootConfigClasses

public class WebAppInitializer extends AbstractAnnotationConfigDispatcherServletInitializer {
//父容器

• @Override
  protected Class<?>[] getRootConfigClasses() {
  return new Class<?>[]{SpringContainer.*class};
  }

在钩子方法中获取到的类springContainer就会去扫描基本包，有@ComponentScan注解，如图：

com.chj.mvc.SpringContainer

//不扫描有@Controller注解的类
@ComponentScan(value = “com.chj”,excludeFilters = {
@ComponentScan.Filter(type = FilterType.ANNOTATION,classes = { Controller.class})
})
public class SpringContainer {
}

通过钩子方法获取到扫描类后，注册到了上下文对象中，然后把spring的上下文对象设置到了ContextLoaderListener监听器对象中，最后把监听器对象设置到了servletContext中。这里上下文对象还没有调用refresh方法完成spring的启动。

3、registerDispatcherServlet(servletContext)完成了实例化DispatcherServlet

org.springframework.web.servlet.support.AbstractDispatcherServletInitializer#registerDispatcherServlet

protected void registerDispatcherServlet(ServletContext servletContext) {
String servletName = this.getServletName();
Assert.hasLength(servletName, “getServletName() must not return null or empty”);
WebApplicationContext servletAppContext = this.createServletApplicationContext();
Assert.notNull(servletAppContext, “createServletApplicationContext() must not return null”);
FrameworkServlet dispatcherServlet = this.createDispatcherServlet(servletAppContext);
Assert.notNull(dispatcherServlet, “createDispatcherServlet(WebApplicationContext) must not return null”);
dispatcherServlet.setContextInitializers(this.getServletApplicationContextInitializers());
Dynamic registration = servletContext.addServlet(servletName, dispatcherServlet);
if (registration == null) {
throw new IllegalStateException(“Failed to register servlet with name ‘“ + servletName + “‘. Check if there is another servlet registered under the same name.”);
} else {
registration.setLoadOnStartup(1);
registration.addMapping(this.getServletMappings());
registration.setAsyncSupported(this.isAsyncSupported());
Filter[] filters = this.getServletFilters();
if (!ObjectUtils.isEmpty(filters)) {
Filter[] var7 = filters;
int var8 = filters.length;

        **for**(**int** var9 = 0; var9 < var8; ++var9) \{
            Filter filter = var7\[var9\];
            **this**.registerServletFilter(servletContext, filter);
        \}
    \}
    **this**.customizeRegistration(registration);
\}

}

步骤跟创建监听器差不多，创建上下文对象，跟上面差不多，创建dispatcherServlet对象，把servlet对象加入到servletContext上下文中。把上下文对象设置到了dispatcherServlet对象中了，这里上下文对象还没有调用refresh方法，没有启动spring容器。

4、启动spring容器

注意：通过listener启动加载的是父容器，容器初始化就是将spring容器放入到listener里面；通过DispatcherServlet启动加载的是子容器，就是将spring容器放入到DispatcherServlet里面。由于DispatcherServlet实现了HttpServlet接口，所以DispatcherServlet初始化的时候必定会调用init方法。

最后会通过onRefresh方法，调用搜spring的refresh方法完成时spring的初始化。

4.1、ContextLoaderListener监听器的启动

Web.xml配置文件中配置ContextLoaderListener

<listener>
**org.springframework.web.context.ContextLoaderListener

</listener**>

org.springframework.web.context.AbstractContextLoaderInitializer#onStartup

@Override
public void onStartup(ServletContext servletContext) throws ServletException {
registerContextLoaderListener(servletContext);
}

protected void registerContextLoaderListener(ServletContext servletContext) {
*//创建spring上下文，注册了SpringContainer *WebApplicationContext rootAppContext = createRootApplicationContext(); if (rootAppContext != null) { *//创建监听器**，**形如这种配置 * org.springframework.web.context.ContextLoaderListener * */*

• *ContextLoaderListener listener = new ContextLoaderListener(rootAppContext);
  listener.setContextInitializers(getRootApplicationContextInitializers()); servletContext.addListener(listener);
  } else { logger.debug(“No ContextLoaderListener registered, as “** +

    **"createRootApplicationContext() did not return an application context"**);

  }
  }

org.springframework.web.context.ContextLoaderListener#contextInitialized

/\**

• * Initialize the root web application context.*
• */
  @Override
  *public void contextInitialized(ServletContextEvent event) {
  initWebApplicationContext(event.getServletContext());
  }

其实没什么特别的，就是会拿到上下文对象调用refresh方法，需要特殊记忆的就是，会把上下文对象设置到servletContext中。

org.springframework.web.context.ContextLoader#initWebApplicationContext

public WebApplicationContext initWebApplicationContext(ServletContext servletContext) {
if (servletContext.getAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE) != null) {
throw new IllegalStateException(
“Cannot initialize context because there is already a root application context present - “ +
“check whether you have multiple ContextLoader* definitions in your web.xml!”);
}
servletContext.log(“Initializing Spring root WebApplicationContext”);
Log logger = LogFactory.getLog(ContextLoader.class);
if (logger.isInfoEnabled()) {
logger.info(“Root WebApplicationContext: initialization started”);
}
long startTime = System.currentTimeMillis();
try {
*// Store context in local instance variable, to guarantee that // it is available on ServletContext shutdown. *if (this.context == null) { this.context = createWebApplicationContext(servletContext); } if (this.context instanceof ConfigurableWebApplicationContext) {
ConfigurableWebApplicationContext cwac = (ConfigurableWebApplicationContext) this.context; if* (!cwac.isActive()) { // The context has not yet been refreshed -> provide services such as*

• // setting the parent context, setting the application context id, etc*
• *if (cwac.getParent() == null) {
  // The context instance was injected without an explicit parent ->
• // determine parent for root web application context, if any.*
• *ApplicationContext parent = loadParentContext(servletContext);
  cwac.setParent(parent);
  }
  configureAndRefreshWebApplicationContext(cwac, servletContext);
  }
  }

// 把上下文对象设置到**servletContext**中
servletContext.setAttribute(WebApplicationContext.*ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE*, this.context); ClassLoader ccl = Thread.*currentThread*().getContextClassLoader(); if (ccl == ContextLoader.class.getClassLoader()) {
currentContext = this.context;
}else if (ccl != null) {
*currentContextPerThread*.put(ccl, this.context);
} if (logger.isInfoEnabled()) { long elapsedTime = System.currentTimeMillis() - startTime;
logger.info(“Root WebApplicationContext initialized in “ + elapsedTime + “ ms”);
} return this.context;
} catch (RuntimeException | Error ex) {
logger.error(“Context initialization failed”, ex);
servletContext.setAttribute(WebApplicationContext.*ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE*, ex); throw** ex;
}
}

4.2、DispatcherServlet的启动

因为这个是一个servlet，servlet要完成spring容器的启动，就只能在init方法里面做。

<servlet>
<servlet-name>spring-dispatcher</servlet-name>
**org.springframework.web.servlet.DispatcherServlet
<init-param*> *

• <param-name>contextConfigLocation</param-name>
  <param-value>classpath:spring-dispatcher.xml</param-value>
  </init-param>
  <load-on-startup>0</load-on-startup>
  </*servlet>

org.springframework.web.servlet.HttpServletBean#init

@Override
public final void init() throws ServletException {
// Set bean properties from init parameters.

• PropertyValues pvs = new ServletConfigPropertyValues(getServletConfig(), this.requiredProperties);
  if (!pvs.isEmpty()) {
  *try {

   BeanWrapper bw = PropertyAccessorFactory.*forBeanPropertyAccess*(**this**);
   ResourceLoader resourceLoader = **new** ServletContextResourceLoader(getServletContext());
   bw.registerCustomEditor(Resource.**class**, **new** ResourceEditor(resourceLoader, getEnvironment()));
   initBeanWrapper(bw);
   bw.setPropertyValues(pvs, **true**);

  } catch (BeansException ex) {

   **if** (**logger**.isErrorEnabled()) \{
      **logger**.error(**"Failed to set bean properties on servlet '"** \+ getServletName() + **"'"**, ex);
   \}
   **throw** ex;

  }
  }
  *// Let subclasses do whatever initialization they like. *initServletBean();**
  }

org.springframework.web.servlet.FrameworkServlet#initServletBean

@Override
protected final void initServletBean() throws ServletException {
getServletContext().log(“Initializing Spring “ + getClass().getSimpleName() + “ ‘“ + getServletName() + “‘“);
if (logger.isInfoEnabled()) {
logger.info(“Initializing Servlet ‘“ + getServletName() + “‘“);
}
long startTime = System.currentTimeMillis();
try {
this.webApplicationContext = initWebApplicationContext();
initFrameworkServlet();
} catch (ServletException | RuntimeException ex) {
logger.error(“Context initialization failed”, ex);
throw ex;
}
}

这里也没什么特别的，也是拿到上下文对象调用了refresh方法完成spring容器的启动。

4.3、初始化容器加载

需要注意的是这里：

org.springframework.web.servlet.FrameworkServlet#initWebApplicationContext

protected WebApplicationContext initWebApplicationContext() {
*//这里会从servletContext中获取到父容器，就是通过监听器加载的容器 *WebApplicationContext rootContext = WebApplicationContextUtils.*getWebApplicationContext*(getServletContext());
WebApplicationContext wac = null; if (this.webApplicationContext != null*) { // A context instance was injected at construction time -> use it*

• wac = this.webApplicationContext;
  if (wac instanceof ConfigurableWebApplicationContext) {
  ConfigurableWebApplicationContext cwac = (ConfigurableWebApplicationContext) wac;
  *if (!cwac.isActive()) {

   *// The context has not yet been refreshed -> provide services such as*

• // setting the parent context, setting the application context id, etc*
• *if (cwac.getParent() == null) {
  // The context instance was injected without an explicit parent -> set
• // the root application context (if any; may be null) as the parent*
• cwac.setParent(rootContext);
  }
  **//容器加载 *configureAndRefreshWebApplicationContext(cwac);
  }
  }
  } if (wac == null**) {
• *wac = findWebApplicationContext();
  } if (wac == null*) { // No context instance is defined for this servlet -> create a local one*
• *wac = createWebApplicationContext(rootContext);
  } if (!this.refreshEventReceived**) {
• *synchronized (this.onRefreshMonitor) {
  onRefresh(wac);
  }
  }
  if (this.publishContext) {
  // Publish the context as a servlet context attribute.
• String attrName = getServletContextAttributeName();
  getServletContext().setAttribute(attrName, wac);
  }
  *return wac;
  }

会从servletContext中获取父容器

//这里会从servletContext中获取到父容器，就是通过监听器加载的容器
WebApplicationContext rootContext = WebApplicationContextUtils.getWebApplicationContext(getServletContext());

就是由listener负责启动的容器，然后把父容器设置到了自己的上下文对象中，所以这里监听器启动的容器是父容器，dispatcherServlet启动的容器是子容器，两者是父子关系。这里就用servlet规范完成了取代web.xml的工作，并启动了容器。

org.springframework.web.servlet.DispatcherServlet#onRefresh

@Override
protected void onRefresh(ApplicationContext context) {
initStrategies(context);
}
protected void initStrategies(ApplicationContext context) {
initMultipartResolver(context);
initLocaleResolver(context);
initThemeResolver(context);
initHandlerMappings(context);
initHandlerAdapters(context);
initHandlerExceptionResolvers(context);
initRequestToViewNameTranslator(context);
initViewResolvers(context);
initFlashMapManager(context);
}

4.4、创建web容器

org.springframework.web.servlet.FrameworkServlet#createWebApplicationContext(WebApplicationContext)

protected WebApplicationContext createWebApplicationContext(@Nullable WebApplicationContext parent) {
return createWebApplicationContext((ApplicationContext) parent);
}

protected WebApplicationContext createWebApplicationContext(@Nullable ApplicationContext parent) {
Class<?> contextClass = getContextClass();
if (!ConfigurableWebApplicationContext.class.isAssignableFrom(contextClass)) {
throw new ApplicationContextException(
“Fatal initialization error in servlet with name ‘“ + getServletName() +
“‘: custom WebApplicationContext class [“ + contextClass.getName() +
“] is not of type ConfigurableWebApplicationContext”);
}
ConfigurableWebApplicationContext wac =
(ConfigurableWebApplicationContext) BeanUtils.instantiateClass(contextClass);
wac.setEnvironment(getEnvironment());
wac.setParent(parent);
String configLocation = getContextConfigLocation();
if (configLocation != null) {
wac.setConfigLocation(configLocation);
}
configureAndRefreshWebApplicationContext(wac);
return wac;
}

4.5、配置刷新容器

org.springframework.web.servlet.FrameworkServlet#configureAndRefreshWebApplicationContext

protected void configureAndRefreshWebApplicationContext(ConfigurableWebApplicationContext wac) {
if (ObjectUtils.identityToString(wac).equals(wac.getId())) {
// The application context id is still set to its original default value

• // -> assign a more useful id based on available information*
• *if (this.contextId != null) {
  wac.setId(this.contextId);
  } else {
  // Generate default id…
• wac.setId(ConfigurableWebApplicationContext.**APPLICATION_CONTEXT_ID_PREFIX* +

   ObjectUtils.*getDisplayString*(getServletContext().getContextPath()) + **'/'** \+ getServletName());

  }
  }
  wac.setServletContext(getServletContext());
  wac.setServletConfig(getServletConfig());
  wac.setNamespace(getNamespace());
  wac.addApplicationListener(new SourceFilteringListener(wac, new ContextRefreshListener()));
  // The wac environment’s #initPropertySources will be called in any case when the context
• // is refreshed; do it eagerly here to ensure servlet property sources are in place for*
• // use in any post-processing or initialization that occurs below prior to #refresh*
• ConfigurableEnvironment env = wac.getEnvironment();
  if (env instanceof ConfigurableWebEnvironment) {
  ((ConfigurableWebEnvironment) env).initPropertySources(getServletContext(), getServletConfig());
  }
  postProcessWebApplicationContext(wac);
  applyInitializers(wac);
  * wac.refresh();
  }

4.6、refresh()方法分析

org.springframework.context.support.AbstractApplicationContext#refresh

@Override
public void refresh() throws BeansException, IllegalStateException {
synchronized (this.startupShutdownMonitor) {
//为容器初始化做准备，重要程度：0 Prepare this context for refreshing.

• *prepareRefresh();

org.springframework.web.servlet.ComplexWebApplicationContext#refresh

public class ComplexWebApplicationContext extends StaticWebApplicationContext {
@Override
public void refresh() throws BeansException {

super.refresh();

org.springframework.web.servlet.SimpleWebApplicationContext#refresh

public class SimpleWebApplicationContext extends StaticWebApplicationContext {
@Override
public void refresh() throws BeansException {

super.refresh();

然后开始执行spring的refresh方法，以及配置初始化相关配置。

二、取代springmvc.xml配置

1、传统的xml配置方式

<!— 加载数据库配置文件

• <bean*
• class=”org.springframework.beans.factory.config.PropertyPlaceholderConfigurer”>*
• *
• *
• *
• classpath:config.properties*
• *
• *
• —>*
• <context**:component-scan base-package**=”com.chj” use-default-filters**=”false”>
  <context**:include-filter type**=”annotation” expression**=”org.springframework.stereotype.Controller”/> *
• </context**:component-scan>
  <context**:property-placeholder location**=”classpath:config/core/core.properties”**/> *
• *
• <mvc:annotation-driven>
  <*mvc:message-converters register-defaults=”true”>

     <**bean class="org.springframework.http.converter.StringHttpMessageConverter"**>
         <**property name="supportedMediaTypes" value = "text/plain;charset=UTF-8"** />
     </**bean**>

  </mvc:message-converters>
  </mvc:annotation-driven>
  <bean id**=”formHttpMessageConverter” class**=”org.springframework.http.converter.FormHttpMessageConverter”>
  <property name**=”supportedMediaTypes”**>

     <**list**>
         <**value**>application/x-www-form-urlencoded</**value**>
         <**value**>multipart/form-data</**value**>
     </**list**>

  </property>
  </bean>

• <bean id**=”stringHttpMessageConverter” class**=”org.springframework.http.converter.StringHttpMessageConverter”>
  </bean> *
• <bean id**=”byteArrayHttpMessageConverter” class**=”org.springframework.http.converter.ByteArrayHttpMessageConverter”>
  <property name**=”supportedMediaTypes”*>

     <**list**>
         <**value**>application/octet-stream</**value**>
     </**list**>

  </property>
  </bean>

• *
• *
• *

• <bean class**=”org.springframework.web.servlet.view.InternalResourceViewResolver”>
  <property name**=”prefix” value**=”/WEB-INF/jsp/“/>
  <property name**=”suffix” value**=”.jsp”/>
  </bean*>

• *
• *
• *
• *
• *
• *
• <!—*
• *
• *
• *
• —>*
• <!—*
• *
• *
• —>*
• <!— <bean id=”handlerAdapter”*
• class=”org.springframework.web.servlet.mvc.annotation.AnnotationMethodHandlerAdapter”>*
• <!–*
• 1、请求中的ContentType和Accept对应的Converter*
• 2、如果1无法找到对应Converter，则通过遍历MessageConverters的canRead/canWrite选择最有可能的Converter*
• 3、如果2无法找到对应Converter，则返回错误。*
• 常见媒体类型使用场景*
• application/x-www-form-urlencoded*
• userName=admin&password=b59c67bf196a4758191e42f76670ceba*
• multipart/form-data*
• application/json*
• –>*
• *
• *
• <!–<!– json转换器 –>–>*
• *
• *
• *
• *
• *
• *
• —>*
• *
• <bean id**=”exceptionResolver” class=”org.springframework.web.servlet.handler.SimpleMappingExceptionResolver”>
  <property name**=”exceptionMappings”*>

     <**props**>
         <**prop** **key****="java.lang.Exception"**>
             error
         </**prop**>
     </**props**>

  </property>
  </bean>

• <mvc:cors>
  <**mvc:mapping path=”/\*“ allowed-origins=”*“ allowed-methods=”POST, GET, OPTIONS, DELETE, PUT” allowed-headers=”Content-Type, Access-Control-Allow-Headers, Authorization, X-Requested-With” allow-credentials=”true”/>
  </mvc:cors>
  </beans**>

2、通过注解配置方式实现@EnableWebMvc

我们用一个@EnableWebMvc就可以完全取代xml配置，其实两者完成的工作是一样的，都是为了创建必要组件的实例：

2.1、@EnableWebMvc注解配置使用

@Configuration
@EnableWebMvc
public class AppConfig extends WebMvcConfigurerAdapter {
@Autowired
private UserInterceptor userInterceptor;
@Override
public void configureViewResolvers(ViewResolverRegistry registry) {
registry.enableContentNegotiation(new MappingJackson2JsonView());
registry.jsp(“/jsp/“, “.jsp”);
}
@Override
public void addViewControllers(ViewControllerRegistry registry) {
registry.addViewController(“/view/ok”).setViewName(“ok”);
registry.addViewController(“/view/index”).setViewName(“index”);
}
@Override
public void configureDefaultServletHandling(DefaultServletHandlerConfigurer configurer) {
configurer.enable();
}
@Override
public void addInterceptors(InterceptorRegistry registry) {
registry.addInterceptor(userInterceptor).addPathPatterns(“/user/**“).excludePathPatterns(“/user/query/**“);
registry.addInterceptor(new UserInterceptor1()).addPathPatterns(“/user/**“).excludePathPatterns(“”);
}
@Override
public void addResourceHandlers(ResourceHandlerRegistry registry) {
registry.addResourceHandler(“/image/**“).addResourceLocations(“classpath:/img/“);
}
@Override
public void configureHandlerExceptionResolvers(List exceptionResolvers) {
super.configureHandlerExceptionResolvers(exceptionResolvers);
}
}

这里会导入一个核心类**WebMvcConfigurationSupport，在这个类里面会完成很多组件的实例化，比如HandlerMapping，HandlerAdapter**等等。

2.2、WebMvcConfigurationSupport里组件实例化

HandlerMapping实例化，代码如下所示：

@Bean
public RequestMappingHandlerMapping requestMappingHandlerMapping() {
RequestMappingHandlerMapping mapping = createRequestMappingHandlerMapping();
mapping.setOrder(0);
mapping.setInterceptors(getInterceptors());
mapping.setContentNegotiationManager(mvcContentNegotiationManager());
mapping.setCorsConfigurations(getCorsConfigurations());
PathMatchConfigurer configurer = getPathMatchConfigurer();
Boolean useSuffixPatternMatch = configurer.isUseSuffixPatternMatch();
if (useSuffixPatternMatch != null) {
mapping.setUseSuffixPatternMatch(useSuffixPatternMatch);
}

org.springframework.web.servlet.config.annotation.WebMvcConfigurationSupport#viewControllerHandlerMapping

@Bean
@Nullable
public HandlerMapping viewControllerHandlerMapping() {
ViewControllerRegistry registry = new ViewControllerRegistry(this.applicationContext);
addViewControllers(registry);
AbstractHandlerMapping handlerMapping = registry.buildHandlerMapping();
if (handlerMapping == null) {
return null;
}
handlerMapping.setPathMatcher(mvcPathMatcher());
handlerMapping.setUrlPathHelper(mvcUrlPathHelper());
handlerMapping.setInterceptors(getInterceptors());
handlerMapping.setCorsConfigurations(getCorsConfigurations());
return handlerMapping;
}

2.3、MappingHandlerAdapter实例化

org.springframework.web.servlet.config.annotation.WebMvcConfigurationSupport#requestMappingHandlerAdapter

@Bean
public RequestMappingHandlerAdapter requestMappingHandlerAdapter() {
RequestMappingHandlerAdapter adapter = createRequestMappingHandlerAdapter();
adapter.setContentNegotiationManager(mvcContentNegotiationManager());
adapter.setMessageConverters(getMessageConverters());
adapter.setWebBindingInitializer(getConfigurableWebBindingInitializer());
adapter.setCustomArgumentResolvers(getArgumentResolvers());
adapter.setCustomReturnValueHandlers(getReturnValueHandlers());
if (jackson2Present) {
adapter.setRequestBodyAdvice(Collections.singletonList(new JsonViewRequestBodyAdvice()));
adapter.setResponseBodyAdvice(Collections.singletonList(new JsonViewResponseBodyAdvice()));
}
AsyncSupportConfigurer configurer = new AsyncSupportConfigurer();
configureAsyncSupport(configurer);
if (configurer.getTaskExecutor() != null) {
adapter.setTaskExecutor(configurer.getTaskExecutor());
}
if (configurer.getTimeout() != null) {
adapter.setAsyncRequestTimeout(configurer.getTimeout());
}
adapter.setCallableInterceptors(configurer.getCallableInterceptors());
adapter.setDeferredResultInterceptors(configurer.getDeferredResultInterceptors());
return adapter;
}

然后在实例化过程中会涉及到很多钩子方法的调用，而这些钩子方法就是我们需要去实现的，比如获取拦截器的钩子方法，获取静态资源处理的钩子方法等等。代码如下：

com.chj.mvc.AppConfig#addInterceptors

@Override
public void addInterceptors(InterceptorRegistry registry) {
registry.addInterceptor(userInterceptor).addPathPatterns(“/user/**“).excludePathPatterns(“/user/query/**“);
registry.addInterceptor(new UserInterceptor1()).addPathPatterns(“/user/**“).excludePathPatterns(“”);
}

3、SpringMVC配置加载分析

3.1、SpringMVC配置标签解析入口

spring-webmvc-5.1.3.RELEASE.jar!/META-INF/spring.handlers

http\://www.springframework.org/schema/mvc=org.springframework.web.servlet.config.MvcNamespaceHandler

org.springframework.web.servlet.config.MvcNamespaceHandler#init

public class MvcNamespaceHandler extends NamespaceHandlerSupport {
@Override
public void init() {
registerBeanDefinitionParser(“annotation-driven”, new AnnotationDrivenBeanDefinitionParser());
registerBeanDefinitionParser(“default-servlet-handler”, new DefaultServletHandlerBeanDefinitionParser());
registerBeanDefinitionParser(“interceptors”, new InterceptorsBeanDefinitionParser());
registerBeanDefinitionParser(“resources”, new ResourcesBeanDefinitionParser());
registerBeanDefinitionParser(“view-controller”, new ViewControllerBeanDefinitionParser());
registerBeanDefinitionParser(“redirect-view-controller”, new ViewControllerBeanDefinitionParser());
registerBeanDefinitionParser(“status-controller”, new ViewControllerBeanDefinitionParser());
registerBeanDefinitionParser(“view-resolvers”, new ViewResolversBeanDefinitionParser());
registerBeanDefinitionParser(“tiles-configurer”, new TilesConfigurerBeanDefinitionParser());
registerBeanDefinitionParser(“freemarker-configurer”, new FreeMarkerConfigurerBeanDefinitionParser());
registerBeanDefinitionParser(“groovy-configurer”, new GroovyMarkupConfigurerBeanDefinitionParser());
registerBeanDefinitionParser(“script-template-configurer”, new ScriptTemplateConfigurerBeanDefinitionParser());
registerBeanDefinitionParser(“cors”, new CorsBeanDefinitionParser());
}
}

3.2、spring web容器初始化入口

org.springframework.web.SpringServletContainerInitializer

org.springframework.web.SpringServletContainerInitializer#onStartup

for (WebApplicationInitializer initializer : initializers) {
initializer.onStartup(servletContext);
}

org.springframework.web.context.AbstractContextLoaderInitializer#registerContextLoaderListener

public abstract class AbstractContextLoaderInitializer implements WebApplicationInitializer {
@Override
public void onStartup(ServletContext servletContext) throws ServletException {
registerContextLoaderListener(servletContext);
}

• *protected void registerContextLoaderListener(ServletContext servletContext) {
  //创建spring上下文，注册了SpringContainer
• WebApplicationContext rootAppContext = createRootApplicationContext();
  if (rootAppContext != null) { //创建监听器，形如这种配置*
• * *
• org.springframework.web.context.ContextLoaderListener *
• *
• * */*
• *ContextLoaderListener listener = new ContextLoaderListener(rootAppContext);
  listener.setContextInitializers(getRootApplicationContextInitializers());
  servletContext.addListener(listener);
  }else { logger.debug(“No ContextLoaderListener registered, as “** +

     **"createRootApplicationContext() did not return an application context"**);

  }
  }

3、请求之前建立映射关系

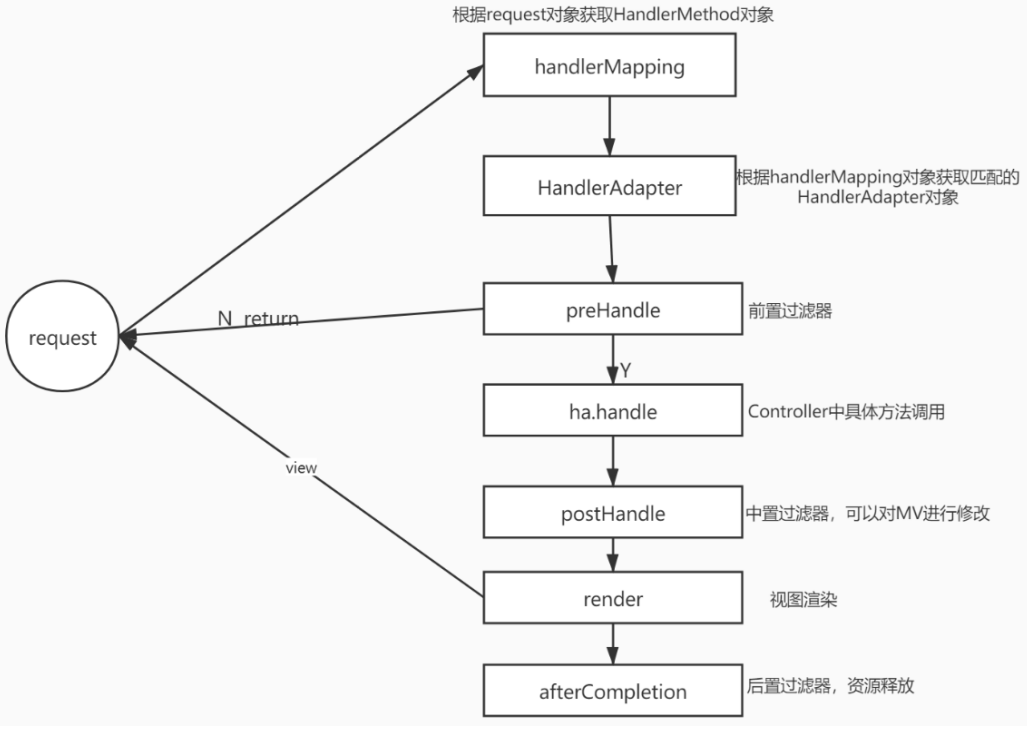

3.1、请求映射关系图

3.2、HandlerMapping类实例化方法

在HandlerMapping类实例化的时候就会完成url和method的映射关系，要根据一个请求能够唯一到找到一个类和一个方法。

@Bean
public RequestMappingHandlerMapping requestMappingHandlerMapping() {
RequestMappingHandlerMapping mapping = createRequestMappingHandlerMapping();
mapping.setOrder(0);
mapping.setInterceptors(getInterceptors());
mapping.setContentNegotiationManager(mvcContentNegotiationManager());
mapping.setCorsConfigurations(getCorsConfigurations());
PathMatchConfigurer configurer = getPathMatchConfigurer();
Boolean useSuffixPatternMatch = configurer.isUseSuffixPatternMatch();
if (useSuffixPatternMatch != null) {
mapping.setUseSuffixPatternMatch(useSuffixPatternMatch);
}
Boolean useRegisteredSuffixPatternMatch = configurer.isUseRegisteredSuffixPatternMatch();
if (useRegisteredSuffixPatternMatch != null) {
mapping.setUseRegisteredSuffixPatternMatch(useRegisteredSuffixPatternMatch);
}

这个是RequestMappingHandlerMapping的实例化。在其父类AbstractHandlerMethodMapping中实现了 InitializingBean接口，所以在RequestMappingHandlerMapping实例化完成以后就会调用到afterPropertiesSet方法。在这个方法里面完成了映射关系的建立。

这里判断类上面是否有@Controller 注解和@RequestMapping 注解，只有这种类才需要建立映射关系

3.3、完成映射关系属性赋值

org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping#afterPropertiesSet

@Override
public void afterPropertiesSet() {
this.config = new RequestMappingInfo.BuilderConfiguration();
this.config.setUrlPathHelper(getUrlPathHelper());
this.config.setPathMatcher(getPathMatcher());
this.config.setSuffixPatternMatch(this.useSuffixPatternMatch);
this.config.setTrailingSlashMatch(this.useTrailingSlashMatch);
this.config.setRegisteredSuffixPatternMatch(this.useRegisteredSuffixPatternMatch);
this.config.setContentNegotiationManager(getContentNegotiationManager());
super.afterPropertiesSet();
}

org.springframework.web.servlet.handler.AbstractHandlerMethodMapping#afterPropertiesSet

@Override
public void afterPropertiesSet() {
initHandlerMethods();
}

protected void initHandlerMethods() {
for (String beanName : getCandidateBeanNames()) {
if (!beanName.startsWith(SCOPED_TARGET_NAME_PREFIX)) {
processCandidateBean(beanName);
}
}
handlerMethodsInitialized(getHandlerMethods());
}

org.springframework.web.servlet.handler.AbstractHandlerMethodMapping#processCandidateBean

protected void processCandidateBean(String beanName) {
Class<?> beanType = null;
try {
beanType = obtainApplicationContext().getType(beanName);
} catch (Throwable ex) {
// An unresolvable bean type, probably from a lazy bean - let’s ignore it.

• *if (logger.isTraceEnabled()) {
  logger.trace(“Could not resolve type for bean ‘“ + beanName + “‘“, ex);
  }
  }
  *//如果类上面有@Controller注解或者@RequestMapping注解 *if (beanType != null && isHandler(beanType)) { *//建立uri和method的映射关系 *detectHandlerMethods(beanName); }**
  }

3.4、创建HandlerMethod，建立uri和handlerMethod的映射关系

建立url和RequestMappingInfo映射关系，判断method上是否有CrossOrigin注解，把注解里面的属性封装成CorsConfiguration，这个是做跨域访问控制的。

org.springframework.web.servlet.handler.AbstractHandlerMethodMapping#registerHandlerMethod

protected void registerHandlerMethod(Object handler, Method method, T mapping) {
this.mappingRegistry.register(mapping, handler, method);
}

public void register(T mapping, Object handler, Method method) {
this.readWriteLock.writeLock().lock();
try {
*//创建HandlerMethod对象，其实 *HandlerMethod handlerMethod = createHandlerMethod(handler, method);* //检验是否唯一*

• assertUniqueMethodMapping(handlerMethod, mapping); //建立uri对象和handlerMethod的映射关系*
• *this.mappingLookup.put(mapping, handlerMethod);
  List directUrls = getDirectUrls(mapping);
  for (String url : directUrls) {
  //建立url和RequestMappingInfo映射关系
• *this.urlLookup.add(url, mapping);
  }
  String name = null;
  if (getNamingStrategy() != null) {
  name = getNamingStrategy().getName(handlerMethod, mapping);
  addMappingName(name, handlerMethod);
  }
  //判断method上是否有CrossOrigin注解，把注解里面的属性封装成CorsConfiguration，这个是做跨域访问控制的
• CorsConfiguration corsConfig = initCorsConfiguration(handler, method, mapping);
  if (corsConfig != null) { //建立映射关系*
• *this.corsLookup.put(handlerMethod, corsConfig);
  }
  this.registry.put(mapping, new MappingRegistration<>(mapping, handlerMethod, directUrls, name));
  }finally {
  this.readWriteLock.writeLock().unlock();
  }
  }

3.5、构建RequestMappingInfo对象

/*
** consumes： 指定处理请求的提交内容类型（Content-Type），例如application/json, text/html; produces: 指定返回的内容类型，仅当request请求头中的(Accept)类型中包含该指定类型才返回； params： **指定request中必须包含某些参数值是，才让该方法处理。 headers： 指定request中必须包含某些指定的header值，才能让该方法处理请求。*

• media type * */
  @RequestMapping(value = “/getUser”,
  method = RequestMethod.**GET*, params = “username=chj“, consumes = “application/json”, produces = “application/json”, headers = “Referer=http://www.xx.com/")**
  public @ResponseBody
  String getUser(HttpSession session, OutputStream outputStream) {
  return “xx”;
  }

org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping#createRequestMappingInfo(java.lang.reflect.AnnotatedElement)

@Nullable
private RequestMappingInfo createRequestMappingInfo(AnnotatedElement element) {
RequestMapping requestMapping = AnnotatedElementUtils.findMergedAnnotation(element, RequestMapping.class);
RequestCondition<?> condition = (element instanceof Class ?
getCustomTypeCondition((Class<?>) element) : getCustomMethodCondition((Method) element));
return (requestMapping != null ? createRequestMappingInfo(requestMapping, condition) : null);
}

org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping#createRequestMappingInfo(RequestMapping, RequestCondition<?>)

protected RequestMappingInfo createRequestMappingInfo(
RequestMapping requestMapping, @Nullable RequestCondition<?> customCondition) {
RequestMappingInfo.Builder builder = RequestMappingInfo
.paths(resolveEmbeddedValuesInPatterns(requestMapping.path()))
.methods(requestMapping.method())
.params(requestMapping.params())
.headers(requestMapping.headers())
.consumes(requestMapping.consumes())
.produces(requestMapping.produces())
.mappingName(requestMapping.name());
if (customCondition != null) {
builder.customCondition(customCondition);
}
return builder.options(this.config).build();
}

3.6、大体思路

1）循环类里面的所有方法；

2）收集方法上面的@RequestMapping注解，把注解里面的配置信息封装到类里面，该类就是 RequestMappingInfo类，并且跟类上面的@RequestMapping注解封装类RequestMappingInfo合并，比如类上面是/common，方法上面是/queryUser。这两者合并后就是/common/queryUser。这样的url才是我们需要的。合并完就是这样的 url；

3）然后建立method对象和对应的RequestMappingInfo的映射关系，把关系存放到map中；

4）创建HandlerMethod对象，该类型封装了method、beanName、bean方法类型等信息；

5）建立RequestMappingInfo和HandlerMethod的映射关系；

//建立uri对象和handlerMethod的映射关系
this.mappingLookup.put(mapping, handlerMethod);

6）建立url和RequestMappingInfo对象的映射关系；

//建立url和RequestMappingInfo映射关系
this.urlLookup.add(url, mapping);

这样映射关系就已经建立好，这样根据请求url我们就可以唯一的找到一个HandlerMethod对象了，注意这个对象中还不能进行反射调用，还确实参数数组。
