spring boot项目从零开始-(1)集成log4j2

落日映苍穹つ 2023-06-30 06:53 2阅读 0赞

### spring boot项目从零开始-集成log4j2 ###

*  简述
 *   *   *  环境
         *  最终工程目录
 *  步骤
 *   *   *  pom.xml修改后刷新
         *  application.yml修改
         *  新文件log4j2.xml
 *  测试

# 简述 #

### 环境 ###

Idea
log4j2

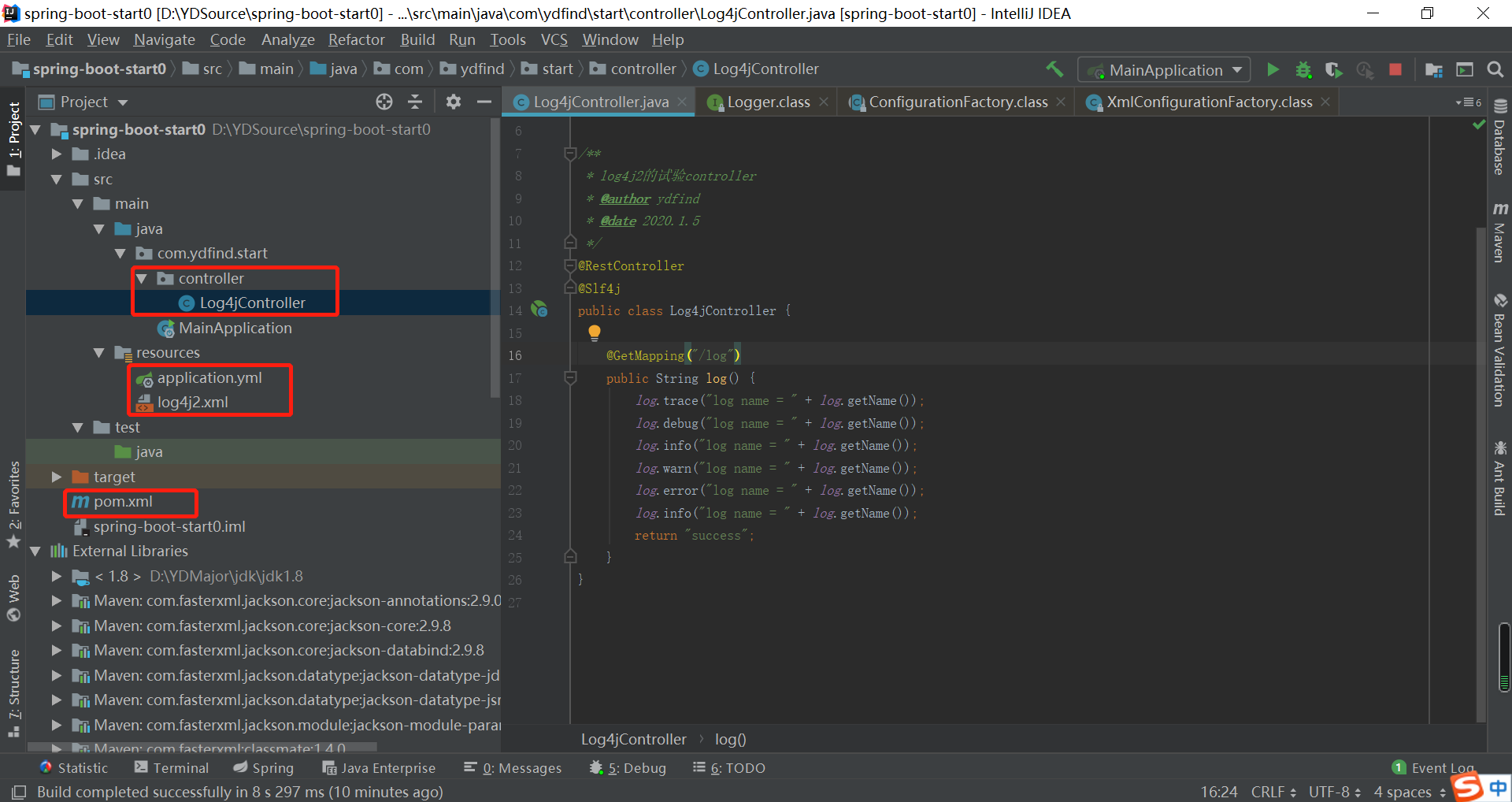

### 最终工程目录 ###

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3NuZGF5WVU_size_16_color_FFFFFF_t_70]

# 步骤 #

### pom.xml修改后刷新 ###

<dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter</artifactId>
                <exclusions>
                    <exclusion>
                        <groupId>org.springframework.boot</groupId>
                        <artifactId>spring-boot-starter-logging</artifactId>
                    </exclusion>
                </exclusions>
            </dependency>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-log4j2</artifactId>
            </dependency>
            <dependency>
                <groupId>org.projectlombok</groupId>
                <artifactId>lombok</artifactId>
            </dependency>

### application.yml修改 ###

logging:
      config: classpath:log4j2.xml

### 新文件log4j2.xml ###

<?xml version="1.0" encoding="UTF-8"?>


    <Configuration status="WARN" monitorInterval="5">
        <Appenders>
            <Console name="Console" target="SYSTEM_OUT">
                <PatternLayout charset="UTF-8" pattern="[%d] [%t] [%-5level] %logger{36} - %msg%n" />
            </Console>

            <RollingFile name="RollingFileInfo" filePermissions="rw-r--r--"
                         fileName="/var/log/springboot/spring-boot-start0.log"
                         filePattern="/var/log/springboot/spring-boot-start0-%d{yyyy-MM-dd}-%i.log">
                <Filters>
                    <ThresholdFilter level="INFO" />
                </Filters>
                <PatternLayout charset="UTF-8" pattern="[%d{HH:mm:ss:SSS}] [%p] - %l - %m%n" />
                <Policies>
                    <TimeBasedTriggeringPolicy/>
                    <SizeBasedTriggeringPolicy size="100M"/>
                </Policies>
            </RollingFile>

        </Appenders>

        <Loggers>
            <Root level="INFO">
                <AppenderRef ref="Console" />
                <AppenderRef ref="RollingFileInfo" />

            </Root>
            <Logger name="org.mybatis" level="INFO" />
            <Logger name="org.springframework" level="INFO" />
            <Logger name="com.ydfind.start" level="INFO" />
        </Loggers>
    </Configuration>

# 测试 #

package com.ydfind.start.controller;

    import lombok.extern.slf4j.Slf4j;
    import org.springframework.web.bind.annotation.GetMapping;
    import org.springframework.web.bind.annotation.RestController;

    /**
     * log4j2的试验controller
     * @author ydfind
     * @date 2020.1.5
     */
    @RestController
    @Slf4j
    public class Log4jController {

        @GetMapping("/log")
        public String log() {
            log.trace("log name = " + log.getName());
            log.debug("log name = " + log.getName());
            log.info("log name = " + log.getName());
            log.warn("log name = " + log.getName());
            log.error("log name = " + log.getName());
            log.info("log name = " + log.getName());
            return "success";
        }
    }

访问http://localhost:8182/log

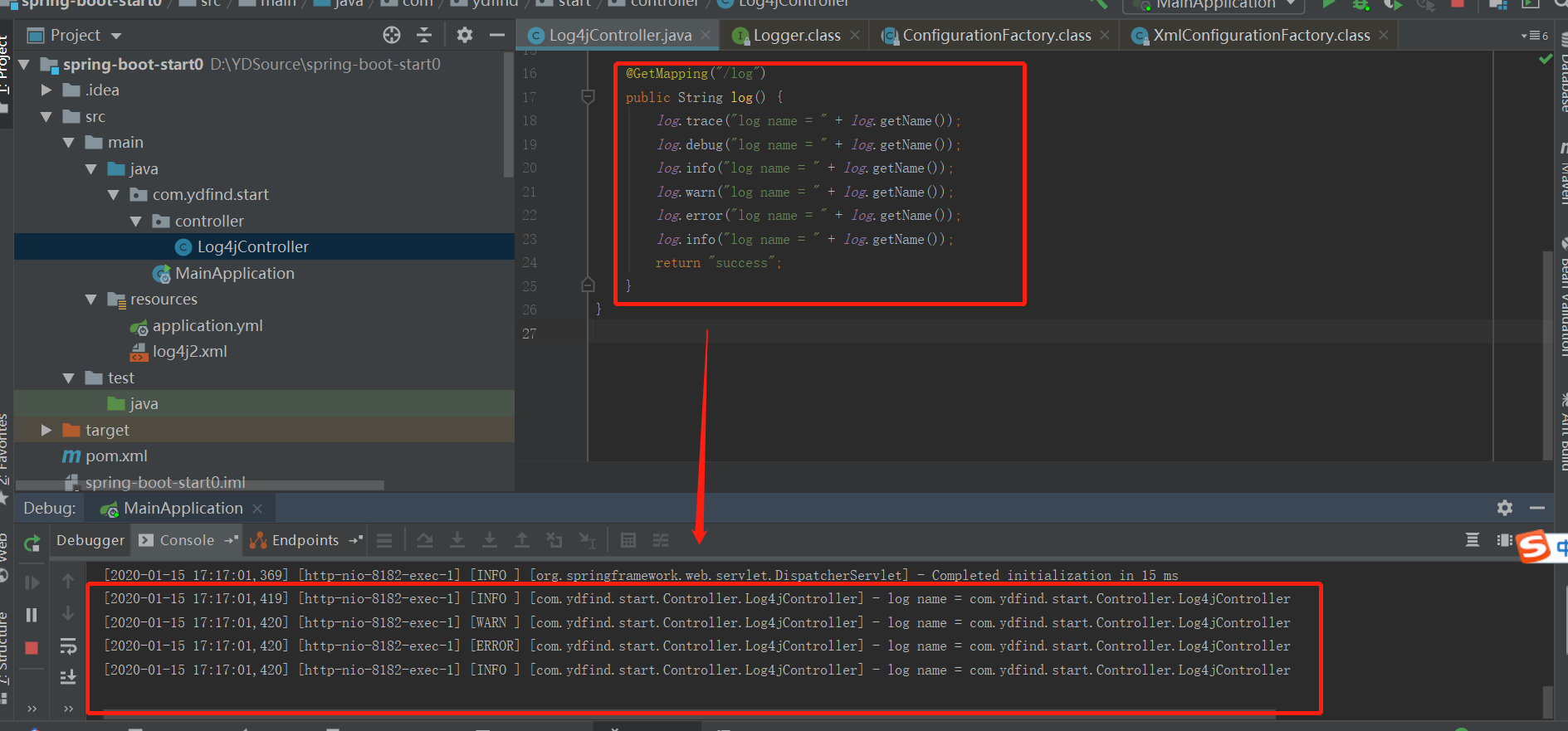

结果如下
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3NuZGF5WVU_size_16_color_FFFFFF_t_70 1]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3NuZGF5WVU_size_16_color_FFFFFF_t_70 2]
