第三章 Spring bean多实例与动态代理笔记

川长思鸟来 2023-06-29 02:24 5阅读 0赞

## **一、Bean的多例作用域** ##

### **1、多实例bean的初始化** ###

1）多实例bean在每次获取bean的时候都会触发getBean操作，因此每次获取都是创建了一个新的对象返回，不论是多线程获取或者是同一个线程获取两次，都是返回一个新的实例对象。

2）多例模式情况，如果出现循环依赖，会直接报错

org.springframework.beans.factory.support.AbstractBeanFactory\#doGetBean

*//如果是scope 是Prototype的，校验是否有出现循环依赖，如果有则直接报错*
**if** (isPrototypeCurrentlyInCreation(beanName)) \{
   **throw new** BeanCurrentlyInCreationException(beanName);
\}

**else if** (mbd.isPrototype()) \{
   *// It's a prototype -> create a new instance.*
*   *Object prototypeInstance = **null**;
   **try** \{
      beforePrototypeCreation(beanName);
      prototypeInstance = createBean(beanName, mbd, args);
   \}**finally** \{
      afterPrototypeCreation(beanName);
   \}
   *//改方法是FactoryBean接口的调用入口*
*   *bean = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
\}

### **2、Bean的作用域** ###

Scope如果是Prototype时，不管是不是同一个线程，只要是getBean就会得到一个新的实例。

Request作用域时，是把实例存储到request对象中

Session作用域时，是把实例存储到session对象中，request和session作用域只会在web环境才会存在（例如Tomcat服务）

**else** \{
   **String scopeName = mbd.getScope();**
   **final** Scope scope = **this**.**scopes**.get(scopeName);
   **if** (scope == **null**) \{
      **throw new** IllegalStateException(**"No Scope registered for scope name '"** \+ scopeName + **"'"**);
   \}
   **try** \{
      Object scopedInstance = scope.get(beanName, () -> \{
         beforePrototypeCreation(beanName);
         **try** \{
            **return** createBean(beanName, mbd, args);
         \}**finally** \{
            afterPrototypeCreation(beanName);
         \}
      \});
      *//**该**方法是FactoryBean接口的调用入口*
*      *bean = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
   \}**catch** (IllegalStateException ex) \{
      **throw new** BeanCreationException(beanName,
            **"Scope '"** \+ scopeName + **"' is not active for the current thread; consider "** \+
            **"defining a scoped proxy for this bean if you intend to refer to it from a singleton"**, ex);
   \}
\}

***/\*\* Map from scope identifier String to corresponding Scope. \*/***
**private final Map<String, Scope> scopes = new LinkedHashMap<>(8);**

### **3、自定义作用域** ###

**3.1、要获取BeanFactory对象，必须实现BeanFactoryPostProcessor接口才能获取BeanFactory对象。**

@Component
**public class** CustomBeanFactoryPostProcessor **implements** BeanFactoryPostProcessor \{
    @Override
    **public void** postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) **throws** BeansException \{
       ** beanFactory.registerScope("hankinScope",new CustomScope());**
    \}
\}

**3.2、调用registerScope方法把自定义的scope注册进去**

beanFactory.registerScope("hankinScope",new CustomScope());

**3.3、写一个类实现scope接口**

**public class** CustomScope **implements** Scope \{
    **private** ThreadLocal **local** = **new** ThreadLocal();
    *//这个方法就是自己管理bean*
*    *@Override
    **public** Object get(String name, ObjectFactory<?> objectFactory) \{
        System.***out***.println(**"=============CustomScope========"**);
        **if**(**local**.get() != **null**) \{
            **return** **local**.get();
        \} **else** \{
            *//这个方法就是掉createbean方法获得一个实例*
*            *Object object = objectFactory.getObject();
            **local**.set(object);
            **return** object;
        \}
    \}

@Component
@Scope(**"hankinScope"**)
**public class** CustomScopeBean \{
    **private** String **username**;
    **public** String getUsername() \{
        **return this**.**username**;
    \}
    **public void** setUsername(String username) \{
        **this**.**username** = username;
    \}
\}

### **4、Bean的销毁**  ###

在bean创建完成后就会对这个bean注册一个销毁的Adapter对象，代码如下：

*// Register bean as disposable.*
**try** \{
   ***//注册bean销毁时的类DisposableBeanAdapter***
***   *****registerDisposableBeanIfNecessary(beanName, bean, mbd);**
\}

registerDisposableBean(beanName, **new** DisposableBeanAdapter(bean, beanName, mbd, getBeanPostProcessors(), acc));

这个DisposableBeanAdapter对象就是负责bean销毁的类。在这个类中收集了该bean是否实现了DisposableBean接口，是否配置destroy-method属性，过滤了DestructionAwareBeanPostProcessor类型的接口。

**然后****bean****是在什么时候被销毁呢，在****tomcat****关闭的时候就会调用到****servlet****中的销毁方法**

**protected void** registerDisposableBeanIfNecessary(String beanName, Object bean, RootBeanDefinition mbd) \{
   AccessControlContext acc = (System.*getSecurityManager*() != **null** ? getAccessControlContext() : **null**);
   **if** (!mbd.isPrototype() && requiresDestruction(bean, mbd)) \{
      **if** (mbd.isSingleton()) \{
         *// Register a DisposableBean implementation that performs all destruction*
*         // work for the given bean: DestructionAwareBeanPostProcessors,*
*         // DisposableBean interface, custom destroy method.*
*         *registerDisposableBean(beanName,
               **new** DisposableBeanAdapter(bean, beanName, mbd, getBeanPostProcessors(), acc));
      \}**else** \{ *// A bean with a custom scope...*
*         *Scope scope = **this**.**scopes**.get(mbd.getScope());
         **if** (scope == **null**) \{
            **throw new** IllegalStateException(**"No Scope registered for scope name '"** \+ mbd.getScope() + **"'"**);
         \}
         scope.registerDestructionCallback(beanName,
               **new** DisposableBeanAdapter(bean, beanName, mbd, getBeanPostProcessors(), acc));
      \}
   \}
\}

在这个方法中就会最终掉用到DisposableBeanAdapter类的，destroy()方法，该方法就会根据前面的收集进行调用。

@Override
**public void** run() \{
   destroy();
\}
@Override
**public void** destroy() \{
   **if** (!CollectionUtils.*isEmpty*(**this**.**beanPostProcessors**)) \{
      **for** (DestructionAwareBeanPostProcessor processor : **this**.**beanPostProcessors**) \{
         processor.postProcessBeforeDestruction(**this**.**bean**, **this**.**beanName**);
      \}
   \}
   **if** (**this**.**invokeDisposableBean**) \{
      **if** (***logger***.isTraceEnabled()) \{
         ***logger***.trace(**"Invoking destroy() on bean with name '"** \+ **this**.**beanName** \+ **"'"**);
      \}
      **try** \{
         **if** (System.*getSecurityManager*() != **null**) \{
            AccessController.*doPrivileged*((PrivilegedExceptionAction<Object>) () -> \{
               ((DisposableBean) **this**.**bean**).destroy();
               **return null**;
            \}, **this**.**acc**);
         \}**else** \{
            ((DisposableBean) **this**.**bean**).destroy();
         \}
      \} **catch** (Throwable ex) \{
         String msg = **"Invocation of destroy method failed on bean with name '"** \+ **this**.**beanName** \+ **"'"**;
         **if** (***logger***.isDebugEnabled()) \{
            ***logger***.info(msg, ex);
         \} **else** \{
            ***logger***.info(msg + **": "** \+ ex);
         \}
      \}
   \}
   **if** (**this**.**destroyMethod** != **null**) \{
      invokeCustomDestroyMethod(**this**.**destroyMethod**);
   \} **else if** (**this**.**destroyMethodName** != **null**) \{
      Method methodToCall = determineDestroyMethod(**this**.**destroyMethodName**);
      **if** (methodToCall != **null**) \{
         invokeCustomDestroyMethod(methodToCall);
      \}
   \}
\}

org.springframework.web.context.support.ServletContextScope\#destroy**在****tomcat****关闭的时候就会调用到****servlet****中的销毁方法**

**public void** destroy() \{
    Iterator var1 = **this**.destructionCallbacks.values().iterator();
    **while**(var1.hasNext()) \{
        Runnable runnable = (Runnable)var1.next();
        runnable.run();
    \}
**    this.destructionCallbacks.clear();**
\}

**public class** ServletContextScope **implements** Scope, DisposableBean \{
    **private final** ServletContext servletContext;
**    private final Map<String, Runnable> destructionCallbacks = new LinkedHashMap();**

## **二、注解配置方式解析** ##

### **1、入口AnnotationConfigApplicationContext** ###

**public** AnnotationConfigApplicationContext(Class<?>... annotatedClasses) \{
   **this**();
   register(annotatedClasses);
   refresh();
\}

**1.1、This()方法说明：**

该方法做了两件事，第一解析注解配置（功能与xml配置标签解析一样），第二bean扫描

**public** AnnotationConfigApplicationContext() \{
   **this**.**reader** = **new** AnnotatedBeanDefinitionReader(**this**);
   **this**.**scanner** = **new** ClassPathBeanDefinitionScanner(**this**);
\}

第一：注解解析

**public** AnnotatedBeanDefinitionReader(BeanDefinitionRegistry registry, Environment environment) \{
   Assert.*notNull*(registry, **"BeanDefinitionRegistry must not be null"**);
   Assert.*notNull*(environment, **"Environment must not be null"**);
   **this**.**registry** = registry;
   **this**.**conditionEvaluator** = **new** ConditionEvaluator(registry, environment, **null**);
   AnnotationConfigUtils.*registerAnnotationConfigProcessors*(**this**.**registry**);
\}

第二：bean扫描

**public** ClassPathBeanDefinitionScanner(BeanDefinitionRegistry registry, **boolean** useDefaultFilters,
      Environment environment, @Nullable ResourceLoader resourceLoader) \{
   Assert.*notNull*(registry, **"BeanDefinitionRegistry must not be null"**);
   **this**.**registry** = registry;
   *//使用默认的过滤器*
*   ***if** (useDefaultFilters) \{ *//@Service @Component*
*      *registerDefaultFilters();
   \}
   setEnvironment(environment);
   setResourceLoader(resourceLoader);
\}

注意：注解解析最后会将对应的属性都放入到beanDefinitionMap里面。

**public static** Set<BeanDefinitionHolder> registerAnnotationConfigProcessors(
      BeanDefinitionRegistry registry, @Nullable Object source) \{
   DefaultListableBeanFactory beanFactory = *unwrapDefaultListableBeanFactory*(registry);
   **if** (beanFactory != **null**) \{
      **if** (!(beanFactory.getDependencyComparator() **instanceof** AnnotationAwareOrderComparator)) \{
         beanFactory.setDependencyComparator(AnnotationAwareOrderComparator.***INSTANCE***);
      \}
      **if** (!(beanFactory.getAutowireCandidateResolver() **instanceof** ContextAnnotationAutowireCandidateResolver)) \{
         beanFactory.setAutowireCandidateResolver(**new** ContextAnnotationAutowireCandidateResolver());
      \}
   \}
  ** Set<BeanDefinitionHolder> beanDefs = new LinkedHashSet<>(8);**
   **if** (!registry.containsBeanDefinition(***CONFIGURATION\_ANNOTATION\_PROCESSOR\_BEAN\_NAME***)) \{
      RootBeanDefinition def = **new** RootBeanDefinition(ConfigurationClassPostProcessor.**class**);
      def.setSource(source);
      beanDefs.add(*registerPostProcessor*(registry, def, ***CONFIGURATION\_ANNOTATION\_PROCESSOR\_BEAN\_NAME***));
   \}

   **if** (!registry.containsBeanDefinition(***AUTOWIRED\_ANNOTATION\_PROCESSOR\_BEAN\_NAME***)) \{
      RootBeanDefinition def = **new** RootBeanDefinition(AutowiredAnnotationBeanPostProcessor.**class**);
      def.setSource(source);
      beanDefs.add(*registerPostProcessor*(registry, def, ***AUTOWIRED\_ANNOTATION\_PROCESSOR\_BEAN\_NAME***));
   \}
   **return** beanDefs;
\}
**private static** BeanDefinitionHolder registerPostProcessor(
      BeanDefinitionRegistry registry, RootBeanDefinition definition, String beanName) \{
   definition.setRole(BeanDefinition.***ROLE\_INFRASTRUCTURE***);

**// bean注册，将bean放入到beanDefinitionMap中**
   **registry.registerBeanDefinition(beanName, definition);**
   **return new** BeanDefinitionHolder(definition, beanName);
\}

private final Map<String, BeanDefinition> beanDefinitionMap = new ConcurrentHashMap<>(64);

**1.2、register(annotatedClasses)方法解析**

最后方法会调用到如下的注册代码中，与xml配置方式调用方法一样，最后放入map中。

org.springframework.beans.factory.support.BeanDefinitionReaderUtils\#registerBeanDefinition

**public static void** registerBeanDefinition(
      BeanDefinitionHolder definitionHolder, BeanDefinitionRegistry registry)
      **throws** BeanDefinitionStoreException \{
   *// Register bean definition under primary name.*
*   *String beanName = definitionHolder.getBeanName();
   *//完成BeanDefinition的注册，重点看，重要程度 5*
*   *registry.registerBeanDefinition(beanName, definitionHolder.getBeanDefinition());
   *//建立别名和 id的映射，这样就可以根据别名获取到id*
*   // Register aliases for bean name, if any.*
*   *String\[\] aliases = definitionHolder.getAliases();
   **if** (aliases != **null**) \{
      **for** (String alias : aliases) \{
         registry.registerAlias(beanName, alias);
      \}
   \}
\}

org.springframework.beans.factory.support.DefaultListableBeanFactory\#registerBeanDefinition

**else** \{
   *//把beanDefinition缓存到map中 Still in startup registration phase*
*   ***this**.**beanDefinitionMap**.put(beanName, beanDefinition);
   *//把beanName放到beanDefinitionNames list中，这个list着重记住，bean实例化的时候需要用到*
*   ***this**.**beanDefinitionNames**.add(beanName);
   **this**.**manualSingletonNames**.remove(beanName);
\}

**1.3、refresh()方法**

org.springframework.context.support.AbstractApplicationContext\#refresh

该方法是spring容器初始化的核心方法。是spring容器初始化的核心流程，是一个典型的父类模板设计模式的运用，根据不同的上下文对象，会掉到不同的上下文对象子类方法中。

核心上下文子类有：

ClassPathXmlApplicationContext

FileSystemXmlApplicationContext

AnnotationConfigApplicationContext

EmbeddedWebApplicationContext(springboot)

*/\**
* \* 方法重要程度：*
* \*  0：不重要，可以不看*
* \*  1：一般重要，可看可不看*
* \*  5：非常重要，一定要看*
* \* \*/*
@Override
**public void** refresh() **throws** BeansException, IllegalStateException \{
   **synchronized** (**this**.**startupShutdownMonitor**) \{
      *//为容器初始化做准备，重要程度：0**  **Prepare this context for refreshing.*
*      *prepareRefresh();
**      *****/\*\*重要程度：5***
***        1、创建BeanFactory对象***
***      \* 2、xml解析***
***      \*  传统标签解析：bean、import等***
***      \*  自定义标签解析 如：******<context:component-scan base-package="com.chj"/>***
***      \*  自定义标签解析流程：***
***      \*     a、根据当前解析标签的头信息找到对应的namespaceUri***
***      \*     b、加载spring所以jar中的spring.handlers文件。并建立映射关系***
***      \*     c、根据namespaceUri从映射关系中找到对应的实现了NamespaceHandler接口的类***
***      \*     d、调用类的init方法，init方法是注册了各种自定义标签的解析类***
***      \*     e、根据namespaceUri找到对应的解析类，然后调用paser方法完成标签解析***
***      \* 3、把解析出来的xml标签封装成BeanDefinition对象***
*      \* \*/*
*  **    *ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
      */\**
*      \* 给beanFactory设置一些属性值，可以不看*
*      \* \*/*
*      // Prepare the bean factory for use in this context.*
*      *prepareBeanFactory(beanFactory);
      **try** \{
*         // Allows post-processing of the bean factory in context subclasses.*
*         *postProcessBeanFactory(beanFactory);
         */\**
*         \* BeanDefinitionRegistryPostProcessor*
*         \* BeanFactoryPostProcessor*
*         \* 完成对这两个接口的调用*
*         \* \*/*
*         // Invoke factory processors registered as beans in the context.*
*         *invokeBeanFactoryPostProcessors(beanFactory);
         */\**
*         \* 把实现了BeanPostProcessor接口的类实例化，并且加入到BeanFactory中*
*         \* \*/*
*         // Register bean processors that intercept bean creation.*
*         *registerBeanPostProcessors(beanFactory);
         */\**
*         \* 国际化,重要程度2*
*         \* \*/*
*         // Initialize message source for this context.*
*         *initMessageSource();
         *//初始化事件管理类*
*         // Initialize event multicaster for this context.*
*         *initApplicationEventMulticaster();
         *//这个方法着重理解模板设计模式，因为在springboot中，这个方法是用来做内嵌tomcat启动的*
*         // Initialize other special beans in specific context subclasses.*
*         *onRefresh();
         */\**
*         \* 往事件管理类中注册事件类*
*         \* \*/*
*         // Check for listener beans and register them.*
*         *registerListeners();
 **        *****/\****
***         \* 这个方法是spring中最重要的方法，没有之一***
***         \* 所以这个方法一定要理解要具体看***
***         \* 1、bean实例化过程***
***         \* 2、ioc***
***         \* 3、注解支持***
***         \* 4、BeanPostProcessor的执行***
***         \* 5、Aop的入口***
***         \* \*/***
***         // Instantiate all remaining (non-lazy-init) singletons.***
***         *****finishBeanFactoryInitialization(beanFactory);**
         *// Last step: publish corresponding event.*
*         *finishRefresh();
      \}**catch** (BeansException ex) \{
         **if** (**logger**.isWarnEnabled()) \{
            **logger**.warn(**"Exception encountered during context initialization - "** \+
                  **"cancelling refresh attempt: "** \+ ex);
         \}
         *// Destroy already created singletons to avoid dangling resources.*
*         *destroyBeans();
         *// Reset 'active' flag.*
*         *cancelRefresh(ex);
         *// Propagate exception to caller.*
*         ***throw** ex;
      \}**finally** \{
         *// Reset common introspection caches in Spring's core, since we*
*         // might not ever need metadata for singleton beans anymore...*
*         *resetCommonCaches();
      \}
   \}
\}

### **2、ConfigurationClassPostProcessor类**  ###

这个类作用很大，支持了：

@Configuration @ComponentScan @Import @ImportResource @PropertySource @Order等注解，对理解 springboot帮助很大，真正的可以做到xml的0配置。

## **三、动态代理** ##

### **1、动态代理是什么？** ###

**动态代理：**是使用反射和字节码的技术，在运行期创建指定接口或类的子类（动态代理）以及其实例对象的技术，通过这个技术可以无侵入性的为代码进行增强；

Java的动态代理技术实现主要有两种方式：JDK原生动态代理、CGLIB动态代理

### **2、JDK原生动态代理** ###

**Proxy：**Proxy是所有动态代理的父类，它提供了一个静态方法来创建动态代理的class对象和实例。

@CallerSensitive
**public static** Object newProxyInstance(ClassLoader loader,Class<?>\[\] interfaces, InvocationHandler h)
        **final** InvocationHandler ih = h;
        **return** cons.newInstance(**new** Object\[\]\{h\});

**InvocationHandler：**每个动态代理实例都有一个关联的InvocationHandler。在代理实例上调用方法时，方法调用将被转发到InvocationHandler的invoke方法。

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L20wXzM3NjYxNDU4_size_16_color_FFFFFF_t_70][]

**2.1、被代理对象的接口实现类：**

**public class Hankin**** ****implements** People \{
    *//****TODO before 在小明找到对象之前，需要父母帮忙找对象***
***    ***@Override
    **public void** findMM() \{
        System.***out***.println(**"I'm H****an****kin, No time go out, but I need to find MM!"**);
    \}
    *//****TODO after 帮助小明结婚，带孩子***
\}

**2.2、代理对象实现InvocationHandler接口**

**public class** Parent **implements** InvocationHandler \{
    **private** People **people**;
    **public** Parent(People people) \{
        **this**.**people** = people;
    \}
    *//* ***TODO 动态代理增强方法invoke***
***    ***@Override
    **public** Object invoke(Object proxy, Method method, Object\[\] args) **throws** Throwable \{
        *//****TODO 前置增强方法调用***
***        ***before();
        *//****TODO 这个method反射对象就是被代理的对象中的方法（比如：findMM方法）***
***        ***method.invoke(**people**,**null**);
        *//****TODO 后置增强方法调用***
***        ***after();
        **return null**;
    \}
    **private void** before()\{
        System.***out***.println(**"我是小明的父母，需要帮助小明找对象！"**);
    \}
    **private void** after()\{
        System.***out***.println(**"我是小明的父母，我要帮助小明结婚，结完婚还要帮助小明照顾孩子！"**);
    \}
\}

java.lang.reflect.Method\#invoke

@CallerSensitive
**public** Object invoke(Object obj, Object... args)**t****hrows** IllegalAccessException, IllegalArgumentException,
       InvocationTargetException\{
    **if** (!**override**) \{
        **if** (!Reflection.*quickCheckMemberAccess*(**clazz**, **modifiers**)) \{
            Class<?> caller = Reflection.*getCallerClass*();
            checkAccess(caller, **clazz**, obj, **modifiers**);
        \}
    \}
    MethodAccessor ma = **methodAccessor**;             *// read volatile*
*    ***if** (ma == **null**) \{
        ma = acquireMethodAccessor();
    \}
    **return** ma.invoke(obj, args);
\}

**2.3、测试类代码：**

**通过java反之机制获取代理对象增加实例**

**public class** Test \{
    **public static void** main(String\[\] args) \{
        *//****TODO 参数newProxyInstance(ClassLoader loader,Class<?>\[\] interfaces,InvocationHandler h)***
***      ******  // 这个方法就是对一个代理对象的增强***
***        *****People proxyInstance = (People)Proxy.*****newProxyInstance*****(Test.class.getClassLoader(),**
**                new Class\[\]\{People.class\}, new Parent(new Hnakin()));**
**        *****// 调用代理对象的方法***
***        *****proxyInstance.findMM();**
    \}
\}

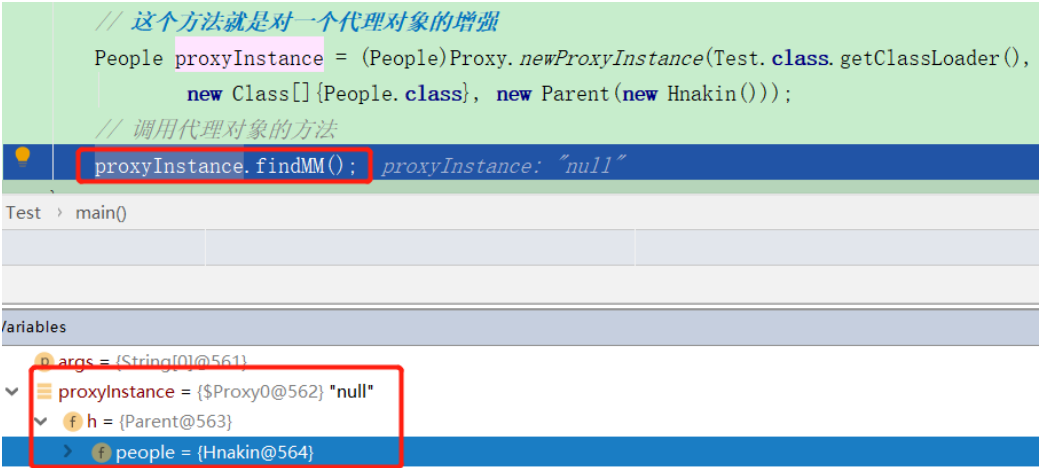

**注意：**

“$Proxy0”：就是动态代理生成的代理实现类对象，只有在JVM运行时才会动态加载，

”h”变量：就是指具体的增强类方法，比如这里就是我实现了InvocationHandler接口的增强类UserServiceInterceptor。

“Peolpe=\{Hankin@564\}”：就是具体的被代理增强的对象实例。

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L20wXzM3NjYxNDU4_size_16_color_FFFFFF_t_70 1][]

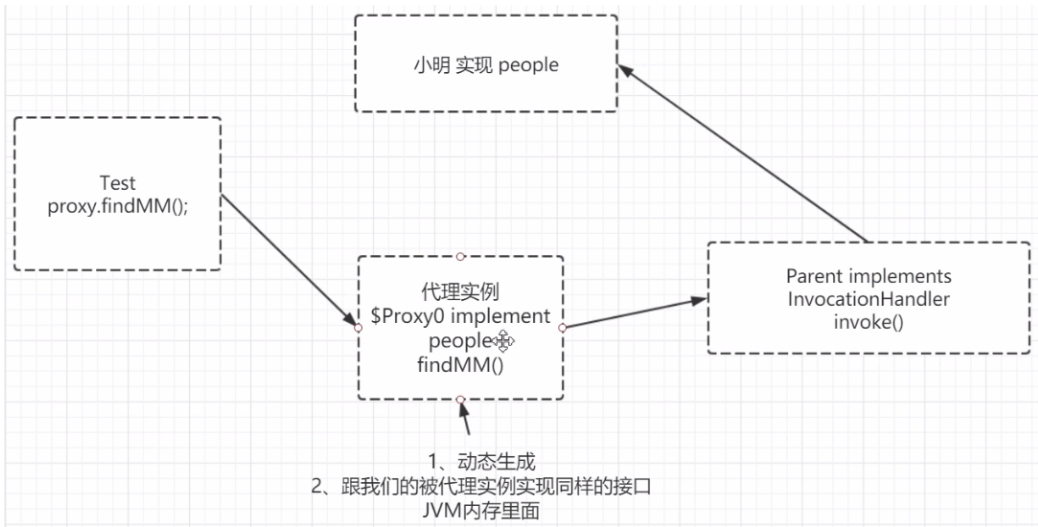

**2.4、执行结果：**

我是小明的父母，需要帮助小明找对象！

I'm Hnakin, No time go out, but I need to find MM!

我是小明的父母，我要帮助小明结婚，结完婚还要帮助小明照顾孩子！

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L20wXzM3NjYxNDU4_size_16_color_FFFFFF_t_70 2][]

### **3、CGLIB动态代理** ###

**3.1、原理**

CGLIB(Code Generation Library)是一个基于ASM的字节码生成库，它允许我们在运行时对字节码进行修改和动态生成，CGLIB通过继承方式实现代理。

**Enhancer：**来指定要代理的目标对象、实际处理代理逻辑的对象，最终通过调用create()方法得到代理对象，对这个对象所有非final方法的调用都会转发给MethodInterceptor。

**MethodInterceptor：**动态代理对象的方法调用都会转发到intercept方法进行增强；

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L20wXzM3NjYxNDU4_size_16_color_FFFFFF_t_70 3][]

**3.2、增强类代码示例：**

**public class** UserServiceInterceptor **implements** MethodInterceptor \{
   **private static** Logger *logger* = Logger.*getLogger*(UserServiceInterceptor.**class**.getName());
   *//****TODO 调用cglib动态增强方法***
***   *****public** Object intercept(Object obj, Method method, Object\[\] args,MethodProxy proxy) **throws** Throwable \{
      **if**(args!=**null** && args.**length**>0 && args\[0\] **instanceof** User)\{
         User user = (User) args\[0\];
         **if**(user.getName().trim().length() <= 1)\{
            **throw new** RuntimeException(**"用户姓名输入长度需要大于1！"**);
         \}
      \}

//Object ret = proxy.invoke(delegate, args);
      Object ret = proxy.invokeSuper(obj, args);
      *logger*.info(**"数据库操作成功！"**);
      **return** ret;
   \}
\}

**3.3、测试类代码：**

**public class** TestCglibProxy \{
    **public static void** main(String\[\] args) \{
        User user = **new** User();
        user.setAddress(**"地址"**);
        user.setAge(20);
*//        user.setName("hankin");*
*     **   *Enhancer enhancer = **new** Enhancer();
        enhancer.setSuperclass(UserServiceImpl.**class**);
        enhancer.setCallback(**new** UserServiceInterceptor());
        UserServiceImpl usi1 = (UserServiceImpl)** enhancer.create();**
        usi1.addUser(user);
      System.***out***.println(**"---------------------"**);
      System.***out***.println(usi1.hashCode());
*    *\}
\}

JDK原生动态代理是Java原生支持的，不需要任何外部依赖，但是它只能基于接口进行代理；

CGLIB通过继承的方式进行代理，无论目标对象有没有实现接口都可以代理，但是无法处理final的情况。

[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L20wXzM3NjYxNDU4_size_16_color_FFFFFF_t_70]: https://img-blog.csdnimg.cn/20200109235502677.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L20wXzM3NjYxNDU4,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L20wXzM3NjYxNDU4_size_16_color_FFFFFF_t_70 1]: https://img-blog.csdnimg.cn/2020010923543414.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L20wXzM3NjYxNDU4,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L20wXzM3NjYxNDU4_size_16_color_FFFFFF_t_70 2]: https://img-blog.csdnimg.cn/20200109235358731.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L20wXzM3NjYxNDU4,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L20wXzM3NjYxNDU4_size_16_color_FFFFFF_t_70 3]: https://img-blog.csdnimg.cn/20200109235333171.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L20wXzM3NjYxNDU4,size_16,color_FFFFFF,t_70
