# 这是旧版本,新版本请看下面链接 #

[https://blog.csdn.net/weixin\_38305440/article/details/102775484][https_blog.csdn.net_weixin_38305440_article_details_102775484]

## 文章目录  这是旧版本,新版本请看下面链接  @\[toc\]  spring cloud 介绍  spring cloud 技术组成  Spring Cloud 对比 Dubbo  一、service - 服务  二、commons 通用项目  新建 maven 项目  pom.xml  java 源文件  pojo  Item  User  Order  service  ItemService  UserService  OrderService  util  CookieUtil  JsonUtil  JsonResult  三、item service 商品服务  新建 spring boot 起步项目  选择依赖项  pom.xml  application.yml  主程序  java 源文件  ItemServiceImpl  ItemController  访问测试  四、user service 用户服务  新建 spring boot 起步项目  选择依赖项  pom.xml  application.yml  主程序  java源文件  UserServiceImpl  UserController  访问测试  五、order service 订单服务  新建 spring boot 起步项目  选择依赖项  pom.xml  applicatoin.yml  主程序  java 源文件  OrderServiceImpl  OrderController  访问测试  六、service 访问测试汇总  七、eureka 注册与发现  创建 eureka server 项目：sp05-eureka  pom.xml  application.yml  主程序  修改 hosts 文件，添加 eureka 域名映射  启动，并访问测试  八、service provider 服务提供者  pom.xml 添加 eureka 客户端依赖  application.yml 添加 eureka注册配置  主程序启用服务注册发现客户端  启动，并访问 eureka 查看注册信息  九、eureka 和 “服务提供者”的高可用  eureka 高可用  application.yml  STS 配置启动参数 \`--spring.profiles.active\`  访问 eureka 服务器，查看注册信息  eureka客户端注册时，向两个服务器注册  item-service 高可用  application.yml  配置启动参数  启动测试  十、ribbon 服务消费者  新建 sp06-ribbon 项目  pom.xml  application.yml  主程序  RibbonController  启动服务，并访问测试  十一、ribbon 负载均衡  添加 ribbon 起步依赖（可选）  RestTemplate 设置 \`@LoadBalanced\`  访问路径设置为服务id  访问测试  ribbon 重试  pom.xml 添加 spring-retry 依赖  application.yml 配置 ribbon 重试  主程序设置 RestTemplate 的请求工厂的超时属性  item-service 的 ItemController 添加延迟代码，以便测试 ribbon 的重试机制  访问，测试 ribbon 重试机制  十二、ribbon + hystrix 断路器  微服务宕机时，ribbon 无法转发请求  复制 sp06-ribbon 项目，命名为sp07-hystrix  修改 pom.xml  添加 hystrix 起步依赖  修改 application.yml  主程序添加 \`@EnableCircuitBreaker\` 启用 hystrix 断路器  RibbonController 中添加降级方法  hystrix 短路超时设置  启动项目进行测试  十三、hystrix dashboard 断路器仪表盘  sp07-hystrix 项目添加 actuator，并暴露 hystrix 监控端点  pom.xml 添加 actuator 依赖  调整 application.yml 配置，并暴露 hystrix 监控端点  访问 actuator 路径，查看监控端点  新建 sp08-hystrix-dashboard 项目  pom.xml  application.yml  主程序添加 \`@EnableHystrixDashboard\` 和 \`@EnableDiscoveryClient\`  启动，并访问测试  访问 hystrix dashboard  填入 hystrix 的监控端点，开启监控  hystrix 熔断  使用 apache 的并发访问测试工具 ab  hystrix 配置  十四、feign 整合ribbon+hystrix  新建 sp09-feign 项目  pom.xml  application.yml  主程序添加 \`@EnableDiscoveryClient\` 和 \`@EnableFeignClients\`  java 源文件  feign 声明式客户端  ItemFeignService  UserFeignService  OrderFeignService  FeignController  启动服务，并访问测试  十五、feign + ribbon 负载均衡和重试  application.yml 配置 ribbon 超时和重试  启动服务，访问测试  十六、feign + hystrix 降级  feign 启用 hystrix  application.yml 添加配置  可以添加配置，暂时减小降级超时时间，以便后续对降级进行测试  feign + hystrix 降级  降级类  ItemFeignServiceFB  UserFeignServiceFB  OrderFeignServiceFB  feign service 接口中指定降级类  ItemFeignService  UserFeignService  OrderFeignService  启动服务，访问测试  十七、feign + hystrix 监控和熔断测试  修改sp09-feign项目   pom.xml 添加 hystrix 起步依赖  主程序添加 \`@EnableCircuitBreaker\`  sp09-feign 配置 actuator，暴露 \`hystrix.stream\` 监控端点  actuator 依赖  application.yml 暴露 \`hystrix.stream\` 端点  启动服务，查看监控端点  hystrix dashboard  熔断测试  十八、order service 调用商品库存服务和用户服务  pom.xml  application.yml  主程序  ItemFeignService  UserFeignService  ItemFeignServiceFB  UserFeignServiceFB  OrderServiceImpl  order-service 配置启动参数  启动服务，访问测试  hystrix dashboard 监控 order service 断路器  十九、hystrix + turbine 集群聚合监控  新建 sp10-turbine 项目  pom.xml  application.yml  主程序  访问测试  二十、zuul API网关  新建 sp11-zuul 项目  pom.xml  applicatoin.yml  主程序  启动服务，访问测试  zuul + ribbon 负载均衡  zuul + ribbon 重试  pom.xml 添加 spring-retry 依赖  配置 zuul 开启重试，并配置 ribbon 重试参数  zuul + hystrix 降级  创建降级类  ItemServiceFallback  OrderServiceFallback  zuul + hystrix 熔断  zuul + hystrix dashboard 监控  暴露 hystrix.stream 监控端点  开启监控  zuul + turbine 聚合监控  熔断测试  二十一、zuul 请求过滤  定义过滤器，继承 ZuulFilter  访问测试  二十二、zuul Cookie过滤  二十三、config 配置中心  github 上存放配置文件  新建 "Project",命名为 config  将sp02,sp03,sp04,sp11四个项目的yml配置文件,复制到config项目,并改名  将 config 项目上传到 github  提交  config 服务器  新建 sp12-config 项目  pom.xml  application.yml  主程序添加 \`@EnableConfigServer\` 和 \`@EnableDiscoveryClient\`  启动，访问测试  config 客户端  pom.xml 添加 config 客户端依赖  在四个项目中添加 bootstrap.yml  启动服务，观察从配置中心获取配置信息的日志  配置刷新  pom.xml  yml 配置文件中暴露 refresh 端点  重启服务，查看暴露的刷新端点  UserServiceImpl 添加 \`@RefreshScope\` 注解  ==先启动== user-service，==再修改== config项目的user-service-dev.yml文件并提交  访问刷新端点刷新配置  访问 user-service，查看动态更新的新用户数据  二十四、config bus + rabbitmq 消息总线配置刷新  rabbitmq 安装笔记  需要动态更新配置的微服务，添加 spring cloud bus 依赖，并添加 rabbitmq 连接信息  pom.xml 添加 spring cloud bus 依赖  配置文件中添加 rabbitmq 连接信息  config-server 添加 spring cloud bus 依赖、配置rabbitmq连接信息，并暴露 bus-refresh 监控端点  pom.xml  application.yml  启动服务，请求刷新端点发布刷新消息  config 本地文系统  把配置文件保存到 sp12-config 项目的 resources/config 目录下  修改 application.yml 激活 native profile，并指定配置文件目录  二十五、sleuth 链路跟踪  微服务中添加 spring cloud sleuth 依赖  在控制台查看链路跟踪日志  二十六、sleuth + zipkin 链路分析  链路数据抽样比例  zipkin 服务  下载 zipkin 服务器  启动 zipkin 时，连接到 rabbitmq  微服务添加 zipkin 起步依赖  启动并访问服务，访问 zipkin 查看链路分析 ##

# spring cloud 介绍 #

spring cloud 是一系列框架的集合。它利用 spring boot 的开发便利性巧妙地简化了分布式系统基础设施的开发，如服务发现注册、配置中心、消息总线、负载均衡、断路器、数据监控等，都可以用 spring boot 的开发风格做到一键启动和部署。spring cloud 并没有重复制造轮子，它只是将目前各家公司开发的比较成熟、经得起实际考验的服务框架组合起来，通过 spring boot 风格进行再封装屏蔽掉了复杂的配置和实现原理，最终给开发者留出了一套简单易懂、易部署和易维护的分布式系统开发工具包。

spring cloud 对于中小型互联网公司来说是一种福音，因为这类公司往往没有实力或者没有足够的资金投入去开发自己的分布式系统基础设施，使用 spring cloud 一站式解决方案能在从容应对业务发展的同时大大减少开发成本。同时，随着近几年微服务架构和 docker 容器概念的火爆，也会让 spring cloud 在未来越来越“云”化的软件开发风格中立有一席之地，尤其是在目前五花八门的分布式解决方案中提供了标准化的、一站式的技术方案，意义可能会堪比当年 servlet 规范的诞生，有效推进服务端软件系统技术水平的进步。

# spring cloud 技术组成 #

*  **eureka**
    微服务治理，服务注册和发现
 *  **ribbon**
    负载均衡、请求重试
 *  **hystrix**
    断路器，服务降级、熔断
 *  **feign**
    ribbon + hystrix 集成，并提供生命式客户端
 *  **hystrix dashboard 和 turbine**
    hystrix 微服务监控
 *  **zuul**
    API 网关，提供微服务的统一入口，并提供统一的权限验证
 *  **config**
    配置中心
 *  **bus**
    消息总线, 配置刷新
 *  **sleuth+zipkin**
    链路跟踪

# Spring Cloud 对比 Dubbo #

*  **Dubbo**

     *  Dubbo只是一个远程调用(RPC)框架
     *  默认基于长连接,支持多种序列化格式
 *  **Spring Cloud**

     *  框架集
     *  提供了一整套微服务解决方案(全家桶)

--------------------

# 一、service - 服务 #

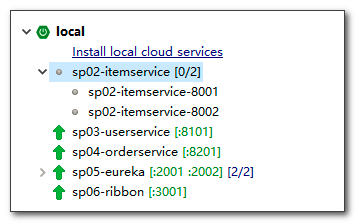

![三个服务][20191028102025115.png]

*  商品服务 item service，端口 8001
 *  用户服务 user service，端口 8101
 *  订单服务 order service，端口 8201

--------------------

# 二、commons 通用项目 #

## 新建 maven 项目 ##

![新建commons通用项目][commons]

## pom.xml ##

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    	<modelVersion>4.0.0</modelVersion>
    	<groupId>com.tedu</groupId>
    	<artifactId>sp01-commons</artifactId>
    	<version>0.0.1-SNAPSHOT</version>
    	<name>sp01-commons</name>
    	<dependencies>
    		<dependency>
    			<groupId>com.fasterxml.jackson.module</groupId>
    			<artifactId>jackson-module-parameter-names</artifactId>
    			<version>2.9.8</version>
    		</dependency>
    		<dependency>
    			<groupId>com.fasterxml.jackson.datatype</groupId>
    			<artifactId>jackson-datatype-jdk8</artifactId>
    			<version>2.9.8</version>
    		</dependency>
    		<dependency>
    			<groupId>com.fasterxml.jackson.datatype</groupId>
    			<artifactId>jackson-datatype-jsr310</artifactId>
    			<version>2.9.8</version>
    		</dependency>
    		<dependency>
    			<groupId>com.fasterxml.jackson.datatype</groupId>
    			<artifactId>jackson-datatype-guava</artifactId>
    			<version>2.9.8</version>
    		</dependency>

    		<dependency>
    			<groupId>org.projectlombok</groupId>
    			<artifactId>lombok</artifactId>
    			<version>1.18.6</version>
    		</dependency>
    		<dependency>
    			<groupId>javax.servlet</groupId>
    			<artifactId>javax.servlet-api</artifactId>
    			<version>3.1.0</version>
    		</dependency>
    		<dependency>
    			<groupId>org.slf4j</groupId>
    			<artifactId>slf4j-api</artifactId>
    			<version>1.7.26</version>
    		</dependency>
    		<dependency>
    		    <groupId>org.apache.commons</groupId>
    		    <artifactId>commons-lang3</artifactId>
    		    <version>3.9</version>
    		</dependency>

    	</dependencies>

    	<build>
    		<plugins>
    			<plugin>
    				<groupId>org.apache.maven.plugins</groupId>
    				<artifactId>maven-compiler-plugin</artifactId>
    				<version>3.8.0</version>
    				<configuration>
    					<source>1.8</source>
    					<target>1.8</target>
    				</configuration>
    			</plugin>
    		</plugins>
    	</build>
    </project>

## java 源文件 ##

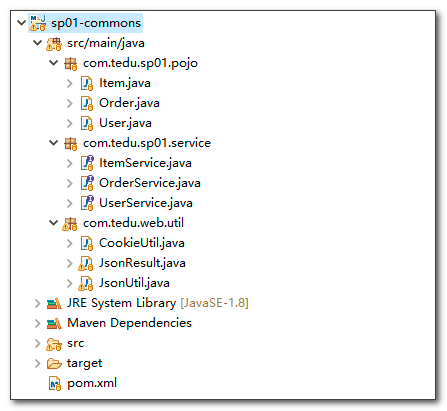

![java源文件][java]

### pojo ###

#### Item ####

package com.tedu.sp01.pojo;

    import lombok.AllArgsConstructor;
    import lombok.Data;
    import lombok.NoArgsConstructor;

    @Data
    @NoArgsConstructor
    @AllArgsConstructor
    public class Item {
    	private Integer id;
    	private String name;
    	private Integer number;
    }

#### User ####

package com.tedu.sp01.pojo;

    import lombok.AllArgsConstructor;
    import lombok.Data;
    import lombok.NoArgsConstructor;

    @Data
    @NoArgsConstructor
    @AllArgsConstructor
    public class User {
    	private Integer id;
    	private String username;
    	private String password;
    }

#### Order ####

package com.tedu.sp01.pojo;

    import java.util.List;

    import lombok.AllArgsConstructor;
    import lombok.Data;
    import lombok.NoArgsConstructor;

    @Data
    @NoArgsConstructor
    @AllArgsConstructor
    public class Order {
    	private String id;
    	private User user;
    	private List<Item> items;
    }

### service ###

#### ItemService ####

package com.tedu.sp01.service;

    import java.util.List;

    import com.tedu.sp01.pojo.Item;

    public interface ItemService {
    	List<Item> getItems(String orderId);
    	void decreaseNumbers(List<Item> list);
    }

#### UserService ####

package com.tedu.sp01.service;

    import com.tedu.sp01.pojo.User;

    public interface UserService {
    	User getUser(Integer id);
    	void addScore(Integer id, Integer score);
    }

#### OrderService ####

package com.tedu.sp01.service;


    import com.tedu.sp01.pojo.Order;

    public interface OrderService {
    	Order getOrder(String orderId);
    	void addOrder(Order order);
    }

### util ###

#### CookieUtil ####

package com.tedu.web.util;

    import javax.servlet.http.Cookie;
    import javax.servlet.http.HttpServletRequest;
    import javax.servlet.http.HttpServletResponse;

    public class CookieUtil {

    	/** * @param response * @param name * @param value * @param maxAge */
    	public static void setCookie(HttpServletResponse response,
    			String name, String value, String domain, String path, int maxAge) {
    		Cookie cookie = new Cookie(name, value);
    		if(domain != null) {
    			cookie.setDomain(domain);
    		}
    		cookie.setPath(path);
    		cookie.setMaxAge(maxAge);
    		response.addCookie(cookie);
    	}
    	public static void setCookie(HttpServletResponse response, String name, String value, int maxAge) {
    		setCookie(response, name, value, null, "/", maxAge);
    	}
    	public static void setCookie(HttpServletResponse response, String name, String value) {
    		setCookie(response, name, value, null, "/", 3600);
    	}
    	public static void setCookie(HttpServletResponse response, String name) {
    		setCookie(response, name, "", null, "/", 3600);
    	}

    	/** * @param request * @param name * @return */
    	public static String getCookie(HttpServletRequest request, String name) {
    		String value = null;
    		Cookie[] cookies = request.getCookies();
    		if (null != cookies) {
    			for (Cookie cookie : cookies) {
    				if (cookie.getName().equals(name)) {
    					value = cookie.getValue();
    				}
    			}
    		}
    		return value;
    	}

    	/** * @param response * @param name * @return */
    	public static void removeCookie(HttpServletResponse response, String name, String domain, String path) {
    		setCookie(response, name, "", domain, path, 0);
    	}

    }

#### JsonUtil ####

package com.tedu.web.util;

    import java.io.File;
    import java.io.FileWriter;
    import java.io.IOException;
    import java.io.InputStream;
    import java.io.InputStreamReader;
    import java.io.Writer;
    import java.math.BigDecimal;
    import java.math.BigInteger;
    import java.net.URL;
    import java.nio.charset.StandardCharsets;
    import java.text.SimpleDateFormat;
    import java.util.ArrayList;
    import java.util.List;

    import org.apache.commons.lang3.StringUtils;

    import com.fasterxml.jackson.annotation.JsonInclude;
    import com.fasterxml.jackson.core.JsonGenerator;
    import com.fasterxml.jackson.core.JsonParser;
    import com.fasterxml.jackson.core.JsonProcessingException;
    import com.fasterxml.jackson.core.type.TypeReference;
    import com.fasterxml.jackson.databind.DeserializationFeature;
    import com.fasterxml.jackson.databind.JsonNode;
    import com.fasterxml.jackson.databind.ObjectMapper;
    import com.fasterxml.jackson.databind.SerializationFeature;
    import com.fasterxml.jackson.databind.node.ObjectNode;
    import com.fasterxml.jackson.datatype.guava.GuavaModule;
    import com.fasterxml.jackson.datatype.jdk8.Jdk8Module;
    import com.fasterxml.jackson.datatype.jsr310.JavaTimeModule;
    import com.fasterxml.jackson.module.paramnames.ParameterNamesModule;

    import lombok.extern.slf4j.Slf4j;

    @Slf4j
    public class JsonUtil {
        private static ObjectMapper mapper;
        private static JsonInclude.Include DEFAULT_PROPERTY_INCLUSION = JsonInclude.Include.NON_DEFAULT;
        private static boolean IS_ENABLE_INDENT_OUTPUT = false;
        private static String CSV_DEFAULT_COLUMN_SEPARATOR = ",";
        static {
            try {
                initMapper();
                configPropertyInclusion();
                configIndentOutput();
                configCommon();
            } catch (Exception e) {
                log.error("jackson config error", e);
            }
        }

        private static void initMapper() {
            mapper = new ObjectMapper();
        }

        private static void configCommon() {
            config(mapper);
        }

        private static void configPropertyInclusion() {
            mapper.setSerializationInclusion(DEFAULT_PROPERTY_INCLUSION);
        }

        private static void configIndentOutput() {
            mapper.configure(SerializationFeature.INDENT_OUTPUT, IS_ENABLE_INDENT_OUTPUT);
        }

        private static void config(ObjectMapper objectMapper) {
            objectMapper.enable(JsonGenerator.Feature.WRITE_BIGDECIMAL_AS_PLAIN);
            objectMapper.enable(DeserializationFeature.ACCEPT_EMPTY_STRING_AS_NULL_OBJECT);
            objectMapper.enable(DeserializationFeature.ACCEPT_SINGLE_VALUE_AS_ARRAY);
            objectMapper.enable(DeserializationFeature.FAIL_ON_READING_DUP_TREE_KEY);
            objectMapper.enable(DeserializationFeature.FAIL_ON_NUMBERS_FOR_ENUMS);
            objectMapper.disable(DeserializationFeature.FAIL_ON_UNKNOWN_PROPERTIES);
            objectMapper.disable(DeserializationFeature.FAIL_ON_NULL_FOR_PRIMITIVES);
            objectMapper.disable(SerializationFeature.FAIL_ON_EMPTY_BEANS);
            objectMapper.enable(JsonParser.Feature.ALLOW_COMMENTS);
            objectMapper.disable(JsonGenerator.Feature.ESCAPE_NON_ASCII);
            objectMapper.enable(JsonGenerator.Feature.IGNORE_UNKNOWN);
            objectMapper.enable(JsonParser.Feature.ALLOW_UNQUOTED_FIELD_NAMES);
            objectMapper.disable(SerializationFeature.WRITE_DATES_AS_TIMESTAMPS);
            objectMapper.setDateFormat(new SimpleDateFormat("yyyy-MM-dd HH:mm:ss"));
            objectMapper.enable(JsonParser.Feature.ALLOW_SINGLE_QUOTES);
            objectMapper.registerModule(new ParameterNamesModule());
            objectMapper.registerModule(new Jdk8Module());
            objectMapper.registerModule(new JavaTimeModule());
            objectMapper.registerModule(new GuavaModule());
        }
        public static void setSerializationInclusion(JsonInclude.Include inclusion) {
            DEFAULT_PROPERTY_INCLUSION = inclusion;
            configPropertyInclusion();
        }

        public static void setIndentOutput(boolean isEnable) {
            IS_ENABLE_INDENT_OUTPUT = isEnable;
            configIndentOutput();
        }

        public static <V> V from(URL url, Class<V> c) {
            try {
                return mapper.readValue(url, c);
            } catch (IOException e) {
                log.error("jackson from error, url: {}, type: {}", url.getPath(), c, e);
                return null;
            }
        }

        public static <V> V from(InputStream inputStream, Class<V> c) {
            try {
                return mapper.readValue(inputStream, c);
            } catch (IOException e) {
                log.error("jackson from error, type: {}", c, e);
                return null;
            }
        }

        public static <V> V from(File file, Class<V> c) {
            try {
                return mapper.readValue(file, c);
            } catch (IOException e) {
                log.error("jackson from error, file path: {}, type: {}", file.getPath(), c, e);
                return null;
            }
        }

        public static <V> V from(Object jsonObj, Class<V> c) {
            try {
                return mapper.readValue(jsonObj.toString(), c);
            } catch (IOException e) {
                log.error("jackson from error, json: {}, type: {}", jsonObj.toString(), c, e);
                return null;
            }
        }

        public static <V> V from(String json, Class<V> c) {
            try {
                return mapper.readValue(json, c);
            } catch (IOException e) {
                log.error("jackson from error, json: {}, type: {}", json, c, e);
                return null;
            }
        }

        public static <V> V from(URL url, TypeReference<V> type) {
            try {
                return mapper.readValue(url, type);
            } catch (IOException e) {
                log.error("jackson from error, url: {}, type: {}", url.getPath(), type, e);
                return null;
            }
        }

        public static <V> V from(InputStream inputStream, TypeReference<V> type) {
            try {
                return mapper.readValue(inputStream, type);
            } catch (IOException e) {
                log.error("jackson from error, type: {}", type, e);
                return null;
            }
        }

        public static <V> V from(File file, TypeReference<V> type) {
            try {
                return mapper.readValue(file, type);
            } catch (IOException e) {
                log.error("jackson from error, file path: {}, type: {}", file.getPath(), type, e);
                return null;
            }
        }

        public static <V> V from(Object jsonObj, TypeReference<V> type) {
            try {
                return mapper.readValue(jsonObj.toString(), type);
            } catch (IOException e) {
                log.error("jackson from error, json: {}, type: {}", jsonObj.toString(), type, e);
                return null;
            }
        }

        public static <V> V from(String json, TypeReference<V> type) {
            try {
                return mapper.readValue(json, type);
            } catch (IOException e) {
                log.error("jackson from error, json: {}, type: {}", json, type, e);
                return null;
            }
        }

        public static <V> String to(List<V> list) {
            try {
                return mapper.writeValueAsString(list);
            } catch (JsonProcessingException e) {
                log.error("jackson to error, obj: {}", list, e);
                return null;
            }
        }

        public static <V> String to(V v) {
            try {
                return mapper.writeValueAsString(v);
            } catch (JsonProcessingException e) {
                log.error("jackson to error, obj: {}", v, e);
                return null;
            }
        }

        public static <V> void toFile(String path, List<V> list) {
            try (Writer writer = new FileWriter(new File(path), true)) {
                mapper.writer().writeValues(writer).writeAll(list);
                writer.flush();
            } catch (Exception e) {
                log.error("jackson to file error, path: {}, list: {}", path, list, e);
            }
        }

        public static <V> void toFile(String path, V v) {
            try (Writer writer = new FileWriter(new File(path), true)) {
                mapper.writer().writeValues(writer).write(v);
                writer.flush();
            } catch (Exception e) {
                log.error("jackson to file error, path: {}, obj: {}", path, v, e);
            }
        }

        public static String getString(String json, String key) {
            if (StringUtils.isEmpty(json)) {
                return null;
            }
            try {
                JsonNode node = mapper.readTree(json);
                if (null != node) {
                    return node.get(key).toString();
                } else {
                    return null;
                }
            } catch (IOException e) {
                log.error("jackson get string error, json: {}, key: {}", json, key, e);
                return null;
            }
        }

        public static Integer getInt(String json, String key) {
            if (StringUtils.isEmpty(json)) {
                return null;
            }
            try {
                JsonNode node = mapper.readTree(json);
                if (null != node) {
                    return node.get(key).intValue();
                } else {
                    return null;
                }
            } catch (IOException e) {
                log.error("jackson get int error, json: {}, key: {}", json, key, e);
                return null;
            }
        }

        public static Long getLong(String json, String key) {
            if (StringUtils.isEmpty(json)) {
                return null;
            }
            try {
                JsonNode node = mapper.readTree(json);
                if (null != node) {
                    return node.get(key).longValue();
                } else {
                    return null;
                }
            } catch (IOException e) {
                log.error("jackson get long error, json: {}, key: {}", json, key, e);
                return null;
            }
        }

        public static Double getDouble(String json, String key) {
            if (StringUtils.isEmpty(json)) {
                return null;
            }
            try {
                JsonNode node = mapper.readTree(json);
                if (null != node) {
                    return node.get(key).doubleValue();
                } else {
                    return null;
                }
            } catch (IOException e) {
                log.error("jackson get double error, json: {}, key: {}", json, key, e);
                return null;
            }
        }

        public static BigInteger getBigInteger(String json, String key) {
            if (StringUtils.isEmpty(json)) {
                return new BigInteger(String.valueOf(0.00));
            }
            try {
                JsonNode node = mapper.readTree(json);
                if (null != node) {
                    return node.get(key).bigIntegerValue();
                } else {
                    return null;
                }
            } catch (IOException e) {
                log.error("jackson get biginteger error, json: {}, key: {}", json, key, e);
                return null;
            }
        }

        public static BigDecimal getBigDecimal(String json, String key) {
            if (StringUtils.isEmpty(json)) {
                return null;
            }
            try {
                JsonNode node = mapper.readTree(json);
                if (null != node) {
                    return node.get(key).decimalValue();
                } else {
                    return null;
                }
            } catch (IOException e) {
                log.error("jackson get bigdecimal error, json: {}, key: {}", json, key, e);
                return null;
            }
        }

        public static boolean getBoolean(String json, String key) {
            if (StringUtils.isEmpty(json)) {
                return false;
            }
            try {
                JsonNode node = mapper.readTree(json);
                if (null != node) {
                    return node.get(key).booleanValue();
                } else {
                    return false;
                }
            } catch (IOException e) {
                log.error("jackson get boolean error, json: {}, key: {}", json, key, e);
                return false;
            }
        }

        public static byte[] getByte(String json, String key) {
            if (StringUtils.isEmpty(json)) {
                return null;
            }
            try {
                JsonNode node = mapper.readTree(json);
                if (null != node) {
                    return node.get(key).binaryValue();
                } else {
                    return null;
                }
            } catch (IOException e) {
                log.error("jackson get byte error, json: {}, key: {}", json, key, e);
                return null;
            }
        }

        public static <T> ArrayList<T> getList(String json, String key) {
            if (StringUtils.isEmpty(json)) {
                return null;
            }
            String string = getString(json, key);
            return from(string, new TypeReference<ArrayList<T>>() { });
        }

        public static <T> String add(String json, String key, T value) {
            try {
                JsonNode node = mapper.readTree(json);
                add(node, key, value);
                return node.toString();
            } catch (IOException e) {
                log.error("jackson add error, json: {}, key: {}, value: {}", json, key, value, e);
                return json;
            }
        }

        private static <T> void add(JsonNode jsonNode, String key, T value) {
            if (value instanceof String) {
                ((ObjectNode) jsonNode).put(key, (String) value);
            } else if (value instanceof Short) {
                ((ObjectNode) jsonNode).put(key, (Short) value);
            } else if (value instanceof Integer) {
                ((ObjectNode) jsonNode).put(key, (Integer) value);
            } else if (value instanceof Long) {
                ((ObjectNode) jsonNode).put(key, (Long) value);
            } else if (value instanceof Float) {
                ((ObjectNode) jsonNode).put(key, (Float) value);
            } else if (value instanceof Double) {
                ((ObjectNode) jsonNode).put(key, (Double) value);
            } else if (value instanceof BigDecimal) {
                ((ObjectNode) jsonNode).put(key, (BigDecimal) value);
            } else if (value instanceof BigInteger) {
                ((ObjectNode) jsonNode).put(key, (BigInteger) value);
            } else if (value instanceof Boolean) {
                ((ObjectNode) jsonNode).put(key, (Boolean) value);
            } else if (value instanceof byte[]) {
                ((ObjectNode) jsonNode).put(key, (byte[]) value);
            } else {
                ((ObjectNode) jsonNode).put(key, to(value));
            }
        }

        public static String remove(String json, String key) {
            try {
                JsonNode node = mapper.readTree(json);
                ((ObjectNode) node).remove(key);
                return node.toString();
            } catch (IOException e) {
                log.error("jackson remove error, json: {}, key: {}", json, key, e);
                return json;
            }
        }

        public static <T> String update(String json, String key, T value) {
            try {
                JsonNode node = mapper.readTree(json);
                ((ObjectNode) node).remove(key);
                add(node, key, value);
                return node.toString();
            } catch (IOException e) {
                log.error("jackson update error, json: {}, key: {}, value: {}", json, key, value, e);
                return json;
            }
        }

        public static String format(String json) {
            try {
                JsonNode node = mapper.readTree(json);
                return mapper.writerWithDefaultPrettyPrinter().writeValueAsString(node);
            } catch (IOException e) {
                log.error("jackson format json error, json: {}", json, e);
                return json;
            }
        }

        public static boolean isJson(String json) {
            try {
                mapper.readTree(json);
                return true;
            } catch (Exception e) {
                log.error("jackson check json error, json: {}", json, e);
                return false;
            }
        }

        private static InputStream getResourceStream(String name) {
            return JsonUtil.class.getClassLoader().getResourceAsStream(name);
        }

        private static InputStreamReader getResourceReader(InputStream inputStream) {
            if (null == inputStream) {
                return null;
            }
            return new InputStreamReader(inputStream, StandardCharsets.UTF_8);
        }
    }

#### JsonResult ####

package com.tedu.web.util;

    import lombok.Getter;
    import lombok.Setter;

    @Getter
    @Setter
    public class JsonResult<T> {
    	/** 成功 */
    	public static final int SUCCESS = 200;

    	/** 没有登录 */
    	public static final int NOT_LOGIN = 400;

    	/** 发生异常 */
    	public static final int EXCEPTION = 401;

    	/** 系统错误 */
    	public static final int SYS_ERROR = 402;

    	/** 参数错误 */
    	public static final int PARAMS_ERROR = 403;

    	/** 不支持或已经废弃 */
    	public static final int NOT_SUPPORTED = 410;

    	/** AuthCode错误 */
    	public static final int INVALID_AUTHCODE = 444;

    	/** 太频繁的调用 */
    	public static final int TOO_FREQUENT = 445;

    	/** 未知的错误 */
    	public static final int UNKNOWN_ERROR = 499;

    	private int code;
    	private String msg;
    	private T data;



    	public static JsonResult build() {
    		return new JsonResult();
    	}
    	public static JsonResult build(int code) {
    		return new JsonResult().code(code);
    	}
    	public static JsonResult build(int code, String msg) {
    		return new JsonResult<String>().code(code).msg(msg);
    	}
    	public static <T> JsonResult<T> build(int code, T data) {
    		return new JsonResult<T>().code(code).data(data);
    	}
    	public static <T> JsonResult<T> build(int code, String msg, T data) {
    		return new JsonResult<T>().code(code).msg(msg).data(data);
    	}

    	public JsonResult<T> code(int code) {
    		this.code = code;
    		return this;
    	}
    	public JsonResult<T> msg(String msg) {
    		this.msg = msg;
    		return this;
    	}
    	public JsonResult<T> data(T data) {
    		this.data = data;
    		return this;
    	}


    	public static JsonResult ok() {
    		return build(SUCCESS);
    	}
    	public static JsonResult ok(String msg) {
    		return build(SUCCESS, msg);
    	}
    	public static <T> JsonResult<T> ok(T data) {
    		return build(SUCCESS, data);
    	}
    	public static JsonResult err() {
    		return build(EXCEPTION);
    	}
    	public static JsonResult err(String msg) {
    		return build(EXCEPTION, msg);
    	}

    	@Override
    	public String toString() {
    		return JsonUtil.to(this);
    	}
    }

--------------------

# 三、item service 商品服务 #

1.  新建项目
2.  配置依赖 pom.xml
3.  配置 application.yml
4.  配置主程序
5.  编写代码

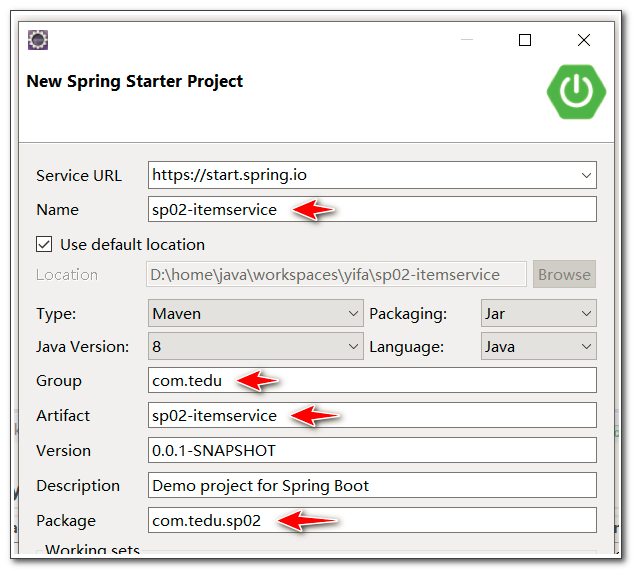

## 新建 spring boot 起步项目 ##

![新建itemservice项目][itemservice]

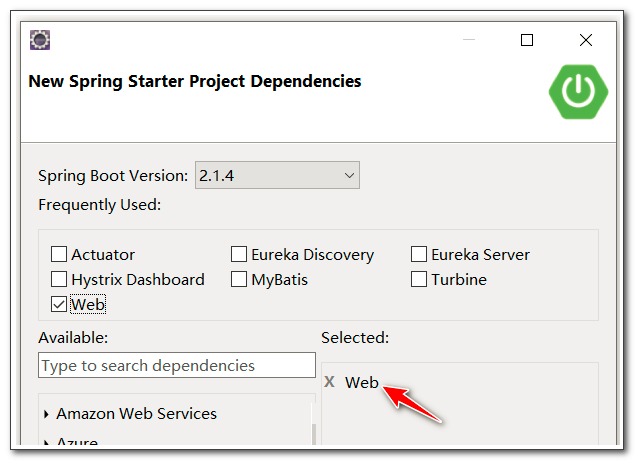

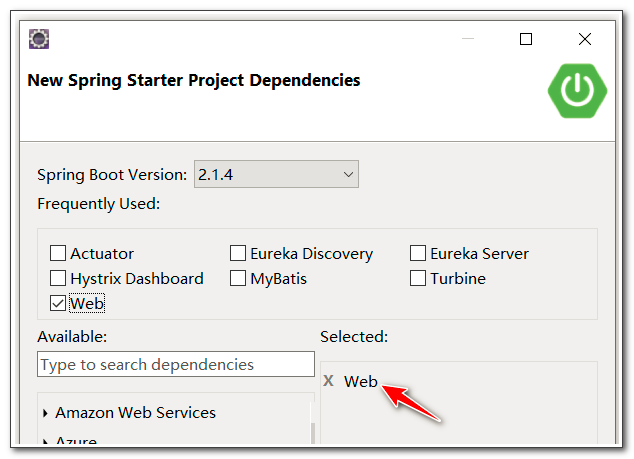

## 选择依赖项 ##

*  只选择 web

![选择依赖][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70]

## pom.xml ##

*  要填加 sp01-commons 项目依赖

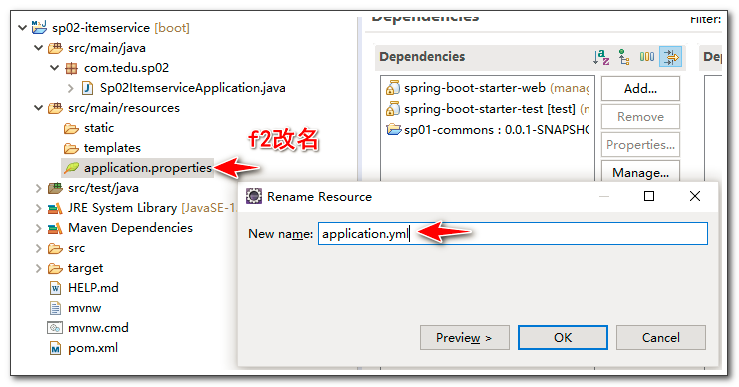

## application.yml ##

![yml文件][yml]

spring:
      application:
        name: item-service

    server:
      port: 8001

## 主程序 ##

*  默认代码，不需要修改

package com.tedu.sp02;

    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;

    @SpringBootApplication
    public class Sp02ItemserviceApplication {

    	public static void main(String[] args) {
    		SpringApplication.run(Sp02ItemserviceApplication.class, args);
    	}

    }

## java 源文件 ##

![java源文件][java 1]

### ItemServiceImpl ###

package com.tedu.sp02.item.service;

    import java.util.ArrayList;
    import java.util.List;

    import org.springframework.stereotype.Service;

    import com.tedu.sp01.pojo.Item;
    import com.tedu.sp01.service.ItemService;

    import lombok.extern.slf4j.Slf4j;

    @Slf4j
    @Service
    public class ItemServiceImpl implements ItemService {

    	@Override
    	public List<Item> getItems(String orderId) {
    		ArrayList<Item> list = new ArrayList<Item>();
    		list.add(new Item(1, "商品 1",1));
    		list.add(new Item(2, "商品 2",2));
    		list.add(new Item(3, "商品 3",3));
    		list.add(new Item(4, "商品 4",4));
    		list.add(new Item(5, "商品 5",5));
    		return list;
    	}

    	@Override
    	public void decreaseNumbers(List<Item> list) {
    		if (log.isInfoEnabled()) {
    			for(Item item : list) {
    				log.info("减少库存 - "+item);
    			}
    		}
    	}
    }

### ItemController ###

*  如果存在 jackson-dataformat-xml 依赖，会根据请求协议头，可能返回 xml 或 json；可以强制返回 json:
    produces=MediaType.APPLICATION\_JSON\_UTF8\_VALUE

package com.tedu.sp02.item.controller;

    import java.util.List;

    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.beans.factory.annotation.Value;
    import org.springframework.web.bind.annotation.GetMapping;
    import org.springframework.web.bind.annotation.PathVariable;
    import org.springframework.web.bind.annotation.PostMapping;
    import org.springframework.web.bind.annotation.RequestBody;
    import org.springframework.web.bind.annotation.RestController;

    import com.tedu.sp01.pojo.Item;
    import com.tedu.sp01.service.ItemService;
    import com.tedu.web.util.JsonResult;

    import lombok.extern.slf4j.Slf4j;

    @Slf4j
    @RestController
    public class ItemController {
    	@Autowired
    	private ItemService itemService;

    	@Value("${server.port}")
    	private int port;

    	@GetMapping("/{orderId}")
    	public JsonResult<List<Item>> getItems(@PathVariable String orderId) {
    		log.info("server.port="+port+", orderId="+orderId);

    		List<Item> items = itemService.getItems(orderId);
    		return JsonResult.ok(items).msg("port="+port);
    	}

    	@PostMapping("/decreaseNumber")
    	public JsonResult decreaseNumber(@RequestBody List<Item> items) {
    		itemService.decreaseNumbers(items);
    		return JsonResult.ok();
    	}
    }

## 访问测试 ##

根据orderid，查询商品
[http://localhost:8001/35][http_localhost_8001_35]

减少商品库存
`http://localhost:8001/decreaseNumber`

使用postman，POST发送以下格式数据：
`[{"id":1, "name":"abc", "number":23},{"id":2, "name":"def", "number":11}]`

![postman][]

--------------------

# 四、user service 用户服务 #

1.  新建项目
2.  配置依赖 pom.xml
3.  配置 application.yml
4.  配置主程序
5.  编写代码

## 新建 spring boot 起步项目 ##

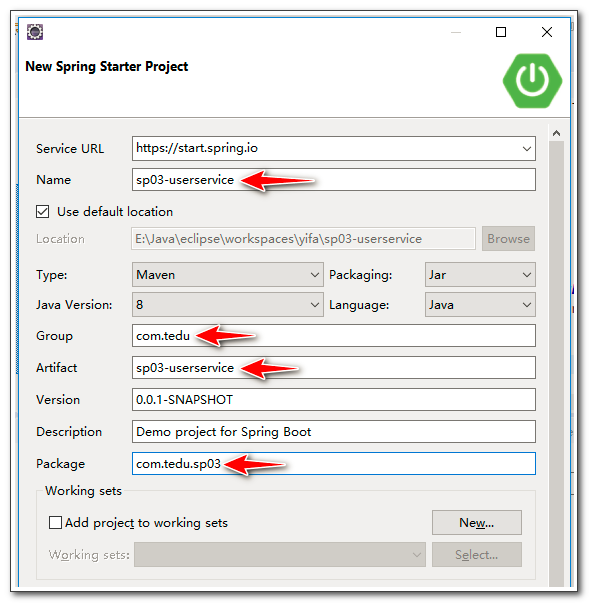

![新建userservice项目][userservice]

## 选择依赖项 ##

*  只选择 web

![选择依赖][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 1]

## pom.xml ##

*  要填加 sp01-commons 项目依赖

## application.yml ##

*  其中 `sp.user-service.users` 属性为自定义属性，提供用于测试的用户数据

## 主程序 ##

*  默认代码，不需要修改

package com.tedu.sp03;

    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;

    @SpringBootApplication
    public class Sp03UserserviceApplication {

    	public static void main(String[] args) {
    		SpringApplication.run(Sp03UserserviceApplication.class, args);
    	}

    }

## java源文件 ##

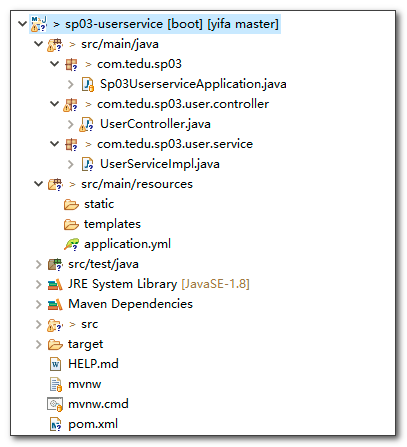

![java源文件][java 2]

### UserServiceImpl ###

package com.tedu.sp03.user.service;

    import java.util.List;

    import org.springframework.beans.factory.annotation.Value;
    import org.springframework.stereotype.Service;

    import com.fasterxml.jackson.core.type.TypeReference;
    import com.tedu.sp01.pojo.User;
    import com.tedu.sp01.service.UserService;
    import com.tedu.web.util.JsonUtil;

    import lombok.extern.slf4j.Slf4j;

    @Slf4j
    @Service
    public class UserServiceImpl implements UserService {
    	@Value("${sp.user-service.users}")
    	private String userJson;

    	@Override
    	public User getUser(Integer id) {
    		log.info("users json string : "+userJson);
    		List<User> list = JsonUtil.from(userJson, new TypeReference<List<User>>() { });
    		for (User u : list) {
    			if (u.getId().equals(id)) {
    				return u;
    			}
    		}

    		return new User(id, "name-"+id, "pwd-"+id);
    	}

    	@Override
    	public void addScore(Integer id, Integer score) {
    		//TODO 这里增加积分
    		log.info("user "+id+" - 增加积分 "+score);
    	}

    }

### UserController ###

*  如果存在 jackson-dataformat-xml 依赖，会根据请求协议头，可能返回 xml 或 json；可以强制返回 json:
    produces=MediaType.APPLICATION\_JSON\_UTF8\_VALUE

package com.tedu.sp03.user.controller;

    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.web.bind.annotation.GetMapping;
    import org.springframework.web.bind.annotation.PathVariable;
    import org.springframework.web.bind.annotation.RestController;

    import com.tedu.sp01.pojo.User;
    import com.tedu.sp01.service.UserService;
    import com.tedu.web.util.JsonResult;

    import lombok.extern.slf4j.Slf4j;

    @Slf4j
    @RestController
    public class UserController {

    	@Autowired
    	private UserService userService;

    	@GetMapping("/{userId}")
    	public JsonResult<User> getUser(@PathVariable Integer userId) {
    		log.info("get user, userId="+userId);
    		User u = userService.getUser(userId);
    		return JsonResult.ok(u);
    	}

    	@GetMapping("/{userId}/score")
    	public JsonResult addScore(
    			@PathVariable Integer userId, Integer score) {
    		userService.addScore(userId, score);
    		return JsonResult.ok();
    	}
    }

## 访问测试 ##

根据userid查询用户信息
[http://localhost:8101/7][http_localhost_8101_7]

根据userid，为用户增加积分
[http://localhost:8101/7/score?score=100][http_localhost_8101_7_score_score_100]

--------------------

# 五、order service 订单服务 #

1.  新建项目
2.  配置依赖 pom.xml
3.  配置 application.yml
4.  配置主程序
5.  编写代码

## 新建 spring boot 起步项目 ##

![新建orderservice项目][orderservice]

## 选择依赖项 ##

*  只选择 web

![选择依赖][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 2]

## pom.xml ##

*  要填加 sp01-commons 项目依赖

## applicatoin.yml ##

spring:
      application:
        name: order-service

    server:
      port: 8201

## 主程序 ##

*  默认代码，不需要修改

package com.tedu.sp04;

    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;

    @SpringBootApplication
    public class Sp04OrderserviceApplication {

    	public static void main(String[] args) {
    		SpringApplication.run(Sp04OrderserviceApplication.class, args);
    	}

    }

## java 源文件 ##

![java源文件][java 3]

### OrderServiceImpl ###

package com.tedu.sp04.order.service;

    import org.springframework.stereotype.Service;

    import com.tedu.sp01.pojo.Order;
    import com.tedu.sp01.service.OrderService;

    import lombok.extern.slf4j.Slf4j;

    @Slf4j
    @Service
    public class OrderServiceImpl implements OrderService {

    	@Override
    	public Order getOrder(String orderId) {
    		//TODO: 调用user-service获取用户信息
    		//TODO: 调用item-service获取商品信息
    		Order order = new Order();
    		order.setId(orderId);
    		return order;
    	}

    	@Override
    	public void addOrder(Order order) {
    		//TODO: 调用item-service减少商品库存
    		//TODO: 调用user-service增加用户积分
    		log.info("保存订单："+order);
    	}

    }

### OrderController ###

package com.tedu.sp04.order.controller;

    import java.util.Arrays;

    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.web.bind.annotation.GetMapping;
    import org.springframework.web.bind.annotation.PathVariable;
    import org.springframework.web.bind.annotation.RestController;

    import com.tedu.sp01.pojo.Item;
    import com.tedu.sp01.pojo.Order;
    import com.tedu.sp01.pojo.User;
    import com.tedu.sp01.service.OrderService;
    import com.tedu.web.util.JsonResult;

    import lombok.extern.slf4j.Slf4j;

    @Slf4j
    @RestController
    public class OrderController {
    	@Autowired
    	private OrderService orderService;

    	@GetMapping("/{orderId}")
    	public JsonResult<Order> getOrder(@PathVariable String orderId) {
    		log.info("get order, id="+orderId);

    		Order order = orderService.getOrder(orderId);
    		return JsonResult.ok(order);
    	}

    	@GetMapping("/")
    	public JsonResult addOrder() {
    		//模拟post提交的数据
    		Order order = new Order();
    		order.setId("123abc");
    		order.setUser(new User(7,null,null));
    		order.setItems(Arrays.asList(new Item[] {
    				new Item(1,"aaa",2),
    				new Item(2,"bbb",1),
    				new Item(3,"ccc",3),
    				new Item(4,"ddd",1),
    				new Item(5,"eee",5),
    		}));
    		orderService.addOrder(order);
    		return JsonResult.ok();
    	}
    }

## 访问测试 ##

根据orderid，获取订单
[http://localhost:8201/123abc][http_localhost_8201_123abc]

保存订单，观察控制台日志输出
[http://localhost:8201/][http_localhost_8201]

--------------------

# 六、service 访问测试汇总 #

*  item-service

根据orderid，查询商品
[http://localhost:8001/35][http_localhost_8001_35]

减少商品库存
`http://localhost:8001/decreaseNumber`

使用postman，POST发送以下格式数据：
`[{"id":1, "name":"abc", "number":23},{"id":2, "name":"def", "number":11}]`

*  user-service

根据userid查询用户信息
[http://localhost:8101/7][http_localhost_8101_7]

根据userid，为用户增加积分
[http://localhost:8101/7/score?score=100][http_localhost_8101_7_score_score_100]

*  order-service

根据orderid，获取订单
[http://localhost:8201/123abc][http_localhost_8201_123abc]

保存订单，观察控制台日志输出
[http://localhost:8201/][http_localhost_8201]

![postman][]

--------------------

# 七、eureka 注册与发现 #

![eureka注册中心][eureka]

1.  创建eureka项目
2.  配置依赖 pom.xml
3.  配置 application.yml
4.  主程序启用 eureka 服务器
5.  启动，访问测试

## 创建 eureka server 项目：sp05-eureka ##

![新建eureka项目][eureka 1]

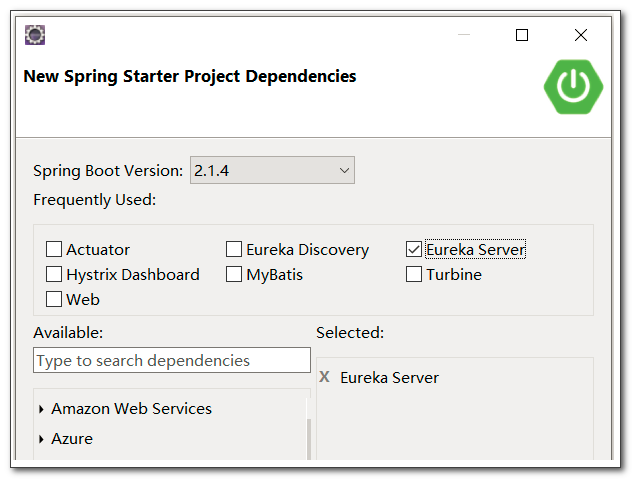

![选择依赖][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 3]

## pom.xml ##

<?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    	<modelVersion>4.0.0</modelVersion>
    	<parent>
    		<groupId>org.springframework.boot</groupId>
    		<artifactId>spring-boot-starter-parent</artifactId>
    		<version>2.1.4.RELEASE</version>
    		<relativePath/>
    	</parent>
    	<groupId>com.tedu</groupId>
    	<artifactId>sp05-eureka</artifactId>
    	<version>0.0.1-SNAPSHOT</version>
    	<name>sp05-eureka</name>
    	<description>Demo project for Spring Boot</description>

    	<properties>
    		<java.version>1.8</java.version>
    		<spring-cloud.version>Greenwich.SR1</spring-cloud.version>
    	</properties>

    	<dependencies>
    		<dependency>
    			<groupId>org.springframework.cloud</groupId>
    			<artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
    		</dependency>

    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-test</artifactId>
    			<scope>test</scope>
    		</dependency>
    	</dependencies>

    	<dependencyManagement>
    		<dependencies>
    			<dependency>
    				<groupId>org.springframework.cloud</groupId>
    				<artifactId>spring-cloud-dependencies</artifactId>
    				<version>${spring-cloud.version}</version>
    				<type>pom</type>
    				<scope>import</scope>
    			</dependency>
    		</dependencies>
    	</dependencyManagement>

    	<build>
    		<plugins>
    			<plugin>
    				<groupId>org.springframework.boot</groupId>
    				<artifactId>spring-boot-maven-plugin</artifactId>
    			</plugin>
    		</plugins>
    	</build>

    </project>

## application.yml ##

spring:
      application:
        name: eureka-server

    server:
      port: 2001

    eureka:
      server:
        enable-self-preservation: false
      instance:
        hostname: eureka1
      client:
        register-with-eureka: false
        fetch-registry: false

*  eureka 集群服务器之间，通过 `hostname` 来区分
 *  `eureka.server.enable-self-preservation`

    eureka 的自我保护状态：心跳失败的比例，在15分钟内是否低于85%,如果出现了低于的情况，Eureka Server会将当前的实例注册信息保护起来，同时提示一个警告，一旦进入保护模式，Eureka Server将会尝试保护其服务注册表中的信息，不再删除服务注册表中的数据。也就是不会注销任何微服务
 *  `eureka.client.register-with-eureka=false`

    不向自身注册
 *  `eureka.client.fetch-registry=false`

    不从自身拉取注册信息
 *  `eureka.instance.lease-expiration-duration-in-seconds`

    最后一次心跳后，间隔多久认定微服务不可用，默认90

## 主程序 ##

*  添加 `@EnableEurekaServer`

package com.tedu.sp05;

    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;
    import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

    @EnableEurekaServer
    @SpringBootApplication
    public class Sp05EurekaApplication {

    	public static void main(String[] args) {
    		SpringApplication.run(Sp05EurekaApplication.class, args);
    	}

    }

## 修改 hosts 文件，添加 eureka 域名映射 ##

`C:\Windows\System32\drivers\etc\hosts`

添加内容：

127.0.0.1       eureka1
    127.0.0.1       eureka2

## 启动，并访问测试 ##

*  [http://eureka1:2001][http_eureka1_2001]

![eureka][eureka 2]

--------------------

# 八、service provider 服务提供者 #

![eureka注册中心][eureka]

*  修改 item-service、user-service、order-service，把微服务注册到 eureka 服务器

1.  pom.xml 添加eureka依赖
2.  application.yml 添加eureka注册配置
3.  主程序启用eureka客户端
4.  启动服务，在eureka中查看注册信息

## pom.xml 添加 eureka 客户端依赖 ##

<dependency>
    	<groupId>org.springframework.cloud</groupId>
    	<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    </dependency>

## application.yml 添加 eureka注册配置 ##

eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka

*  `eureka.instance.lease-renewal-interval-in-seconds`

    心跳间隔时间，默认 30 秒
 *  defaultZone，默认位置，可以修改为具体地理位置，比如：beiJing, shangHai, shenZhen 等，表示 eureka 服务器的部署位置
 *  `eureka.client.registry-fetch-interval-seconds`

    拉取注册信息间隔时间，默认 30 秒

## 主程序启用服务注册发现客户端 ##

修改 item-service、user-service 和 order-service，
主程序添加 `@EnableDiscoveryClient` 注解

## 启动，并访问 eureka 查看注册信息 ##

![启动服务][20191029115233445.png]

*  [http://eureka1:2001][http_eureka1_2001]

![eureka][eureka 3]

--------------------

# 九、eureka 和 “服务提供者”的高可用 #

![eureka和item高可用][eureka_item]

## eureka 高可用 ##

### application.yml ###

spring:
      application:
        name: eureka-server

    #server:
    # port: 2001

    eureka:
      server:
        enable-self-preservation: false
    # instance:
    # hostname: eureka1
    # client:
    # register-with-eureka: false
    # fetch-registry: false

    ---
    spring:
      profiles: eureka1

    server:
      port: 2001

    # eureka1 向 eureka2 注册
    eureka:
      instance:
        hostname: eureka1
      client:
        service-url:
          defaultZone: http://eureka2:2002/eureka

    ---
    spring:
      profiles: eureka2

    server:
      port: 2002

    # eureka2 向 eureka1 注册
    eureka:
      instance:
        hostname: eureka2
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka

### STS 配置启动参数 `--spring.profiles.active` ###

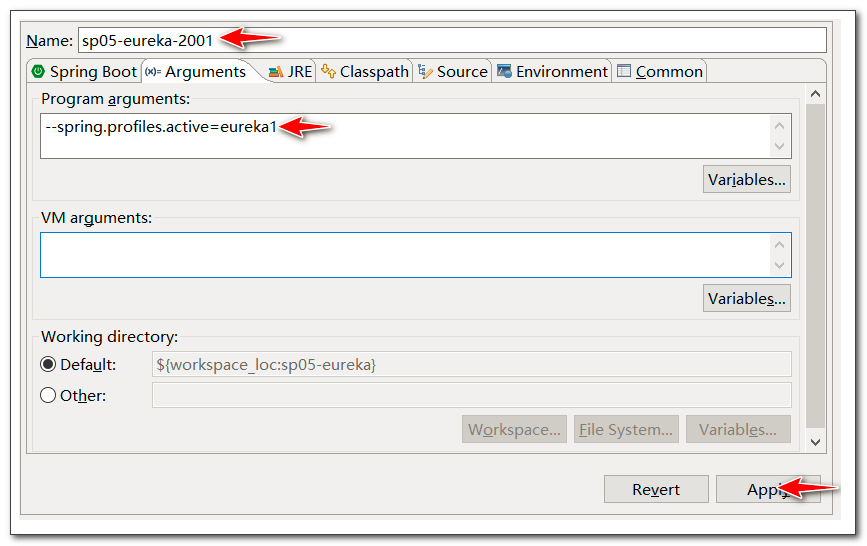

*  eureka1 启动参数：

--spring.profiles.active=eureka1

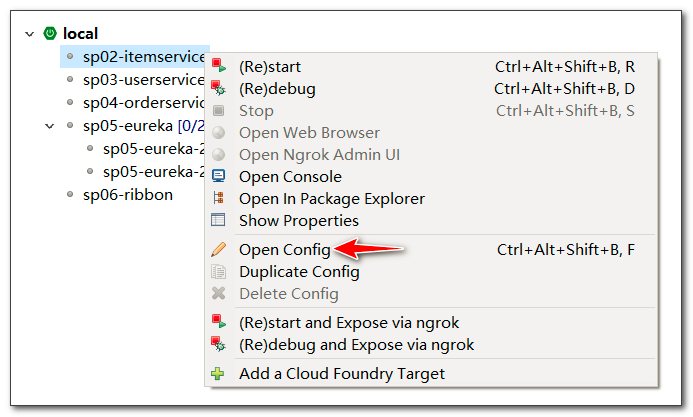

![配置启动项][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 4]

![启动参数][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 5]

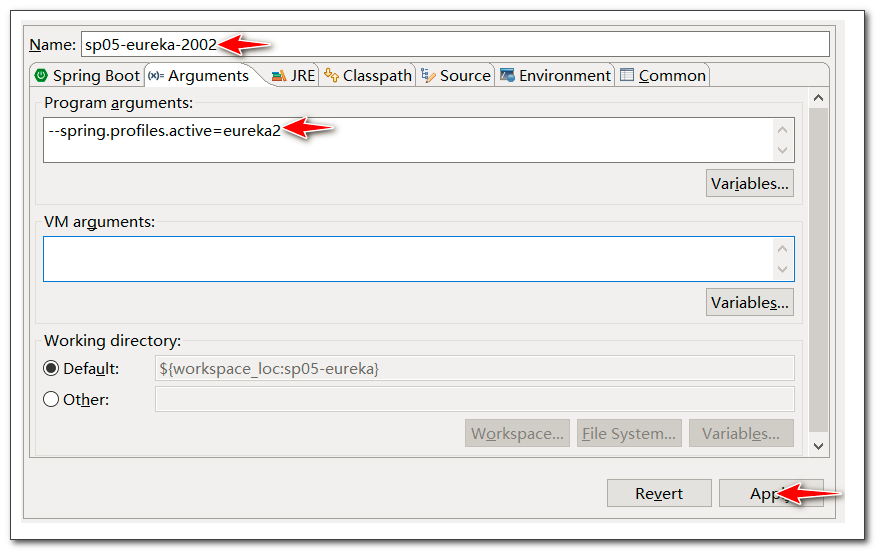

*  eureka2 启动参数：

--spring.profiles.active=eureka2

![复制启动项][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 6]

![启动参数][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 7]

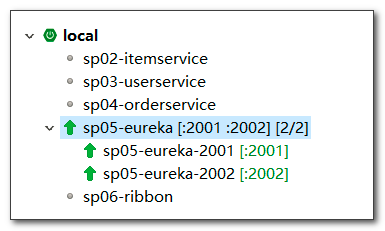

![启动项][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 8]

命令行运行时添加参数：

java -jar xxx.jar --spring.profiles.active=eureka1

### 访问 eureka 服务器，查看注册信息 ###

*  [http://eureka1:2001/][http_eureka1_2001 1]

![eureka1][]

*  [http://eureka2:2002/][http_eureka2_2002]

![eureka2][]

### eureka客户端注册时，向两个服务器注册 ###

修改以下微服务

*  sp02-itemservice
 *  sp03-userservice
 *  sp04-orderservice
 *  sp06-ribbon

eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka, http://eureka2:2002/eureka

当一个 eureka 服务宕机时，仍可以连接另一个 eureka 服务

## item-service 高可用 ##

### application.yml ###

spring:
      application:
        name: item-service

    #server:
    # port: 8001

    eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka, http://eureka2:2002/eureka

    ---
    spring:
      profiles: item1

    server:
      port: 8001
    ---
    spring:
      profiles: item2

    server:
      port: 8002

### 配置启动参数 ###

*  item-service-8001

--spring.profiles.active=item1

![配置启动项][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 9]

![启动参数][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 10]

![复制启动项][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 11]

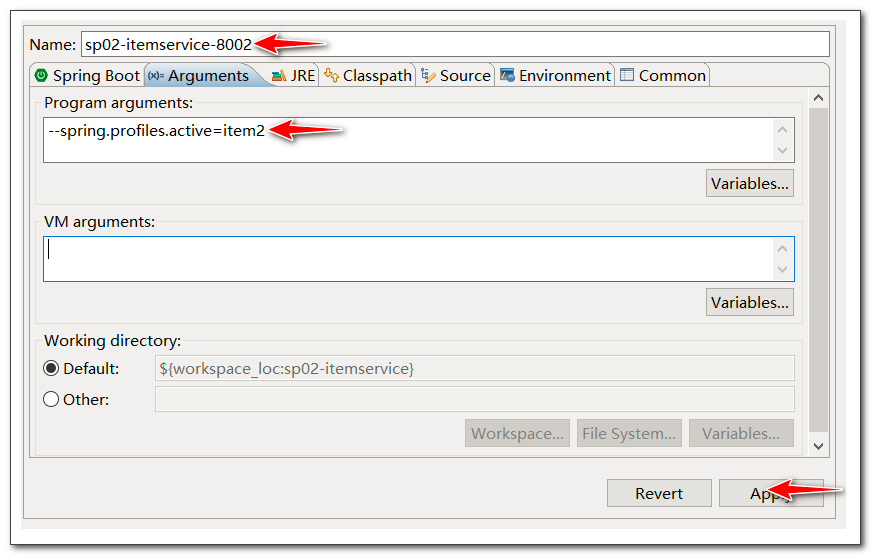

*  item-service-8002

--spring.profiles.active=item2

![启动参数][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 12]

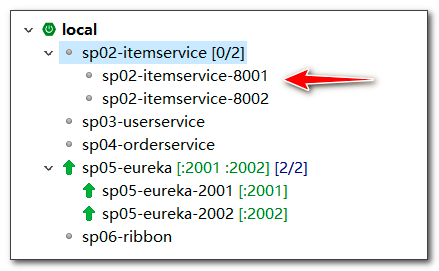

![启动项][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 13]

### 启动测试 ###

*  访问 eureka 查看 item-service 注册信息

![集群][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 14]

*  访问两个端口测试
    [http://localhost:8001/35][http_localhost_8001_35]
    [http://localhost:8002/35][http_localhost_8002_35]

# 十、ribbon 服务消费者 #

![服务消费者][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 15]

ribbon 提供了负载均衡和重试功能

1.  新建 ribbon 项目
2.  pom.xml
3.  application.yml
4.  主程序
5.  controller
6.  启动，并访问测试

## 新建 sp06-ribbon 项目 ##

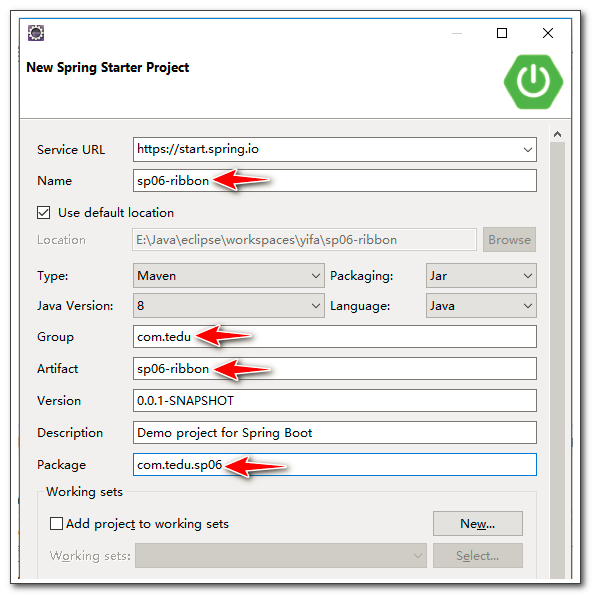

![新建ribbon项目][ribbon]

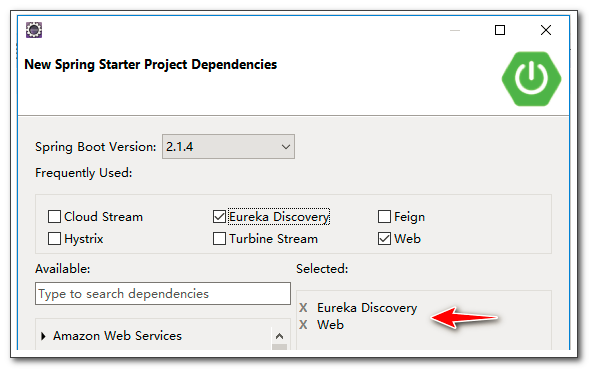

![选择依赖][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 16]

## pom.xml ##

*  eureka-client 中已经包含 ribbon 依赖
 *  需要添加 sp01-commons 依赖

<?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    	<modelVersion>4.0.0</modelVersion>
    	<parent>
    		<groupId>org.springframework.boot</groupId>
    		<artifactId>spring-boot-starter-parent</artifactId>
    		<version>2.1.4.RELEASE</version>
    		<relativePath/>
    	</parent>
    	<groupId>com.tedu</groupId>
    	<artifactId>springcloud-012-ribbon</artifactId>
    	<version>0.0.1-SNAPSHOT</version>
    	<name>springcloud-012-ribbon</name>
    	<description>Demo project for Spring Cloud</description>

    	<properties>
    		<java.version>1.8</java.version>
    		<spring-cloud.version>Greenwich.SR1</spring-cloud.version>
    	</properties>

    	<dependencies>
    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-web</artifactId>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework.cloud</groupId>
    			<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    		</dependency>

    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-test</artifactId>
    			<scope>test</scope>
    		</dependency>
    		<dependency>
    			<groupId>com.tedu</groupId>
    			<artifactId>sp01-commons</artifactId>
    			<version>0.0.1-SNAPSHOT</version>
    		</dependency>
    	</dependencies>

    	<dependencyManagement>
    		<dependencies>
    			<dependency>
    				<groupId>org.springframework.cloud</groupId>
    				<artifactId>spring-cloud-dependencies</artifactId>
    				<version>${spring-cloud.version}</version>
    				<type>pom</type>
    				<scope>import</scope>
    			</dependency>
    		</dependencies>
    	</dependencyManagement>

    	<build>
    		<plugins>
    			<plugin>
    				<groupId>org.springframework.boot</groupId>
    				<artifactId>spring-boot-maven-plugin</artifactId>
    			</plugin>
    		</plugins>
    	</build>

    </project>

## application.yml ##

spring:
      application:
        name: ribbon

    server:
      port: 3001

    eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka

## 主程序 ##

*  创建 `RestTemplate` 实例

    `RestTemplate` 是用来调用其他微服务的工具类，封装了远程调用代码，提供了一组用于远程调用的模板方法，例如：`getForObject()`、`postForObject()` 等

## RibbonController ##

## 启动服务，并访问测试 ##

![启动服务][20191029120116428.png]

[http://eureka1:2001][http_eureka1_2001]

[http://localhost:3001/item-service/35][http_localhost_3001_item-service_35]
`http://localhost:3001/item-service/decreaseNumber`
使用postman，POST发送以下格式数据：
`[{"id":1, "name":"abc", "number":23},{"id":2, "name":"def", "number":11}]`

[http://localhost:3001/user-service/7][http_localhost_3001_user-service_7]
[http://localhost:3001/user-service/7/score?score=100][http_localhost_3001_user-service_7_score_score_100]

[http://localhost:3001/order-service/123abc][http_localhost_3001_order-service_123abc]
[http://localhost:3001/order-service/][http_localhost_3001_order-service]

--------------------

# 十一、ribbon 负载均衡 #

![ribbon][ribbon 1]

*  修改 sp06-ribbon 项目

1.  添加 ribbon 起步依赖（可选）
2.  RestTemplate 设置 `@LoadBalanced`
3.  访问路径设置为服务id

## 添加 ribbon 起步依赖（可选） ##

*  eureka 依赖中已经包含了 ribbon

<dependency>
    	<groupId>org.springframework.cloud</groupId>
    	<artifactId>spring-cloud-starter-netflix-ribbon</artifactId>
    </dependency>

## RestTemplate 设置 `@LoadBalanced` ##

`@LoadBalanced` 负载均衡注解，会对 `RestTemplate` 实例进行封装，创建动态代理对象，并切入（AOP）负载均衡代码，把请求分散分发到集群中的服务器

## 访问路径设置为服务id ##

## 访问测试 ##

*  访问测试，ribbon 会把请求分发到 8001 和 8002 两个服务端口上

    [http://localhost:3001/item-service/34][http_localhost_3001_item-service_34]

![访问测试][20191029153021140.png]

![访问测试][20191029153055609.png]

## ribbon 重试 ##

### pom.xml 添加 spring-retry 依赖 ###

<dependency>
    	<groupId>org.springframework.retry</groupId>
    	<artifactId>spring-retry</artifactId>
    </dependency>

### application.yml 配置 ribbon 重试 ###

spring:
      application:
        name: ribbon

    server:
      port: 3001

    eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka, http://eureka2:2002/eureka

    ribbon:
      MaxAutoRetriesNextServer: 2
      MaxAutoRetries: 1
      OkToRetryOnAllOperations: true

*  `ConnectionTimeout`
 *  `ReadTimeout`
 *  `OkToRetryOnAllOperations=true`
    对连接超时、读取超时都进行重试
 *  `MaxAutoRetriesNextServer`
    更换实例的次数
 *  `MaxAutoRetries`
    当前实例重试次数，尝试失败会更换下一个实例

### 主程序设置 RestTemplate 的请求工厂的超时属性 ###

package com.tedu.sp06;

    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;
    import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
    import org.springframework.cloud.client.loadbalancer.LoadBalanced;
    import org.springframework.context.annotation.Bean;
    import org.springframework.http.client.SimpleClientHttpRequestFactory;
    import org.springframework.web.client.RestTemplate;

    @EnableDiscoveryClient
    @SpringBootApplication
    public class Sp06RibbonApplication {

    	@LoadBalanced
    	@Bean
    	public RestTemplate getRestTemplate() {
    		SimpleClientHttpRequestFactory f = new SimpleClientHttpRequestFactory();
    		f.setConnectTimeout(1000);
    		f.setReadTimeout(1000);
    		return new RestTemplate(f);

    		//RestTemplate 中默认的 Factory 实例中，两个超时属性默认是 -1，
    		//未启用超时，也不会触发重试
    		//return new RestTemplate();
    	}

    	public static void main(String[] args) {
    		SpringApplication.run(Sp06RibbonApplication.class, args);
    	}

    }

### item-service 的 ItemController 添加延迟代码，以便测试 ribbon 的重试机制 ###

package com.tedu.sp02.item.controller;

    import java.util.List;
    import java.util.Random;

    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.beans.factory.annotation.Value;
    import org.springframework.web.bind.annotation.GetMapping;
    import org.springframework.web.bind.annotation.PathVariable;
    import org.springframework.web.bind.annotation.PostMapping;
    import org.springframework.web.bind.annotation.RequestBody;
    import org.springframework.web.bind.annotation.RestController;

    import com.tedu.sp01.pojo.Item;
    import com.tedu.sp01.service.ItemService;
    import com.tedu.web.util.JsonResult;

    import lombok.extern.slf4j.Slf4j;

    @Slf4j
    @RestController
    public class ItemController {
    	@Autowired
    	private ItemService itemService;

    	@Value("${server.port}")
    	private int port;

    	@GetMapping("/{orderId}")
    	public JsonResult<List<Item>> getItems(@PathVariable String orderId) throws Exception {
    		log.info("server.port="+port+", orderId="+orderId);

            ///--设置随机延迟
    		long t = new Random().nextInt(5000);
    		if(Math.random()<0.6) {
    			log.info("item-service-"+port+" - 暂停 "+t);
    			Thread.sleep(t);
    		}
    		///~~

    		List<Item> items = itemService.getItems(orderId);
    		return JsonResult.ok(items).msg("port="+port);
    	}

    	@PostMapping("/decreaseNumber")
    	public JsonResult decreaseNumber(@RequestBody List<Item> items) {
    		itemService.decreaseNumbers(items);
    		return JsonResult.ok();
    	}
    }

## 访问，测试 ribbon 重试机制 ##

*  通过 ribbon 访问 item-service，当超时，ribbon 会重试请求集群中其他服务器
    [http://localhost:3001/item-service/35][http_localhost_3001_item-service_35]

![重试测试][20191029153206686.png]
![重试测试][20191029153233801.png]

*  ribbon的重试机制，在 feign 和 zuul 中进一步进行了封装，后续可以使用feign或zuul的重试机制

--------------------

# 十二、ribbon + hystrix 断路器 #

*  [https://github.com/Netflix/Hystrix/wiki][https_github.com_Netflix_Hystrix_wiki]
    ![hystrix][]

## 微服务宕机时，ribbon 无法转发请求 ##

*  关闭 item-service

![关闭item][item]

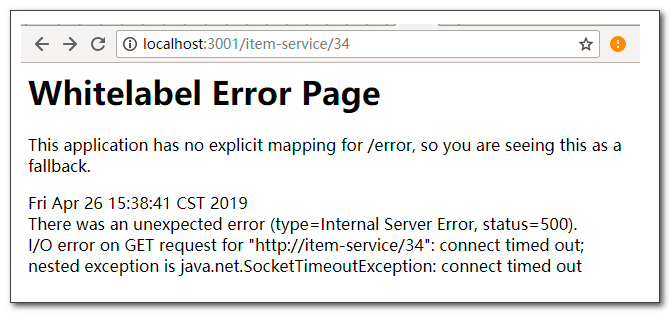

![白板页][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 17]

## 复制 sp06-ribbon 项目，命名为sp07-hystrix ##

*  选择 sp06-ribbon 项目，ctrl-c，ctrl-v，复制为sp07-hystrix
 *  关闭 sp06-ribbon 项目，后续测试使用 sp07-hystrix 项目

![复制项目][20191029153712338.png]

## 修改 pom.xml ##

![修改pom][pom]

## 添加 hystrix 起步依赖 ##

<dependency>
    	<groupId>org.springframework.cloud</groupId>
    	<artifactId>spring-cloud-starter-netflix-hystrix</artifactId>
    </dependency>

## 修改 application.yml ##

![修改yml][yml 1]

## 主程序添加 `@EnableCircuitBreaker` 启用 hystrix 断路器 ##

启动断路器，断路器提供两个核心功能：

*  **降级**，超时、出错、不可到达时，对服务降级，返回错误信息或者是缓存数据
 *  **熔断**，当服务压力过大，错误比例过多时，熔断所有请求，所有请求直接降级
 *  可以使用 `@SpringCloudApplication` 注解代替三个注解

package com.tedu.sp06;

    import org.springframework.boot.SpringApplication;
    import org.springframework.cloud.client.SpringCloudApplication;
    import org.springframework.cloud.client.loadbalancer.LoadBalanced;
    import org.springframework.context.annotation.Bean;
    import org.springframework.http.client.SimpleClientHttpRequestFactory;
    import org.springframework.web.client.RestTemplate;

    //@EnableCircuitBreaker
    //@EnableDiscoveryClient
    //@SpringBootApplication

    @SpringCloudApplication
    public class Sp06RibbonApplication {

    	@LoadBalanced
    	@Bean
    	public RestTemplate getRestTemplate() {
    		SimpleClientHttpRequestFactory f = new SimpleClientHttpRequestFactory();
    		f.setConnectTimeout(1000);
    		f.setReadTimeout(1000);
    		return new RestTemplate(f);

    		//RestTemplate 中默认的 Factory 实例中，两个超时属性默认是 -1，
    		//未启用超时，也不会触发重试
    		//return new RestTemplate();
    	}

    	public static void main(String[] args) {
    		SpringApplication.run(Sp06RibbonApplication.class, args);
    	}

    }

## RibbonController 中添加降级方法 ##

*  为每个方法添加降级方法，例如 `getItems()` 添加降级方法 `getItemsFB()`
 *  添加 `@HystrixCommand` 注解，指定降级方法名

package com.tedu.sp06.consoller;

    import java.util.List;

    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.web.bind.annotation.GetMapping;
    import org.springframework.web.bind.annotation.PathVariable;
    import org.springframework.web.bind.annotation.PostMapping;
    import org.springframework.web.bind.annotation.RequestBody;
    import org.springframework.web.bind.annotation.RestController;
    import org.springframework.web.client.RestTemplate;

    import com.netflix.hystrix.contrib.javanica.annotation.HystrixCommand;
    import com.tedu.sp01.pojo.Item;
    import com.tedu.sp01.pojo.Order;
    import com.tedu.sp01.pojo.User;
    import com.tedu.web.util.JsonResult;

    @RestController
    public class RibbonController {
    	@Autowired
    	private RestTemplate rt;

    	@GetMapping("/item-service/{orderId}")
    	@HystrixCommand(fallbackMethod = "getItemsFB") //指定降级方法的方法名
    	public JsonResult<List<Item>> getItems(@PathVariable String orderId) {
    		return rt.getForObject("http://item-service/{1}", JsonResult.class, orderId);
    	}

    	@PostMapping("/item-service/decreaseNumber")
    	@HystrixCommand(fallbackMethod = "decreaseNumberFB")
    	public JsonResult decreaseNumber(@RequestBody List<Item> items) {
    		return rt.postForObject("http://item-service/decreaseNumber", items, JsonResult.class);
    	}

    	/

    	@GetMapping("/user-service/{userId}")
    	@HystrixCommand(fallbackMethod = "getUserFB")
    	public JsonResult<User> getUser(@PathVariable Integer userId) {
    		return rt.getForObject("http://user-service/{1}", JsonResult.class, userId);
    	}

    	@GetMapping("/user-service/{userId}/score")
    	@HystrixCommand(fallbackMethod = "addScoreFB")
    	public JsonResult addScore(@PathVariable Integer userId, Integer score) {
    		return rt.getForObject("http://user-service/{1}/score?score={2}", JsonResult.class, userId, score);
    	}

    	/

    	@GetMapping("/order-service/{orderId}")
    	@HystrixCommand(fallbackMethod = "getOrderFB")
    	public JsonResult<Order> getOrder(@PathVariable String orderId) {
    		return rt.getForObject("http://order-service/{1}", JsonResult.class, orderId);
    	}

    	@GetMapping("/order-service")
    	@HystrixCommand(fallbackMethod = "addOrderFB")
    	public JsonResult addOrder() {
    		return rt.getForObject("http://order-service/", JsonResult.class);
    	}

    	/

        //降级方法的参数和返回值，需要和原始方法一致，方法名任意
    	public JsonResult<List<Item>> getItemsFB(String orderId) {
    		return JsonResult.err("获取订单商品列表失败");
    	}
    	public JsonResult decreaseNumberFB(List<Item> items) {
    		return JsonResult.err("更新商品库存失败");
    	}
    	public JsonResult<User> getUserFB(Integer userId) {
    		return JsonResult.err("获取用户信息失败");
    	}
    	public JsonResult addScoreFB(Integer userId, Integer score) {
    		return JsonResult.err("增加用户积分失败");
    	}
    	public JsonResult<Order> getOrderFB(String orderId) {
    		return JsonResult.err("获取订单失败");
    	}
    	public JsonResult addOrderFB() {
    		return JsonResult.err("添加订单失败");
    	}

    }

## hystrix 短路超时设置 ##

`hystrix.command.default.execution.isolation.thread.timeoutInMilliseconds`

为了测试 hystrix 短路功能，我们把 hystrix 等待超时设置得非常小（500毫秒）

此设置一般应大于 ribbon 的重试超时时长，例如 10 秒

spring:
      application:
        name: hystrix

    server:
      port: 3001

    eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka, http://eureka2:2002/eureka

    ribbon:
      MaxAutoRetriesNextServer: 2
      MaxAutoRetries: 1
      OkToRetryOnAllOperations: true

    hystrix:
      command:
        default:
          execution:
            isolation:
              thread:
                timeoutInMilliseconds: 500

## 启动项目进行测试 ##

![启动测试][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 18]

*  通过 hystrix 服务，访问可能超时失败的 item-service
    [http://localhost:3001/item-service/35][http_localhost_3001_item-service_35]
 *  通过 hystrix 服务，访问未启动的 user-service
    [http://localhost:3001/user-service/7][http_localhost_3001_user-service_7]
 *  可以看到，如果 item-service 请求超时，hystrix 会立即执行降级方法
 *  访问 user-service，由于该服务未启动，hystrix也会立即执行降级方法

![降级][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 19]

--------------------

# 十三、hystrix dashboard 断路器仪表盘 #

![dashboard][]

hystrix 对请求的熔断和断路处理，可以产生监控信息，hystrix dashboard可以实时的进行监控

## sp07-hystrix 项目添加 actuator，并暴露 hystrix 监控端点 ##

actuator 是 spring boot 提供的服务监控工具，提供了各种监控信息的监控端点

`management.endpoints.web.exposure.include` 配置选项，
可以指定端点名，来暴露监控端点

如果要暴露所有端点，可以用 “\*”

### pom.xml 添加 actuator 依赖 ###

<dependency>
    	<groupId>org.springframework.boot</groupId>
    	<artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>

### 调整 application.yml 配置，并暴露 hystrix 监控端点 ###

spring:
      application:
        name: hystrix

    server:
      port: 3001

    eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka, http://eureka2:2002/eureka

    ribbon:
      MaxAutoRetriesNextServer: 1
      MaxAutoRetries: 1
      OkToRetryOnAllOperations: true

    hystrix:
      command:
        default:
          execution:
            isolation:
              thread:
                timeoutInMilliseconds: 2000

    management:
      endpoints:
        web:
          exposure:
            include: hystrix.stream

### 访问 actuator 路径，查看监控端点 ###

*  [http://localhost:3001/actuator][http_localhost_3001_actuator]

![actuator][]

## 新建 sp08-hystrix-dashboard 项目 ##

![dashboard项目][dashboard 1]

![添加依赖][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 20]

### pom.xml ###

<?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    	<modelVersion>4.0.0</modelVersion>
    	<parent>
    		<groupId>org.springframework.boot</groupId>
    		<artifactId>spring-boot-starter-parent</artifactId>
    		<version>2.1.4.RELEASE</version>
    		<relativePath/>
    	</parent>
    	<groupId>com.tedu</groupId>
    	<artifactId>sp08-hystrix-dashboard</artifactId>
    	<version>0.0.1-SNAPSHOT</version>
    	<name>sp08-hystrix-dashboard</name>
    	<description>Demo project for Spring Boot</description>

    	<properties>
    		<java.version>1.8</java.version>
    		<spring-cloud.version>Greenwich.SR1</spring-cloud.version>
    	</properties>

    	<dependencies>
    		<dependency>
    			<groupId>org.springframework.cloud</groupId>
    			<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework.cloud</groupId>
    			<artifactId>spring-cloud-starter-netflix-hystrix-dashboard</artifactId>
    		</dependency>

    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-test</artifactId>
    			<scope>test</scope>
    		</dependency>
    	</dependencies>

    	<dependencyManagement>
    		<dependencies>
    			<dependency>
    				<groupId>org.springframework.cloud</groupId>
    				<artifactId>spring-cloud-dependencies</artifactId>
    				<version>${spring-cloud.version}</version>
    				<type>pom</type>
    				<scope>import</scope>
    			</dependency>
    		</dependencies>
    	</dependencyManagement>

    	<build>
    		<plugins>
    			<plugin>
    				<groupId>org.springframework.boot</groupId>
    				<artifactId>spring-boot-maven-plugin</artifactId>
    			</plugin>
    		</plugins>
    	</build>

    </project>

### application.yml ###

spring:
      application:
        name: hystrix-dashboard

    server:
      port: 4001

    eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka, http://eureka2:2002/eureka

### 主程序添加 `@EnableHystrixDashboard` 和 `@EnableDiscoveryClient` ###

package com.tedu.sp08;

    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;
    import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
    import org.springframework.cloud.netflix.hystrix.dashboard.EnableHystrixDashboard;

    @EnableDiscoveryClient
    @EnableHystrixDashboard
    @SpringBootApplication
    public class Sp08HystrixDashboardApplication {

    	public static void main(String[] args) {
    		SpringApplication.run(Sp08HystrixDashboardApplication.class, args);
    	}

    }

## 启动，并访问测试 ##

![启动访问测试][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 21]

### 访问 hystrix dashboard ###

*  [http://localhost:4001/hystrix][http_localhost_4001_hystrix]

![dashboard][dashboard 2]

### 填入 hystrix 的监控端点，开启监控 ###

*  [http://localhost:3001/actuator/hystrix.stream][http_localhost_3001_actuator_hystrix.stream]

![开启监控][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 22]

*  通过 hystrix 访问服务多次，观察监控信息

[http://localhost:3001/item-service/35][http_localhost_3001_item-service_35]

[http://localhost:3001/user-service/7][http_localhost_3001_user-service_7]
[http://localhost:3001/user-service/7/score?score=100][http_localhost_3001_user-service_7_score_score_100]

[http://localhost:3001/order-service/123abc][http_localhost_3001_order-service_123abc]
[http://localhost:3001/order-service/][http_localhost_3001_order-service]

![监控界面][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 23]

![监控界面][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 24]

--------------------

## hystrix 熔断 ##

整个链路达到一定的阈值，默认情况下，10秒内产生超过20次请求，则符合第一个条件。
满足第一个条件的情况下，如果请求的错误百分比大于阈值，则会打开断路器，默认为50%。
Hystrix的逻辑，先判断是否满足第一个条件，再判断第二个条件，如果两个条件都满足，则会开启断路器

断路器打开 5 秒后，会处于半开状态，会尝试转发请求，如果仍然失败，保持打开状态，如果成功，则关闭断路器

### 使用 apache 的并发访问测试工具 ab ###

[http://httpd.apache.org/docs/current/platform/windows.html\#down][http_httpd.apache.org_docs_current_platform_windows.html_down]
![下载Apache][Apache]

*  用 ab 工具，以并发50次，来发送20000个请求

ab -n 20000 -c 50 http://localhost:3001/item-service/35

*  断路器状态为 Open，所有请求会被短路，直接降级执行 fallback 方法

![熔断][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 25]

## hystrix 配置 ##

[https://github.com/Netflix/Hystrix/wiki/Configuration][https_github.com_Netflix_Hystrix_wiki_Configuration]

*  `hystrix.command.default.execution.isolation.thread.timeoutInMilliseconds`
    请求超时时间，超时后触发失败降级
 *  `hystrix.command.default.circuitBreaker.requestVolumeThreshold`
    10秒内请求数量，默认20，如果没有达到该数量，即使请求全部失败，也不会触发断路器打开
 *  `hystrix.command.default.circuitBreaker.errorThresholdPercentage`
    失败请求百分比，达到该比例则触发断路器打开
 *  `hystrix.command.default.circuitBreaker.sleepWindowInMilliseconds`
    断路器打开多长时间后，再次允许尝试访问（半开），仍失败则继续保持打开状态，如成功访问则关闭断路器，默认 5000

--------------------

# 十四、feign 整合ribbon+hystrix #

微服务应用中，ribbon 和 hystrix 总是同时出现，feign 整合了两者，并提供了**声明式消费者**客户端

*  用 feign 代替 hystrix+ribbon

![feign][]

## 新建 sp09-feign 项目 ##

![新建feign项目][feign 1]

![添加依赖][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 26]

## pom.xml ##

*  需要添加 sp01-commons 依赖

<?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    	<modelVersion>4.0.0</modelVersion>
    	<parent>
    		<groupId>org.springframework.boot</groupId>
    		<artifactId>spring-boot-starter-parent</artifactId>
    		<version>2.1.4.RELEASE</version>
    		<relativePath/>
    	</parent>
    	<groupId>com.tedu</groupId>
    	<artifactId>sp09-feign</artifactId>
    	<version>0.0.1-SNAPSHOT</version>
    	<name>sp09-feign</name>
    	<description>Demo project for Spring Boot</description>

    	<properties>
    		<java.version>1.8</java.version>
    		<spring-cloud.version>Greenwich.SR1</spring-cloud.version>
    	</properties>

    	<dependencies>
    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-actuator</artifactId>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-web</artifactId>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework.cloud</groupId>
    			<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework.cloud</groupId>
    			<artifactId>spring-cloud-starter-openfeign</artifactId>
    		</dependency>

    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-test</artifactId>
    			<scope>test</scope>
    		</dependency>
    		<dependency>
    			<groupId>com.tedu</groupId>
    			<artifactId>sp01-commons</artifactId>
    			<version>0.0.1-SNAPSHOT</version>
    		</dependency>
    	</dependencies>

    	<dependencyManagement>
    		<dependencies>
    			<dependency>
    				<groupId>org.springframework.cloud</groupId>
    				<artifactId>spring-cloud-dependencies</artifactId>
    				<version>${spring-cloud.version}</version>
    				<type>pom</type>
    				<scope>import</scope>
    			</dependency>
    		</dependencies>
    	</dependencyManagement>

    	<build>
    		<plugins>
    			<plugin>
    				<groupId>org.springframework.boot</groupId>
    				<artifactId>spring-boot-maven-plugin</artifactId>
    			</plugin>
    		</plugins>
    	</build>

    </project>

## application.yml ##

spring:
      application:
        name: feign

    server:
      port: 3001

    eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka, http://eureka2:2002/eureka

## 主程序添加 `@EnableDiscoveryClient` 和 `@EnableFeignClients` ##

package com.tedu.sp09;

    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;
    import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
    import org.springframework.cloud.openfeign.EnableFeignClients;

    @EnableFeignClients
    @EnableDiscoveryClient
    @SpringBootApplication
    public class Sp09FeignApplication {

    	public static void main(String[] args) {
    		SpringApplication.run(Sp09FeignApplication.class, args);
    	}

    }

## java 源文件 ##

![java源文件][java 4]

### feign 声明式客户端 ###

feign 利用了我们熟悉的 spring mvc 注解来对接口方法进行设置，降低了我们的学习成本。

通过这些设置,feign可以拼接后台服务的访问路径和提交的参数

例如：

@GetMapping("/{userId}/score")
    JsonResult addScore(@PathVariable Integer userId, @RequestParam Integer score);

当这样调用该方法：

service.addScore(7, 100);

那么 feign 会向服务器发送请求：

http://用户微服务/7/score?score=100

*  注意：如果 score 参数名与变量名不同，需要添加参数名设置：

@GetMapping("/{userId}/score")
    JsonResult addScore(@PathVariable Integer userId, @RequestParam("score") Integer s);

### ItemFeignService ###

package com.tedu.sp09.service;

    import java.util.List;

    import org.springframework.cloud.openfeign.FeignClient;
    import org.springframework.web.bind.annotation.GetMapping;
    import org.springframework.web.bind.annotation.PathVariable;
    import org.springframework.web.bind.annotation.PostMapping;
    import org.springframework.web.bind.annotation.RequestBody;

    import com.tedu.sp01.pojo.Item;
    import com.tedu.web.util.JsonResult;

    @FeignClient("item-service")
    public interface ItemFeignService {
    	@GetMapping("/{orderId}")
    	JsonResult<List<Item>> getItems(@PathVariable String orderId);

    	@PostMapping("/decreaseNumber")
    	JsonResult decreaseNumber(@RequestBody List<Item> items);
    }

### UserFeignService ###

*  注意,如果请求参数名与方法参数名不同,`@RequestParam`不能省略,并且要指定请求参数名:

    `@RequestParam("score") Integer s`

package com.tedu.sp09.service;

    import org.springframework.cloud.openfeign.FeignClient;
    import org.springframework.web.bind.annotation.GetMapping;
    import org.springframework.web.bind.annotation.PathVariable;
    import org.springframework.web.bind.annotation.RequestParam;

    import com.tedu.sp01.pojo.User;
    import com.tedu.web.util.JsonResult;

    @FeignClient("user-service")
    public interface UserFeignService {
    	@GetMapping("/{userId}")
    	JsonResult<User> getUser(@PathVariable Integer userId);

        // 拼接路径 /{userId}/score?score=新增积分
        // 如果请求参数和方法参数同名,@RequestParam可省略
    	@GetMapping("/{userId}/score")
    	JsonResult addScore(@PathVariable Integer userId, @RequestParam Integer score);
    }

### OrderFeignService ###

package com.tedu.sp09.service;

    import org.springframework.cloud.openfeign.FeignClient;
    import org.springframework.web.bind.annotation.GetMapping;
    import org.springframework.web.bind.annotation.PathVariable;

    import com.tedu.sp01.pojo.Order;
    import com.tedu.web.util.JsonResult;

    @FeignClient("order-service")
    public interface OrderFeignService {
    	@GetMapping("/{orderId}")
    	JsonResult<Order> getOrder(@PathVariable String orderId);

    	@GetMapping("/")
    	JsonResult addOrder();

    }

### FeignController ###

package com.tedu.sp09.controller;

    import java.util.List;

    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.web.bind.annotation.GetMapping;
    import org.springframework.web.bind.annotation.PathVariable;
    import org.springframework.web.bind.annotation.PostMapping;
    import org.springframework.web.bind.annotation.RequestBody;
    import org.springframework.web.bind.annotation.RestController;

    import com.tedu.sp01.pojo.Item;
    import com.tedu.sp01.pojo.Order;
    import com.tedu.sp01.pojo.User;
    import com.tedu.sp09.service.ItemFeignService;
    import com.tedu.sp09.service.OrderFeignService;
    import com.tedu.sp09.service.UserFeignService;
    import com.tedu.web.util.JsonResult;

    @RestController
    public class FeignController {
    	@Autowired
    	private ItemFeignService itemService;
    	@Autowired
    	private UserFeignService userService;
    	@Autowired
    	private OrderFeignService orderService;

    	@GetMapping("/item-service/{orderId}")
    	public JsonResult<List<Item>> getItems(@PathVariable String orderId) {
    		return itemService.getItems(orderId);
    	}

    	@PostMapping("/item-service/decreaseNumber")
    	public JsonResult decreaseNumber(@RequestBody List<Item> items) {
    		return itemService.decreaseNumber(items);
    	}

    	/

    	@GetMapping("/user-service/{userId}")
    	public JsonResult<User> getUser(@PathVariable Integer userId) {
    		return userService.getUser(userId);
    	}

    	@GetMapping("/user-service/{userId}/score")
    	public JsonResult addScore(@PathVariable Integer userId, Integer score) {
    		return userService.addScore(userId, score);
    	}

    	/

    	@GetMapping("/order-service/{orderId}")
    	public JsonResult<Order> getOrder(@PathVariable String orderId) {
    		return orderService.getOrder(orderId);
    	}

    	@GetMapping("/order-service")
    	public JsonResult addOrder() {
    		return orderService.addOrder();
    	}
    }

## 启动服务，并访问测试 ##

![启动服务][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 27]

*  [http://eureka1:2001][http_eureka1_2001]
 *  [http://localhost:3001/item-service/35][http_localhost_3001_item-service_35]
 *  `http://localhost:3001/item-service/decreaseNumber`
    使用postman，POST发送以下格式数据：
    `[{"id":1, "name":"abc", "number":23},{"id":2, "name":"def", "number":11}]`
 *  [http://localhost:3001/user-service/7][http_localhost_3001_user-service_7]
 *  [http://localhost:3001/user-service/7/score?score=100][http_localhost_3001_user-service_7_score_score_100]
 *  [http://localhost:3001/order-service/123abc][http_localhost_3001_order-service_123abc]
 *  [http://localhost:3001/order-service/][http_localhost_3001_order-service]

--------------------

# 十五、feign + ribbon 负载均衡和重试 #

*  无需额外配置，feign 默认已启用了 ribbon 负载均衡和重试机制。可以通过配置对参数进行调整

## application.yml 配置 ribbon 超时和重试 ##

*  `ribbon.xxx` 全局配置
 *  `item-service.ribbon.xxx` 对特定服务实例的配置

spring:
      application:
        name: feign

    server:
      port: 3001

    eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka, http://eureka2:2002/eureka

    ribbon:
      ConnectTimeout: 1000
      ReadTimeout: 1000

    item-service:
      ribbon:
        ConnectTimeout: 500
        ReadTimeout: 1000
        MaxAutoRetriesNextServer: 2
        MaxAutoRetries: 1

## 启动服务，访问测试 ##

[http://localhost:3001/item-service/35][http_localhost_3001_item-service_35]

--------------------

# 十六、feign + hystrix 降级 #

## feign 启用 hystrix ##

feign 默认没有启用 hystrix，添加配置，启用 hystrix

*  `feign.hystrix.enabled=true`

### application.yml 添加配置 ###

feign:
      hystrix:
        enabled: true

启用 hystrix 后，访问服务
[http://localhost:3001/item-service/35][http_localhost_3001_item-service_35]

默认1秒会快速失败，没有降级方法时，会显示白板页

![白板页][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 28]

### 可以添加配置，暂时减小降级超时时间，以便后续对降级进行测试 ###

......

    feign:
      hystrix:
        enabled: true

    hystrix:
      command:
        default:
          execution:
            isolation:
              thread:
                timeoutInMilliseconds: 500

## feign + hystrix 降级 ##

### 降级类 ###

#### ItemFeignServiceFB ####

package com.tedu.sp09.service;

    import java.util.List;
    import org.springframework.stereotype.Component;
    import com.tedu.sp01.pojo.Item;
    import com.tedu.web.util.JsonResult;

    @Component
    public class ItemFeignServiceFB implements ItemFeignService {

    	@Override
    	public JsonResult<List<Item>> getItems(String orderId) {
    		return JsonResult.err("无法获取订单商品列表");
    	}

    	@Override
    	public JsonResult decreaseNumber(List<Item> items) {
    		return JsonResult.err("无法修改商品库存");
    	}

    }

#### UserFeignServiceFB ####

package com.tedu.sp09.service;

    import org.springframework.stereotype.Component;
    import com.tedu.sp01.pojo.User;
    import com.tedu.web.util.JsonResult;

    @Component
    public class UserFeignServiceFB implements UserFeignService {

    	@Override
    	public JsonResult<User> getUser(Integer userId) {
    		return JsonResult.err("无法获取用户信息");
    	}

    	@Override
    	public JsonResult addScore(Integer userId, Integer score) {
    		return JsonResult.err("无法增加用户积分");
    	}

    }

#### OrderFeignServiceFB ####

package com.tedu.sp09.service;

    import org.springframework.stereotype.Component;
    import com.tedu.sp01.pojo.Order;
    import com.tedu.web.util.JsonResult;

    @Component
    public class OrderFeignServiceFB implements OrderFeignService {

    	@Override
    	public JsonResult<Order> getOrder(String orderId) {
    		return JsonResult.err("无法获取商品订单");
    	}

    	@Override
    	public JsonResult addOrder() {
    		return JsonResult.err("无法保存订单");
    	}

    }

### feign service 接口中指定降级类 ###

#### ItemFeignService ####

...
    @FeignClient(name="item-service", fallback = ItemFeignServiceFB.class)
    public interface ItemFeignService {
    ...

#### UserFeignService ####

...
    @FeignClient(name="user-service", fallback = UserFeignServiceFB.class)
    public interface UserFeignService {
    ...

#### OrderFeignService ####

...
    @FeignClient(name="order-service",fallback = OrderFeignServiceFB.class)
    public interface OrderFeignService {
    ...

### 启动服务，访问测试 ###

[http://localhost:3001/item-service/35][http_localhost_3001_item-service_35]

![访问测试][20191029171433236.png]

--------------------

# 十七、feign + hystrix 监控和熔断测试 #

![监控][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 29]

## 修改sp09-feign项目   pom.xml 添加 hystrix 起步依赖 ##

*  feign 没有包含完整的 hystrix 依赖

<dependency>
    	<groupId>org.springframework.cloud</groupId>
    	<artifactId>
    		spring-cloud-starter-netflix-hystrix
    	</artifactId>
    </dependency>

## 主程序添加 `@EnableCircuitBreaker` ##

package com.tedu.sp09;

    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;
    import org.springframework.cloud.client.circuitbreaker.EnableCircuitBreaker;
    import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
    import org.springframework.cloud.openfeign.EnableFeignClients;

    @EnableCircuitBreaker
    @EnableFeignClients
    @EnableDiscoveryClient
    @SpringBootApplication
    public class Sp09FeignApplication {

    	public static void main(String[] args) {
    		SpringApplication.run(Sp09FeignApplication.class, args);
    	}

    }

## sp09-feign 配置 actuator，暴露 `hystrix.stream` 监控端点 ##

### actuator 依赖 ###

确认已经添加了 actuator 依赖

<dependency>
    	<groupId>org.springframework.boot</groupId>
    	<artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>

### application.yml 暴露 `hystrix.stream` 端点 ###

management:
      endpoints:
        web:
          exposure:
            include: hystrix.stream

## 启动服务，查看监控端点 ##

![监控端点][20191029171847711.png]

## hystrix dashboard ##

启动 hystrix dashboard 服务，填入 feign 监控路径，开启监控
访问 [http://localhost:4001/hystrix][http_localhost_4001_hystrix]

*  填入 feign 监控路径:
    `http://localhost:3001/actuator/hystrix.stream`
 *  访问微服务，以产生监控数据

[http://localhost:3001/item-service/35][http_localhost_3001_item-service_35]

[http://localhost:3001/user-service/7][http_localhost_3001_user-service_7]
[http://localhost:3001/user-service/7/score?score=100][http_localhost_3001_user-service_7_score_score_100]

[http://localhost:3001/order-service/123abc][http_localhost_3001_order-service_123abc]
[http://localhost:3001/order-service/][http_localhost_3001_order-service]

![监控][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 30]

## 熔断测试 ##

*  用 ab 工具，以并发50次，来发送20000个请求

ab -n 20000 -c 50 http://localhost:3001/item-service/35

*  断路器状态为 Open，所有请求会被短路，直接降级执行 fallback 方法

![压力测试][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 31]

--------------------

# 十八、order service 调用商品库存服务和用户服务 #

![order调用user和item][order_user_item]

修改 sp04-orderservice 项目，添加 feign，调用 item service 和 user service

1.  pom.xml
2.  application.yml
3.  主程序
4.  ItemFeignService
5.  UserFeignService
6.  ItemFeignServiceFB
7.  UserFeignServiceFB
8.  OrderServiceImpl

## pom.xml ##

*  添加以下依赖：
 *  actuator
 *  feign
 *  hystrix

<?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    	<modelVersion>4.0.0</modelVersion>
    	<parent>
    		<groupId>org.springframework.boot</groupId>
    		<artifactId>spring-boot-starter-parent</artifactId>
    		<version>2.1.4.RELEASE</version>
    		<relativePath/>
    	</parent>
    	<groupId>com.tedu</groupId>
    	<artifactId>sp04-orderservice</artifactId>
    	<version>0.0.1-SNAPSHOT</version>
    	<name>sp04-orderservice</name>
    	<description>Demo project for Spring Boot</description>

    	<properties>
    		<java.version>1.8</java.version>
    	</properties>

    	<dependencies>
    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-web</artifactId>
    		</dependency>

    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-test</artifactId>
    			<scope>test</scope>
    		</dependency>
    		<dependency>
    			<groupId>com.tedu</groupId>
    			<artifactId>sp01-commons</artifactId>
    			<version>0.0.1-SNAPSHOT</version>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework.cloud</groupId>
    			<artifactId>
    				spring-cloud-starter-netflix-eureka-client
    			</artifactId>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-actuator</artifactId>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework.cloud</groupId>
    			<artifactId>
    				spring-cloud-starter-netflix-hystrix
    			</artifactId>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework.cloud</groupId>
    			<artifactId>spring-cloud-starter-openfeign</artifactId>
    		</dependency>
    	</dependencies>

    	<build>
    		<plugins>
    			<plugin>
    				<groupId>org.springframework.boot</groupId>
    				<artifactId>spring-boot-maven-plugin</artifactId>
    			</plugin>
    		</plugins>
    	</build>

    	<dependencyManagement>
    		<dependencies>
    			<dependency>
    				<groupId>org.springframework.cloud</groupId>
    				<artifactId>spring-cloud-dependencies</artifactId>
    				<version>Greenwich.SR1</version>
    				<type>pom</type>
    				<scope>import</scope>
    			</dependency>
    		</dependencies>
    	</dependencyManagement>
    </project>

## application.yml ##

*  ribbon 重试和 hystrix 超时，这里没有设置，采用了默认值

spring:
      application:
        name: order-service

    # server:
    # port: 8201


    eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka, http://eureka2:2002/eureka

    feign:
      hystrix:
        enabled: true

    management:
      endpoints:
        web:
          exposure:
            include: hystrix.stream

    ---
    spring:
      profiles: order1

    server:
      port: 8201

    ---
    spring:
      profiles: order2

    server:
      port: 8202

## 主程序 ##

package com.tedu.sp04;

    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;
    import org.springframework.cloud.client.SpringCloudApplication;
    import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
    import org.springframework.cloud.openfeign.EnableFeignClients;

    //@EnableDiscoveryClient
    //@SpringBootApplication

    @EnableFeignClients
    @SpringCloudApplication
    public class Sp04OrderserviceApplication {

    	public static void main(String[] args) {
    		SpringApplication.run(Sp04OrderserviceApplication.class, args);
    	}

    }

## ItemFeignService ##

package com.tedu.sp04.order.feignclient;

    import java.util.List;

    import org.springframework.cloud.openfeign.FeignClient;
    import org.springframework.web.bind.annotation.GetMapping;
    import org.springframework.web.bind.annotation.PathVariable;
    import org.springframework.web.bind.annotation.PostMapping;
    import org.springframework.web.bind.annotation.RequestBody;

    import com.tedu.sp01.pojo.Item;
    import com.tedu.web.util.JsonResult;

    @FeignClient(name="item-service", fallback = ItemFeignServiceFB.class)
    public interface ItemFeignService {
    	@GetMapping("/{orderId}")
    	JsonResult<List<Item>> getItems(@PathVariable String orderId);

    	@PostMapping("/decreaseNumber")
    	JsonResult decreaseNumber(@RequestBody List<Item> items);
    }

## UserFeignService ##

package com.tedu.sp04.order.feignclient;

    import org.springframework.cloud.openfeign.FeignClient;
    import org.springframework.web.bind.annotation.GetMapping;
    import org.springframework.web.bind.annotation.PathVariable;
    import org.springframework.web.bind.annotation.RequestParam;

    import com.tedu.sp01.pojo.User;
    import com.tedu.web.util.JsonResult;

    @FeignClient(name="user-service", fallback = UserFeignServiceFB.class)
    public interface UserFeignService {
    	@GetMapping("/{userId}")
    	JsonResult<User> getUser(@PathVariable Integer userId);

    	@GetMapping("/{userId}/score")
    	JsonResult addScore(@PathVariable Integer userId, @RequestParam Integer score);
    }

## ItemFeignServiceFB ##

*  获取商品列表的降级方法，模拟使用缓存数据

package com.tedu.sp04.order.feignclient;

    import java.util.Arrays;
    import java.util.List;

    import org.springframework.stereotype.Component;

    import com.tedu.sp01.pojo.Item;
    import com.tedu.web.util.JsonResult;

    @Component
    public class ItemFeignServiceFB implements ItemFeignService {

    	@Override
    	public JsonResult<List<Item>> getItems(String orderId) {
    		if(Math.random()<0.5) {
    			return JsonResult.ok().data(

    				Arrays.asList(new Item[] {
    						new Item(1,"缓存aaa",2),
    						new Item(2,"缓存bbb",1),
    						new Item(3,"缓存ccc",3),
    						new Item(4,"缓存ddd",1),
    						new Item(5,"缓存eee",5)
    				})

    			);
    		}
    		return JsonResult.err("无法获取订单商品列表");
    	}

    	@Override
    	public JsonResult decreaseNumber(List<Item> items) {
    		return JsonResult.err("无法修改商品库存");
    	}

    }

## UserFeignServiceFB ##

*  获取用户信息的降级方法，模拟使用缓存数据

package com.tedu.sp04.order.feignclient;

    import org.springframework.stereotype.Component;

    import com.tedu.sp01.pojo.User;
    import com.tedu.web.util.JsonResult;

    @Component
    public class UserFeignServiceFB implements UserFeignService {

    	@Override
    	public JsonResult<User> getUser(Integer userId) {
    		if(Math.random()<0.4) {
    			return JsonResult.ok(new User(userId, "缓存name"+userId, "缓存pwd"+userId));
    		}
    		return JsonResult.err("无法获取用户信息");
    	}

    	@Override
    	public JsonResult addScore(Integer userId, Integer score) {
    		return JsonResult.err("无法增加用户积分");
    	}

    }

## OrderServiceImpl ##

package com.tedu.sp04.order.service;

    import java.util.List;

    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.stereotype.Service;

    import com.tedu.sp01.pojo.Item;
    import com.tedu.sp01.pojo.Order;
    import com.tedu.sp01.pojo.User;
    import com.tedu.sp01.service.OrderService;
    import com.tedu.sp04.order.feignclient.ItemFeignService;
    import com.tedu.sp04.order.feignclient.UserFeignService;
    import com.tedu.web.util.JsonResult;

    import lombok.extern.slf4j.Slf4j;

    @Slf4j
    @Service
    public class OrderServiceImpl implements OrderService {

    	@Autowired
    	private ItemFeignService itemService;
    	@Autowired
    	private UserFeignService userService;

    	@Override
    	public Order getOrder(String orderId) {
    		//调用user-service获取用户信息
    		JsonResult<User> user = userService.getUser(7);

    		//调用item-service获取商品信息
    		JsonResult<List<Item>> items = itemService.getItems(orderId);


    		Order order = new Order();
    		order.setId(orderId);
    		order.setUser(user.getData());
    		order.setItems(items.getData());
    		return order;
    	}

    	@Override
    	public void addOrder(Order order) {
    		//调用item-service减少商品库存
    		itemService.decreaseNumber(order.getItems());

    		//TODO: 调用user-service增加用户积分
    		userService.addScore(7, 100);

    		log.info("保存订单："+order);
    	}

    }

## order-service 配置启动参数 ##

*  `--spring.profiles.active=order1`
 *  `--spring.profiles.active=order2`

![启动项][2019102917354185.png]

## 启动服务，访问测试 ##

![启动][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 32]

*  根据orderid，获取订单
    [http://localhost:8201/123abc][http_localhost_8201_123abc]
 *  保存订单
    [http://localhost:8201/][http_localhost_8201]
 *  通过 feign 访问 order service
    [http://localhost:3001/order-service/123abc][http_localhost_3001_order-service_123abc]
    [http://localhost:3001/order-service/][http_localhost_3001_order-service]

## hystrix dashboard 监控 order service 断路器 ##

*  访问 [http://localhost:4001/hystrix][http_localhost_4001_hystrix] ，填入 order service 的断路器监控路径，启动监控
 *  [http://localhost:8201/actuator/hystrix.stream][http_localhost_8201_actuator_hystrix.stream]
 *  [http://localhost:8202/actuator/hystrix.stream][http_localhost_8202_actuator_hystrix.stream]

![监控][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 33]

--------------------

# 十九、hystrix + turbine 集群聚合监控 #

![turbine][]

hystrix dashboard 一次只能监控一个服务实例，使用 turbine 可以汇集监控信息，将聚合后的信息提供给 hystrix dashboard 来集中展示和监控

## 新建 sp10-turbine 项目 ##

![turbine项目][turbine 1]

![选择依赖][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 34]

## pom.xml ##

<?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    	<modelVersion>4.0.0</modelVersion>
    	<parent>
    		<groupId>org.springframework.boot</groupId>
    		<artifactId>spring-boot-starter-parent</artifactId>
    		<version>2.1.4.RELEASE</version>
    		<relativePath/>
    	</parent>
    	<groupId>com.tedu</groupId>
    	<artifactId>sp10-turbine</artifactId>
    	<version>0.0.1-SNAPSHOT</version>
    	<name>sp10-turbine</name>
    	<description>Demo project for Spring Boot</description>

    	<properties>
    		<java.version>1.8</java.version>
    		<spring-cloud.version>Greenwich.SR1</spring-cloud.version>
    	</properties>

    	<dependencies>
    		<dependency>
    			<groupId>org.springframework.cloud</groupId>
    			<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework.cloud</groupId>
    			<artifactId>spring-cloud-starter-netflix-turbine</artifactId>
    		</dependency>

    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-test</artifactId>
    			<scope>test</scope>
    		</dependency>
    	</dependencies>

    	<dependencyManagement>
    		<dependencies>
    			<dependency>
    				<groupId>org.springframework.cloud</groupId>
    				<artifactId>spring-cloud-dependencies</artifactId>
    				<version>${spring-cloud.version}</version>
    				<type>pom</type>
    				<scope>import</scope>
    			</dependency>
    		</dependencies>
    	</dependencyManagement>

    	<build>
    		<plugins>
    			<plugin>
    				<groupId>org.springframework.boot</groupId>
    				<artifactId>spring-boot-maven-plugin</artifactId>
    			</plugin>
    		</plugins>
    	</build>

    </project>

## application.yml ##

spring:
      application:
        name: turbin

    server:
      port: 5001

    eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka, http://eureka2:2002/eureka

    turbine:
      app-config: order-service, feign
      cluster-name-expression: new String("default")

## 主程序 ##

package com.tedu.sp10;

    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;
    import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
    import org.springframework.cloud.netflix.turbine.EnableTurbine;

    @EnableTurbine
    @EnableDiscoveryClient
    @SpringBootApplication
    public class Sp10TurbineApplication {

    	public static void main(String[] args) {
    		SpringApplication.run(Sp10TurbineApplication.class, args);
    	}

    }

## 访问测试 ##

*  turbine 监控路径
    [http://localhost:5001/turbine.stream][http_localhost_5001_turbine.stream]
 *  在 hystrix dashboard 中填入turbine 监控路径，开启监控
    [http://localhost:4001/hystrix][http_localhost_4001_hystrix]
 *  turbine聚合了feign服务和order-service服务集群的hystrix监控信息

![监控][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 35]

*  8201服务器产生监控数据:

[http://localhost:8201/abc123][http_localhost_8201_abc123]
[http://localhost:8201/][http_localhost_8201]

*  8202服务器产生监控数据:

[http://localhost:8202/abc123][http_localhost_8202_abc123]
[http://localhost:8202/][http_localhost_8202]

*  3001服务器产生监控数据:

[http://localhost:3001/user-service/7][http_localhost_3001_user-service_7]
[http://localhost:3001/user-service/7/score?score=100][http_localhost_3001_user-service_7_score_score_100]

[http://localhost:3001/order-service/123abc][http_localhost_3001_order-service_123abc]
[http://localhost:3001/order-service/][http_localhost_3001_order-service]

--------------------

# 二十、zuul API网关 #

![zuul][]

zuul API 网关，为微服务应用提供统一的对外访问接口。
zuul 还提供过滤器，对所有微服务提供统一的请求校验。

## 新建 sp11-zuul 项目 ##

![zuul项目][zuul 1]

![添加依赖][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 36]

## pom.xml ##

*  需要添加 sp01-commons 依赖

<?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    	<modelVersion>4.0.0</modelVersion>
    	<parent>
    		<groupId>org.springframework.boot</groupId>
    		<artifactId>spring-boot-starter-parent</artifactId>
    		<version>2.1.4.RELEASE</version>
    		<relativePath />
    	</parent>
    	<groupId>com.tedu</groupId>
    	<artifactId>sp11-zuul</artifactId>
    	<version>0.0.1-SNAPSHOT</version>
    	<name>sp11-zuul</name>
    	<description>Demo project for Spring Boot</description>

    	<properties>
    		<java.version>1.8</java.version>
    		<spring-cloud.version>Greenwich.SR1</spring-cloud.version>
    	</properties>

    	<dependencies>
    		<dependency>
    			<groupId>org.springframework.cloud</groupId>
    			<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework.cloud</groupId>
    			<artifactId>spring-cloud-starter-netflix-zuul</artifactId>
    		</dependency>

    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-test</artifactId>
    			<scope>test</scope>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework.retry</groupId>
    			<artifactId>spring-retry</artifactId>
    		</dependency>
    		<dependency>
    			<groupId>com.tedu</groupId>
    			<artifactId>sp01-commons</artifactId>
    			<version>0.0.1-SNAPSHOT</version>
    		</dependency>
    	</dependencies>

    	<dependencyManagement>
    		<dependencies>
    			<dependency>
    				<groupId>org.springframework.cloud</groupId>
    				<artifactId>spring-cloud-dependencies</artifactId>
    				<version>${spring-cloud.version}</version>
    				<type>pom</type>
    				<scope>import</scope>
    			</dependency>
    		</dependencies>
    	</dependencyManagement>

    	<build>
    		<plugins>
    			<plugin>
    				<groupId>org.springframework.boot</groupId>
    				<artifactId>spring-boot-maven-plugin</artifactId>
    			</plugin>
    		</plugins>
    	</build>

    </project>

## applicatoin.yml ##

*  zuul 路由配置可以省略，缺省以服务 id 作为访问路径

spring:
      application:
        name: zuul

    server:
      port: 3001

    eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka, http://eureka2:2002/eureka

    zuul:
      routes:
        item-service: /item-service/**
        user-service: /user-service/**
        order-service: /order-service/**

## 主程序 ##

package com.tedu.sp11;

    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;
    import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
    import org.springframework.cloud.netflix.zuul.EnableZuulProxy;

    @EnableZuulProxy
    @EnableDiscoveryClient
    @SpringBootApplication
    public class Sp11ZuulApplication {

    	public static void main(String[] args) {
    		SpringApplication.run(Sp11ZuulApplication.class, args);
    	}

    }

## 启动服务，访问测试 ##

![启动服务][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 37]

## zuul + ribbon 负载均衡 ##

zuul 已经集成了 ribbon，默认已经实现了负载均衡

## zuul + ribbon 重试 ##

### pom.xml 添加 spring-retry 依赖 ###

*  需要 spring-retry 依赖

<dependency>
    	<groupId>org.springframework.retry</groupId>
    	<artifactId>spring-retry</artifactId>
    </dependency>

### 配置 zuul 开启重试，并配置 ribbon 重试参数 ###

*  需要开启重试，默认不开启

spring:
      application:
        name: zuul

    server:
      port: 3001

    eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka, http://eureka2:2002/eureka

    zuul:
      retryable: true

    # routes:
    # item-service: /item-service/**
    # user-service: /user-service/**
    # order-service: /order-service/**

    ribbon:
      ConnectTimeout: 1000
      ReadTimeout: 1000
      MaxAutoRetriesNextServer: 1
      MaxAutoRetries: 1

## zuul + hystrix 降级 ##

### 创建降级类 ###

*  getRoute() 方法中指定应用此降级类的服务id，星号或null值可以通配所有服务

### ItemServiceFallback ###

package com.tedu.sp11;

    import java.io.ByteArrayInputStream;
    import java.io.IOException;
    import java.io.InputStream;

    import org.springframework.cloud.netflix.zuul.filters.route.FallbackProvider;
    import org.springframework.http.HttpHeaders;
    import org.springframework.http.HttpStatus;
    import org.springframework.http.MediaType;
    import org.springframework.http.client.ClientHttpResponse;
    import org.springframework.stereotype.Component;

    import com.tedu.web.util.JsonResult;

    import lombok.extern.slf4j.Slf4j;

    @Slf4j
    @Component
    public class ItemServiceFallback implements FallbackProvider {
    	@Override
    	public String getRoute() {
    	    //当执行item-service失败，
    	    //应用当前这个降级类
    		return "item-service";
    		//星号和null都表示所有微服务失败都应用当前降级类
    		//"*"; //null;
    	}

        //该方法返回封装降级响应的对象
        //ClientHttpResponse中封装降级响应
    	@Override
    	public ClientHttpResponse fallbackResponse(String route, Throwable cause) {
            return response();
    	}

    	private ClientHttpResponse response() {
            return new ClientHttpResponse() {
                //下面三个方法都是协议号
                @Override
                public HttpStatus getStatusCode() throws IOException {
                    return HttpStatus.OK;
                }
                @Override
                public int getRawStatusCode() throws IOException {
                    return HttpStatus.OK.value();
                }
                @Override
                public String getStatusText() throws IOException {
                    return HttpStatus.OK.getReasonPhrase();
                }

                @Override
                public void close() {
                }

                @Override
                public InputStream getBody() throws IOException {
                	log.info("fallback body");
                	String s = JsonResult.err().msg("后台服务错误").toString();
                    return new ByteArrayInputStream(s.getBytes("UTF-8"));
                }

                @Override
                public HttpHeaders getHeaders() {
                    HttpHeaders headers = new HttpHeaders();
                    headers.setContentType(MediaType.APPLICATION_JSON);
                    return headers;
                }
            };
        }
    }

#### OrderServiceFallback ####

package com.tedu.sp11;

    import java.io.ByteArrayInputStream;
    import java.io.IOException;
    import java.io.InputStream;

    import org.springframework.cloud.netflix.zuul.filters.route.FallbackProvider;
    import org.springframework.http.HttpHeaders;
    import org.springframework.http.HttpStatus;
    import org.springframework.http.MediaType;
    import org.springframework.http.client.ClientHttpResponse;
    import org.springframework.stereotype.Component;

    import com.tedu.web.util.JsonResult;

    import lombok.extern.slf4j.Slf4j;

    @Slf4j
    @Component
    public class OrderServiceFallback implements FallbackProvider {
    	@Override
    	public String getRoute() {
    		return "order-service"; //"*"; //null;
    	}

    	@Override
    	public ClientHttpResponse fallbackResponse(String route, Throwable cause) {
            return response();
    	}

    	private ClientHttpResponse response() {
            return new ClientHttpResponse() {
                @Override
                public HttpStatus getStatusCode() throws IOException {
                    return HttpStatus.OK;
                }
                @Override
                public int getRawStatusCode() throws IOException {
                    return HttpStatus.OK.value();
                }
                @Override
                public String getStatusText() throws IOException {
                    return HttpStatus.OK.getReasonPhrase();
                }

                @Override
                public void close() {
                }

                @Override
                public InputStream getBody() throws IOException {
                	log.info("fallback body");
                	String s = JsonResult.err().msg("后台服务错误").toString();
                    return new ByteArrayInputStream(s.getBytes("UTF-8"));
                }

                @Override
                public HttpHeaders getHeaders() {
                    HttpHeaders headers = new HttpHeaders();
                    headers.setContentType(MediaType.APPLICATION_JSON);
                    return headers;
                }
            };
        }
    }

## zuul + hystrix 熔断 ##

降低 hystrix 超时时间，以便测试降级

spring:
      application:
        name: zuul

    server:
      port: 3001

    eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka, http://eureka2:2002/eureka

    zuul:
      retryable: true

    ribbon:
      ConnectTimeout: 1000
      ReadTimeout: 2000
      MaxAutoRetriesNextServer: 1
      MaxAutoRetries: 1

    hystrix:
      command:
        default:
          execution:
            isolation:
              thread:
                timeoutInMilliseconds: 500

![降级][20191030124719241.png]

## zuul + hystrix dashboard 监控 ##

### 暴露 hystrix.stream 监控端点 ###

*  zuul 已经包含 actuator 依赖

management:
      endpoints:
        web:
          exposure:
            include: hystrix.stream

*  查看暴露的监控端点
    [http://localhost:3001/actuator][http_localhost_3001_actuator]
    [http://localhost:3001/actuator/hystrix.stream][http_localhost_3001_actuator_hystrix.stream]

### 开启监控 ###

启动 sp08-hystrix-dashboard，填入 zuul 的监控端点路径，开启监控

[http://localhost:4001/hystrix][http_localhost_4001_hystrix]

填入监控端点：
[http://localhost:3001/actuator/hystrix.stream][http_localhost_3001_actuator_hystrix.stream]

![监控][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 38]

### zuul + turbine 聚合监控 ###

修改 turbine 项目，聚合 zuul 服务实例

spring:
      application:
        name: turbin

    server:
      port: 5001

    eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka, http://eureka2:2002/eureka

    turbine:
      app-config: order-service, zuul
      cluster-name-expression: new String("default")

*  turbine 聚合监控端点
    [http://localhost:5001/turbine.stream][http_localhost_5001_turbine.stream]

![监控][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 39]

## 熔断测试 ##

ab -n 20000 -c 50 http://localhost:3001/order-service/123abc

![熔断][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 40]

--------------------

# 二十一、zuul 请求过滤 #

![zuul过滤器][zuul 2]

## 定义过滤器，继承 ZuulFilter ##

在 sp11-zuul 项目中新建过滤器类

package com.tedu.sp11.filter;

    import javax.servlet.http.HttpServletRequest;

    import org.springframework.cloud.netflix.zuul.filters.support.FilterConstants;
    import org.springframework.stereotype.Component;

    import com.netflix.zuul.ZuulFilter;
    import com.netflix.zuul.context.RequestContext;
    import com.netflix.zuul.exception.ZuulException;
    import com.tedu.web.util.JsonResult;

    @Component
    public class AccessFilter extends ZuulFilter{
    	@Override
    	public boolean shouldFilter() {
    	    //对指定的serviceid过滤，如果要过滤所有服务，直接返回 true

    		RequestContext ctx = RequestContext.getCurrentContext();
    		String serviceId = (String) ctx.get(FilterConstants.SERVICE_ID_KEY);
    		if(serviceId.equals("item-service")) {
    			return true;
    		}
    		return false;
    	}

    	@Override
    	public Object run() throws ZuulException {
    		RequestContext ctx = RequestContext.getCurrentContext();
    		HttpServletRequest req = ctx.getRequest();
    		String at = req.getParameter("token");
    		if (at == null) {
    			//此设置会阻止请求被路由到后台微服务
    			ctx.setSendZuulResponse(false);
    			ctx.setResponseStatusCode(200);
    			ctx.setResponseBody(JsonResult.err().code(JsonResult.NOT_LOGIN).toString());
    		}
    		//zuul过滤器返回的数据设计为以后扩展使用，
    		//目前该返回值没有被使用
    		return null;
    	}

    	@Override
    	public String filterType() {
    		return FilterConstants.PRE_TYPE;
    	}

    	@Override
    	public int filterOrder() {
    	    //该过滤器顺序要 > 5，才能得到 serviceid
    		return FilterConstants.PRE_DECORATION_FILTER_ORDER+1;
    	}
    }

## 访问测试 ##

*  没有token参数不允许访问
    [http://localhost:3001/item-service/35][http_localhost_3001_item-service_35]
 *  有token参数可以访问
    [http://localhost:3001/item-service/35?token=1234][http_localhost_3001_item-service_35_token_1234]

--------------------

# 二十二、zuul Cookie过滤 #

zuul 会过滤敏感 http 协议头，默认过滤以下协议头：

*  Cookie
 *  Set-Cookie
 *  Authorization

可以设置 zuul 不过滤这些协议头

zuul:
      sensitive-headers:

--------------------

# 二十三、config 配置中心 #

![配置中心][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 41]

yml 配置文件保存到 git 服务器，例如 github.com 或 gitee.com

微服务启动时，从服务器获取配置文件

## github 上存放配置文件 ##

### 新建 “Project”,命名为 config ###

![新建空白项目][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 42]
![新建空白项目][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 43]

### 将sp02,sp03,sp04,sp11四个项目的yml配置文件,复制到config项目,并改名 ###

*  item-service-dev.yml
 *  user-service-dev.yml
 *  order-service-dev.yml
 *  zuul-dev.yml

![配置文件][20191030130925523.png]

### 将 config 项目上传到 github ###

*  新建仓库

![新建仓库][20191030163035508.png]

*  仓库命名

![仓库命名][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 44]

*  将项目分享到仓库

![分享][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 45]

*  选择新建本地仓库
 *  仓库目录选择工作空间目录下一个新目录: `git-repo`

![新建本地仓库][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 46]

*  提交项目

## ![提交][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 47] ##

![提交][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 48]

--------------------

*  填写sp-config仓库地址

![仓库][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 49]

*  查看远程仓库文件

![远程仓库][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 50]

## config 服务器 ##

config 配置中心从 git 下载所有配置文件。

微服务启动时，从 config 配置中心获取配置信息。

### 新建 sp12-config 项目 ###

![config项目][config]

![添加依赖][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 51]

### pom.xml ###

<?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    	<modelVersion>4.0.0</modelVersion>
    	<parent>
    		<groupId>org.springframework.boot</groupId>
    		<artifactId>spring-boot-starter-parent</artifactId>
    		<version>2.1.4.RELEASE</version>
    		<relativePath/>
    	</parent>
    	<groupId>com.tedu</groupId>
    	<artifactId>sp12-config</artifactId>
    	<version>0.0.1-SNAPSHOT</version>
    	<name>sp12-config</name>
    	<description>Demo project for Spring Boot</description>

    	<properties>
    		<java.version>1.8</java.version>
    		<spring-cloud.version>Greenwich.SR1</spring-cloud.version>
    	</properties>

    	<dependencies>
    		<dependency>
    			<groupId>org.springframework.cloud</groupId>
    			<artifactId>spring-cloud-config-server</artifactId>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework.cloud</groupId>
    			<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    		</dependency>

    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-test</artifactId>
    			<scope>test</scope>
    		</dependency>
    	</dependencies>

    	<dependencyManagement>
    		<dependencies>
    			<dependency>
    				<groupId>org.springframework.cloud</groupId>
    				<artifactId>spring-cloud-dependencies</artifactId>
    				<version>${spring-cloud.version}</version>
    				<type>pom</type>
    				<scope>import</scope>
    			</dependency>
    		</dependencies>
    	</dependencyManagement>

    	<build>
    		<plugins>
    			<plugin>
    				<groupId>org.springframework.boot</groupId>
    				<artifactId>spring-boot-maven-plugin</artifactId>
    			</plugin>
    		</plugins>
    	</build>

    </project>

### application.yml ###

spring:
      application:
        name: config-server

      cloud:
        config:
          server:
            git:
              uri: https://github.com/你的个人路径/sp-config
              searchPaths: config
              #username: your-username
              #password: your-password

    server:
      port: 6001

    eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka, http://eureka2:2002/eureka

### 主程序添加 `@EnableConfigServer` 和 `@EnableDiscoveryClient` ###

package com.tedu.sp12;

    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;
    import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
    import org.springframework.cloud.config.server.EnableConfigServer;

    @EnableConfigServer
    @EnableDiscoveryClient
    @SpringBootApplication
    public class Sp12ConfigApplication {

    	public static void main(String[] args) {
    		SpringApplication.run(Sp12ConfigApplication.class, args);
    	}

    }

### 启动，访问测试 ###

访问 item-service-dev.yml 可以使用以下形式:

[http://localhost:6001/item-service-dev.yml][http_localhost_6001_item-service-dev.yml]
[http://localhost:6001/item-service/dev][http_localhost_6001_item-service_dev]

测试其他文件

[http://localhost:6001/user-service/dev][http_localhost_6001_user-service_dev]
[http://localhost:6001/zuul/dev][http_localhost_6001_zuul_dev]
…

## config 客户端 ##

修改以下项目，从配置中心获取配置信息

*  sp02-itemservice
 *  sp03-userservice
 *  sp04-orderservice
 *  sp11-zuul

### pom.xml 添加 config 客户端依赖 ###

<dependency>
    	<groupId>org.springframework.cloud</groupId>
    	<artifactId>spring-cloud-starter-config</artifactId>
    </dependency>

### 在四个项目中添加 bootstrap.yml ###

bootstrap.yml，引导配置文件，先于 application.yml 加载

*  item-service

spring:
      cloud:
        config:
          discovery:
            enabled: true
            service-id: config-server
          name: item-service
          profile: dev

    eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka, http://eureka2:2002/eureka

*  user-service

spring:
      cloud:
        config:
          discovery:
            enabled: true
            service-id: config-server
          name: user-service
          profile: dev

    eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka, http://eureka2:2002/eureka

*  order-service

spring:
      cloud:
        config:
          discovery:
            enabled: true
            service-id: config-server
          name: order-service
          profile: dev

    eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka, http://eureka2:2002/eureka

*  zuul

spring:
      cloud:
        config:
          discovery:
            enabled: true
            service-id: config-server
          name: zuul
          profile: dev

    eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka, http://eureka2:2002/eureka

## 启动服务，观察从配置中心获取配置信息的日志 ##

![启动项目][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 52]

![日志][20191031124021592.png]

## 配置刷新 ##

spring cloud 允许运行时动态刷新配置，可以重新加载本地配置文件 application.yml，或者从配置中心获取新的配置信息

以 `user-service` 为例演示配置刷新

### pom.xml ###

user-service 的 pom.xml 中添加 actuator 依赖

<dependency>
    	<groupId>org.springframework.boot</groupId>
    	<artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>

### yml 配置文件中暴露 refresh 端点 ###

*  修改 github 仓库中的 `user-service-dev.yml`

sp:
      user-service:
        users: "[{\"id\":7, \"username\":\"abc\",\"password\":\"123\"},{\"id\":8, \"username\":\"def\",\"password\":\"456\"},{\"id\":9, \"username\":\"ghi\",\"password\":\"789\"}]"

    spring:
      application:
        name: user-service

    server:
      port: 8101

    eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka, http://eureka1:2002/eureka

    management:
      endpoints:
        web:
          exposure:
            include: refresh

### 重启服务，查看暴露的刷新端点 ###

*  查看暴露的刷新端点
    [http://localhost:8101/actuator][http_localhost_8101_actuator]

![刷新端点][20191031124212258.png]

### UserServiceImpl 添加 `@RefreshScope` 注解 ###

*  只允许对添加了 `@RefreshScope` 或 `@ConfigurationProperties` 注解的 Bean 刷新配置，可以将更新的配置数据注入到 Bean 中

package com.tedu.sp03.user.service;

    import java.util.List;

    import org.springframework.beans.factory.annotation.Value;
    import org.springframework.cloud.context.config.annotation.RefreshScope;
    import org.springframework.stereotype.Service;

    import com.fasterxml.jackson.core.type.TypeReference;
    import com.tedu.sp01.pojo.User;
    import com.tedu.sp01.service.UserService;
    import com.tedu.web.util.JsonUtil;

    import lombok.extern.slf4j.Slf4j;

    @RefreshScope
    @Slf4j
    @Service
    public class UserServiceImpl implements UserService {

        //动态刷新时，更新的配置数据，会重新注入
    	@Value("${sp.user-service.users}")
    	private String userJson;

    	@Override
    	public User getUser(Integer id) {
    		log.info("users json string : "+userJson);
    		List<User> list = JsonUtil.from(userJson, new TypeReference<List<User>>() { });
    		for (User u : list) {
    			if (u.getId().equals(id)) {
    				return u;
    			}
    		}

    		return new User(id, "name-"+id, "pwd-"+id);
    	}

    	@Override
    	public void addScore(Integer id, Integer score) {
    		//TODO 这里增加积分
    		log.info("user "+id+" - 增加积分 "+score);
    	}

    }

## 先启动 user-service，再修改 config项目的user-service-dev.yml文件并提交 ##

*  在末尾添加了一个新的用户数据

## 访问刷新端点刷新配置 ##

*  刷新端点路径：
    [http://localhost:8101/actuator/refresh][http_localhost_8101_actuator_refresh]
 *  使用 postman 向刷新端点发送 post 请求

![postman][postman 1]

## 访问 user-service，查看动态更新的新用户数据 ##

*  [http://localhost:8101/99][http_localhost_8101_99]

![新数据][20191031131318812.png]

--------------------

# 二十四、config bus + rabbitmq 消息总线配置刷新 #

![bus][]

post 请求消息总线刷新端点，服务器会向 rabbitmq 发布刷新消息，接收到消息的微服务会向配置服务器请求刷新配置信息

## rabbitmq 安装笔记 ##

*  [https://blog.csdn.net/weixin\_38305440/article/details/102810522][https_blog.csdn.net_weixin_38305440_article_details_102810522]

## 需要动态更新配置的微服务，添加 spring cloud bus 依赖，并添加 rabbitmq 连接信息 ##

修改以下微服务

*  item-service
 *  user-service
 *  order-service
 *  zuul

### pom.xml 添加 spring cloud bus 依赖 ###

此处也可以使用 STS 编辑起步依赖，分别添加 bus、rabbitmq 依赖

*  不能用 STS 插件来添加 bus 依赖，复制下面代码到 pom 文件

<dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-bus-amqp</artifactId>
    </dependency>

### 配置文件中添加 rabbitmq 连接信息 ###

*  在config项目中修改,并提交到github
 *  连接信息请修改成你的连接信息

spring:
      ......
      rabbitmq:
        host: 192.168.64.140
        port: 5672
        username: admin
        password: admin

## config-server 添加 spring cloud bus 依赖、配置rabbitmq连接信息，并暴露 bus-refresh 监控端点 ##

### pom.xml ###

*  不能用 STS 插件来添加 bus 依赖，复制下面代码到 pom 文件

<dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-bus-amqp</artifactId>
    </dependency>

### application.yml ###

spring:
      application:
        name: config-server

      cloud:
        config:
          server:
            git:
              uri: https://github.com/你的名字路径/sp-config
              searchPaths: config
              #username: your-username
              #password: your-password

      rabbitmq:
        host: 192.168.64.140
        port: 5672
        username: admin
        password: admin


    server:
      port: 6001

    eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka, http://eureka2:2002/eureka

    management:
      endpoints:
        web:
          exposure:
            include: bus-refresh

*  查看刷新端点
    [http://localhost:6001/actuator][http_localhost_6001_actuator]

![刷新端点][20191031151933361.png]

## 启动服务，请求刷新端点发布刷新消息 ##

![启动服务][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 53]

*  postman 向 bus-refresh 刷新端点发送 post 请求
    [http://localhost:6001/actuator/bus-refresh][http_localhost_6001_actuator_bus-refresh]

![post刷新][post]

*  如果刷新指定的微服务，可按下面格式访问：
    [http://localhost:6001/actuator/bus-refresh/user-service:8101][http_localhost_6001_actuator_bus-refresh_user-service_8101]

## config 本地文系统 ##

可以把配置文件保存在配置中心服务的 resources 目录下，直接访问本地文件

### 把配置文件保存到 sp12-config 项目的 resources/config 目录下 ###

![本地目录][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 54]

### 修改 application.yml 激活 native profile，并指定配置文件目录 ###

*  必须配置 `spring.profiles.active=native` 来激活本地文件系统
 *  本地路径默认：`[classpath:/, classpath:/config, file:./, file:./config]`

spring:
      application:
        name: config-server
      profiles:
        active: native

      cloud:
        config:
          server:
            native:
              search-locations: classpath:/config

    # git:
    # uri: https://github.com/你的用户路径/sp-config
    # searchPaths: config
    # username: your-username
    # password: your-password


      rabbitmq:
        host: 192.168.64.140
        port: 5672
        username: admin
        password: admin


    server:
      port: 6001

    eureka:
      client:
        service-url:
          defaultZone: http://eureka1:2001/eureka, http://eureka2:2002/eureka

    management:
      endpoints:
        web:
          exposure:
            include: bus-refresh

--------------------

# 二十五、sleuth 链路跟踪 #

随着系统规模越来越大，微服务之间调用关系变得错综复杂，一条调用链路中可能调用多个微服务，任何一个微服务不可用都可能造整个调用过程失败

spring cloud sleuth 可以跟踪调用链路，分析链路中每个节点的执行情况

## 微服务中添加 spring cloud sleuth 依赖 ##

修改以下微服务的 pom.xml，添加 sleuth 依赖

*  item-service
 *  user-service
 *  order-service
 *  zuul

<dependency>
    	<groupId>org.springframework.cloud</groupId>
    	<artifactId>spring-cloud-starter-sleuth</artifactId>
    </dependency>

## 在控制台查看链路跟踪日志 ##

*  通过 zuul 网关，访问 order-service
    [http://localhost:3001/order-service/112233][http_localhost_3001_order-service_112233]

四个微服务的控制台日志中，可以看到以下信息：
`[服务id,请求id,span id,是否发送到zipkin]`

*  **请求id**：请求到达第一个微服务时生成一个请求id，该id在调用链路中会一直向后面的微服务传递
 *  **span id**：链路中每一步微服务调用，都生成一个新的id

\[zuul,6c24c0a7a8e7281a,**6c24c0a7a8e7281a**,false\]

\[order-service,6c24c0a7a8e7281a,**993f53408ab7b6e3**,false\]

\[item-service,6c24c0a7a8e7281a,**ce0c820204dbaae1**,false\]

\[user-service,6c24c0a7a8e7281a,**fdd1e177f72d667b**,false\]

--------------------

# 二十六、sleuth + zipkin 链路分析 #

zipkin 可以收集链路跟踪数据，提供可视化的链路分析

## 链路数据抽样比例 ##

默认 10% 的链路数据会被发送到 zipkin 服务。可以配置修改抽样比例

spring:
      sleuth:
        sampler:
          probability: 0.1

## zipkin 服务 ##

### 下载 zipkin 服务器 ###

*  [https://github.com/openzipkin/zipkin][https_github.com_openzipkin_zipkin]

![下载zipkin][zipkin]

### 启动 zipkin 时，连接到 rabbitmq ###

`java -jar zipkin-server-2.12.9-exec.jar --zipkin.collector.rabbitmq.uri=amqp://admin:admin@192.168.64.140:5672`

![启动][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 55]

*  [http://localhost:9411/zipkin][http_localhost_9411_zipkin]

![zipkin][zipkin 1]

## 微服务添加 zipkin 起步依赖 ##

修改以下微服务

*  item-service
 *  user-service
 *  order-service
 *  zuul

<dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-zipkin</artifactId>
    </dependency>

如果没有配置过 spring cloud bus，需要再添加 `spring-cloud-starter-stream-rabbit` 依赖和 rabbitmq 连接信息

## 启动并访问服务，访问 zipkin 查看链路分析 ##

*  [http://localhost:3001/order-service/112233][http_localhost_3001_order-service_112233]
    刷新访问多次，链路跟踪数据中，默认只有 10% 会被收集到zipkin
 *  访问 zipkin
    [http://localhost:9411/zipkin][http_localhost_9411_zipkin]

![zipkin][zipkin 2]

![zipkin][zipkin 3]

![zipkin][zipkin 4]

[https_blog.csdn.net_weixin_38305440_article_details_102775484]: https://blog.csdn.net/weixin_38305440/article/details/102775484
[20191028102025115.png]: https://img-blog.csdnimg.cn/20191028102025115.png
[commons]: https://img-blog.csdnimg.cn/20191028102519800.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[java]: https://img-blog.csdnimg.cn/20191028102700544.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[itemservice]: https://img-blog.csdnimg.cn/20191028102801846.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70]: https://img-blog.csdnimg.cn/20191028102936696.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[yml]: https://img-blog.csdnimg.cn/2019102810305812.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[java 1]: https://img-blog.csdnimg.cn/20191028103200829.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[http_localhost_8001_35]: http://localhost:8001/35
[postman]: https://img-blog.csdnimg.cn/20191028104035855.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[userservice]: https://img-blog.csdnimg.cn/20191028103304596.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 1]: https://img-blog.csdnimg.cn/20191028103354466.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[java 2]: https://img-blog.csdnimg.cn/20191028103501795.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[http_localhost_8101_7]: http://localhost:8101/7
[http_localhost_8101_7_score_score_100]: http://localhost:8101/7/score?score=100
[orderservice]: https://img-blog.csdnimg.cn/2019102810371539.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 2]: https://img-blog.csdnimg.cn/20191028103829362.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[java 3]: https://img-blog.csdnimg.cn/2019102810392710.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[http_localhost_8201_123abc]: http://localhost:8201/123abc
[http_localhost_8201]: http://localhost:8201/
[eureka]: https://img-blog.csdnimg.cn/20191028104717287.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[eureka 1]: https://img-blog.csdnimg.cn/20191029114546111.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 3]: https://img-blog.csdnimg.cn/20191029114625602.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[http_eureka1_2001]: http://eureka1:2001
[eureka 2]: https://img-blog.csdnimg.cn/20191029114824521.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[20191029115233445.png]: https://img-blog.csdnimg.cn/20191029115233445.png
[eureka 3]: https://img-blog.csdnimg.cn/20191029115215619.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[eureka_item]: https://img-blog.csdnimg.cn/20191029165907586.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 4]: https://img-blog.csdnimg.cn/2019102913174344.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 5]: https://img-blog.csdnimg.cn/20191029131853898.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 6]: https://img-blog.csdnimg.cn/20191029132016315.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 7]: https://img-blog.csdnimg.cn/20191029132057928.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 8]: https://img-blog.csdnimg.cn/201910291321341.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[http_eureka1_2001 1]: http://eureka1:2001/
[eureka1]: https://img-blog.csdnimg.cn/20191029132219665.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[http_eureka2_2002]: http://eureka2:2002/
[eureka2]: https://img-blog.csdnimg.cn/20191029132258671.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 9]: https://img-blog.csdnimg.cn/2019102913235110.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 10]: https://img-blog.csdnimg.cn/20191029132439301.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 11]: https://img-blog.csdnimg.cn/20191029132510915.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 12]: https://img-blog.csdnimg.cn/20191029132550994.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 13]: https://img-blog.csdnimg.cn/20191029132636986.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 14]: https://img-blog.csdnimg.cn/2019102913272235.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[http_localhost_8002_35]: http://localhost:8002/35
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 15]: https://img-blog.csdnimg.cn/20191029165501146.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[ribbon]: https://img-blog.csdnimg.cn/20191029115951187.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 16]: https://img-blog.csdnimg.cn/20191029120035611.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[20191029120116428.png]: https://img-blog.csdnimg.cn/20191029120116428.png
[http_localhost_3001_item-service_35]: http://localhost:3001/item-service/35
[http_localhost_3001_user-service_7]: http://localhost:3001/user-service/7
[http_localhost_3001_user-service_7_score_score_100]: http://localhost:3001/user-service/7/score?score=100
[http_localhost_3001_order-service_123abc]: http://localhost:3001/order-service/123abc
[http_localhost_3001_order-service]: http://localhost:3001/order-service/
[ribbon 1]: https://img-blog.csdnimg.cn/20191029165424201.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[http_localhost_3001_item-service_34]: http://localhost:3001/item-service/34
[20191029153021140.png]: https://img-blog.csdnimg.cn/20191029153021140.png
[20191029153055609.png]: https://img-blog.csdnimg.cn/20191029153055609.png
[20191029153206686.png]: https://img-blog.csdnimg.cn/20191029153206686.png
[20191029153233801.png]: https://img-blog.csdnimg.cn/20191029153233801.png
[https_github.com_Netflix_Hystrix_wiki]: https://github.com/Netflix/Hystrix/wiki
[hystrix]: https://img-blog.csdnimg.cn/20191029165255589.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[item]: https://img-blog.csdnimg.cn/20191029153552336.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 17]: https://img-blog.csdnimg.cn/20191029153631806.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[20191029153712338.png]: https://img-blog.csdnimg.cn/20191029153712338.png
[pom]: https://img-blog.csdnimg.cn/20191029153744349.png
[yml 1]: https://img-blog.csdnimg.cn/20191029153819157.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 18]: https://img-blog.csdnimg.cn/20191029153927316.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 19]: https://img-blog.csdnimg.cn/20191029154011635.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[dashboard]: https://img-blog.csdnimg.cn/20191029165134588.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[http_localhost_3001_actuator]: http://localhost:3001/actuator
[actuator]: https://img-blog.csdnimg.cn/20191029154352390.png
[dashboard 1]: https://img-blog.csdnimg.cn/20191029154457541.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 20]: https://img-blog.csdnimg.cn/20191029154531523.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 21]: https://img-blog.csdnimg.cn/20191029154606948.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[http_localhost_4001_hystrix]: http://localhost:4001/hystrix
[dashboard 2]: https://img-blog.csdnimg.cn/20191029154706792.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[http_localhost_3001_actuator_hystrix.stream]: http://localhost:3001/actuator/hystrix.stream
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 22]: https://img-blog.csdnimg.cn/20191029154751116.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 23]: https://img-blog.csdnimg.cn/20191029154935205.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 24]: https://img-blog.csdnimg.cn/20191029155014226.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[http_httpd.apache.org_docs_current_platform_windows.html_down]: http://httpd.apache.org/docs/current/platform/windows.html#down
[Apache]: https://img-blog.csdnimg.cn/20191029164239119.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 25]: https://img-blog.csdnimg.cn/20191029164345784.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[https_github.com_Netflix_Hystrix_wiki_Configuration]: https://github.com/Netflix/Hystrix/wiki/Configuration
[feign]: https://img-blog.csdnimg.cn/20191030151514789.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[feign 1]: https://img-blog.csdnimg.cn/20191029170909123.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 26]: https://img-blog.csdnimg.cn/20191029171128796.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[java 4]: https://img-blog.csdnimg.cn/20191029171214513.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 27]: https://img-blog.csdnimg.cn/20191029171259323.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 28]: https://img-blog.csdnimg.cn/20191029171350350.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[20191029171433236.png]: https://img-blog.csdnimg.cn/20191029171433236.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 29]: https://img-blog.csdnimg.cn/20191030151413570.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[20191029171847711.png]: https://img-blog.csdnimg.cn/20191029171847711.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 30]: https://img-blog.csdnimg.cn/20191029171942848.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 31]: https://img-blog.csdnimg.cn/20191029172040524.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[order_user_item]: https://img-blog.csdnimg.cn/2019103015114965.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[2019102917354185.png]: https://img-blog.csdnimg.cn/2019102917354185.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 32]: https://img-blog.csdnimg.cn/20191029173632205.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[http_localhost_8201_actuator_hystrix.stream]: http://localhost:8201/actuator/hystrix.stream
[http_localhost_8202_actuator_hystrix.stream]: http://localhost:8202/actuator/hystrix.stream
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 33]: https://img-blog.csdnimg.cn/20191029173738664.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[turbine]: https://img-blog.csdnimg.cn/2019103015181115.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[turbine 1]: https://img-blog.csdnimg.cn/20191030101042811.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 34]: https://img-blog.csdnimg.cn/20191030101126601.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[http_localhost_5001_turbine.stream]: http://localhost:5001/turbine.stream
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 35]: https://img-blog.csdnimg.cn/2019103010144138.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[http_localhost_8201_abc123]: http://localhost:8201/abc123
[http_localhost_8202_abc123]: http://localhost:8202/abc123
[http_localhost_8202]: http://localhost:8202/
[zuul]: https://img-blog.csdnimg.cn/20191030151939810.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[zuul 1]: https://img-blog.csdnimg.cn/20191030124456446.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 36]: https://img-blog.csdnimg.cn/20191030124532539.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 37]: https://img-blog.csdnimg.cn/20191030124624209.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[20191030124719241.png]: https://img-blog.csdnimg.cn/20191030124719241.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 38]: https://img-blog.csdnimg.cn/20191030124823545.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 39]: https://img-blog.csdnimg.cn/20191030124913682.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 40]: https://img-blog.csdnimg.cn/20191030125034120.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[zuul 2]: https://img-blog.csdnimg.cn/20191030125116443.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[http_localhost_3001_item-service_35_token_1234]: http://localhost:3001/item-service/35?token=1234
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 41]: https://img-blog.csdnimg.cn/20191030152100641.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 42]: https://img-blog.csdnimg.cn/20191030130650966.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 43]: https://img-blog.csdnimg.cn/20191030130831386.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[20191030130925523.png]: https://img-blog.csdnimg.cn/20191030130925523.png
[20191030163035508.png]: https://img-blog.csdnimg.cn/20191030163035508.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 44]: https://img-blog.csdnimg.cn/20191030163204288.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 45]: https://img-blog.csdnimg.cn/20191030163404298.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 46]: https://img-blog.csdnimg.cn/2019103016362142.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 47]: https://img-blog.csdnimg.cn/20191031120649372.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 48]: https://img-blog.csdnimg.cn/20191031120858310.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 49]: https://img-blog.csdnimg.cn/20191031120954689.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 50]: https://img-blog.csdnimg.cn/20191031121030540.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[config]: https://img-blog.csdnimg.cn/20191031123815335.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 51]: https://img-blog.csdnimg.cn/20191031123854729.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[http_localhost_6001_item-service-dev.yml]: http://localhost:6001/item-service-dev.yml
[http_localhost_6001_item-service_dev]: http://localhost:6001/item-service/dev
[http_localhost_6001_user-service_dev]: http://localhost:6001/user-service/dev
[http_localhost_6001_zuul_dev]: http://localhost:6001/zuul/dev
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 52]: https://img-blog.csdnimg.cn/20191031123947152.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[20191031124021592.png]: https://img-blog.csdnimg.cn/20191031124021592.png
[http_localhost_8101_actuator]: http://localhost:8101/actuator
[20191031124212258.png]: https://img-blog.csdnimg.cn/20191031124212258.png
[http_localhost_8101_actuator_refresh]: http://localhost:8101/actuator/refresh
[postman 1]: https://img-blog.csdnimg.cn/20191031124321991.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[http_localhost_8101_99]: http://localhost:8101/99
[20191031131318812.png]: https://img-blog.csdnimg.cn/20191031131318812.png
[bus]: https://img-blog.csdnimg.cn/20191031131223131.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[https_blog.csdn.net_weixin_38305440_article_details_102810522]: https://blog.csdn.net/weixin_38305440/article/details/102810522
[http_localhost_6001_actuator]: http://localhost:6001/actuator
[20191031151933361.png]: https://img-blog.csdnimg.cn/20191031151933361.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 53]: https://img-blog.csdnimg.cn/20191031152057292.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[http_localhost_6001_actuator_bus-refresh]: http://localhost:6001/actuator/bus-refresh
[post]: https://img-blog.csdnimg.cn/20191031152133336.png
[http_localhost_6001_actuator_bus-refresh_user-service_8101]: http://localhost:6001/actuator/bus-refresh/user-service:8101
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 54]: https://img-blog.csdnimg.cn/20191031152517683.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[http_localhost_3001_order-service_112233]: http://localhost:3001/order-service/112233
[https_github.com_openzipkin_zipkin]: https://github.com/openzipkin/zipkin
[zipkin]: https://img-blog.csdnimg.cn/2019103115261954.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA_size_16_color_FFFFFF_t_70 55]: https://img-blog.csdnimg.cn/20191031152709392.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[http_localhost_9411_zipkin]: http://localhost:9411/zipkin
[zipkin 1]: https://img-blog.csdnimg.cn/201910311528043.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[zipkin 2]: https://img-blog.csdnimg.cn/20191031152911582.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[zipkin 3]: https://img-blog.csdnimg.cn/20191031152955273.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
[zipkin 4]: https://img-blog.csdnimg.cn/20191031153030137.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl8zODMwNTQ0MA==,size_16,color_FFFFFF,t_70
