eclipse如何安装/配置Android安卓环境

た入场券 2023-06-13 06:05 52阅读 0赞

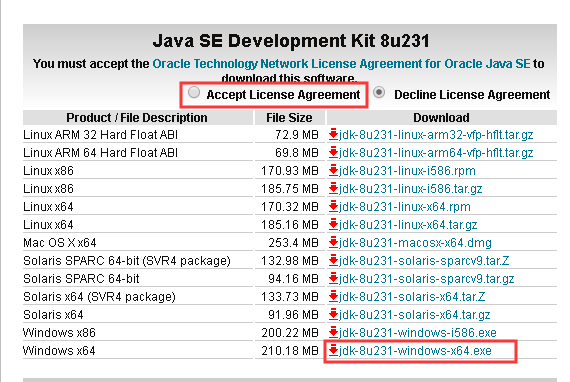

## 下载JDK ##

网址：[https://www.oracle.com/technetwork/java/javase/downloads/jdk8-downloads-2133151.html][https_www.oracle.com_technetwork_java_javase_downloads_jdk8-downloads-2133151.html]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3NoZW5xaWFua2s_size_16_color_FFFFFF_t_70]

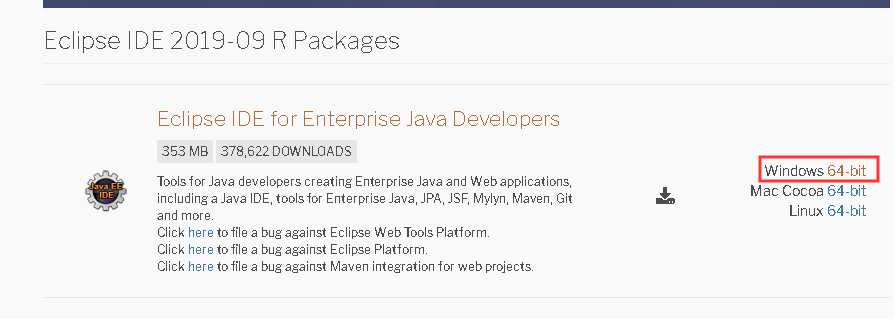

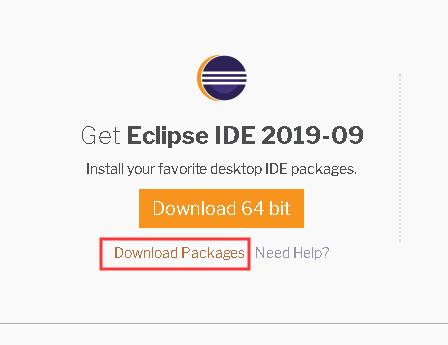

## 下载eclipse ##

网址：[https://www.eclipse.org/downloads/packages/][https_www.eclipse.org_downloads_packages]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3NoZW5xaWFua2s_size_16_color_FFFFFF_t_70 1]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3NoZW5xaWFua2s_size_16_color_FFFFFF_t_70 2]

## 下载Android SDK和ADT ##

SDK和ADT最好选择相同的版本，我给的是18版本的，大家也可以自己下载对应的新版本
链接：[https://pan.baidu.com/s/14cFR8tzM3ZhAQ7pv3\_3W0A][https_pan.baidu.com_s_14cFR8tzM3ZhAQ7pv3_3W0A]
提取码：flee
链接：[https://pan.baidu.com/s/1MjkVuRrHQgrbh40DWG9z0g][https_pan.baidu.com_s_1MjkVuRrHQgrbh40DWG9z0g]
提取码：uw5v

## 安装JDK和eclipse ##

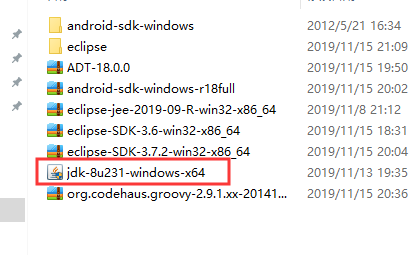

**1. 安装JDK，记住安装路径，不停点击下一步就可以**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3NoZW5xaWFua2s_size_16_color_FFFFFF_t_70 3]

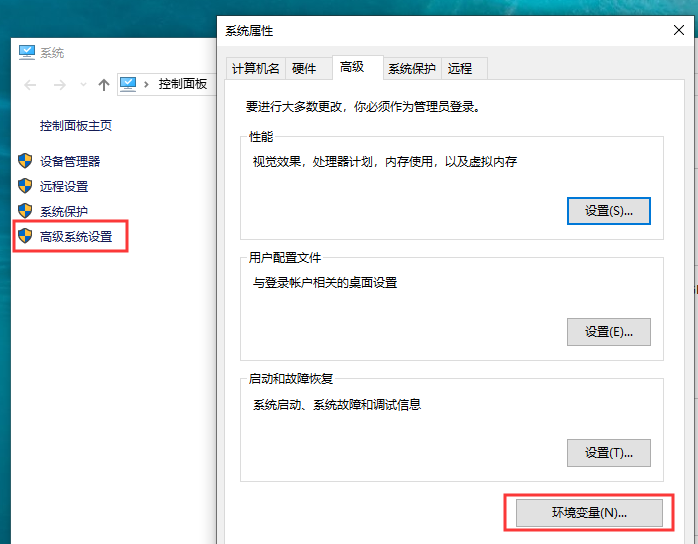

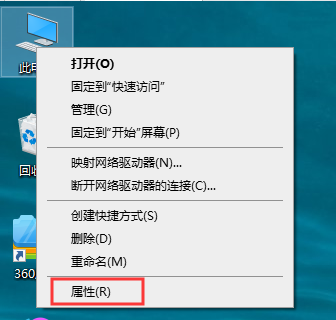

**2. 配置环境变量，**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3NoZW5xaWFua2s_size_16_color_FFFFFF_t_70 4]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3NoZW5xaWFua2s_size_16_color_FFFFFF_t_70 5]
![在这里插入图片描述][20191114144400272.png]

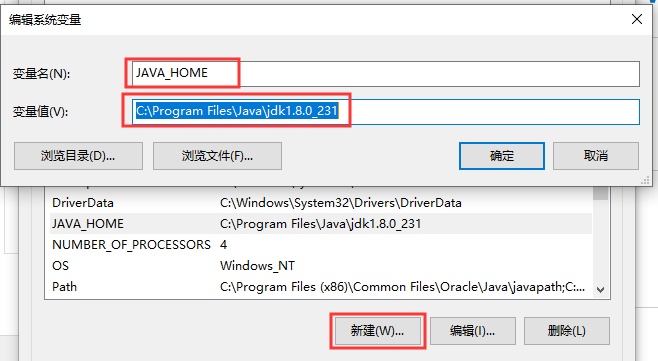

**新建JAVA\_HOME，存放jdk路径**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3NoZW5xaWFua2s_size_16_color_FFFFFF_t_70 6]
![在这里插入图片描述][20191114144517332.png]
![在这里插入图片描述][20191114144537593.png]

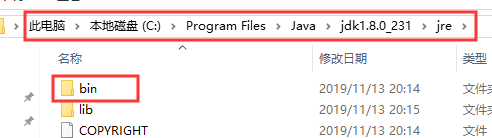

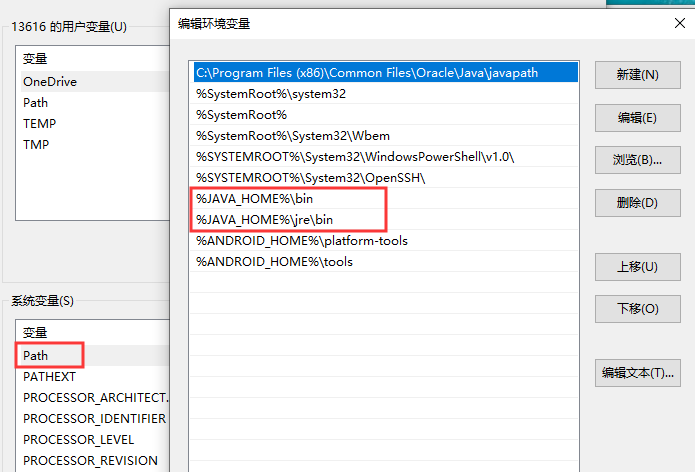

**在Path变量中添加两个bin文件的路径**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3NoZW5xaWFua2s_size_16_color_FFFFFF_t_70 7]

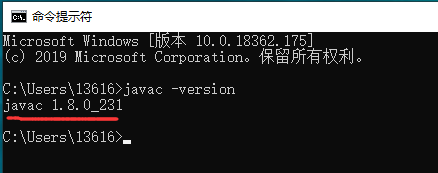

**3. 运行cmd，输入javac -version，有java版本号就说明JDK安装成功**
![在这里插入图片描述][20191114144736149.png]

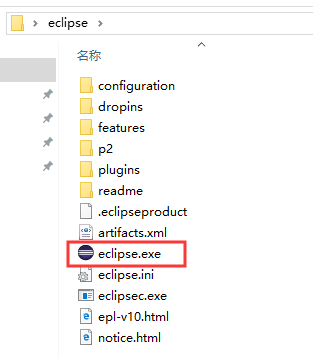

**4. 解压eclipse，直接打开eclipse.exe**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3NoZW5xaWFua2s_size_16_color_FFFFFF_t_70 8]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3NoZW5xaWFua2s_size_16_color_FFFFFF_t_70 9]

## eclipse安装ADT和AndroidSDK ##

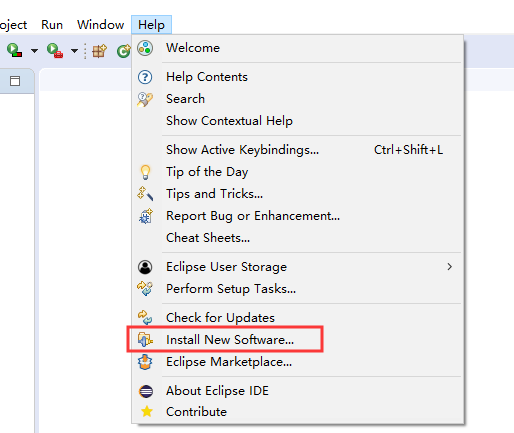

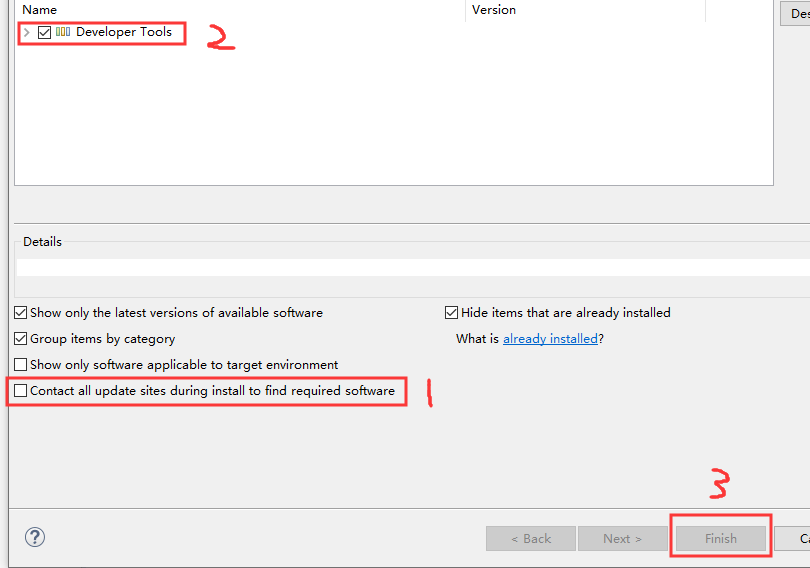

1.  eclipse安装ADT
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3NoZW5xaWFua2s_size_16_color_FFFFFF_t_70 10]

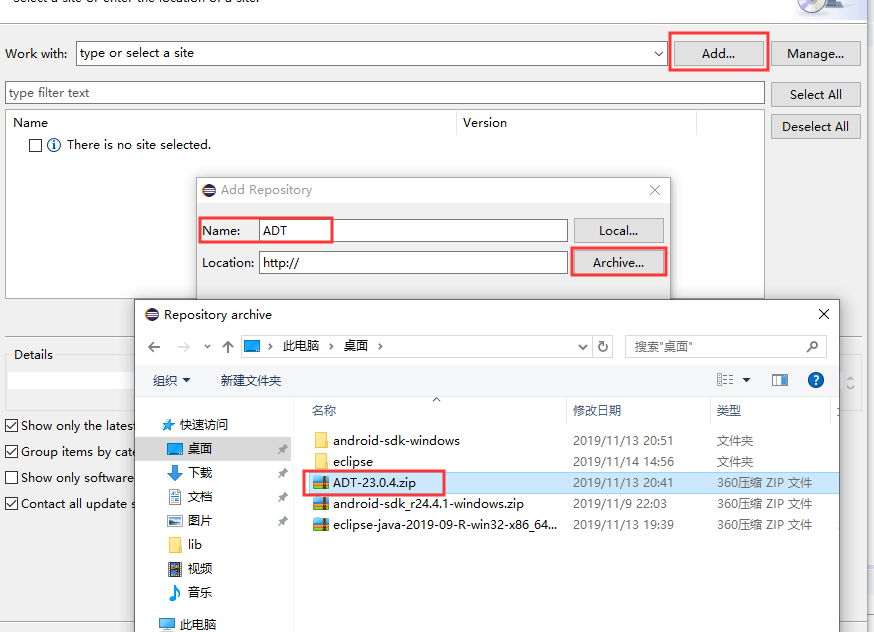

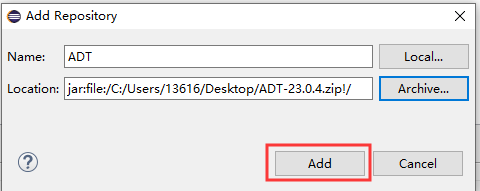

    选择ADT压缩包
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3NoZW5xaWFua2s_size_16_color_FFFFFF_t_70 11]
    ![在这里插入图片描述][20191114145839972.png]
    ![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3NoZW5xaWFua2s_size_16_color_FFFFFF_t_70 12]

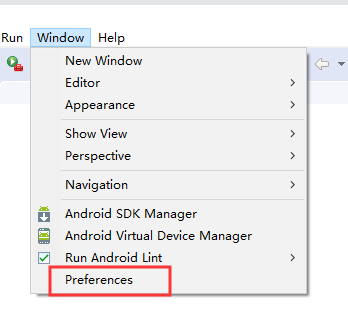

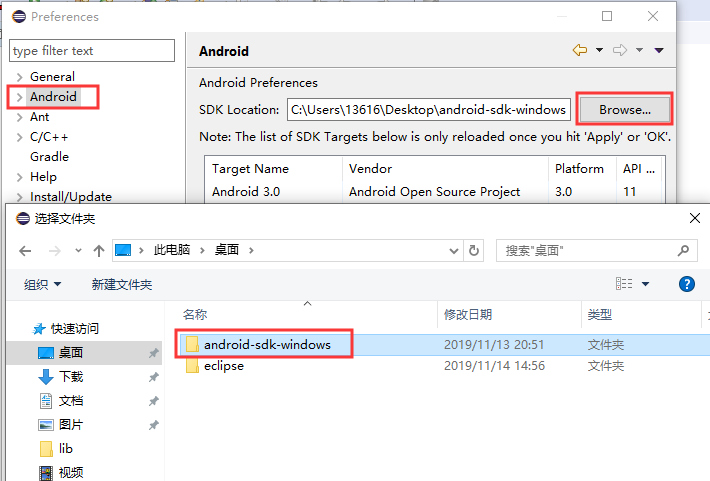

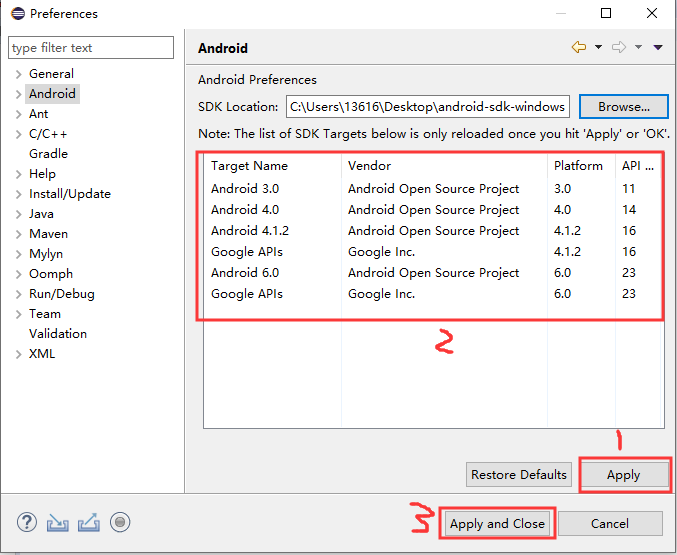

**2. 添加AndroidSDK文件夹**

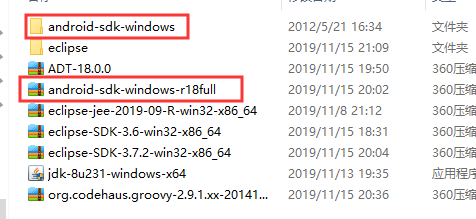

**解压AndroidSDK**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3NoZW5xaWFua2s_size_16_color_FFFFFF_t_70 13]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3NoZW5xaWFua2s_size_16_color_FFFFFF_t_70 14]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3NoZW5xaWFua2s_size_16_color_FFFFFF_t_70 15]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3NoZW5xaWFua2s_size_16_color_FFFFFF_t_70 16]
**安装成功后，工具栏会出现SDK Manager和AVD Manager**
![在这里插入图片描述][2019111415030195.png]
