ROS+OpenCV 人脸识别，物体识别

比眉伴天荒 2023-02-17 11:03 92阅读 0赞

目录

人脸识别

1.环境准备

2.创建工作空间与功能包

3.人脸识别程序

4.launch文件

5.执行

物体追踪

人脸识别

1.环境准备

首先准备ROS系统，基于ros的软件支持opencv,usbcam

apt install ros-kinetic-desktop-full

apt install ros-kinetic-opencv3

apt install ros-kinetic-usb-cam

2.创建工作空间与功能包

在创建功能包时导入依赖库

  1. $ source /opt/ros/kinetic/setup.zsh
  2. $ mkdir -p ~/catkin_ws/src
  3. $ cd ~/catkin_ws/src
  4. $ catkin_init_workspace
  5. $ cd ~/catkin_ws
  6. $ catkin_make
  7. $ souce ~/catkiin_ws/devel/setup.zsh
  8. $ cd ~/catkin_ws/src
  9. $ catkin_create_pkg test1 rospy roscpp std_msgs sensor_msgs cv_bridge image_transport
  10. $ cd ~/catkin_ws
  11. $ catkin_make
  12. $ source devel/setup.zsh

创建文件目录结构

scripts存放代码，launch存放启动文件

  1. $cd test2
  2. $mkdir launch scripts

3.人脸识别程序

$cd test2/scripts

$touch face_detector.py

  1. #!/usr/bin/env python
  2. # -*- coding: utf-8 -*-
  3. import rospy
  4. import cv2
  5. import numpy as np
  6. from sensor_msgs.msg import Image, RegionOfInterest
  7. from cv_bridge import CvBridge, CvBridgeError
  9. class faceDetector:
  10.     def __init__(self):
  11.         rospy.on_shutdown(self.cleanup);
  13.         # 创建cv_bridge
  14.         self.bridge = CvBridge()
  15.         self.image_pub = rospy.Publisher("cv_bridge_image", Image, queue_size=1)
  17.         # 获取haar特征的级联表的XML文件，文件路径在launch文件中传入
  18.         cascade_1 = rospy.get_param("~cascade_1", "")
  19.         cascade_2 = rospy.get_param("~cascade_2", "")
  21.         # 使用级联表初始化haar特征检测器
  22.         self.cascade_1 = cv2.CascadeClassifier(cascade_1)
  23.         self.cascade_2 = cv2.CascadeClassifier(cascade_2)
  25.         # 设置级联表的参数，优化人脸识别，可以在launch文件中重新配置
  26.         self.haar_scaleFactor  = rospy.get_param("~haar_scaleFactor", 1.2)
  27.         self.haar_minNeighbors = rospy.get_param("~haar_minNeighbors", 2)
  28.         self.haar_minSize      = rospy.get_param("~haar_minSize", 40)
  29.         self.haar_maxSize      = rospy.get_param("~haar_maxSize", 60)
  30.         self.color = (50, 255, 50)
  32.         # 初始化订阅rgb格式图像数据的订阅者，此处图像topic的话题名可以在launch文件中重映射
  33.         self.image_sub = rospy.Subscriber("input_rgb_image", Image, self.image_callback, queue_size=1)
  35.     def image_callback(self, data):
  36.         # 使用cv_bridge将ROS的图像数据转换成OpenCV的图像格式
  37.         try:
  38.             cv_image = self.bridge.imgmsg_to_cv2(data, "bgr8")
  39.             frame = np.array(cv_image, dtype=np.uint8)
  40.         except CvBridgeError, e:
  41.             print e
  43.         # 创建灰度图像
  44.         grey_image = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)
  46.         # 创建平衡直方图，减少光线影响
  47.         grey_image = cv2.equalizeHist(grey_image)
  49.         # 尝试检测人脸
  50.         faces_result = self.detect_face(grey_image)
  52.         # 在opencv的窗口中框出所有人脸区域
  53.         if len(faces_result)>0:
  54.             for face in faces_result:
  55.                 x, y, w, h = face
  56.                 cv2.rectangle(cv_image, (x, y), (x+w, y+h), self.color, 2)
  58.         # 将识别后的图像转换成ROS消息并发布
  59.         self.image_pub.publish(self.bridge.cv2_to_imgmsg(cv_image, "bgr8"))
  61.     def detect_face(self, input_image):
  62.         # 首先匹配正面人脸的模型
  63.         if self.cascade_1:
  64.             faces = self.cascade_1.detectMultiScale(input_image,
  65.                     self.haar_scaleFactor,
  66.                     self.haar_minNeighbors,
  67.                     cv2.CASCADE_SCALE_IMAGE,
  68.                     (self.haar_minSize, self.haar_maxSize))
  70.         # 如果正面人脸匹配失败，那么就尝试匹配侧面人脸的模型
  71.         if len(faces) == 0 and self.cascade_2:
  72.             faces = self.cascade_2.detectMultiScale(input_image,
  73.                     self.haar_scaleFactor,
  74.                     self.haar_minNeighbors,
  75.                     cv2.CASCADE_SCALE_IMAGE,
  76.                     (self.haar_minSize, self.haar_maxSize))
  78.         return faces
  80.     def cleanup(self):
  81.         print "Shutting down vision node."
  82.         cv2.destroyAllWindows()
  84. if __name__ == '__main__':
  85.     try:
  86.         # 初始化ros节点
  87.         rospy.init_node("face_detector")
  88.         faceDetector()
  89.         rospy.loginfo("Face detector is started..")
  90.         rospy.loginfo("Please subscribe the ROS image.")
  91.         rospy.spin()
  92.     except KeyboardInterrupt:
  93.         print "Shutting down face detector node."
  94.         cv2.destroyAllWindows()

4.launch文件

$cd test2/launch

$touch usb_cam.launch face_detector.launch

usb_cam.launch开启摄像头

  1. <launch>
  3.   <node name="usb_cam" pkg="usb_cam" type="usb_cam_node" output="screen" >
  4.     <param name="video_device" value="/dev/video0" />
  5.     <param name="image_width" value="640" />
  6.     <param name="image_height" value="480" />
  7.     <param name="pixel_format" value="yuyv" />
  8.     <param name="camera_frame_id" value="usb_cam" />
  9.     <param name="io_method" value="mmap"/>
  10.   </node>
  12. </launch>

face_detector.launch运行人脸识别程序

  1. <launch>
  2.     <node pkg="test2" name="face_detector" type="face_detector.py" output="screen">
  3.         <remap from="input_rgb_image" to="/usb_cam/image_raw" />
  4.         <rosparam>
  5.             haar_scaleFactor: 1.2
  6.             haar_minNeighbors: 2
  7.             haar_minSize: 40
  8.             haar_maxSize: 60
  9.         </rosparam>
  10.         <param name="cascade_1" value="$(find robot_vision)/data/haar_detectors/haarcascade_frontalface_alt.xml" />
  11.         <param name="cascade_2" value="$(find robot_vision)/data/haar_detectors/haarcascade_profileface.xml" />
  12.     </node>
  13. </launch>

5.执行

分别开启三个终端，执行以下命令

$roslaunch test2 usb_cam.launch

$roslaunch test2 face_detector.launch

$rqt_image_view //也可用rviz订阅

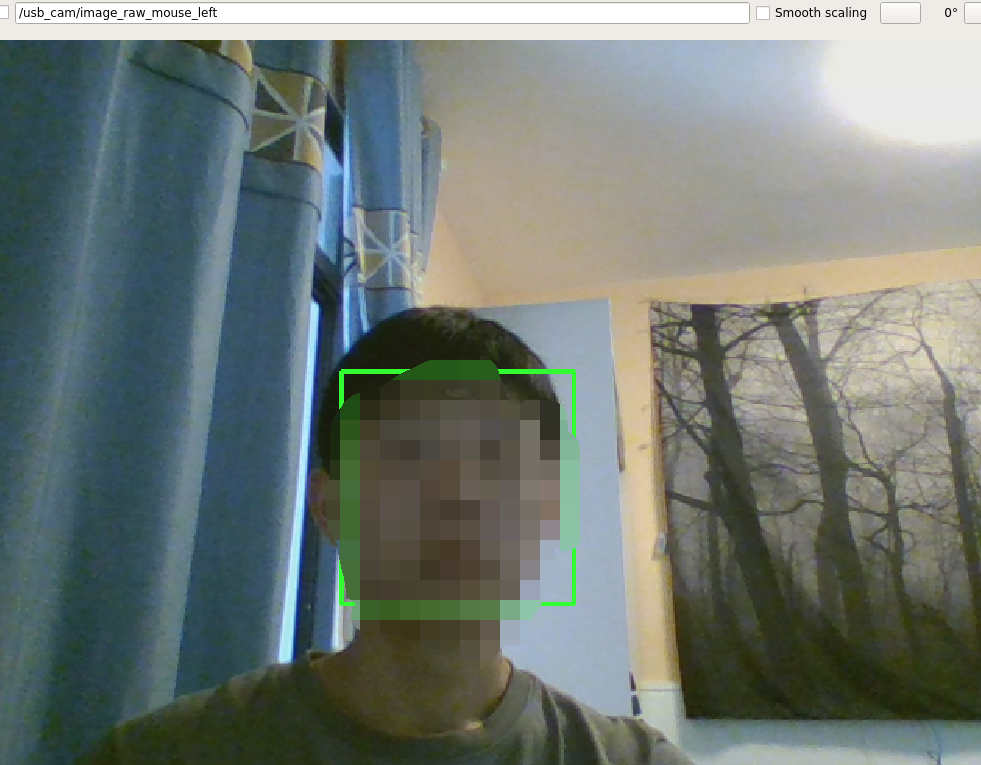

正面效果

watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2NrNzg0MTAxNzc3_size_16_color_FFFFFF_t_70

侧面效果

watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2NrNzg0MTAxNzc3_size_16_color_FFFFFF_t_70 1

物体追踪

程序如下，使用方式同人脸识别，在scripts目录放入程序，在launch目录放入launch文件

  1. #!/usr/bin/env python
  2. # -*- coding: utf-8 -*-
  3. import rospy
  4. import cv2
  5. import numpy as np
  6. from sensor_msgs.msg import Image, RegionOfInterest
  7. from cv_bridge import CvBridge, CvBridgeError
  9. class motionDetector:
  10.     def __init__(self):
  11.         rospy.on_shutdown(self.cleanup);
  13.         # 创建cv_bridge
  14.         self.bridge = CvBridge()
  15.         self.image_pub = rospy.Publisher("cv_bridge_image", Image, queue_size=1)
  17.         # 设置参数：最小区域、阈值
  18.         self.minArea   = rospy.get_param("~minArea",   500)
  19.         self.threshold = rospy.get_param("~threshold", 25)
  21.         self.firstFrame = None
  22.         self.text = "Unoccupied"
  24.         # 初始化订阅rgb格式图像数据的订阅者，此处图像topic的话题名可以在launch文件中重映射
  25.         self.image_sub = rospy.Subscriber("input_rgb_image", Image, self.image_callback, queue_size=1)
  27.     def image_callback(self, data):
  28.         # 使用cv_bridge将ROS的图像数据转换成OpenCV的图像格式
  29.         try:
  30.             cv_image = self.bridge.imgmsg_to_cv2(data, "bgr8")
  31.             frame = np.array(cv_image, dtype=np.uint8)
  32.         except CvBridgeError, e:
  33.             print e
  35.         # 创建灰度图像
  36.         gray = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)
  37.         gray = cv2.GaussianBlur(gray, (21, 21), 0)
  39.         # 使用两帧图像做比较，检测移动物体的区域
  40.         if self.firstFrame is None:
  41.             self.firstFrame = gray
  42.             return
  43.         frameDelta = cv2.absdiff(self.firstFrame, gray)
  44.         thresh = cv2.threshold(frameDelta, self.threshold, 255, cv2.THRESH_BINARY)[1]
  46.         thresh = cv2.dilate(thresh, None, iterations=2)
  47.         binary, cnts, hierarchy= cv2.findContours(thresh.copy(), cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)
  49.         for c in cnts:
  50.             # 如果检测到的区域小于设置值，则忽略
  51.             if cv2.contourArea(c) < self.minArea:
  52.                continue
  54.             # 在输出画面上框出识别到的物体
  55.             (x, y, w, h) = cv2.boundingRect(c)
  56.             cv2.rectangle(frame, (x, y), (x + w, y + h), (50, 255, 50), 2)
  57.             self.text = "Occupied"
  59.         # 在输出画面上打当前状态和时间戳信息
  60.         cv2.putText(frame, "Status: {}".format(self.text), (10, 20),
  61.             cv2.FONT_HERSHEY_SIMPLEX, 0.5, (0, 0, 255), 2)
  63.         # 将识别后的图像转换成ROS消息并发布
  64.         self.image_pub.publish(self.bridge.cv2_to_imgmsg(frame, "bgr8"))
  66.     def cleanup(self):
  67.         print "Shutting down vision node."
  68.         cv2.destroyAllWindows()
  70. if __name__ == '__main__':
  71.     try:
  72.         # 初始化ros节点
  73.         rospy.init_node("motion_detector")
  74.         rospy.loginfo("motion_detector node is started...")
  75.         rospy.loginfo("Please subscribe the ROS image.")
  76.         motionDetector()
  77.         rospy.spin()
  78.     except KeyboardInterrupt:
  79.         print "Shutting down motion detector node."
  80.         cv2.destroyAllWindows()

launch

  1. <launch>
  2.     <node pkg="test2" name="motion_detector" type="motion_detector.py" output="screen">
  3.         <remap from="input_rgb_image" to="/usb_cam/image_raw" />
  4.         <rosparam>
  5.             minArea: 500
  6.             threshold: 25
  7.         </rosparam>
  8.     </node>
  9. </launch>

执行效果

被识别出的物体有篮球，柜子，手臂，衣袖，被识别物体用边框圈出

watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2NrNzg0MTAxNzc3_size_16_color_FFFFFF_t_70 2
