## 使用nginx来代理一个服务器下的不同项目 ##

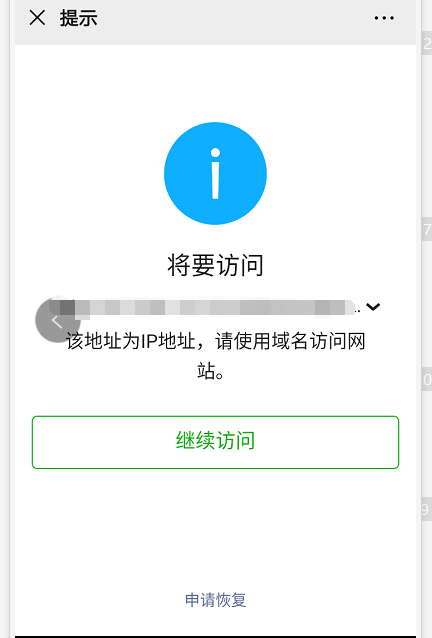

**前言**：上一篇文章中，我实现了在同一tomcat下部署不同的项目，通过IP+指定端口可以访问到各自项目，那么新的需求来了：使用IP+端口太麻烦，而且这样的URL(例如作为扫码跳转地址时)在微信浏览器中，会出现这样的提示：

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQyODM5NzQx_size_16_color_FFFFFF_t_70]

这样用户体验不好，敏感信息也多，如何通过域名，来访问这同一服务器下的一个tomcat中部署的两个项目，而且做到访问如丝般润滑呢？是时候祭出Nginx了

1.安装nginx:
安装和配置途中也遇到不少的坑，具体的安装可以参考这篇文章，非常感谢这位博主：Linux下nginx的安装以及环境配置

2.配置域名
安装好nginx之后，再来明确一下甲方需求：需要用不同的域名，来访问这一台服务器下，同一个tomcat中部署的两个项目，先在心中默念三遍，再开始配置：
1.登陆阿里云，进入域名解析控制台，我现在有一个一级域名：weige.com,点击设置
![在这里插入图片描述][20200220232407558.png]

点击添加记录，设置内容

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQyODM5NzQx_size_16_color_FFFFFF_t_70 1]

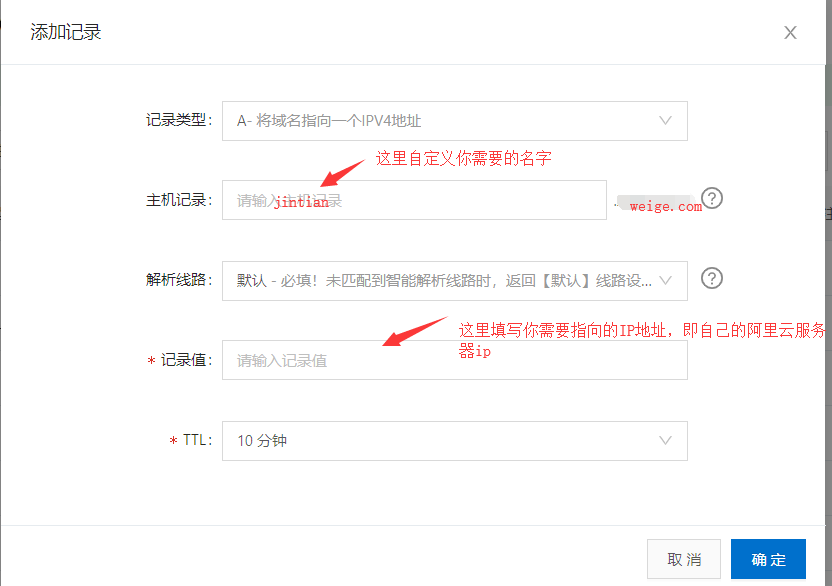

配置信息
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQyODM5NzQx_size_16_color_FFFFFF_t_70 2]

如此这般，我便配置好了第一个域名：jintian.weige.com---------->192.163.0.2(我的服务器地址)，如法炮制，第二个域名：mingtian.weige.com----->192.163.0.2(我的服务器地址)

3.修改nginx配置文件
我配置好的nginx.conf文件：

#user  nobody;
    worker_processes  1;

    #error_log  logs/error.log;
    #error_log  logs/error.log  notice;
    #error_log  logs/error.log  info;

    #pid        logs/nginx.pid;


    events {
        worker_connections  1024;
    }


    http {
        include       mime.types;
        default_type  application/octet-stream;

        #log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
        #                  '$status $body_bytes_sent "$http_referer" '
        #                  '"$http_user_agent" "$http_x_forwarded_for"';

        #access_log  logs/access.log  main;

        sendfile        on;
        #tcp_nopush     on;

        #keepalive_timeout  0;
        keepalive_timeout  65;

        #gzip  on;
        #第一个服务
        server {
            listen       80; #监听80端口
            server_name jitian.weige.com; #第一个服务名

            #charset koi8-r;

            #access_log  logs/host.access.log  main;

            location / {
                root   html;
                index  index.html index.htm;
            proxy_pass http://jitian.weige.com:8099;#第一个服务转发的路径
            }

            #error_page  404              /404.html;

            # redirect server error pages to the static page /50x.html
            #
            error_page   500 502 503 504  /50x.html;
            location = /50x.html {
                root   html;
            }

            # proxy the PHP scripts to Apache listening on 127.0.0.1:80
            #
            #location ~ \.php$ {
            #    proxy_pass   http://127.0.0.1;
            #}

            # pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000
            #
            #location ~ \.php$ {
            #    root           html;
            #    fastcgi_pass   127.0.0.1:9000;
            #    fastcgi_index  index.php;
            #    fastcgi_param  SCRIPT_FILENAME  /scripts$fastcgi_script_name;
            #    include        fastcgi_params;
            #}

            # deny access to .htaccess files, if Apache's document root
            # concurs with nginx's one
            #
            #location ~ /\.ht {
            #    deny  all;
            #}
        }
        #第二个服务
    server {
            listen       80; #默认也监听80端口
            server_name mingtian.weige.com;#第二个服务名

            #charset koi8-r;

            #access_log  logs/host.access.log  main;

            location / {
                root   html;
                index  index.html index.htm;
            proxy_pass http://mingtian.weige.com:8299;#第二个服务转发的路径
            }

            #error_page  404              /404.html;

            # redirect server error pages to the static page /50x.html
            #
            error_page   500 502 503 504  /50x.html;
            location = /50x.html {
                root   html;
            }

            # proxy the PHP scripts to Apache listening on 127.0.0.1:80
            #
            #location ~ \.php$ {
            #    proxy_pass   http://127.0.0.1;
            #}

            # pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000
            #
            #location ~ \.php$ {
            #    root           html;
            #    fastcgi_pass   127.0.0.1:9000;
            #    fastcgi_index  index.php;
            #    fastcgi_param  SCRIPT_FILENAME  /scripts$fastcgi_script_name;
            #    include        fastcgi_params;
            #}

            # deny access to .htaccess files, if Apache's document root
            # concurs with nginx's one
            #
            #location ~ /\.ht {
            #    deny  all;
            #}
        }

        # another virtual host using mix of IP-, name-, and port-based configuration
        #
        #server {
        #    listen       8000;
        #    listen       somename:8080;
        #    server_name  somename  alias  another.alias;

        #    location / {
        #        root   html;
        #        index  index.html index.htm;
        #    }
        #}


        # HTTPS server
        #
        #server {
        #    listen       443 ssl;
        #    server_name  localhost;

        #    ssl_certificate      cert.pem;
        #    ssl_certificate_key  cert.key;

        #    ssl_session_cache    shared:SSL:1m;
        #    ssl_session_timeout  5m;

        #    ssl_ciphers  HIGH:!aNULL:!MD5;
        #    ssl_prefer_server_ciphers  on;

        #    location / {
        #        root   html;
        #        index  index.html index.htm;
        #    }
        #}

    }

nginx的默认端口是80，我们这里不做修改，我们解析的域名也默认访问的是80端口，这样，当使用域名请求服务器时，请求会先到达nginx,nginx根据不同的服务名，将请求转发到不同的项目，我的理解是这样，若有不对，欢迎吐槽。

4.重启nginx
保存配置文件，重启nginx服务器,进入到安装路径下，我这里是：/usr/local/nginx/sbin，
执行命令：./nginx
查看进程：ps -ef |grep nginx，若出现类似提示，说明启动成功：
![在这里插入图片描述][20200220235937149.png]

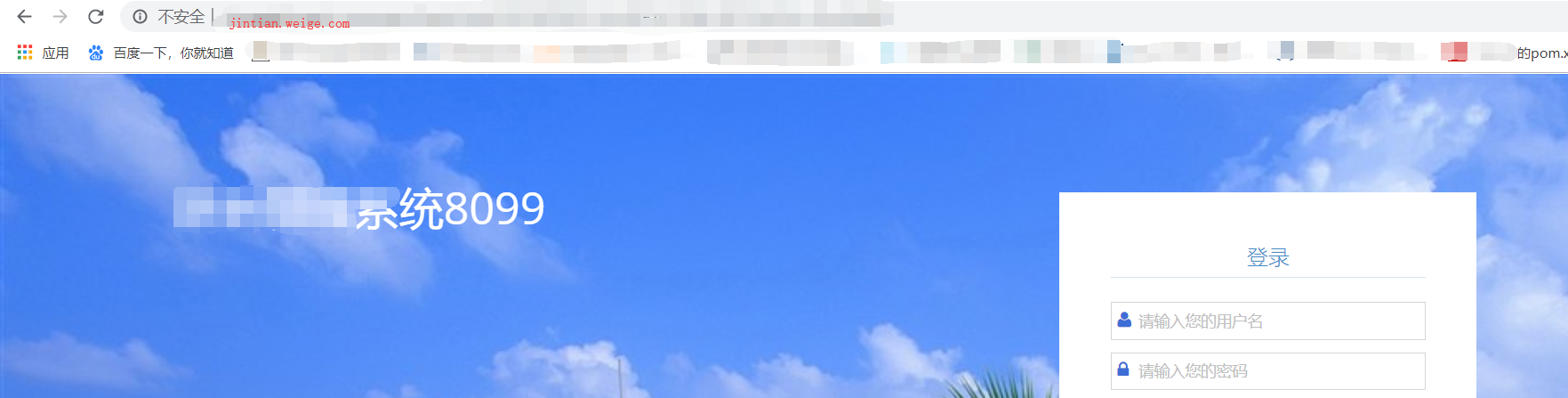

访问第一个项目jintian.weige.com：
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQyODM5NzQx_size_16_color_FFFFFF_t_70 3]

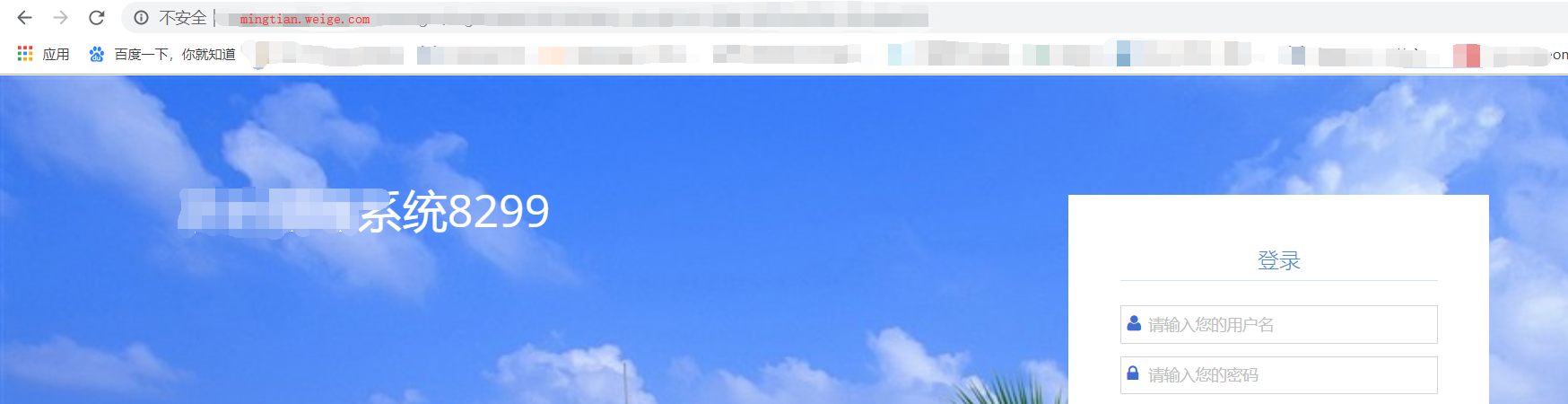

访问第二个项目：mingtian.weige.com:

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQyODM5NzQx_size_16_color_FFFFFF_t_70 4] 测试成功，流程若有不对的，欢迎指正。
