ecplise SpringCould搭建过程---创建SpringCould父工程

妖狐艹你老母 2023-02-11 15:29 109阅读 0赞

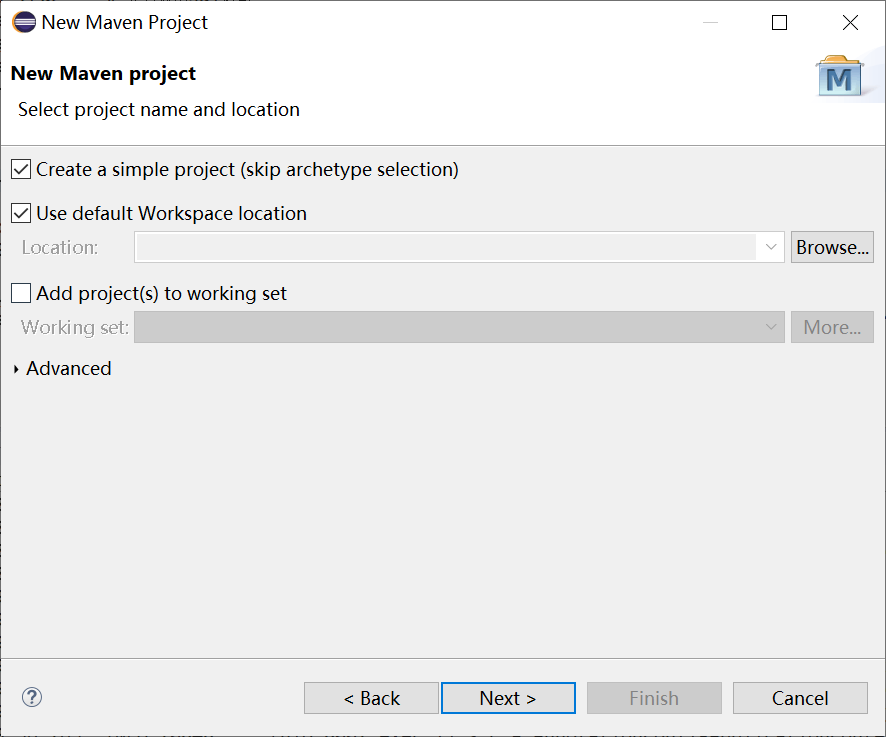

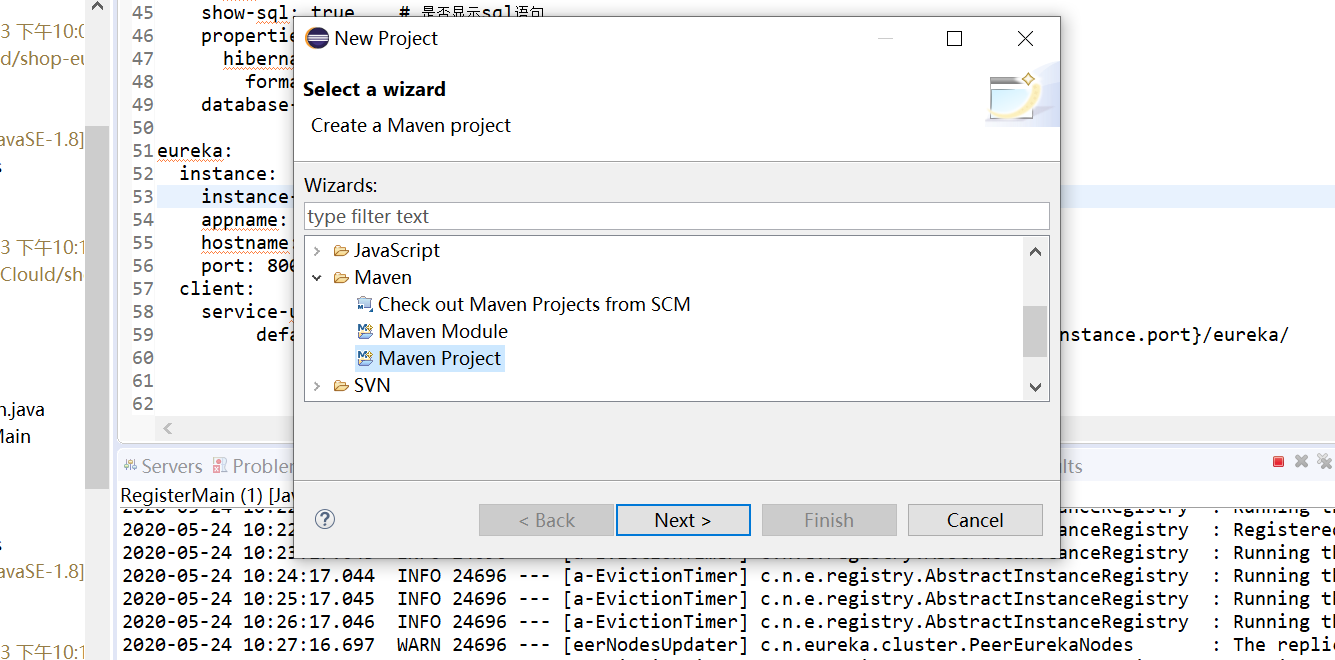

1.创建maven项目

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2RhdG91bmlhbzE_size_16_color_FFFFFF_t_70][]

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2RhdG91bmlhbzE_size_16_color_FFFFFF_t_70 1][]

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2RhdG91bmlhbzE_size_16_color_FFFFFF_t_70 2][]

点击finish 项目创建完成，这个是一个父工程，

工程中目录:

Springcould

|\_\_\_\_\_src

|\_\_\_\_\_site

|\_\_\_\_pom.xml

其他的我们不用管，只看pom.xml文件：

<project xmlns="http://maven.apache.org/POM/4.0.0"
    	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    	<modelVersion>4.0.0</modelVersion>
    	<groupId>com.could</groupId>
    	<artifactId>ShopClould</artifactId>
    	<version>1.0</version>
    	<packaging>pom</packaging>

    	<parent>
    		<groupId>org.springframework.boot</groupId>
    		<artifactId>spring-boot-starter-parent</artifactId>
    		<version>2.0.7.RELEASE</version>
    	</parent>
    	<dependencyManagement>
    		<dependencies>
    			<dependency>
    				<groupId>org.springframework.cloud</groupId>
    				<artifactId>spring-cloud-dependencies</artifactId>
    				<version>Finchley.SR2</version>
    				<type>pom</type>
    				<scope>import</scope>
    			</dependency>
    			<dependency>
    				<groupId>org.springframework.cloud</groupId>
    				<artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
    				<version>1.4.7.RELEASE</version>
    			</dependency>

    			<dependency>
    				<groupId>javax.persistence</groupId>
    				<artifactId>persistence-api</artifactId>
    				<version>1.0</version>
    			</dependency>

    			<dependency>
    				<groupId>commons-logging</groupId>
    				<artifactId>commons-logging</artifactId>
    				<version>1.2</version>
    			</dependency>




    			<dependency>
    				<groupId>com.alibaba</groupId>
    				<artifactId>druid-spring-boot-starter</artifactId>
    				<version>1.1.10</version>
    			</dependency>


    			<dependency>
    				<groupId>org.mybatis.spring.boot</groupId>
    				<artifactId>mybatis-spring-boot-starter</artifactId>
    				<version>1.3.2</version>
    			</dependency>



    			<dependency>
    				<groupId>mysql</groupId>
    				<artifactId>mysql-connector-java</artifactId>
    				<version>6.0.6</version>
    			</dependency>

    			<dependency>
    				<groupId>log4j</groupId>
    				<artifactId>log4j</artifactId>
    				<version>1.2.17</version>
    			</dependency>


    		</dependencies>
    	</dependencyManagement>
    	<build>
    		<finalName>spring-root</finalName>
    		<plugins>
    			<plugin>
    				<groupId>org.springframework.boot</groupId>
    				<artifactId>spring-boot-maven-plugin</artifactId>
    				<executions>
    					<execution>
    						<goals>
    							<goal>repackage</goal>
    						</goals>
    					</execution>
    				</executions>
    			</plugin>
    			<plugin>
    				<groupId>org.apache.maven.plugins</groupId>
    				<artifactId>maven-compiler-plugin</artifactId>
    				<configuration>
    					<encoding>utf-8</encoding>
    					<source>1.8</source>
    					<target>1.8</target>
    				</configuration>
    			</plugin>
    		</plugins>
    	</build>
    </project>

这样我们就把整个父工程创建好了

之后我们需要的是一点点的去创建子工程

这个地方为了跟时代接轨我们创建的三个子项目 分别是:

注册中心: shop-eureka

配置中心:shop-config

用户管理中心:shop-user-service

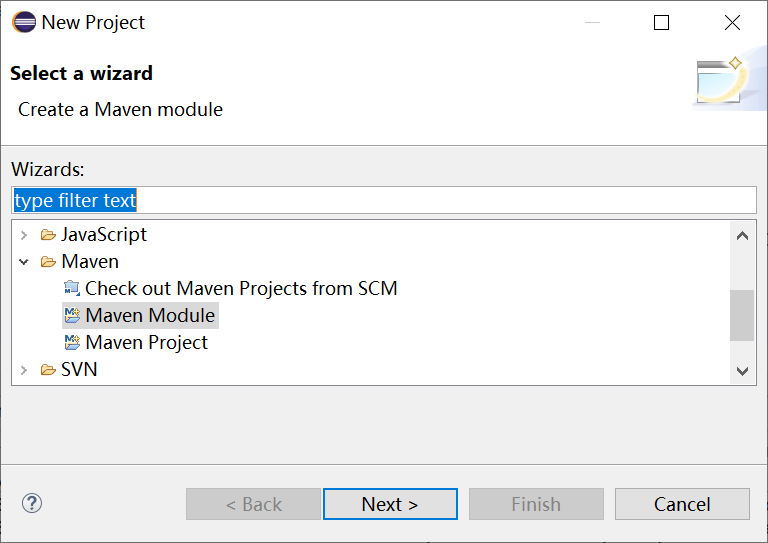

首先来看配置中心:

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2RhdG91bmlhbzE_size_16_color_FFFFFF_t_70 3][]

直接点击finish:

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2RhdG91bmlhbzE_size_16_color_FFFFFF_t_70 4][]

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2RhdG91bmlhbzE_size_16_color_FFFFFF_t_70 5][]

我们首先来看配置：

注册中心

application.yml

server:
      port: 8001

    spring:
      security:
         basic:
            enable: true
         user:
            name: admin
            password: wdgcould
    eureka:
      instance:
        hostname: localhost
      client:
        register-with-eureka: false
        fetch-registry: false
        service-url:
          defaultZone: http://${spring.security.user.name}:${spring.security.user.password}@${eureka.instance.hostname}:${server.port}/eureka/

主函数:

package com;

    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;
    import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

    @SpringBootApplication // spring-boot 启动注解
    @EnableEurekaServer // spring-cloud 服务注解
    public class RegisterMain {
    	public static void main(String[] args) {
    		 SpringApplication.run(RegisterMain.class, args);
    	}
    }

druid

package com.config;

    import org.springframework.security.config.annotation.web.builders.HttpSecurity;
    import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
    import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;

    @EnableWebSecurity
    class WebSecurityConfig extends WebSecurityConfigurerAdapter {

    	@Override
    	protected void configure(HttpSecurity http) throws Exception {
    		http.csrf().ignoringAntMatchers("/eureka/**");
    		super.configure(http);
    	}
    }
