SpringCloud（8）：Eureka：集群环境配置

朴灿烈づ我的快乐病毒、 2023-01-10 10:20 130阅读 0赞

### 一、搭建Eureka集群 ###

（1）创建2个Eureka微服务

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwMjk4MzUx_size_16_color_FFFFFF_t_70][]

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwMjk4MzUx_size_16_color_FFFFFF_t_70 1][]

（2）在两个模块中添加依赖

<?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
        <parent>
            <artifactId>springcloud</artifactId>
            <groupId>com.buba</groupId>
            <version>1.0-SNAPSHOT</version>
        </parent>
        <modelVersion>4.0.0</modelVersion>

        <artifactId>springcloud-eureka-7002</artifactId>

        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-starter-eureka-server</artifactId>
                <version>1.4.7.RELEASE</version>
            </dependency>

            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-devtools</artifactId>
            </dependency>
        </dependencies>
    </project>

<?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
        <parent>
            <artifactId>springcloud</artifactId>
            <groupId>com.buba</groupId>
            <version>1.0-SNAPSHOT</version>
        </parent>
        <modelVersion>4.0.0</modelVersion>

        <artifactId>springcloud-eureka-7003</artifactId>

        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-starter-eureka-server</artifactId>
                <version>1.4.7.RELEASE</version>
            </dependency>

            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-devtools</artifactId>
            </dependency>
        </dependencies>
    </project>

（3）添加配置

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwMjk4MzUx_size_16_color_FFFFFF_t_70 2][]

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwMjk4MzUx_size_16_color_FFFFFF_t_70 3][]

（4）添加主启动类

package com.buba.springcloud;

    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;
    import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

    @SpringBootApplication
    @EnableEurekaServer // 服务端的启动类，可以接收别人注册进来
    public class EurekaServer_7002 {
        public static void main(String[] args) {
            SpringApplication.run(EurekaServer_7002.class, args);
        }
    }

package com.buba.springcloud;

    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;
    import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

    @SpringBootApplication
    @EnableEurekaServer // 服务端的启动类，可以接收别人注册进来
    public class EurekaServer_7003 {
        public static void main(String[] args) {
            SpringApplication.run(EurekaServer_7003.class, args);
        }
    }

（5）3个微服务互相绑定

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwMjk4MzUx_size_16_color_FFFFFF_t_70 4][]

模拟真实性，将本地域名同时映射3个网址

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwMjk4MzUx_size_16_color_FFFFFF_t_70 5][]

![20210123175046502.png][]

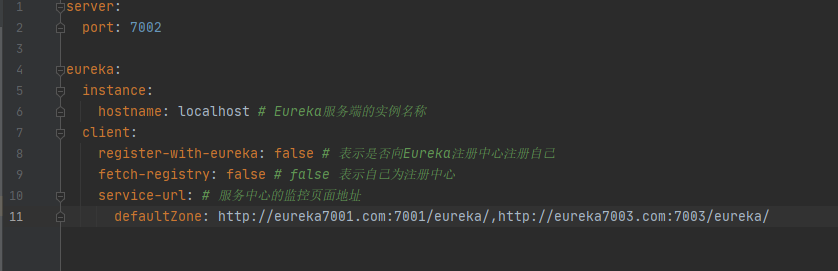

修改3个application.yml文件

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwMjk4MzUx_size_16_color_FFFFFF_t_70 6][]

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwMjk4MzUx_size_16_color_FFFFFF_t_70 7][]

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwMjk4MzUx_size_16_color_FFFFFF_t_70 8][]

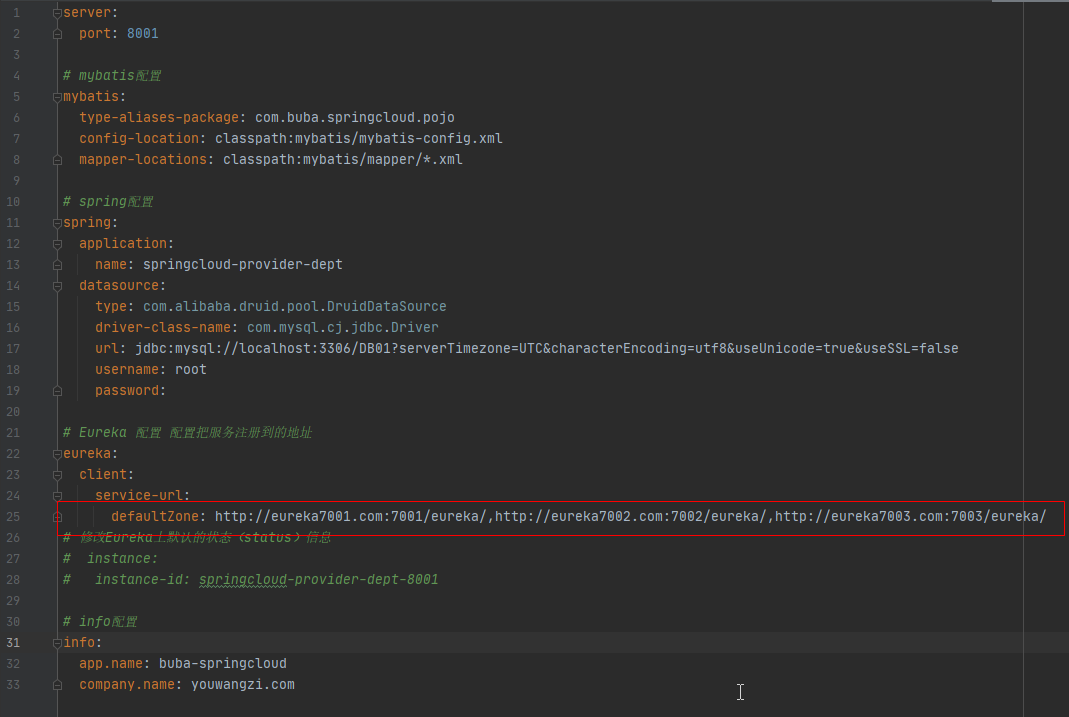

（6）修改服务提供者模块，向3个Eureka都注册微服务

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwMjk4MzUx_size_16_color_FFFFFF_t_70 9][]

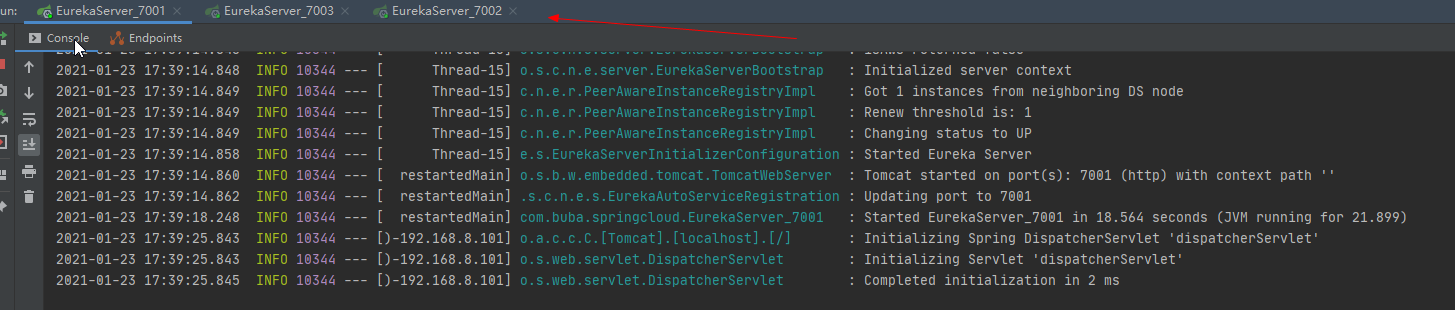

（7）启动测试

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQwMjk4MzUx_size_16_color_FFFFFF_t_70 10][]

访问其中一个地址[http://localhost:7001/][http_localhost_7001]，可以看到另外2个进行了关联

![20210123175717930.png][]

启动服务提供者，可以看到3个Eureka中都有这个服务。
