android界面UI学习（上）

向右看齐 2022-12-28 09:14 105阅读 0赞

主界面布局activity\_main.xml

点不同的按钮，启动不同的Activity

package com.example.uidemo;

    import android.app.Activity;
    import android.content.Intent;
    import android.os.Bundle;
    import android.view.View;
    import android.view.View.OnClickListener;

    public class MainActivity extends Activity implements OnClickListener {

    	@Override
    	protected void onCreate(Bundle savedInstanceState) {
    		super.onCreate(savedInstanceState);
    		setContentView(R.layout.activity_main);
    		findViewById(R.id.btn_main_test1).setOnClickListener(this);
    		findViewById(R.id.btn_main_test2).setOnClickListener(this);
    		findViewById(R.id.btn_main_test3).setOnClickListener(this);
    		findViewById(R.id.btn_main_test4).setOnClickListener(this);
    	}

    	@Override
    	public void onClick(View v) {
    		switch (v.getId()) {
    		case R.id.btn_main_test1:
    			startActivity(new Intent(this, SimpleActivity.class));
    			break;
    		case R.id.btn_main_test2:
    			startActivity(new Intent(this, MenuActivity.class));
    			break;
    		case R.id.btn_main_test3:
    			startActivity(new Intent(this, ProgressActivity.class));
    			break;
    		case R.id.btn_main_test4:
    			startActivity(new Intent(this, DialogActivity.class));
    			break;

    		default:
    			break;
    		}

    	}
    }

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw_size_16_color_FFFFFF_t_70]
简单的组件
activity\_simple.xml

SimpleActivity.java

package com.example.uidemo;

    import android.app.Activity;
    import android.os.Bundle;
    import android.view.View;
    import android.widget.Button;
    import android.widget.CheckBox;
    import android.widget.CompoundButton;
    import android.widget.EditText;
    import android.widget.ImageView;
    import android.widget.RadioButton;
    import android.widget.RadioGroup;
    import android.widget.TextView;
    import android.widget.Toast;

    public class SimpleActivity extends Activity {

    	private TextView tv_simple_message;
    	private EditText et_simple_number;
    	private Button btn_simple_submit;
    	private ImageView iv_simple_icon;

    	private CheckBox cb_simple_basket;
    	private CheckBox cb_simple_foot;
    	private CheckBox cb_simple_pingpang;
    	private RadioGroup rg_simple_sex;

    	@Override
    	protected void onCreate(Bundle savedInstanceState) {
    		super.onCreate(savedInstanceState);
    		setContentView(R.layout.activity_simple);
    		tv_simple_message = (TextView) findViewById(R.id.tv_simple_message);
    		tv_simple_message.setText("huangbaokang");

    		et_simple_number = (EditText) findViewById(R.id.et_simple_number);
    		btn_simple_submit = (Button) findViewById(R.id.btn_simple_submit);
    		btn_simple_submit.setOnClickListener(new View.OnClickListener() {
    			@Override
    			public void onClick(View v) {
    				String number = et_simple_number.getText().toString();
    				Toast.makeText(SimpleActivity.this, number, 0).show();
    			}
    		});

    		iv_simple_icon = (ImageView) findViewById(R.id.iv_simple_icon);
    		iv_simple_icon.setOnClickListener(new View.OnClickListener() {

    			@Override
    			public void onClick(View v) {
    				iv_simple_icon
    						.setBackgroundResource(android.R.drawable.alert_light_frame);
    				iv_simple_icon
    						.setImageResource(android.R.drawable.ic_media_pause);

    			}
    		});

    		cb_simple_basket = (CheckBox) findViewById(R.id.cb_simple_basket);
    		cb_simple_foot = (CheckBox) findViewById(R.id.cb_simple_foot);
    		cb_simple_pingpang = (CheckBox) findViewById(R.id.cb_simple_pingpang);

    		cb_simple_foot
    				.setOnCheckedChangeListener(new CompoundButton.OnCheckedChangeListener() {

    					@Override
    					public void onCheckedChanged(CompoundButton buttonView,
    							boolean isChecked) {
    						if (isChecked) {
    							Toast.makeText(SimpleActivity.this, "选中了足球", 0)
    									.show();
    						} else {
    							Toast.makeText(SimpleActivity.this, "未选中足球", 0)
    									.show();
    						}

    					}
    				});

    		rg_simple_sex = (RadioGroup) findViewById(R.id.rg_simple_sex);
    		rg_simple_sex
    				.setOnCheckedChangeListener(new RadioGroup.OnCheckedChangeListener() {

    					@Override
    					public void onCheckedChanged(RadioGroup group, int checkedId) {
    						RadioButton radioButton = (RadioButton) findViewById(checkedId);
    						// 得到文本
    						String sex = radioButton.getText().toString();
    						// 提示
    						Toast.makeText(SimpleActivity.this, sex, 0).show();

    					}

    				});

    	}

    	public void confirm(View v) {
    		StringBuffer sb = new StringBuffer();
    		if (cb_simple_basket.isChecked()) {
    			sb.append(cb_simple_basket.getText().toString()).append(" ");
    		}

    		if (cb_simple_foot.isChecked()) {
    			sb.append(cb_simple_foot.getText().toString()).append(" ");
    		}

    		if (cb_simple_pingpang.isChecked()) {
    			sb.append(cb_simple_pingpang.getText().toString());
    		}

    		// 提示
    		Toast.makeText(this, sb.toString(), 0).show();
    	}
    }

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw_size_16_color_FFFFFF_t_70 1]
菜单UI
activity\_menu.xml

处理Activity
MenuActivity.java

package com.example.uidemo;

    import android.app.Activity;
    import android.os.Bundle;
    import android.view.ContextMenu;
    import android.view.Menu;
    import android.view.MenuInflater;
    import android.view.MenuItem;
    import android.view.View;
    import android.view.ContextMenu.ContextMenuInfo;
    import android.widget.Button;
    import android.widget.Toast;
    /* OptionMenu 1. 如何触发Menu的显示? 点击menu键 2. 如何向Menu中添加MenuItem? 重写onCreateOptionMenu() menu.add()或者加载菜单文件 3. 选择某个MenuItem时如何响应? 重写onOptionsItemSelected(), 根据itemId做响应 ContextMenu 1. 如何触发Menu的显示? 长按某个视图 view.setOnCreateContextMenuListener(this) 2. 如何向Menu中添加MenuItem? 重写onCreateContextMenu() menu.add() 3. 选择某个MenuItem时如何响应? 重写onContextItemSelected(), 根据itemId做响应 */
    public class MenuActivity extends Activity {

    	private Button btn_test2_show_cm;
    	@Override
    	protected void onCreate(Bundle savedInstanceState) {
    		super.onCreate(savedInstanceState);
    		setContentView(R.layout.activity_menu);
    		btn_test2_show_cm = (Button) findViewById(R.id.btn_test2_show_cm);
    		btn_test2_show_cm.setOnCreateContextMenuListener(this);
    	}

    // @Override
    // public boolean onCreateOptionsMenu(Menu menu) {
    // //add(int groupId, int itemId, int order, CharSequence title)
    // // groupId不需要分组传0 order不要求排序的话，传0
    // menu.add(0, 100, 0, "添加");
    // menu.add(0, 200, 0, "删除");
    // return super.onCreateOptionsMenu(menu);
    // }

    	@Override
    	public boolean onCreateOptionsMenu(Menu menu) {
    		MenuInflater menuInflater = getMenuInflater();
    		menuInflater.inflate(R.menu.mymenu, menu);
    		return super.onCreateOptionsMenu(menu);
    	}

    	@Override
    	public boolean onOptionsItemSelected(MenuItem item) {
    		switch (item.getItemId()) {
    		case R.id.add:
    		//case 100:
    			Toast.makeText(this, "添加", 0).show();
    			break;
    		case R.id.delete:
    		//case 200:
    			Toast.makeText(this, "删除", 0).show();
    			break;
    		default:
    			break;
    		}
    		return super.onOptionsItemSelected(item);
    	}

    	@Override
    	public void onCreateContextMenu(ContextMenu menu, View v,
    			ContextMenuInfo menuInfo) {
    			menu.add(0, 111, 0, "查看详情");
    			menu.add(0, 222, 0, "更新数据");
    		super.onCreateContextMenu(menu, v, menuInfo);
    	}

    // @Override 这个方法要跟下面的onContextItemSelected区别，两个同时放开，我测试会弹窗两次！！！
    // public boolean onMenuItemSelected(int featureId, MenuItem item) {
    // switch (item.getItemId()) {
    // case 111:
    // Toast.makeText(this, "查看详情", 0).show();
    // break;
    // case 222:
    // Toast.makeText(this, "更新数据", 0).show();
    // break;
    // default:
    // break;
    // }
    // return super.onMenuItemSelected(featureId, item);
    // }

    	@Override
    	public boolean onContextItemSelected(MenuItem item) {
    		switch (item.getItemId()) {
    		case 111:
    			Toast.makeText(this, "查看详情111", 0).show();
    			break;
    		case 222:
    			Toast.makeText(this, "更新数据111", 0).show();
    			break;
    		default:
    			break;
    		}
    		return super.onContextItemSelected(item);
    	}
    }

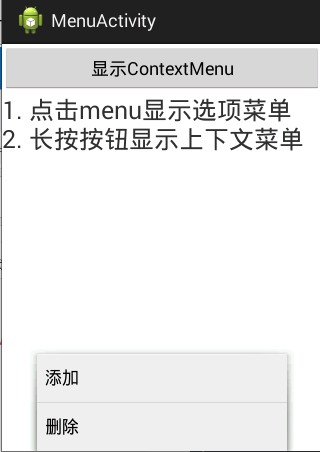

实现了长按和点击菜单键
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw_size_16_color_FFFFFF_t_70 2]
定义的菜单item文件 mymenu.xml

<?xml version="1.0" encoding="utf-8"?>
    <menu xmlns:android="http://schemas.android.com/apk/res/android" >
        <item android:id="@+id/add" android:title="添加"></item>
        <item android:id="@+id/delete" android:title="删除"></item>

    </menu>

进度条（圆形，水平）activity\_progress.xml

处理Activity类

package com.example.uidemo;

    import android.app.Activity;
    import android.os.Bundle;
    import android.view.View;
    import android.widget.LinearLayout;
    import android.widget.ProgressBar;
    import android.widget.SeekBar;
    import android.widget.SeekBar.OnSeekBarChangeListener;

    public class ProgressActivity extends Activity {

    	private SeekBar sb_progress_loading;
    	private LinearLayout ll_progress_loading;
    	private ProgressBar pb_progress_loading;
    	private OnSeekBarChangeListener onSeekBarChangeListener = new OnSeekBarChangeListener() {
    		@Override
    		public void onStopTrackingTouch(SeekBar seekBar) {
    			int progress = sb_progress_loading.getProgress();
    			pb_progress_loading.setProgress(progress);
    			if(progress==sb_progress_loading.getMax()){
    				//ll_progress_loading.setVisibility(View.INVISIBLE);// 不可见，但占空间
    				ll_progress_loading.setVisibility(View.GONE);// 不可见，不占空间
    			}else{
    				ll_progress_loading.setVisibility(View.VISIBLE);
    			}
    		}

    		@Override
    		public void onStartTrackingTouch(SeekBar seekBar) {

    		}

    		@Override
    		public void onProgressChanged(SeekBar seekBar, int progress,
    				boolean fromUser) {

    		}
    	};
    	@Override
    	protected void onCreate(Bundle savedInstanceState) {
    		super.onCreate(savedInstanceState);
    		setContentView(R.layout.activity_progress);

    		sb_progress_loading = (SeekBar) findViewById(R.id.sb_progress_loading);
    		ll_progress_loading = (LinearLayout) findViewById(R.id.ll_progress_loading);
    		pb_progress_loading = (ProgressBar) findViewById(R.id.pb_progress_loading);
    		sb_progress_loading.setOnSeekBarChangeListener(onSeekBarChangeListener );
    	}
    }

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw_size_16_color_FFFFFF_t_70 3]

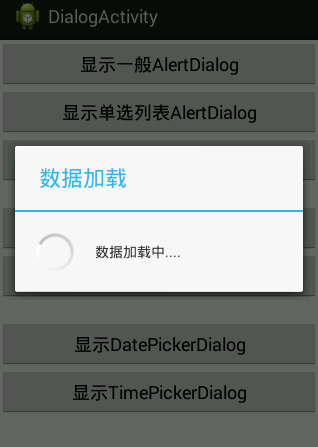

对话框
activity\_dialog.xml

处理类
DialogActivity.java

package com.example.uidemo;

    import java.util.Calendar;

    import android.app.Activity;
    import android.app.AlertDialog;
    import android.app.DatePickerDialog;
    import android.app.DatePickerDialog.OnDateSetListener;
    import android.app.ProgressDialog;
    import android.app.TimePickerDialog;
    import android.app.TimePickerDialog.OnTimeSetListener;
    import android.content.DialogInterface;
    import android.os.Bundle;
    import android.util.Log;
    import android.view.View;
    import android.widget.DatePicker;
    import android.widget.EditText;
    import android.widget.TimePicker;
    import android.widget.Toast;

    public class DialogActivity extends Activity {

    	@Override
    	protected void onCreate(Bundle savedInstanceState) {
    		super.onCreate(savedInstanceState);
    		setContentView(R.layout.activity_dialog);
    	}

    	// 显示一般AlertDialog
    	public void showAD(View v) {
    		new AlertDialog.Builder(this).setTitle("删除数据").setMessage("你确定要删除数据吗？")
    				.setPositiveButton("确定", new DialogInterface.OnClickListener() {

    					@Override
    					public void onClick(DialogInterface dialog, int which) {
    						Toast.makeText(DialogActivity.this, "删除数据", 0).show();
    					}
    				})
    				.setNegativeButton("取消", new DialogInterface.OnClickListener() {

    					@Override
    					public void onClick(DialogInterface dialog, int which) {
    						Toast.makeText(DialogActivity.this, "取消删除数据", 0).show();

    					}
    				}).show();
    	}

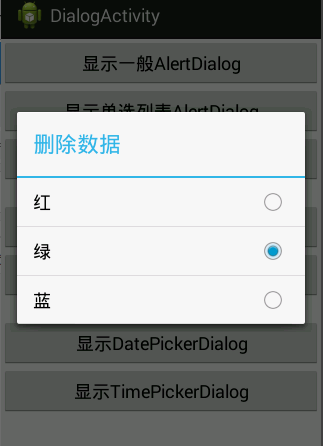

    	// 显示单选列表AlertDialog
    	public void showLD(View v) {
    		final String[] items = {  "红", "绿", "蓝" };
    		new AlertDialog.Builder(this)
    				.setTitle("删除数据")
    				.setSingleChoiceItems(items, 1,
    						new DialogInterface.OnClickListener() {

    							@Override
    							public void onClick(DialogInterface dialog,
    									int which) {
    								Toast.makeText(DialogActivity.this,
    										items[which], 0).show();
    								dialog.dismiss();// 关闭弹窗
    							}
    						}).show();
    	}

    	// 显示自定义AlertDialog
    	public void showCD(View v) {
    		View view = View.inflate(this, R.layout.dialog_view, null);
    		final EditText userET = (EditText) view.findViewById(R.id.et_username);
    		final EditText pwdET = (EditText) view.findViewById(R.id.et_password);

    		new AlertDialog.Builder(this).setView(view)
    				.setNegativeButton("取消", null)
    				.setPositiveButton("确定", new DialogInterface.OnClickListener() {

    					@Override
    					public void onClick(DialogInterface dialog, int which) {
    						String username = userET.getText().toString();
    						String password = pwdET.getText().toString();
    						// 提示输入项的值
    						Toast.makeText(DialogActivity.this,
    								username + " : " + password, 0).show();
    						dialog.dismiss();
    					}
    				}).show();
    	}

    	// 显示圆形进度ProgressDialog
    	public void showPD(View v) {
    		final ProgressDialog progressDialog = ProgressDialog.show(this, "数据加载",
    				"数据加载中....");
    		// 长时间的工作不能在主线程做, 得启动分线程完成
    		new Thread() {
    			public void run() {
    				for (int i = 0; i < 10; i++) {
    					try {
    						Thread.sleep(100);
    					} catch (InterruptedException e) {
    						// TODO Auto-generated catch block
    						e.printStackTrace();
    					}
    				}
    				progressDialog.dismiss(); // 方法在分线程执行, 但内部使用Handler实现主线程移除dialog
    				// Toast.makeText(DialogActivity.this, "加载完成了!!!", 0).show();
    				// 更新UI，不能直接使用Toast，上面执行程序会报错，因为不能在子线程更新UI
    				runOnUiThread(new Runnable() {
    					@Override
    					public void run() { // 在主线程执行
    						Toast.makeText(DialogActivity.this, "加载完成了!!!", 0)
    								.show();
    					}
    				});
    			};
    		}.start();
    	}

    	// 显示水平进度ProgressDialog
    	public void showPD2(View v) {
    		final ProgressDialog progressDialog = new ProgressDialog(this);
    		progressDialog.setTitle("huangbaokang");
    		progressDialog.setProgressStyle(ProgressDialog.STYLE_HORIZONTAL);
    		progressDialog.show();
    		// 4. 启动分线程, 加载数据, 并显示进度, 当加载完成移除dilaog
    		new Thread(new Runnable() {
    			@Override
    			public void run() {
    				int count = 20;
    				// 设置最大进度
    				progressDialog.setMax(count);
    				for (int i = 0; i < count; i++) {
    					// 休息一会
    					try {
    						Thread.sleep(100);
    					} catch (InterruptedException e) {
    						e.printStackTrace();
    					}
    					progressDialog.setProgress(progressDialog.getProgress() + 1);
    				}
    				// 移除dialog
    				progressDialog.dismiss();
    				runOnUiThread(new Runnable() {
    					@Override
    					public void run() { // 在主线程执行
    						Toast.makeText(DialogActivity.this, "加载完成了!!!", 0)
    								.show();
    					}
    				});
    			}
    		}).start();
    	}

    public void showDateAD(View v) {

    		//创建日历对象
    		Calendar calendar = Calendar.getInstance();
    		//得到当前的年月日
    		int year = calendar.get(Calendar.YEAR);//得到年份
    		int monthOfYear = calendar.get(Calendar.MONTH);//月
    		int dayOfMonth = calendar.get(Calendar.DAY_OF_MONTH);//得到日
    		Log.e("TAG", year+"-"+monthOfYear+"-"+dayOfMonth);

    		new DatePickerDialog(this, new OnDateSetListener() {

    			@Override
    			public void onDateSet(DatePicker view, int year, int monthOfYear,
    					int dayOfMonth) {
    				Log.e("TAG", year+"--"+(monthOfYear+1)+"--"+dayOfMonth);
    			}
    		}, year, monthOfYear, dayOfMonth).show();
    	}

    	public void showTimeAD(View v) {

    		Calendar c = Calendar.getInstance();
    		int hourOfDay = c.get(Calendar.HOUR_OF_DAY); //得到小时
    		int minute = c.get(Calendar.MINUTE); //得到分钟
    		Log.e("TAG", hourOfDay+":"+minute);
    		new TimePickerDialog(this, new OnTimeSetListener() {

    			@Override
    			public void onTimeSet(TimePicker view, int hourOfDay, int minute) {
    				Log.e("TAG", hourOfDay+"::"+minute);
    			}
    		}, hourOfDay, minute, true).show();
    	}
    }

一般AlertDialog
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw_size_16_color_FFFFFF_t_70 4]
显示单选列表AlertDialog
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw_size_16_color_FFFFFF_t_70 5]
显示自定义AlertDialog
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw_size_16_color_FFFFFF_t_70 6]
圆形进度条ProgressDialog
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw_size_16_color_FFFFFF_t_70 7]
水平进度条ProgressDialog

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw_size_16_color_FFFFFF_t_70 8]

时间对话框DatePickerDialog
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw_size_16_color_FFFFFF_t_70 9]

日期对话框TimePickerDialog
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw_size_16_color_FFFFFF_t_70 10]
清单文件

<?xml version="1.0" encoding="utf-8"?>
    <manifest xmlns:android="http://schemas.android.com/apk/res/android" package="com.example.uidemo" android:versionCode="1" android:versionName="1.0" >

        <uses-sdk android:minSdkVersion="18" android:targetSdkVersion="18" />

        <application android:allowBackup="true" android:icon="@drawable/ic_launcher" android:label="@string/app_name" android:theme="@style/AppTheme" >
            <activity android:name=".MainActivity" android:label="@string/app_name" >
                <intent-filter>
                    <action android:name="android.intent.action.MAIN" />

                    <category android:name="android.intent.category.LAUNCHER" />
                </intent-filter>
            </activity>
            <activity android:name=".SimpleActivity" android:label="@string/title_activity_simple" >
            </activity>
            <activity android:name=".MenuActivity" android:label="@string/title_activity_menu" >
            </activity>
            <activity android:name=".ProgressActivity" android:label="@string/title_activity_progress" >
            </activity>
            <activity android:name=".DialogActivity" android:label="@string/title_activity_dialog" >
            </activity>
        </application>

    </manifest>

[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw_size_16_color_FFFFFF_t_70]: /images/20221120/4c771ff38cf5498d91464714ae8cbd35.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw_size_16_color_FFFFFF_t_70 1]: /images/20221120/cc16060600be4e67b8e989ebd5f12703.png
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw_size_16_color_FFFFFF_t_70 2]: https://img-blog.csdnimg.cn/20201216113459424.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw_size_16_color_FFFFFF_t_70 3]: https://img-blog.csdnimg.cn/20201216113811932.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw_size_16_color_FFFFFF_t_70 4]: https://img-blog.csdnimg.cn/20201216114000640.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw_size_16_color_FFFFFF_t_70 5]: https://img-blog.csdnimg.cn/20201216114044684.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw_size_16_color_FFFFFF_t_70 6]: https://img-blog.csdnimg.cn/20201216114113544.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw_size_16_color_FFFFFF_t_70 7]: https://img-blog.csdnimg.cn/20201216114201137.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw_size_16_color_FFFFFF_t_70 8]: https://img-blog.csdnimg.cn/20201216114331920.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw_size_16_color_FFFFFF_t_70 9]: https://img-blog.csdnimg.cn/20201216114343680.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw==,size_16,color_FFFFFF,t_70
[watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw_size_16_color_FFFFFF_t_70 10]: https://img-blog.csdnimg.cn/20201216114358249.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2h1YW5nYmFva2FuZw==,size_16,color_FFFFFF,t_70
