Maven配置以及在IDEA中创建Maven项目

男娘i 2022-11-10 14:18 332阅读 0赞

## Maven配置以及在IDEA中的引入 ##

一、下载地址：**https://maven.apache.org/**

二、**配置Maven环境变量**
桌面——此电脑——右键——属性——高级系统设置
——高级——环境变量——点击系统变量下的新建
——配置变量名（**MAVEN\_HOME** ）
和变量值（自己下载MAVEN的路径）点击确定
——找系统变量里面的path（path不区分大小写）
——点击path然后点击右下角的编辑
——点击新建加入 %MAVEN\_HOME%\\bin 后点击确定

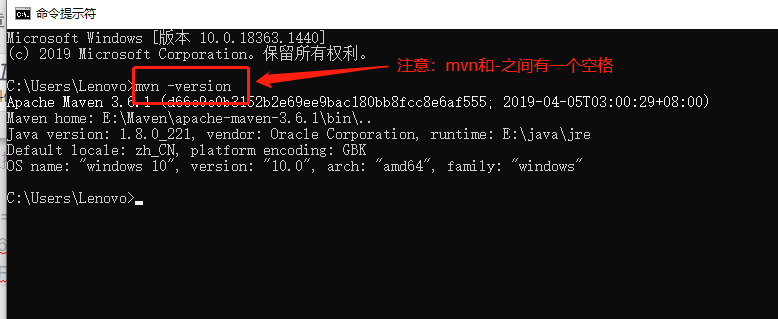

——cmd中输入（**mvn -version**）检验是否配置成功。

[**（注意：小白新手可以参考https://blog.csdn.net/weixin_51483932/article/details/114898576?utm_source=app&app_version=4.5.4  中的有些路径复制以免出错）](https://blog.csdn.net/weixin_51483932/article/details/114898576?utm_source=app&app_version=4.5.4)

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl81MTQ4MzkzMg_size_16_color_FFFFFF_t_70]

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl81MTQ4MzkzMg_size_16_color_FFFFFF_t_70 1]
![在这里插入图片描述][20210318182613162.png]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl81MTQ4MzkzMg_size_16_color_FFFFFF_t_70 2]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl81MTQ4MzkzMg_size_16_color_FFFFFF_t_70 3]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl81MTQ4MzkzMg_size_16_color_FFFFFF_t_70 4]
**三、Maven基础目录**

![在这里插入图片描述][20210318184345354.png]
**四、Maven基础配置**

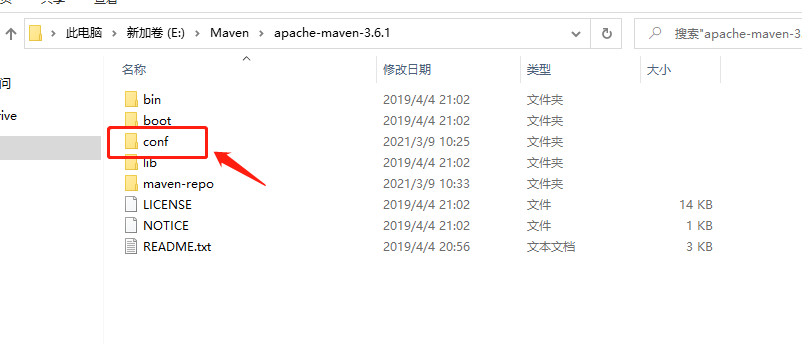

打开Maven下载目录点击conf文件夹
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl81MTQ4MzkzMg_size_16_color_FFFFFF_t_70 5]
点击setting.xml
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl81MTQ4MzkzMg_size_16_color_FFFFFF_t_70 6]

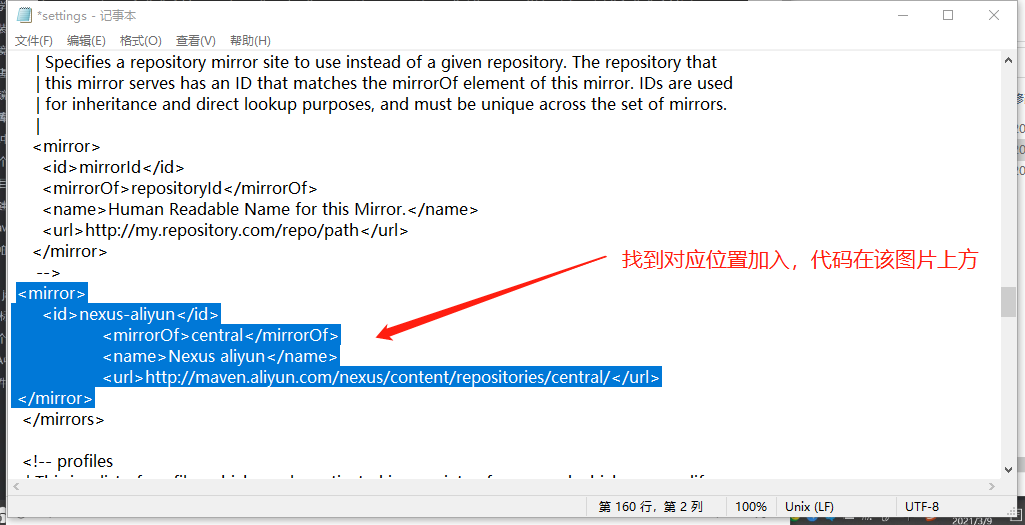

nexus-aliyun
central
Nexus aliyun
http://maven.aliyun.com/nexus/content/repositories/central/

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl81MTQ4MzkzMg_size_16_color_FFFFFF_t_70 7]

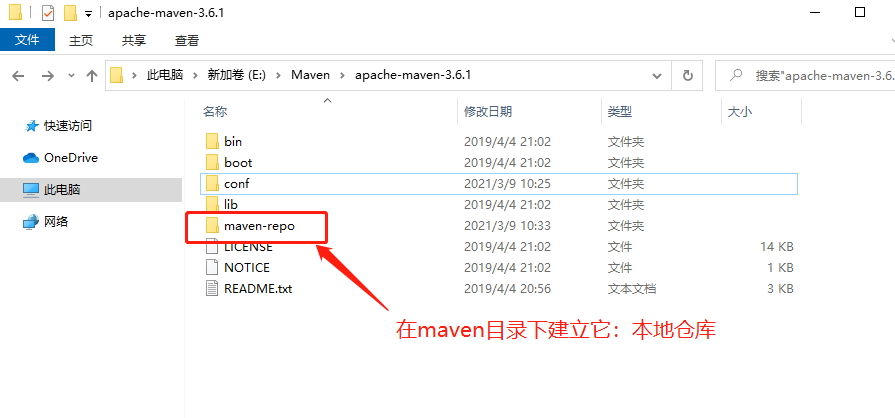

建立一个本地仓库，本地仓库里面的东西已经在本博客分享的文件里，下载弄到里面即可。
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl81MTQ4MzkzMg_size_16_color_FFFFFF_t_70 8]

<localRepository>本地仓库路径</localRepository>

![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl81MTQ4MzkzMg_size_16_color_FFFFFF_t_70 9]

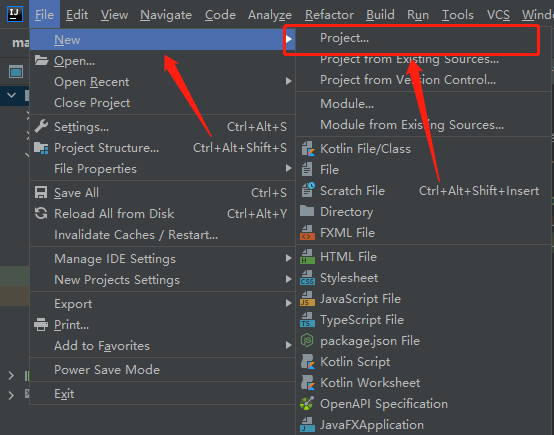

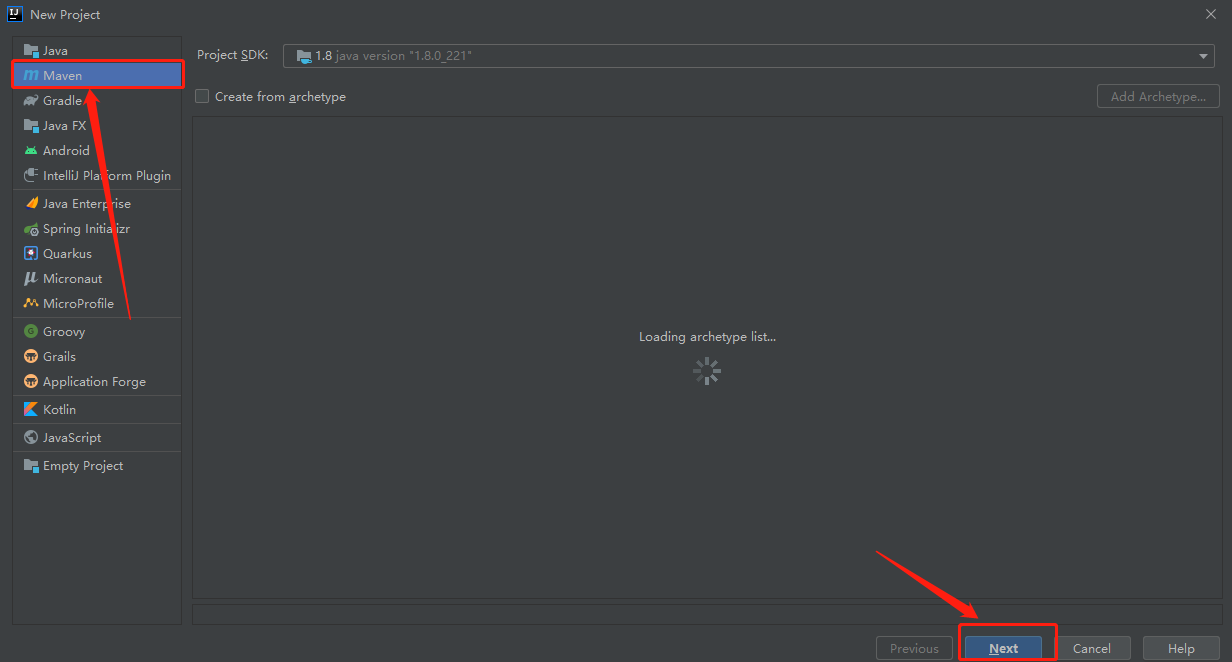

**五、创建Maven项目**
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl81MTQ4MzkzMg_size_16_color_FFFFFF_t_70 10]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl81MTQ4MzkzMg_size_16_color_FFFFFF_t_70 11]
![在这里插入图片描述][watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl81MTQ4MzkzMg_size_16_color_FFFFFF_t_70 12]
注意：File——settings中搜索Maven检验以下路径
Maven home directory：Maven地址
User setting file：上面基础配置时打开的setting.xml的路径
Local repository: 本地仓库的路径
