SpringBoot整合Druid
在整合的mybatis的基础上对工程进行改造，参考链接：
https://blog.csdn.net/qq_21067307/article/details/86292779
一、引入druid的起步依赖
<!--druid--><dependency><groupId>com.alibaba</groupId><artifactId>druid-spring-boot-starter</artifactId><version>1.1.10</version></dependency>
二、设置druid相关配置
# datasource#spring.datasource.url=jdbc:mysql://127.0.0.1:3306/zrk?useUnicode=true&characterEncoding=utf-8&allowMultiQueries=true#spring.datasource.username=root#spring.datasource.password=root#spring.datasource.driver-class-name=com.mysql.jdbc.Driver# druidspring.datasource.druid.url=jdbc:mysql://127.0.0.1:3306/zrk?useUnicode=true&characterEncoding=utf-8&allowMultiQueries=truespring.datasource.druid.username=rootspring.datasource.druid.password=rootspring.datasource.druid.driver-class-name=com.mysql.jdbc.Driverspring.datasource.druid.filters=statspring.datasource.druid.maxActive=20spring.datasource.druid.initialSize=10spring.datasource.druid.maxWait=60000spring.datasource.druid.minIdle=1spring.datasource.druid.timeBetweenEvictionRunsMillis=60000spring.datasource.druid.minEvictableIdleTimeMillis=300000spring.datasource.druid.testWhileIdle=truespring.datasource.druid.testOnBorrow=truespring.datasource.druid.testOnReturn=falsespring.datasource.druid.poolPreparedStatements=truespring.datasource.druid.maxOpenPreparedStatements=20spring.datasource.druid.validationQuery=SELECT 1
三、启动服务验证
浏览器访问接口：
访问druid监控页面：
http://127.0.0.1:8080/druid/index.html
四、说明
(1)如果使用druid的起步依赖，就可以不用自己配置druid.url等属性配置文件
(2)springboot已经有druid的自动配置文件，如果熟悉自动配置原理，druid可以配置的参数可以参考DruidDataSource.java
(3)如果(2)不太了解，通用方法了解可以配置的参数方法如下：
在application.properties文件中，按住Ctrl点击相应属性则跳转到属性配置类，如点击spring.datasource.druid.url，
跳转到DruidDataSourceWrapper.java类
@ConfigurationProperties("spring.datasource.druid")class DruidDataSourceWrapper extends DruidDataSource implements InitializingBean {@Autowiredprivate DataSourceProperties basicProperties;...
看代码可知其继承DruidDataSource类，进入DruidDataSource.java,可以看到configFromPropety方法
public void configFromPropety(Properties properties) {{String property = properties.getProperty("druid.name");if (property != null) {this.setName(property);}}{String property = properties.getProperty("druid.url");if (property != null) {this.setUrl(property);}}{String property = properties.getProperty("druid.username");if (property != null) {this.setUsername(property);}}...
这里只是举例，具体可以学习springboot自动配置原理。
五、安全
对于监控信息有必要采取安全保护，可以配置用户名跟密码、允许某些ip进行访问、拒绝某些链接进行访问等，这样对信息安全就有了一定的安全保障。
可以添加一个druid的管理页面的servlet(StatViewServlet)进行相关配置，下面介绍两种方法配置。
（1）编写配置类并注册servlet进行属性设置
配置类及注册的servlet逻辑如下：
@Configurationpublic class DruidConfig {@Beanpublic ServletRegistrationBean statViewServlet(){ServletRegistrationBean bean = new ServletRegistrationBean(new StatViewServlet(),"/druid/*");Map<String,String> initParam = new HashMap<>();initParam.put("loginUsername","zrk");initParam.put("loginPassword","123456");// initParam.put("allow","");// initParam.put("deny","");bean.setInitParameters(initParam);return bean;}}
重启项目，访问如下：
输入代码中设置的用户名密码即可
（2）直接通过配置文件进行配置
1、配置很简单直接修改配置文件即可，现在先看下原理：
查看druid的自动配置类DruidDataSourceAutoConfigure：
@Configuration@ConditionalOnClass(DruidDataSource.class)@AutoConfigureBefore(DataSourceAutoConfiguration.class)@EnableConfigurationProperties({ DruidStatProperties.class, DataSourceProperties.class})@Import({ DruidSpringAopConfiguration.class,DruidStatViewServletConfiguration.class,DruidWebStatFilterConfiguration.class,DruidFilterConfiguration.class})public class DruidDataSourceAutoConfigure {private static final Logger LOGGER = LoggerFactory.getLogger(DruidDataSourceAutoConfigure.class);@Bean(initMethod = "init")@ConditionalOnMissingBeanpublic DataSource dataSource() {LOGGER.info("Init DruidDataSource");return new DruidDataSourceWrapper();}}
通过@Import注解引入了一些配置类，其中包括了DruidStatViewServletConfiguration.class ：
@ConditionalOnWebApplication@ConditionalOnProperty(name = "spring.datasource.druid.stat-view-servlet.enabled", havingValue = "true", matchIfMissing = true)public class DruidStatViewServletConfiguration {@Beanpublic ServletRegistrationBean statViewServletRegistrationBean(DruidStatProperties properties) {DruidStatProperties.StatViewServlet config = properties.getStatViewServlet();ServletRegistrationBean registrationBean = new ServletRegistrationBean();registrationBean.setServlet(new StatViewServlet());registrationBean.addUrlMappings(config.getUrlPattern() != null ? config.getUrlPattern() : "/druid/*");if (config.getAllow() != null) {registrationBean.addInitParameter("allow", config.getAllow());}if (config.getDeny() != null) {registrationBean.addInitParameter("deny", config.getDeny());}if (config.getLoginUsername() != null) {registrationBean.addInitParameter("loginUsername", config.getLoginUsername());}if (config.getLoginPassword() != null) {registrationBean.addInitParameter("loginPassword", config.getLoginPassword());}if (config.getResetEnable() != null) {registrationBean.addInitParameter("resetEnable", config.getResetEnable());}return registrationBean;}}
分析此配置类，注册了一个servlet,其实就是druid监控页面的servlet,registrationBean.setServlet(new StatViewServlet());
相关参数取自config变量，即properties.getStatViewServlet();，是配置文件DruidStatProperties的内部类，并且配置文件绑定了以spring.datasource.druid为前缀的属性，所以在配置文件中对其属性进行配置即可。
2、配置相关属性
spring.datasource.druid.stat-view-servlet.login-username=zrkspring.datasource.druid.stat-view-servlet.login-password=123

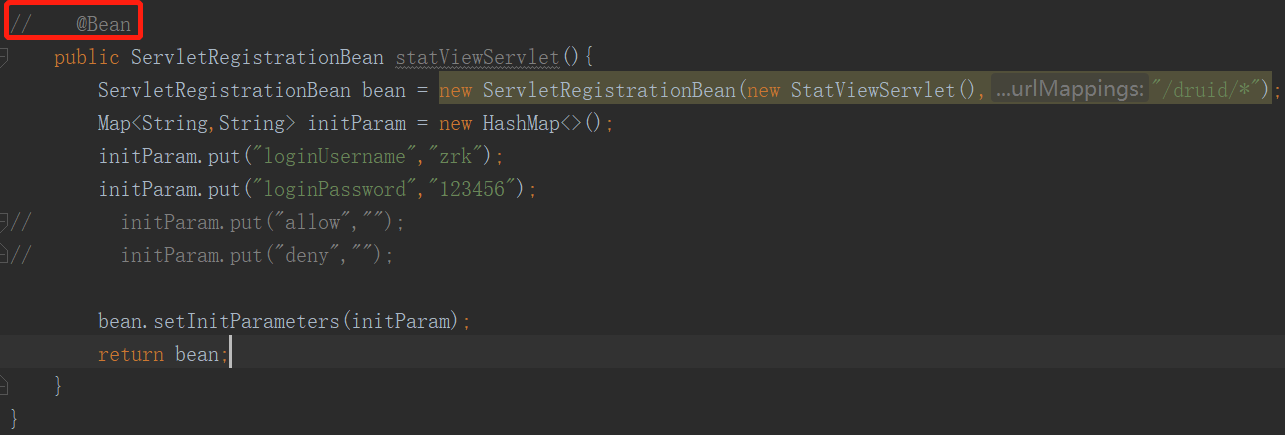

将原先写的配置类注释掉，重启项目访问,输入配置文件中的用户名跟密码即可登录
